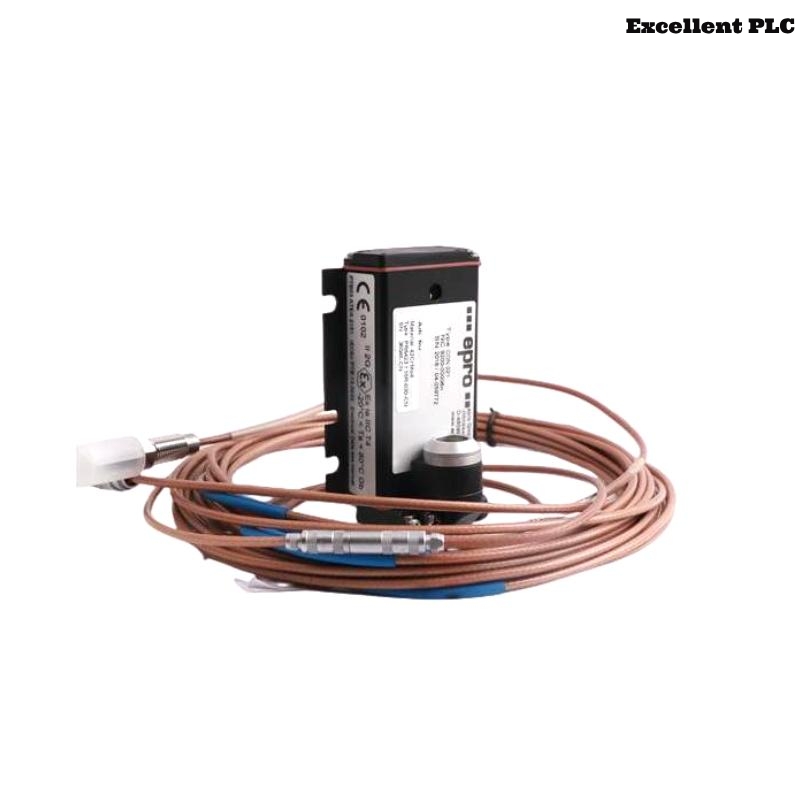

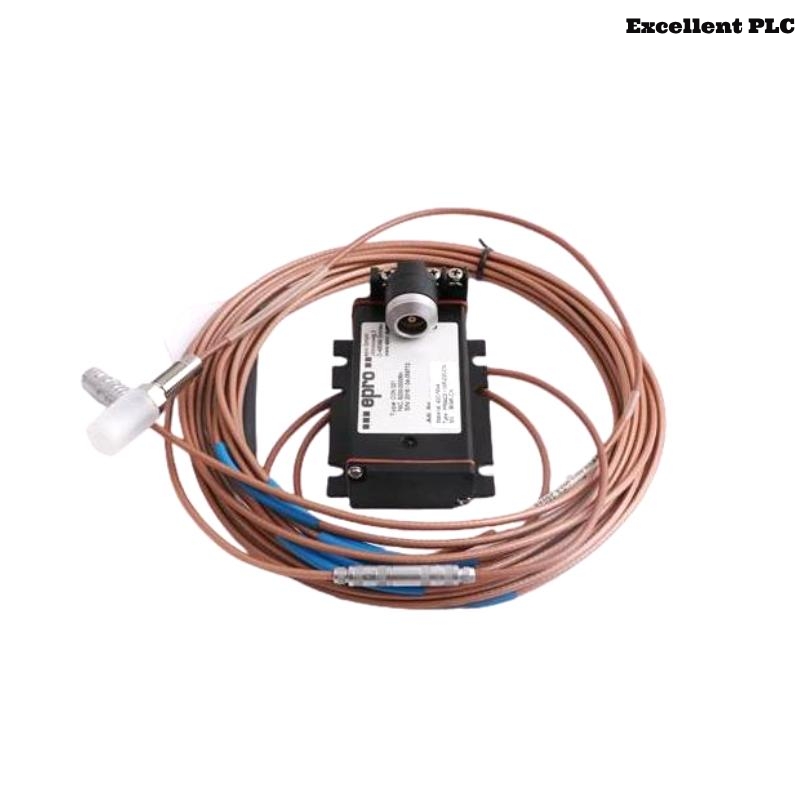

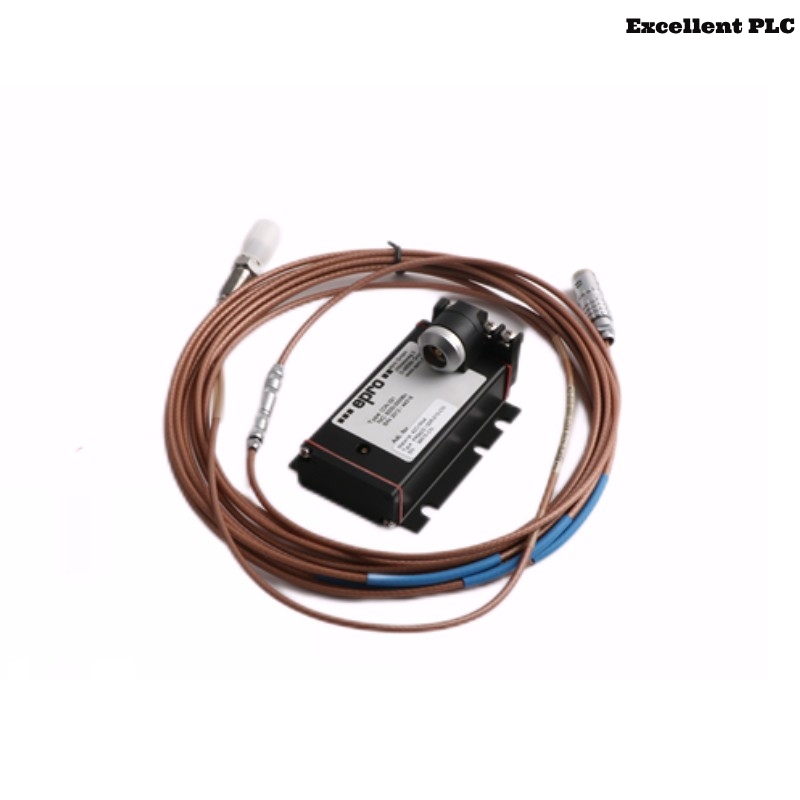

Epro PR6423/10R-131 8mm Eddy Current Sensor

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Epro PR6423/10R-131 is a non-contact eddy current displacement sensor designed to provide accurate and reliable measurements of shaft vibration and axial displacement in critical rotating machinery. Belonging to the highly respected PR6423 series from Epro (now part of Emerson), this model is frequently used in turbine generators, compressors, pumps, and other dynamic machinery where monitoring shaft behavior is essential for predictive maintenance and protection systems.

The sensor operates based on the eddy current principle, which allows it to detect changes in the distance between the sensor probe and the rotating target (typically the shaft) without physical contact. This ensures longevity, accuracy, and minimal interference in high-speed environments. With an 8mm tip diameter and a 10R configuration, the PR6423/10R-131 is optimized for industrial-grade use and can be paired with CON-series extension cables and CON0xx driver modules to form a complete displacement measurement system.

---

Product Specifications

Parameter	Specification
Model Number	PR6423/10R-131
Sensor Type	Eddy Current Displacement Sensor
Sensing Principle	Non-contact eddy current
Tip Diameter	8 mm
Sensing Range	Typically 0.25 mm to 2.0 mm (depending on setup)
Linear Range	±1 mm (typical with matching driver and extension)
Nominal Sensitivity	7.87 mV/µm (depends on driver and calibration)
Temperature Range (Operation)	-35°C to +180°C (standard version)
Material	Stainless steel housing
Electrical Connector	Integrated with thread connection (matched to CON cable)
Thread Type	M14x1 or custom per order
Cable Length	Typically configured with 5m, 7m, or 9m extension cable
Vibration Tolerance	Up to 20 g (dependent on mounting and installation)
Environmental Protection	IP65 (with correct mounting and connection)
Sensor Head Diameter	8 mm
Weight	0.1 kg
Compatible Drivers	CON011, CON021, CON031 series
Approvals	CE, ATEX (depending on version)



---

Product Applications

The PR6423/10R-131 is extensively used across industries that rely on high-speed rotating equipment. Its typical application areas include:

• Power Generation: Steam and gas turbines for shaft vibration and thrust monitoring.

• Oil & Gas: Compressors and turbo expanders where machinery protection is critical.

• Petrochemical Industry: Monitoring pumps and large rotating agitators in explosive zones.

• Pulp & Paper: High-speed rolls and dryer drums where shaft alignment and vibration must be closely monitored.

• Industrial Manufacturing: CNC spindles and other precision rotary machinery.

• Water Utilities: Pumps and turbines in hydropower stations.

This sensor is typically integrated into a comprehensive condition monitoring system to enable predictive maintenance and early fault detection, reducing unplanned downtimes and repair costs.

---

Product Advantages

• Non-Contact Design: Ensures zero wear and extended service life in harsh environments.

• High Temperature Operation: Suitable for elevated process temperatures up to 180°C.

• Excellent Linearity and Sensitivity: Ensures accurate shaft vibration and position measurements.

• Flexible Installation Options: Comes with various thread types and compatible extension cables.

• Proven Industrial Reliability: Trusted by OEMs and industries worldwide for over two decades.

• Scalable and Modular: Can be easily expanded with other CON series components.

• Explosion-Proof Variants Available: ATEX-rated versions for hazardous area usage.

• Compact Footprint: Ideal for tight installation spaces or retrofitting.

---

Frequently Asked Questions (FAQ)

1. What does the “10R-131” in the part number PR6423/10R-131 mean?

   • The “10R” indicates the sensor tip type and design variation, while “131” refers to specific configuration or cable connection interface.

2. Is the PR6423/10R-131 compatible with all CON series drivers?

   • It is compatible with most CON drivers like CON011, CON021, and CON031, provided they match the calibration and extension length.

3. Can this sensor operate at high temperatures?

   • Yes, it can operate reliably at temperatures up to 180°C. Special high-temp versions are also available.

4. Does this sensor support hazardous area installations?

   • Explosion-proof (ATEX) variants are available for use in hazardous environments.

5. What is the difference between the PR6423/10R-131 and other PR6423 models?

   • Differences lie in thread type, cable connection type, and tip configuration to suit various mechanical installations.

6. How is this sensor calibrated?

   • It is typically calibrated with the driver module during system setup using a micrometer or gap simulator tool.

7. Is the PR6423/10R-131 suitable for long-distance cable installations?

   • Yes, when used with matched extension cables and a compatible driver module.

8. What maintenance does this sensor require?

   • Minimal; periodic inspection and cleaning are recommended, especially in dusty or oily environments.

9. Can this sensor detect both vibration and axial displacement?

   • Yes, depending on mounting direction: radial for vibration, axial for displacement.

10. How can I ensure optimal performance of this sensor in my application?

• Ensure proper alignment, mounting torque, and use only recommended accessories (extension cables and drivers).

---
