Product Overview

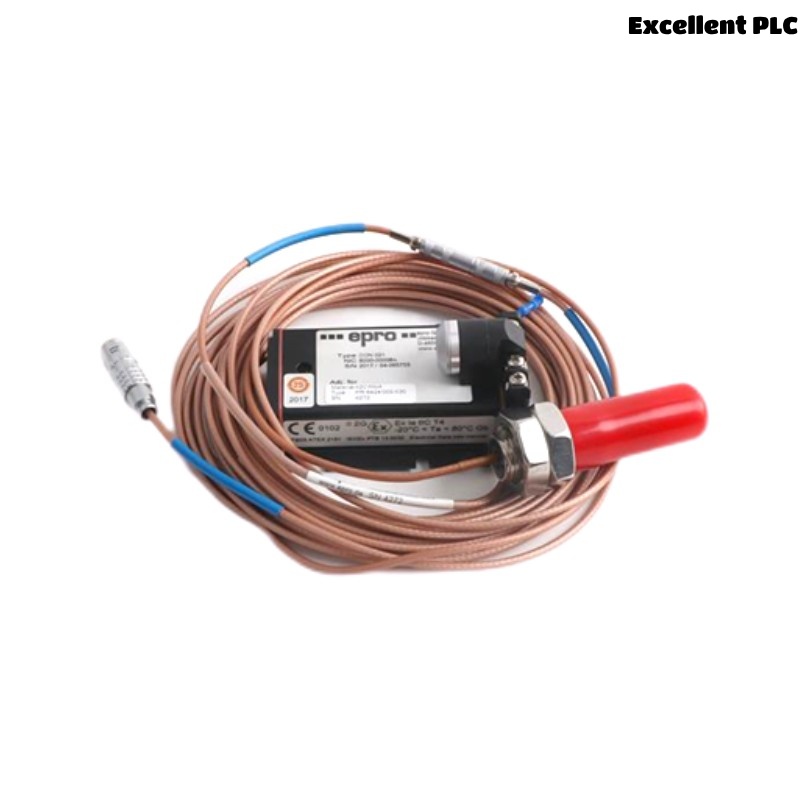

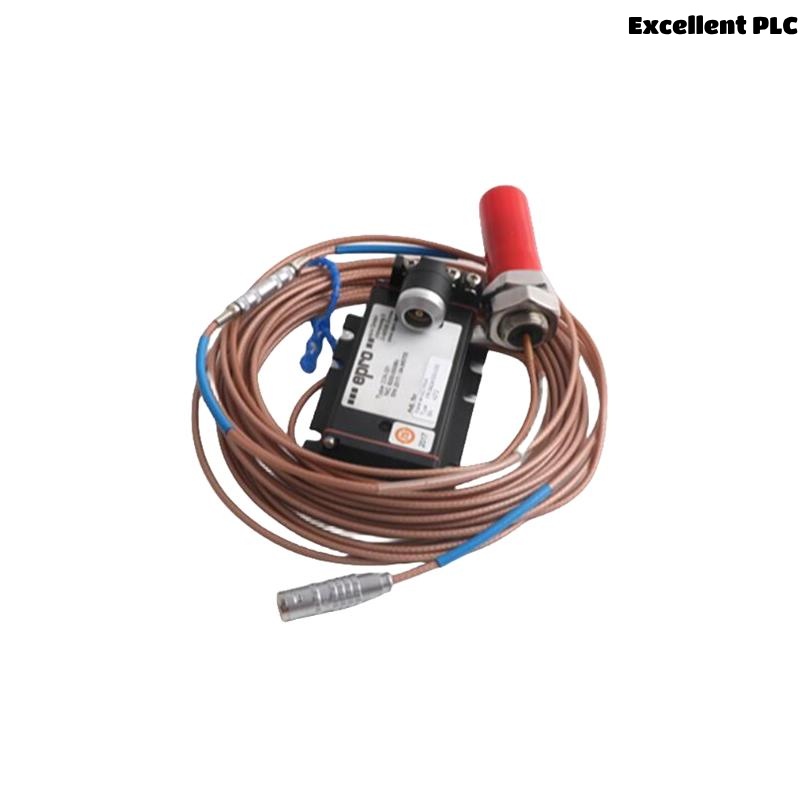

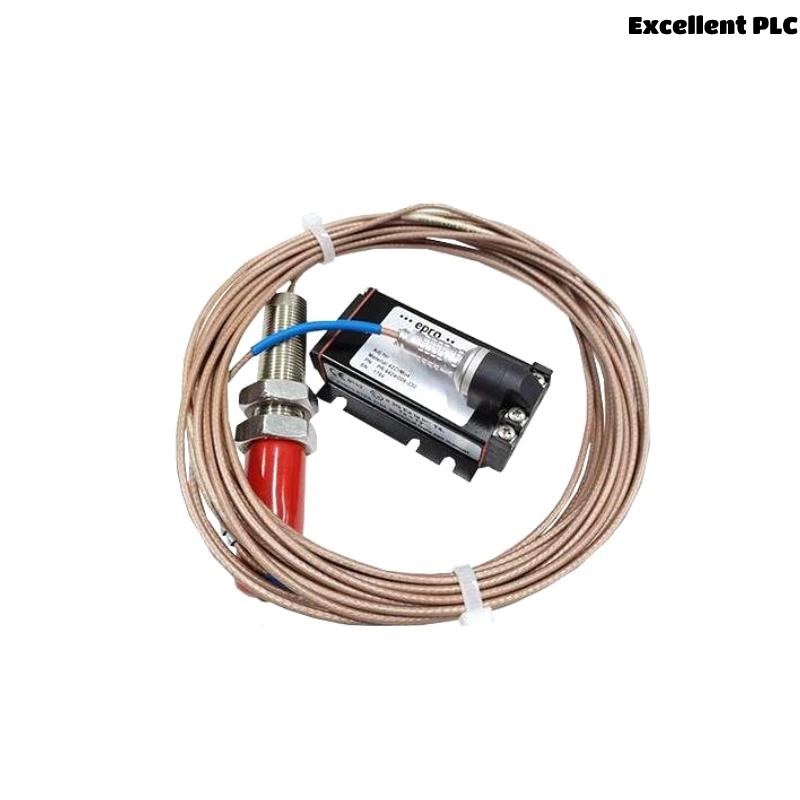

The Epro PR6424/000-121+CON031 is a high-precision 16mm Eddy Current Sensor designed for non-contact measurement of displacement, position, or vibration in rotating machinery. This sensor assembly combines the PR6424/000-121 sensor probe with the CON031 connector, offering a reliable and robust sensing solution for industrial condition monitoring.
Manufactured with advanced eddy current technology, this sensor provides stable, accurate readings even in harsh environments with contaminants such as dust, oil, and moisture. The 16mm probe length is optimized for a balance of sensitivity and installation flexibility, suitable for detecting shaft movement or other critical parameters.
The sensor’s durable construction, including stainless steel and high-grade materials, ensures long service life under demanding conditions. The integrated CON031 connector simplifies installation and maintenance by providing secure, reliable electrical connections.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PR6424/000-121+CON031 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Range | ±2 mm (typical, varies by setup) |
| Frequency Response | DC to 10 kHz |
| Output Type | Analog Voltage (Linear Output) |
| Operating Temperature | -40°C to +125°C (-40°F to +257°F) |
| Connector Type | CON031 Connector |
| Housing Material | Stainless Steel and high-grade polymer |
| Weight | 0.32 kg |
| Cable Length | Depends on configuration, typically customizable |
| Ingress Protection | IP67 (Dust-tight, waterproof up to 1m immersion) |
| Certification | CE, RoHS Compliant |
Applications
The PR6424/000-121+CON031 sensor is widely utilized across many industrial sectors, including:
-
Rotating Machinery Monitoring: Used to measure shaft displacement, runout, or vibration on turbines, compressors, and motors.
-
Power Generation Plants: Key sensor for vibration monitoring on steam and gas turbines.
-
Oil and Gas Industry: Employed in condition monitoring for pumps and drilling equipment, where reliable data is critical.
-
Manufacturing: Monitoring high-speed spindles and precision machinery to avoid downtime and catastrophic failure.
-
Aerospace and Defense: Used in test rigs and lab environments for highly accurate, non-contact measurement.
-
Research & Development: Provides precise displacement data for prototype and product development testing.
Advantages
-
High Precision and Stability: Eddy current technology offers repeatable, accurate measurements with minimal drift over time.
-
Robust Environmental Resistance: IP67 rating protects sensor from dust ingress and temporary immersion in water.
-
Compact Design: Small form factor allows installation in tight or difficult-to-access spaces.
-
Easy Installation and Maintenance: CON031 connector enables quick and secure wiring without complex tools.
-
Wide Operating Temperature: Suitable for extreme environments, from sub-zero cold to high industrial heat.
-
Long Service Life: High-quality materials resist corrosion and mechanical wear.
-
Versatile Applications: Compatible with multiple monitoring systems and configurations.
Frequently Asked Questions (FAQ)
-
What is the maximum measurement range of this sensor?
The typical measurement range is ±2 mm, but this can vary depending on the installation setup. -
Is the sensor suitable for underwater use?
It has an IP67 rating, allowing it to withstand temporary immersion in water up to 1 meter depth. -
Does the sensor come with the cable included?
Cable length is usually customized per order and may not be included by default. -
What kind of output signal does the sensor provide?
The sensor outputs an analog voltage signal proportional to displacement. -
Can this sensor operate in extremely high temperatures?
It can reliably operate in temperatures ranging from -40°C to +125°C. -
Is the sensor compatible with all condition monitoring systems?
It is compatible with most standard eddy current monitoring systems but should be verified case-by-case. -
What connector type is used, and how secure is it?
The CON031 connector provides a secure and vibration-resistant connection. -
Can the sensor be used outdoors?
Yes, with its IP67 protection, it is suitable for outdoor industrial environments. -
What materials are used in sensor construction?
The sensor uses stainless steel and high-grade polymer materials for durability. -
Is calibration required before installation?
Calibration may be required depending on the monitoring system and installation parameters.
Related Models
| Model Number | Description |
|---|---|
| PR6424/000-120+CON031 | 12 mm Eddy Current Sensor with CON031 connector |
| PR6424/000-121+CON021 | 16 mm Eddy Current Sensor with CON021 connector |
| PR6424/000-015+CON031 | 15 mm Eddy Current Sensor with CON031 connector |
| PR6424/000-020+CON031 | 20 mm Eddy Current Sensor with CON031 connector |
| PR6424/000-025+CON031 | 25 mm Eddy Current Sensor with CON031 connector |
| PR6424/000-121+CON041 | 16 mm Eddy Current Sensor with CON041 connector |
