Product Overview
The Epro PR6424/002-031+CON041 is a precision 16mm eddy current sensor designed for accurate and reliable measurement of displacement and vibration in industrial machinery. Featuring advanced eddy current technology, this sensor offers non-contact detection, providing a robust solution for condition monitoring and predictive maintenance across diverse industrial sectors.

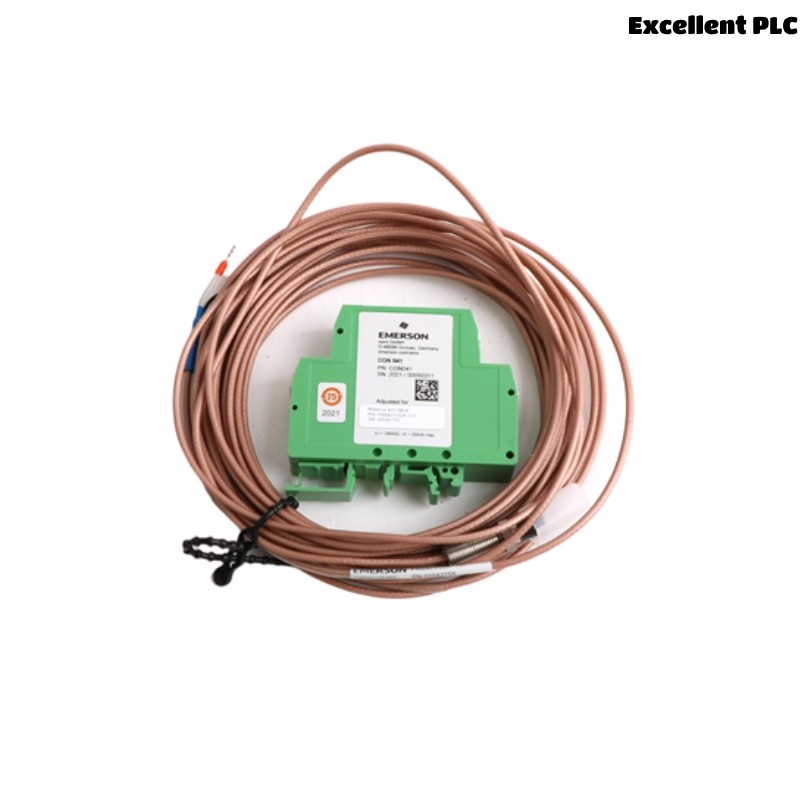

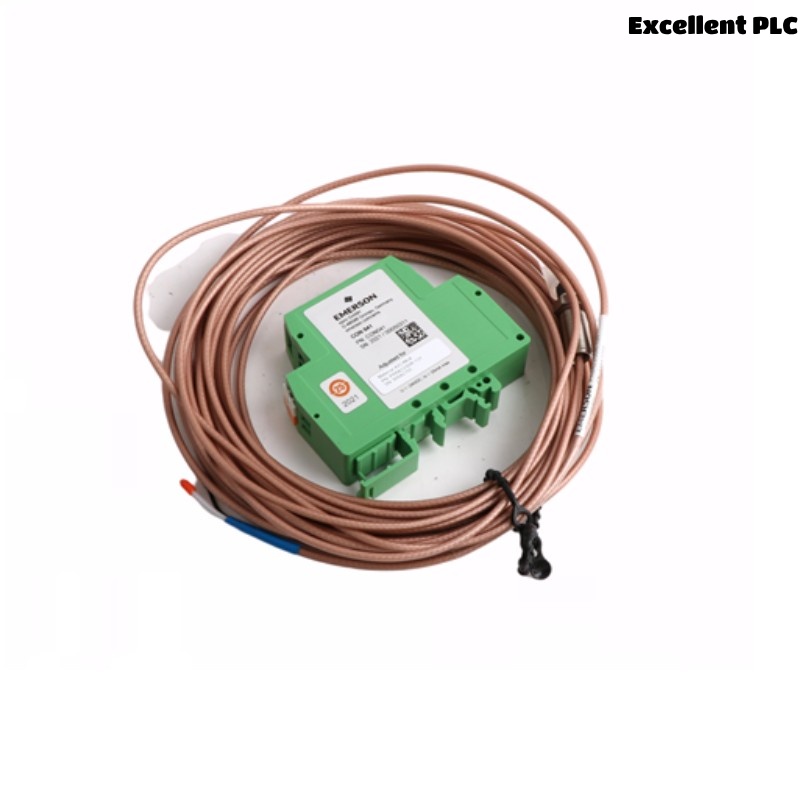

This particular model integrates the PR6424/002-031 sensor probe with the CON041 connector, facilitating secure electrical connection and simplified installation. The 16mm probe length provides a practical balance between sensitivity and mechanical robustness, suitable for monitoring critical components like shafts, bearings, and rotors.
Constructed with high-quality stainless steel and durable polymers, the sensor withstands harsh operating environments, including exposure to dust, moisture, and mechanical vibration. Its stable output and minimal signal drift make it well-suited for continuous, long-term monitoring applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | PR6424/002-031+CON041 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Range | ±2 mm (typical, installation dependent) |
| Frequency Response | DC to 10 kHz |
| Output Signal | Analog Voltage (Linear Output) |
| Operating Temperature | -40°C to +125°C (-40°F to +257°F) |
| Connector Type | CON041 Connector |
| Housing Material | Stainless Steel with polymer elements |
| Weight | 0.26 kg |
| Cable Length | Customizable based on customer requirements |
| Ingress Protection | IP67 (Dust-tight and water resistant) |
| Certifications | CE, RoHS Compliant |
Applications
The PR6424/002-031+CON041 sensor is widely deployed in numerous industrial environments, including but not limited to:
-
Rotating Equipment Monitoring: Provides critical displacement and vibration data on turbines, compressors, and generators.
-
Power Plants: Essential for condition-based monitoring of steam and gas turbines, improving reliability and preventing failures.
-
Oil & Gas: Monitors pumps, motors, and drilling machinery in harsh, challenging environments.
-
Manufacturing: Used on precision spindles and rotating machinery to detect early signs of wear or misalignment.
-
Aerospace Testing: Utilized in test benches and simulation setups requiring precise displacement measurement.
-
Research & Development: Valuable tool for measuring dynamic components and validating mechanical designs.
Advantages
-
Accurate Non-Contact Measurement: Eddy current technology ensures precise, repeatable data without physical wear.
-
Durable Build: Resistant to dust, moisture, and mechanical shocks with an IP67 rating.
-
Compact Form Factor: The 16mm probe length allows for flexible installation even in tight spaces.
-
Secure Electrical Connection: The CON041 connector guarantees stable and vibration-resistant signal transmission.
-
Wide Temperature Tolerance: Operates reliably in extreme environments from -40°C up to +125°C.
-
Long-Term Stability: Minimal signal drift provides dependable monitoring over extended periods.
-
Compatibility: Easily integrates with various condition monitoring and data acquisition systems.
Frequently Asked Questions (FAQ)
-
What is the maximum displacement range this sensor can measure?
The typical range is ±2 mm, but exact range depends on the sensor setup. -
Can this sensor be used in wet environments?
Yes, the IP67 rating means it is protected against dust and can withstand immersion up to 1 meter. -
Is the connector included with the sensor?
Yes, this model includes the CON041 connector for easy installation. -
What output type does this sensor provide?
It provides an analog voltage output proportional to displacement. -
What is the operational temperature range?
The sensor works reliably from -40°C to +125°C. -
Does the sensor require regular calibration?
Calibration frequency depends on usage but generally is recommended periodically for optimal accuracy. -
Can this sensor be used outdoors?
Yes, its IP67 rating and durable housing make it suitable for outdoor use. -
What materials are used in the sensor housing?
Stainless steel and high-grade polymers ensure resistance to corrosion and mechanical stress. -
Is this sensor compatible with all Epro monitoring systems?
It is compatible with most standard systems, but compatibility should be verified with your specific equipment. -
What maintenance is needed for this sensor?
Regular visual inspections and connector checks are advised; the sensor itself is low-maintenance due to its rugged design.
