Product Introduction

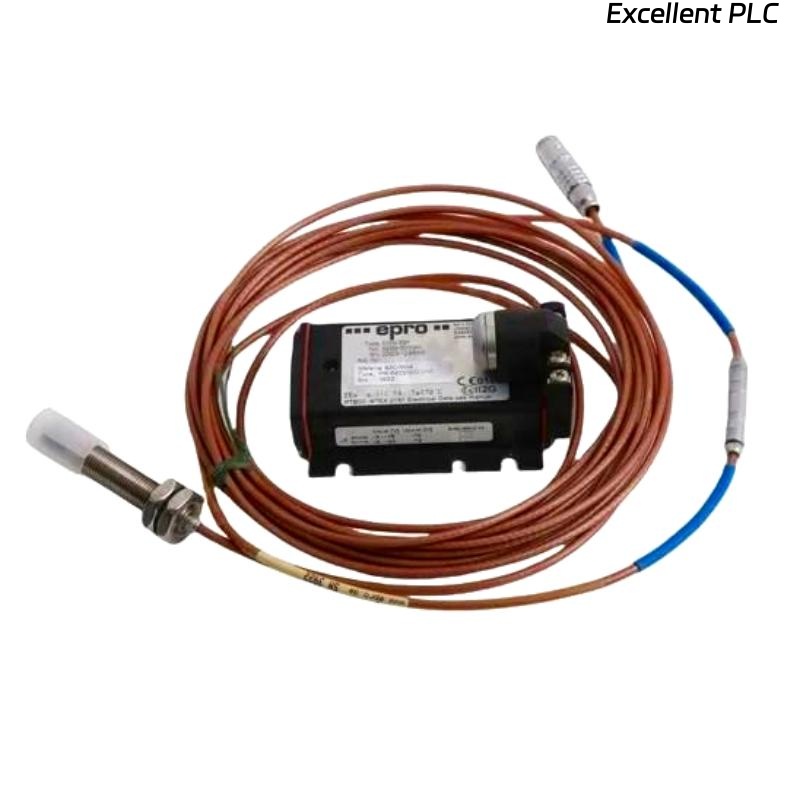

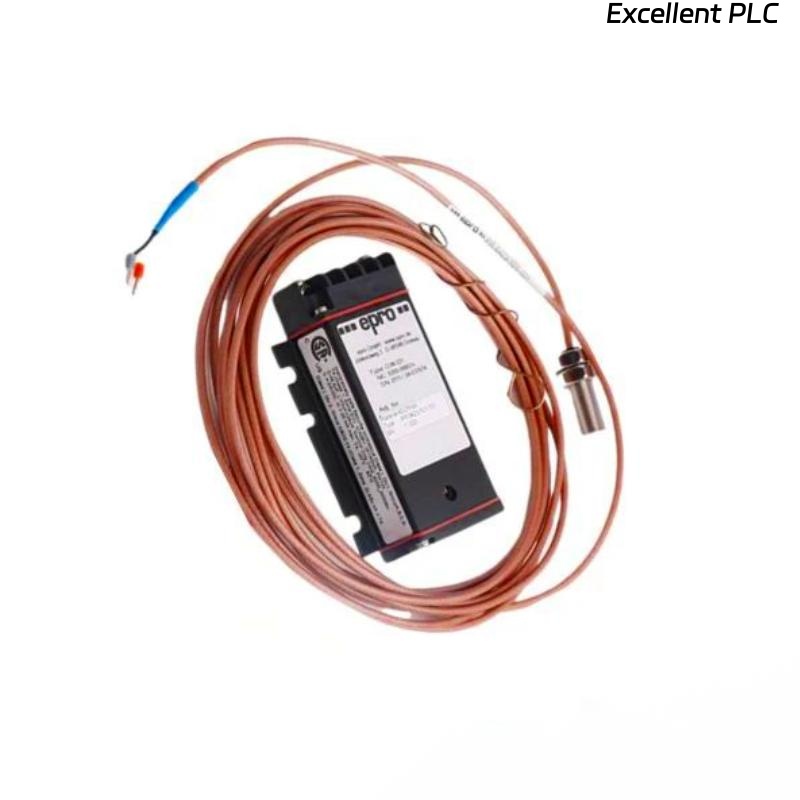

The Epro PR6424/002-121 16mm Eddy-Current Sensor is a high-precision, non-contact displacement and vibration monitoring sensor. It belongs to the PR6424 series, which is widely recognized in condition monitoring and machinery protection systems. With robust design and excellent sensitivity, this model is particularly suited for continuous monitoring of rotating machinery, such as turbines, compressors, pumps, and generators.
It is optimized to deliver accurate displacement and vibration signals in harsh industrial environments, ensuring reliable machine protection and predictive maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor Head Diameter | 16mm |
| Measuring Range | ±2 mm (typical) |
| Linearity | ≤ ±1% of full-scale |
| Frequency Response | Up to 10 kHz |
| Operating Temperature Range | -35 °C to +180 °C |
| Storage Temperature Range | -40 °C to +200 °C |
| Output Signal | Proportional voltage signal |
| Sensitivity | 8 mV/µm (typical) |
| Supply Voltage | 24 V DC (via converter) |
| Cable Length | Standard 5 m, extendable |
| Insulation Resistance | > 10 MΩ |
| Housing Material | Stainless steel |
| Protection Class | IP67 |
| Weight | 0.2 kg |
Product Applications
-
Turbomachinery monitoring: Gas and steam turbines, hydro turbines.
-
Compressors and pumps: Monitoring shaft vibration and radial displacement.
-
Generators and motors: For detecting rotor-to-stator alignment and bearing conditions.
-
Industrial process plants: In refineries, petrochemical plants, and power stations.
-
Predictive maintenance systems: Integrated into condition monitoring platforms to avoid unplanned downtime.
Product Advantages
-
High measurement accuracy: Reliable detection of shaft displacement and vibration in dynamic environments.
-
Robust construction: Stainless-steel housing with IP67 protection ensures durability under harsh industrial conditions.
-
Wide operating temperature range: Suitable for machinery running under extreme thermal stress.
-
Non-contact sensing: Eliminates wear and tear, reducing maintenance requirements.
-
Compatibility: Fully compatible with Epro’s CON series of proximity probe drivers and monitoring systems.
-
Proven reliability: Long track record in critical industries, ensuring stable and consistent performance.
FAQ
Q1: What is the measuring principle of the PR6424/002-121?
A1: It operates on the eddy-current principle, where an alternating magnetic field induces eddy currents in the conductive shaft surface, and the sensor measures displacement based on impedance variation.
Q2: Can the sensor detect both static and dynamic displacement?
A2: Yes, it can measure static shaft position (DC component) as well as dynamic vibration signals (AC component).
Q3: What type of materials can the sensor measure effectively?
A3: It is designed to measure ferromagnetic and conductive materials, with best performance on metallic shaft surfaces.
Q4: How does cable length affect accuracy?
A4: The cable length is factory-calibrated. Using the specified cable length ensures accuracy; deviations may require recalibration with a matching driver.
Q5: What is the typical output sensitivity of the sensor?
A5: The standard sensitivity is approximately 8 mV/µm when paired with the matching proximity driver.
Q6: Is the sensor compatible with all Epro proximity drivers?
A6: It is optimized for use with the Epro CON0x and CON9xx series proximity probe drivers for best accuracy and linearity.
Q7: How does temperature variation affect sensor performance?
A7: The sensor is temperature compensated within its specified operating range, ensuring stable measurements in varying thermal environments.
Q8: What is the maximum vibration frequency the sensor can capture?
A8: It supports frequency response up to 10 kHz, which covers most industrial machinery vibration monitoring requirements.
Q9: Can this sensor be used in hazardous environments?
A9: Yes, when paired with appropriate intrinsically safe barriers or certified drivers, it can be applied in ATEX/IECEx hazardous zones.
Q10: What maintenance does the PR6424/002-121 require?
A10: Minimal maintenance is required due to its non-contact design; periodic inspection of mounting, cable integrity, and system calibration is sufficient.
