Product Introduction

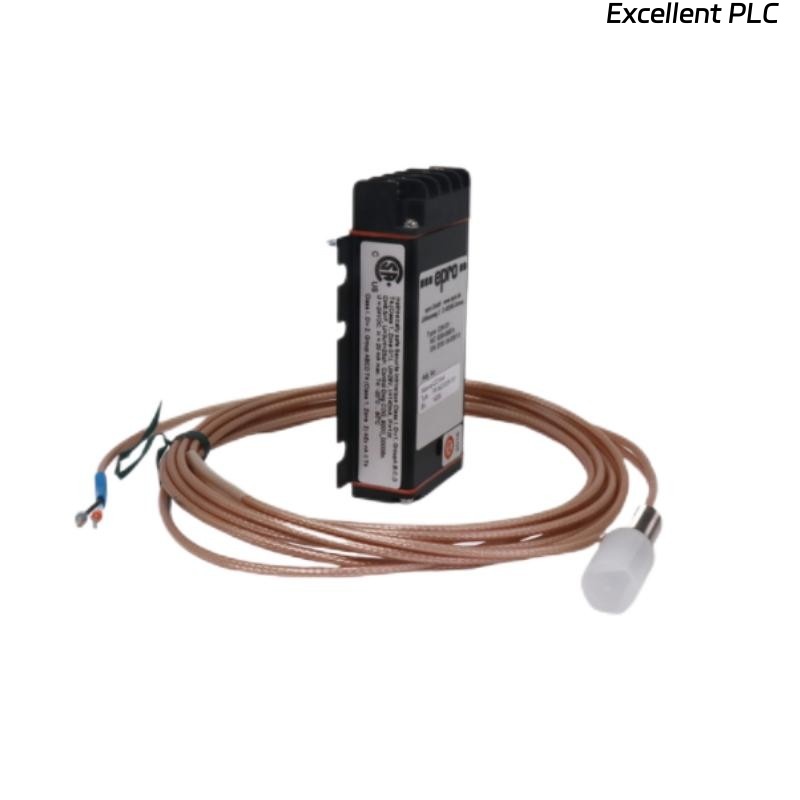

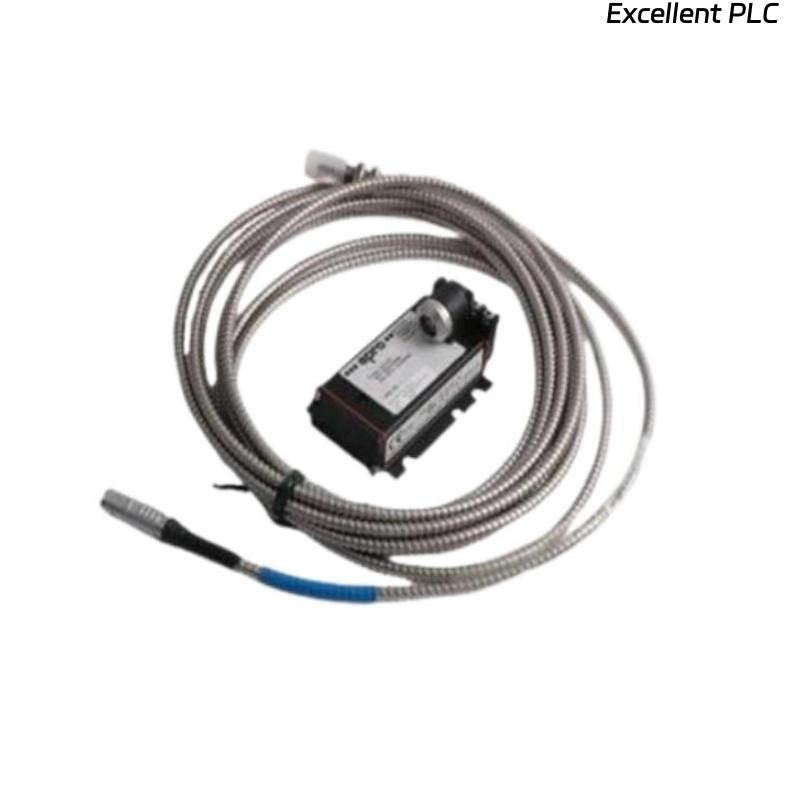

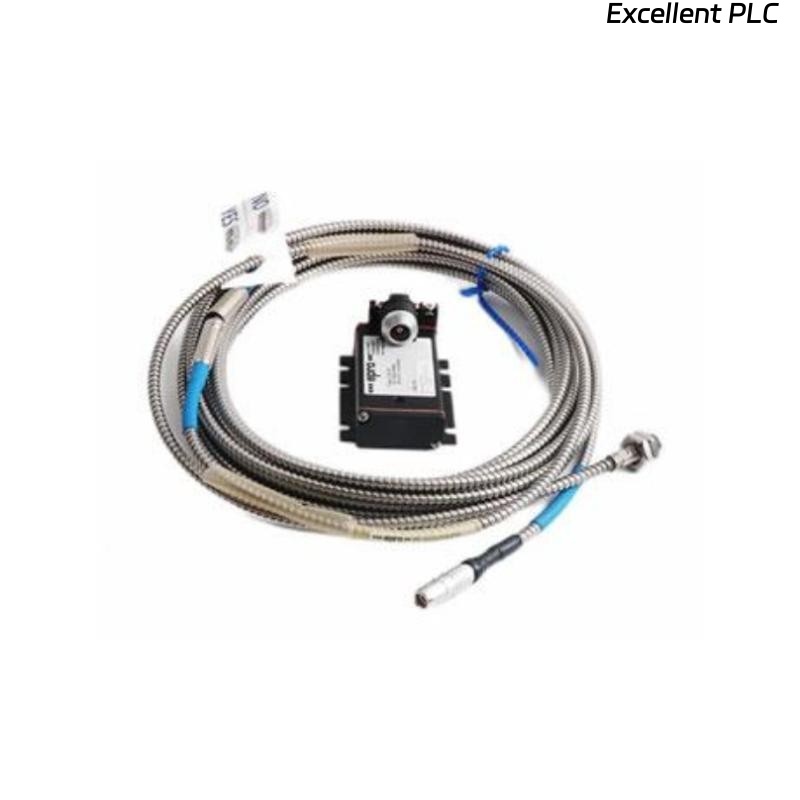

The Epro PR6424/003-101 is a high-performance 16mm eddy current sensor designed for precise, non-contact measurement of displacement, position, and vibration. Operating on the principle of eddy current technology, it measures the change in impedance of the sensor coil caused by the proximity of a conductive material, offering highly accurate results. This sensor is ideal for use in various industrial applications that require high-speed monitoring and precise measurements in environments where physical contact sensors might fail or wear over time.
The PR6424/003-101 offers excellent performance for machine condition monitoring, positioning applications in robotics, and vibration sensing in rotating machinery. Its compact 16mm sensor head and lightweight design make it easy to integrate into systems with limited space, while its robust protection rating (IP67) ensures it can withstand dust, moisture, and harsh environments. The sensor provides reliable and consistent performance even in challenging industrial settings, making it a go-to choice for many automated systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Epro PR6424/003-101 |
| Type | 16mm Eddy Current Sensor |
| Sensor Head Diameter | 16mm |
| Weight | 0.2 kg |
| Measuring Range | 0-10 mm (depending on the material of the target) |
| Output Signal | Analog (voltage or current) |
| Operating Frequency | Up to 2 kHz |
| Target Material | Conductive materials (metals) |
| Operating Temperature | -20°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro PR6424/003-101 eddy current sensor is highly versatile and finds its applications across various industries that require accurate displacement, position, and vibration measurements. Some of the primary applications include:
-
Machine Condition Monitoring: Used for monitoring the health of rotating machinery, such as motors, turbines, and compressors. It helps detect misalignment, imbalance, and wear in critical components.
-
Vibration Monitoring: Ideal for measuring vibrations in high-speed machinery, such as gearboxes, pumps, and turbines, enabling early detection of potential failures.
-
Position Sensing in Robotics: Used to measure the precise position of robotic arms and other automated equipment, ensuring accurate and repeatable movement in various robotic applications.
-
Automotive Production Lines: Employed in automotive factories to measure the displacement or position of parts in the manufacturing process, ensuring high-quality assembly.
-
Aerospace Industry: Used in non-contact measurement for sensitive aerospace components, such as actuators and rotating shafts, where traditional sensors might cause interference or wear.
Product Advantages
-
Non-contact Measurement: The eddy current technology allows for non-contact measurements, eliminating the risk of wear and tear, and increasing the lifespan of both the sensor and the monitored machinery.
-
High Accuracy and Precision: The PR6424/003-101 provides high-precision measurements, ensuring that even small changes in displacement or position are detected, making it ideal for critical industrial applications.
-
Fast Response Time: With an operating frequency of up to 2 kHz, the sensor provides fast response times, which is essential for applications involving high-speed rotating machinery.
-
Compact and Lightweight: The 16mm sensor head and lightweight 0.2 kg design make it suitable for installation in tight or space-constrained environments.
-
Durability and Protection: With an IP67 protection rating, the sensor is resistant to dust and water, making it suitable for use in harsh industrial environments.
-
Wide Operating Temperature Range: The sensor operates effectively in environments with temperatures ranging from -20°C to +80°C, ensuring reliable performance in both cold and hot conditions.
-
Versatile Output Options: It provides analog voltage or current outputs, making it compatible with various industrial control systems and easy to integrate into existing setups.
FAQ
-
How does the Epro PR6424/003-101 sensor work?
-
The PR6424/003-101 sensor uses eddy current technology to detect changes in the impedance of the sensor coil caused by the proximity of a conductive target. These changes are then converted into an analog output signal.
-
-
What is the measuring range of the Epro PR6424/003-101 sensor?
-
The measuring range of the sensor is 0-10 mm, which depends on the material of the target and the configuration of the sensor.
-
-
What types of materials can the sensor detect?
-
The sensor is designed to detect conductive materials, primarily metals, in various industrial environments.
-
-
What output signal does the sensor provide?
-
The Epro PR6424/003-101 provides analog output signals, which can either be voltage or current depending on the application.
-
-
What is the maximum frequency the sensor can operate at?
-
The sensor operates at frequencies of up to 2 kHz, making it suitable for high-speed applications where rapid response is required.
-
-
Can the sensor be used in harsh environments?
-
Yes, the IP67 protection rating ensures that the sensor is dustproof and waterproof, making it suitable for use in harsh industrial environments.
-
-
What is the operating temperature range of the Epro PR6424/003-101?
-
The sensor can operate within a temperature range of -20°C to +80°C, making it adaptable to a variety of industrial conditions.
-
-
How does the non-contact measurement benefit industrial applications?
-
Non-contact measurement eliminates the risk of wear and tear on the sensor and target, providing longer-lasting and more reliable performance, especially in high-speed applications.
-
-
What applications is the Epro PR6424/003-101 sensor ideal for?
-
It is ideal for machine condition monitoring, vibration sensing, position sensing in robotics, and automotive and aerospace applications.
-
-
Can the Epro PR6424/003-101 be used in high-speed systems?
-
Yes, the sensor’s high-frequency response (up to 2 kHz) allows it to be used in high-speed systems, such as turbines, motors, and other rotating machinery.
-
