Product Introduction

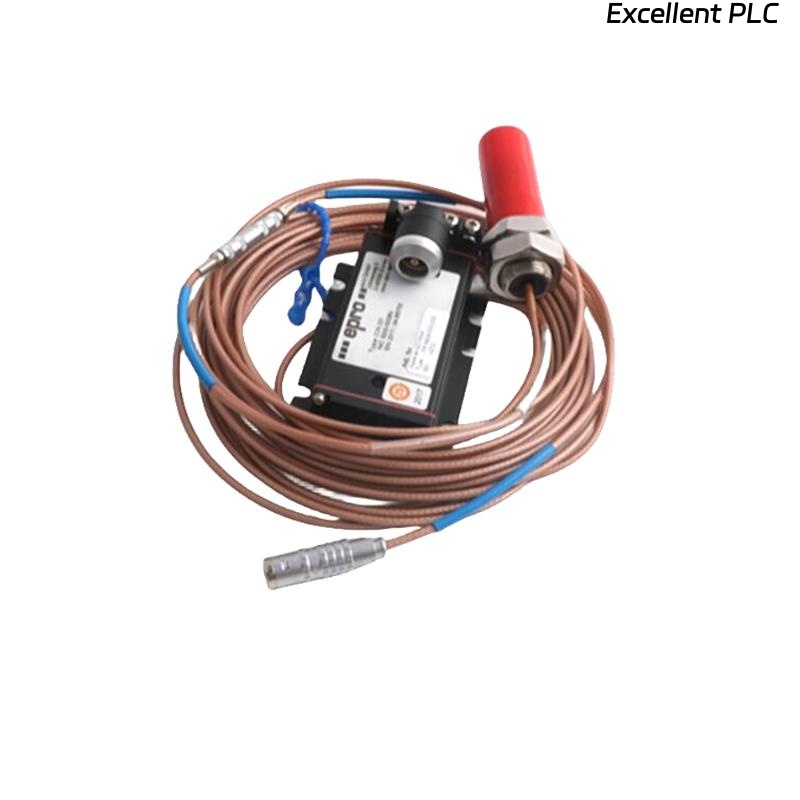

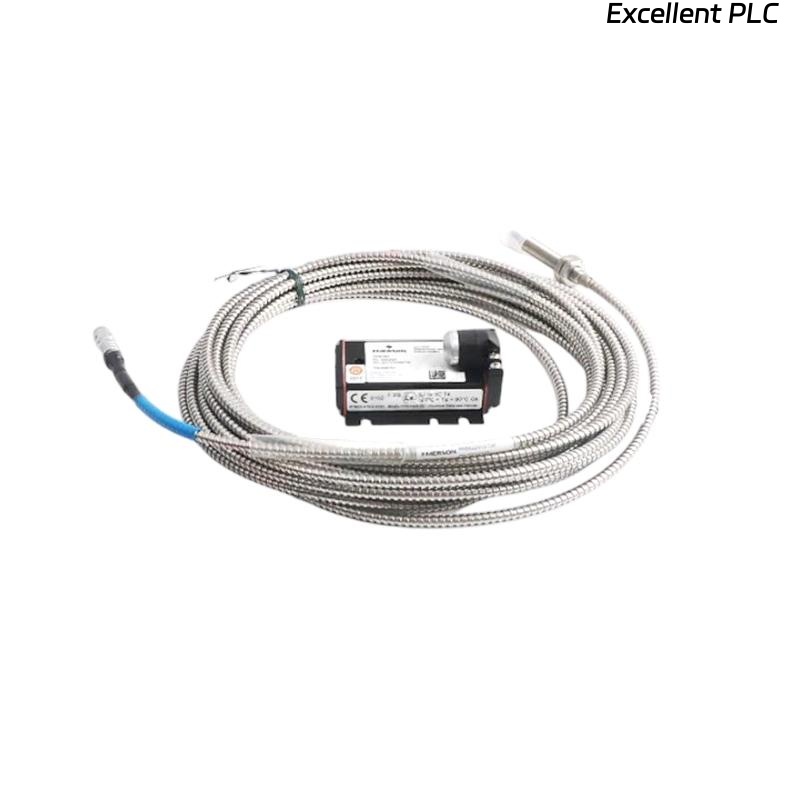

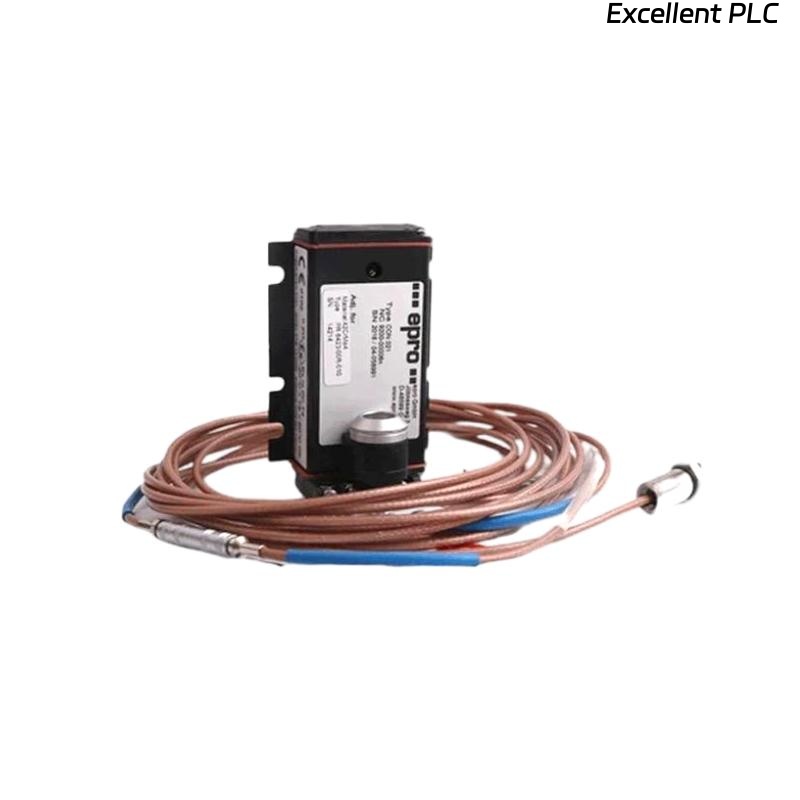

The Epro PR6424/003-121 is a high-precision 16mm eddy current sensor designed for the non-contact measurement of displacement, position, and vibration. This sensor uses eddy current technology, which measures changes in the impedance of the sensor coil caused by the proximity of a conductive material. The PR6424/003-121 is part of Epro’s range of eddy current sensors, offering excellent accuracy and fast response times for various industrial applications.
The PR6424/003-121 is designed for measuring displacement or position of conductive targets with high precision. It is suitable for use in applications involving high-speed rotation or movement, where traditional contact sensors may be unsuitable. With a compact 16mm sensor head and lightweight construction, the sensor is easy to integrate into existing industrial systems. The sensor provides reliable performance even under harsh environmental conditions, offering flexibility and precision for demanding industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | Epro PR6424/003-121 |
| Type | 16mm Eddy Current Sensor |
| Sensor Head Diameter | 16mm |
| Weight | 0.2 kg |
| Measuring Range | 0-10 mm (depending on target material) |
| Output Signal | Analog (voltage or current) |
| Operating Frequency | Up to 2 kHz |
| Target Material | Conductive materials (metals) |
| Operating Temperature | -20°C to +80°C |
| Protection Rating | IP67 |
Product Applications
The Epro PR6424/003-121 16mm Eddy Current Sensor is ideal for a wide range of applications in various industries that require accurate, non-contact measurement of displacement, position, or vibration. Some of the key applications include:
-
Machine Condition Monitoring: Used to monitor rotating machinery such as motors, pumps, and turbines. It detects misalignment, imbalance, and wear, providing valuable insights into machine health and preventing unplanned downtime.
-
Vibration Monitoring: The sensor is ideal for monitoring the vibrations of high-speed rotating equipment, such as compressors, turbines, and gearboxes. It detects early signs of failure, allowing for predictive maintenance.
-
Position Measurement in Robotics: It is widely used in robotics for precise position measurements in robotic arms, ensuring accurate and repeatable motion control.
-
Automotive Testing: Used in automotive production lines for the measurement of displacement and position of components, ensuring high-quality production processes.
-
Aerospace Industry: In aerospace, it helps in non-contact measurement of components, such as actuators and bearings, where traditional sensors may interfere with sensitive equipment.
Product Advantages
-
Non-contact Measurement: The eddy current technology allows for non-contact measurement, preventing wear and tear, which extends the lifespan of the sensor and reduces maintenance costs.
-
High Accuracy and Precision: The sensor offers high-precision measurements, making it suitable for critical applications where small displacement or position changes need to be accurately detected.
-
Fast Response Time: With an operating frequency of up to 2 kHz, the sensor provides fast response times, making it ideal for high-speed applications where quick detection of movement is essential.
-
Compact and Lightweight Design: The 16mm sensor head and 0.2 kg weight allow for easy integration into compact spaces and systems, where space is limited.
-
Durable and Robust: The PR6424/003-121 has an IP67 protection rating, making it resistant to dust and water ingress, enabling reliable operation in harsh industrial environments.
-
Wide Temperature Range: The sensor operates in a temperature range of -20°C to +80°C, which allows it to be used in both cold and hot environments.
-
Versatile Output Options: The sensor supports analog voltage or current output, providing flexibility for integration with a wide variety of industrial control systems.
FAQ
-
How does the Epro PR6424/003-121 sensor work?
-
The sensor uses eddy current technology to measure changes in the impedance of the sensor coil caused by the proximity of a conductive target. This change is converted into a measurable output.
-
-
What is the measuring range of the Epro PR6424/003-121 sensor?
-
The sensor has a measuring range of 0-10 mm, which depends on the material of the target being measured.
-
-
What materials can the sensor detect?
-
The Epro PR6424/003-121 is designed to detect conductive materials, such as metals, in industrial environments.
-
-
What is the maximum operating frequency of the sensor?
-
The sensor can operate at frequencies of up to 2 kHz, making it suitable for high-speed measurement applications.
-
-
What kind of output signal does the sensor provide?
-
The sensor provides analog output signals, which can be either voltage or current depending on the configuration.
-
-
Can the sensor be used in harsh environments?
-
Yes, the IP67 protection rating ensures that the sensor is resistant to dust and water, making it suitable for use in harsh industrial conditions.
-
-
What is the temperature range of the Epro PR6424/003-121?
-
The sensor can operate in a wide temperature range from -20°C to +80°C, ensuring reliable operation in a variety of environmental conditions.
-
-
How does the non-contact measurement benefit industrial applications?
-
The non-contact nature of the sensor eliminates wear and tear, providing greater sensor longevity and minimizing maintenance needs in demanding applications.
-
-
Can the Epro PR6424/003-121 be used for vibration monitoring?
-
Yes, the sensor is highly suitable for vibration monitoring in high-speed rotating equipment such as turbines, compressors, and motors.
-
-
Is the Epro PR6424/003-121 sensor suitable for use in robotics?
-
Yes, the sensor is widely used in robotic applications for precise position measurement and motion control.
-
