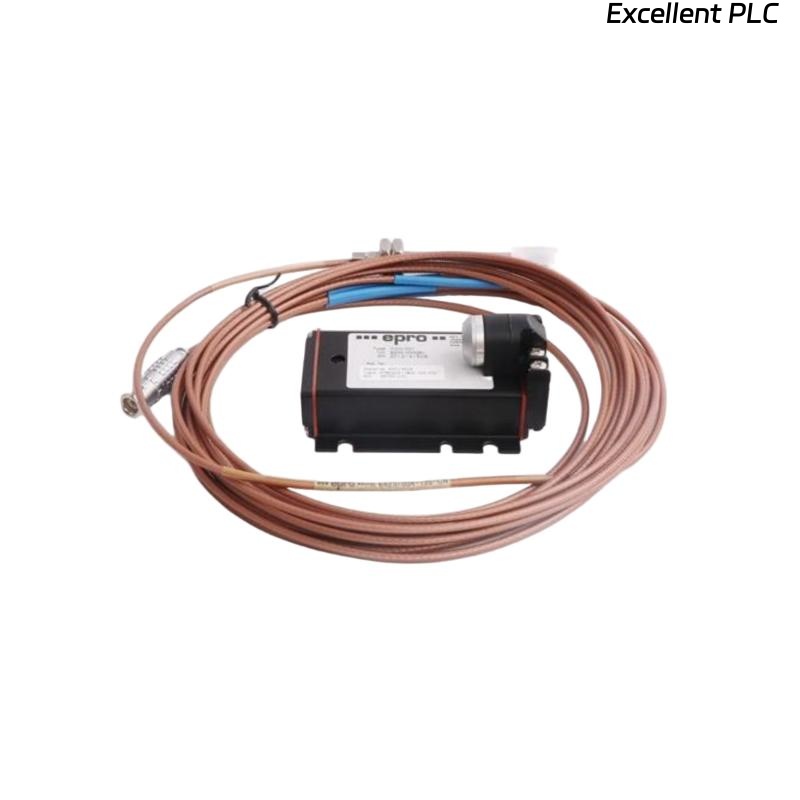

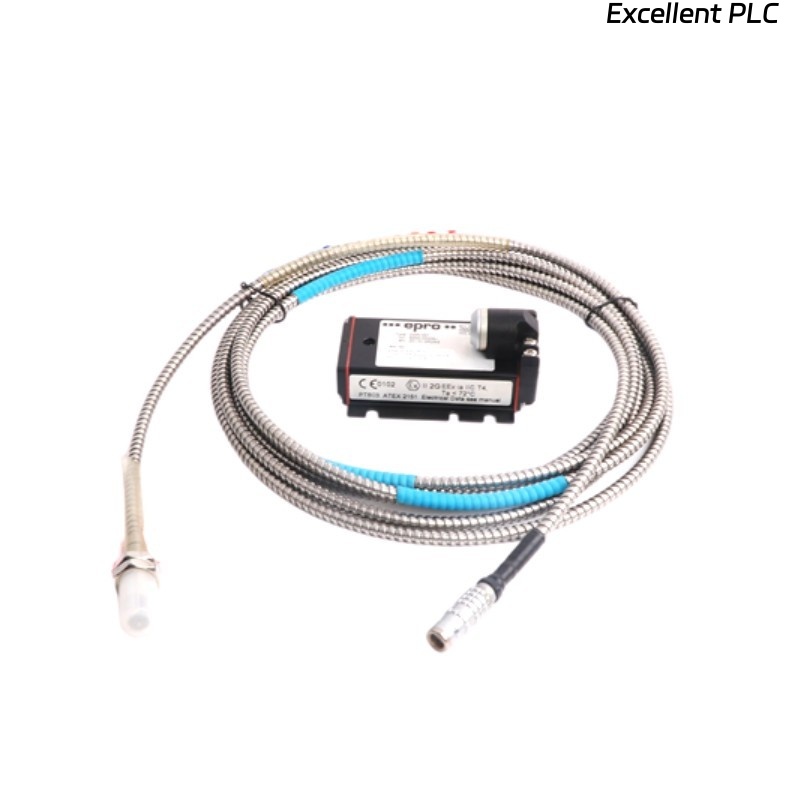

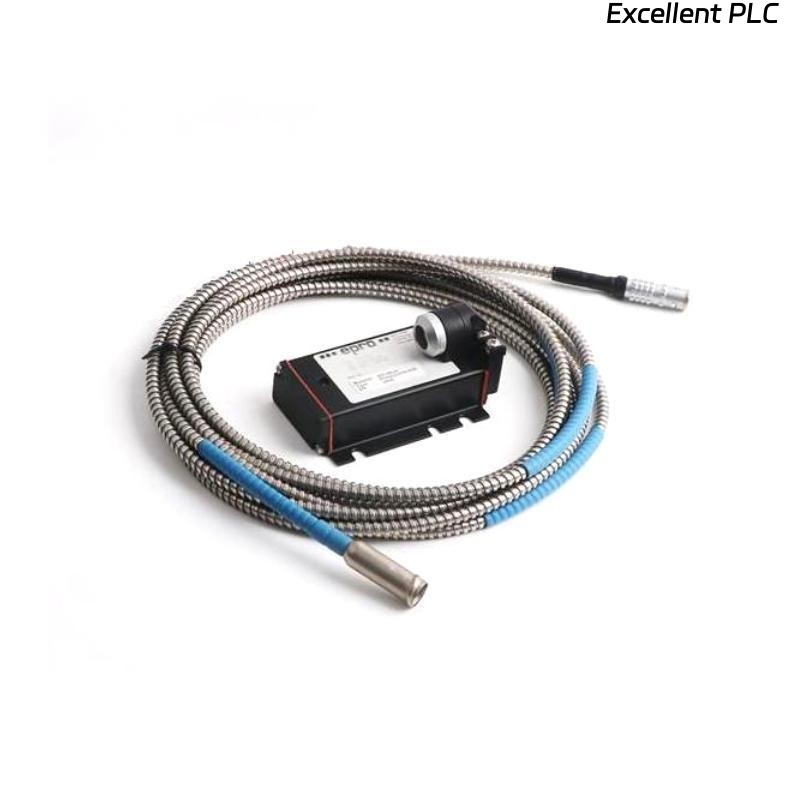

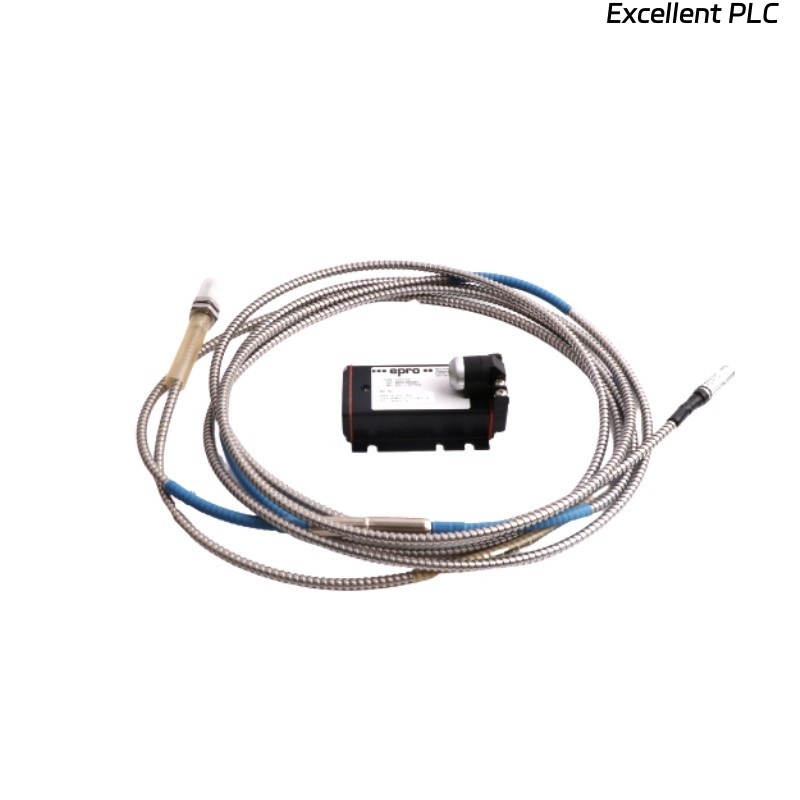

Epro PR6424/004-101 16mm Eddy Current Sensor

Product Introduction

The Epro PR6424/004-101 is a high-precision 16mm eddy current sensor designed for non-contact measurement of displacement, position, and vibration in industrial applications. It uses eddy current technology, which detects changes in the impedance of the sensor’s coil caused by the proximity of conductive materials. These changes are then translated into measurable signals, making the sensor ideal for applications that demand high accuracy and reliability.

The PR6424/004-101 sensor is widely used in applications involving high-speed machinery, vibration monitoring, and position sensing in robotics and automated systems. Its compact 16mm sensor head and lightweight 0.2 kg design make it suitable for installation in tight spaces, while its robust construction ensures it operates effectively even in challenging environments.

With an IP67 protection rating, the sensor is dustproof and water-resistant, making it suitable for harsh environments. It supports high-frequency operation and provides both voltage and current output options, making it versatile for a variety of industrial systems.

---

Product Parameters

---

Product Applications

The Epro PR6424/004-101 16mm Eddy Current Sensor is highly versatile and widely used in a range of industrial applications where precise, non-contact displacement, position, and vibration measurements are required. Some of its primary applications include:

• Machine Condition Monitoring: The sensor is commonly used for monitoring the health of rotating machinery such as motors, pumps, and turbines. It can detect misalignment, imbalance, and wear, which helps prevent costly breakdowns and downtime.

• Vibration Monitoring: It is ideal for measuring vibrations in high-speed systems, including gearboxes, compressors, and turbines. Early detection of vibration anomalies allows for timely maintenance and avoids catastrophic failures.

• Position Sensing in Robotics: The sensor is widely used in robotic systems to measure the position and displacement of robotic arms or components, ensuring precise and repeatable movement control.

• Automotive Manufacturing: In automotive production lines, the sensor helps measure the position of parts, ensuring that each component is correctly positioned during assembly.

• Aerospace: In aerospace applications, the PR6424/004-101 is used for non-contact measurement of parts such as actuators and shafts, where traditional sensors may interfere with sensitive machinery.

---

Product Advantages

• Non-contact Measurement: The use of eddy current technology allows for non-contact measurement, reducing wear and tear and minimizing maintenance needs. This feature is especially beneficial in high-speed and high-precision applications.

• High Accuracy and Precision: The PR6424/004-101 offers high precision in displacement and position measurements, which is essential for critical applications in industries like aerospace and automotive manufacturing.

• Fast Response Time: With an operating frequency of up to 2 kHz, the sensor provides quick response times, making it ideal for monitoring fast-moving components.

• Compact and Lightweight: The 16mm sensor head and 0.2 kg weight ensure that the sensor can be easily integrated into space-constrained systems and environments.

• Durability and Robustness: The IP67 protection rating ensures the sensor is dustproof and waterproof, making it reliable for use in challenging industrial environments.

• Wide Temperature Range: The sensor can operate in a temperature range of -20°C to +80°C, making it suitable for use in both cold and hot environments.

• Versatile Output Options: The sensor supports analog voltage or current output, which allows it to be integrated into a variety of industrial systems, regardless of the output requirements.

---

FAQ

1. How does the Epro PR6424/004-101 sensor work?

   • The Epro PR6424/004-101 uses eddy current technology to measure the changes in impedance caused by the proximity of a conductive target. These changes are converted into measurable analog output signals.

2. What is the measuring range of the Epro PR6424/004-101 sensor?

   • The sensor has a measuring range of 0-10 mm, depending on the target material and the specific configuration of the sensor.

3. What types of materials can the sensor detect?

   • The sensor is designed to detect conductive materials, particularly metals, in industrial environments.

4. What is the operating frequency of the sensor?

   • The PR6424/004-101 operates at frequencies up to 2 kHz, allowing for fast response in high-speed applications.

5. What kind of output signal does the sensor provide?

   • The sensor provides an analog output, which can be either voltage or current, depending on the system’s needs.

6. Can the sensor be used in harsh environments?

   • Yes, with its IP67 protection rating, the sensor is dustproof and water-resistant, making it ideal for harsh and challenging industrial conditions.

7. What is the operating temperature range of the sensor?

   • The Epro PR6424/004-101 can operate effectively within a temperature range of -20°C to +80°C, making it suitable for a variety of industrial environments.

8. How does non-contact measurement benefit industrial applications?

   • The non-contact measurement eliminates physical contact with the target, reducing wear and tear, and improving sensor longevity. It also enables higher accuracy and reliability in high-speed applications.

9. Is the Epro PR6424/004-101 sensor suitable for vibration monitoring?

   • Yes, the sensor is excellent for vibration monitoring, especially in high-speed rotating machinery where early detection of vibration anomalies can prevent machine failure.

10. Can the sensor be used for precise position sensing in robotics?

    • Yes, the Epro PR6424/004-101 is widely used in robotic systems for precise position and displacement measurement, ensuring accurate and repeatable movements in automated systems.

---
