Product Overview

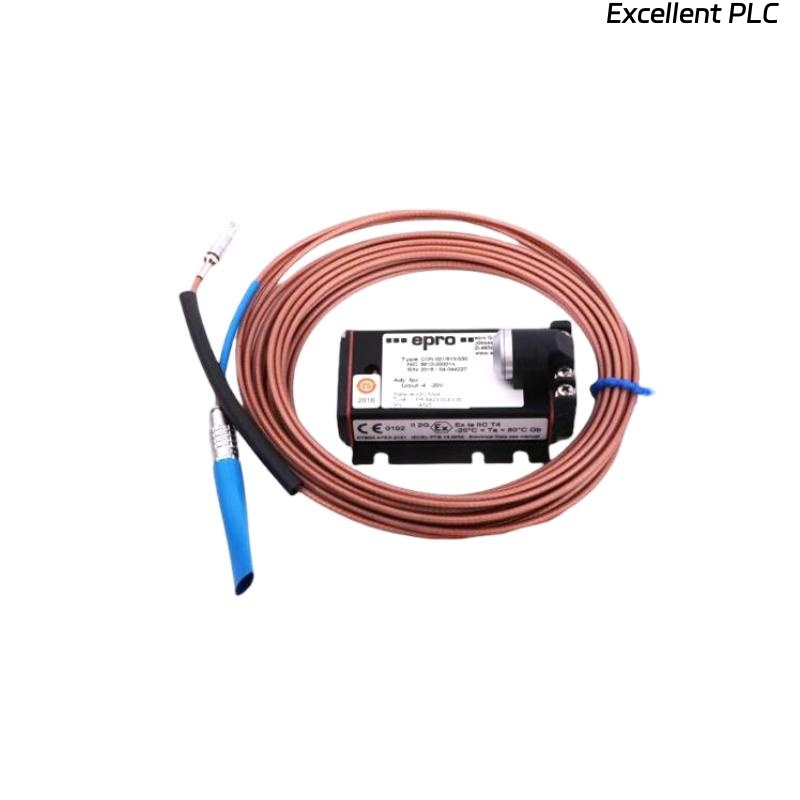

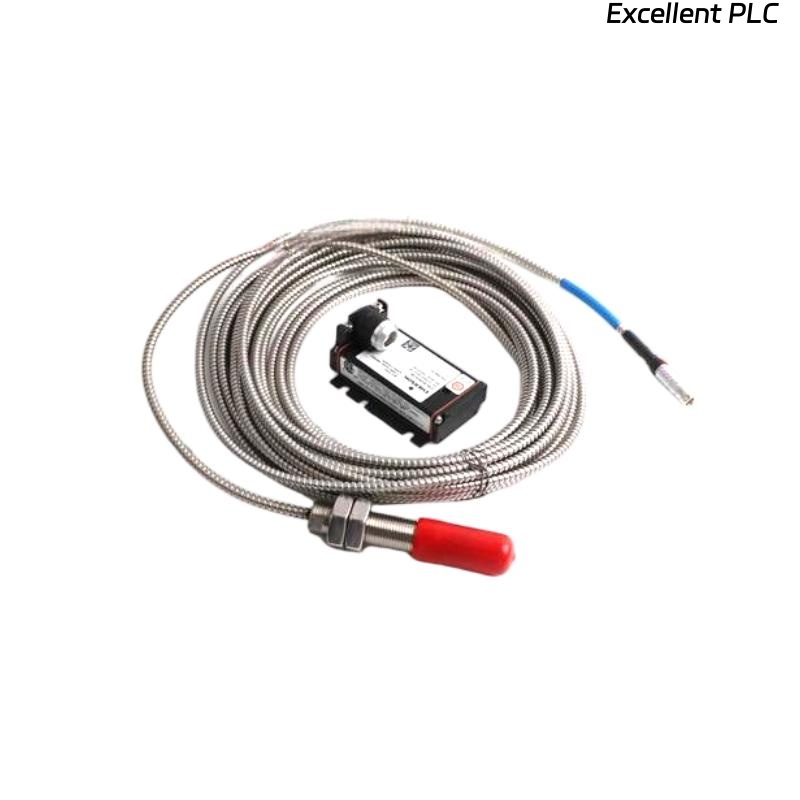

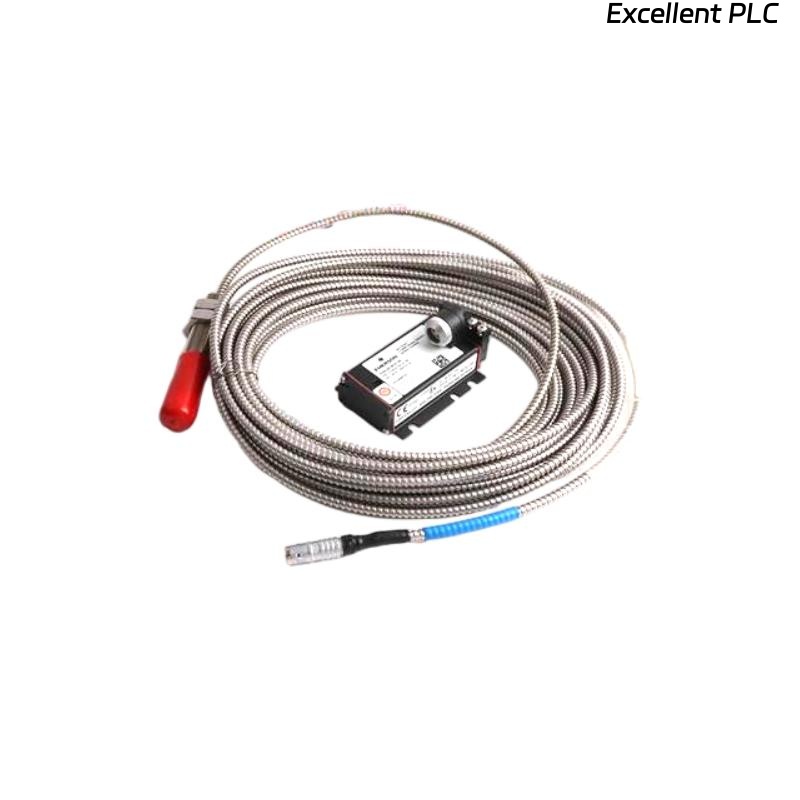

The Epro PR6424/004-121 16 mm Eddy Current Sensor is a high-precision sensor designed for non-contact measurement of displacement, vibration, and position in conductive materials. Utilizing advanced eddy current technology, it offers rapid response, compact installation, and versatile output options. It is ideal for industrial automation, machinery monitoring, vibration analysis, aerospace, and automotive applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PR6424/004-121 |
| Sensor Type | Eddy Current Sensor |
| Measuring Range | 0 to 16 mm |
| Sensor Head Diameter | 16 mm |
| Output Signal Type | Analog Voltage or Current Output |
| Operating Voltage | 24 VDC ±10% |
| Frequency Response | Up to 10 kHz |
| Operating Temperature | -20°C to +80°C |
| Humidity Requirements | Max 90%, non-condensing |
| Weight | 0.2 kg |
| Installation Method | Fixed Installation |
| Material | Corrosion-resistant |
| Certifications | CE, RoHS |
Applications
The PR6424/004-121 16 mm Eddy Current Sensor is widely used in various industrial applications:
-
Machinery Monitoring: Measures axial and radial shaft displacement, shaft eccentricity, and bearing wear.
-
Industrial Automation: Monitors precise component positions on automated production lines.
-
Vibration Analysis: Detects vibrations in motors, turbines, and critical rotating machinery.
-
Aerospace: Monitors turbine blades and other critical components.
-
Energy Sector: Used in power plants and other energy facilities for condition monitoring.
-
Automotive Industry: Measures displacements of engine and transmission components to ensure quality.
Advantages
-
Non-contact Measurement: Reduces mechanical wear and extends sensor life.
-
High Precision: Provides highly accurate, high-resolution measurements.
-
Fast Response: Frequency response up to 10 kHz for dynamic applications.
-
Robust Construction: Corrosion-resistant materials for harsh industrial environments.
-
Compact Size: 16 mm diameter allows installation in tight spaces.
-
Versatile Output Options: Supports both analog voltage and current outputs.
FAQ
-
-
What is the measurement principle of the PR6424/004-121 sensor?
-
It operates based on the eddy current principle, detecting changes in the electromagnetic field caused by nearby conductive materials.
-
-
What types of output signals are available?
-
Analog voltage or current outputs depending on configuration.
-
-
What is the frequency response of the sensor?
-
Up to 10 kHz, suitable for high-speed measurements.
-
-
What is the operating voltage range?
-
24 VDC ±10%.
-
-
What is the operating temperature range?
-
-20°C to +80°C.
-
-
Is the sensor suitable for high-humidity environments?
-
Yes, up to 90% non-condensing humidity.
-
-
How is the sensor installed?
-
Fixed installation ensures stable and accurate measurements.
-
-
What materials is the sensor made of?
-
Corrosion-resistant materials for durability.
-
-
Does the sensor comply with international standards?
-
Yes, it is CE and RoHS certified.
-
-
Can the sensor be used in explosive environments?
-
Not rated for explosive atmospheres; for such applications, please contact our customer service team.
-
-
Related Models
| Model | Description |
|---|---|
| PR6424/004-000 | Standard 16 mm eddy current sensor |
| PR6424/004-121 | High-precision 16 mm eddy current sensor |
| PR6424/005-000 | 16 mm sensor with extended range |
| PR6424/005-121 | High-precision 16 mm sensor with extended range |
| PR6424/006-000 | 20 mm eddy current sensor |
| PR6424/006-121 | High-precision 20 mm sensor |
