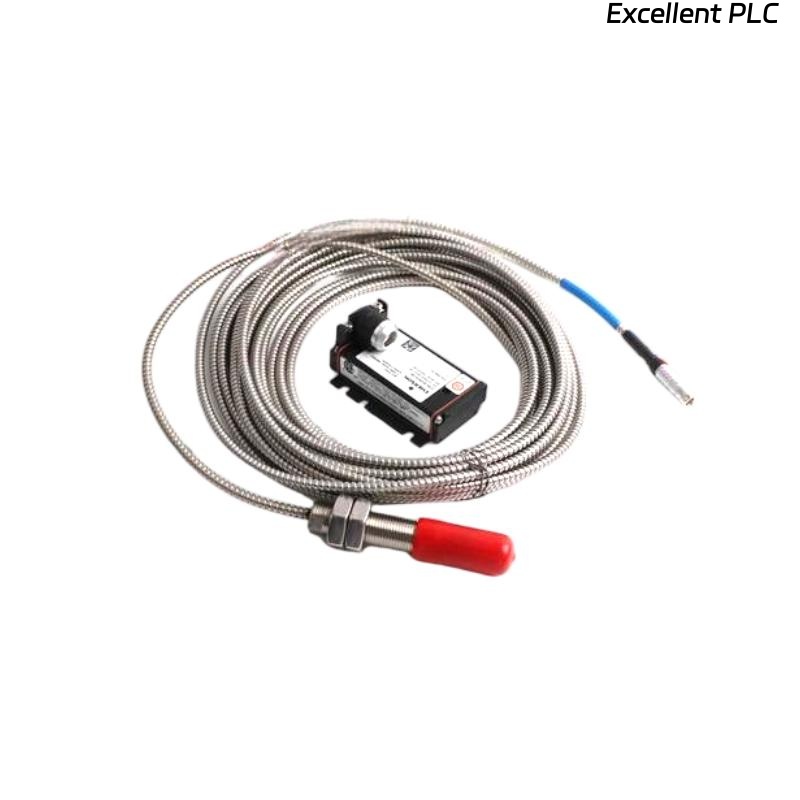

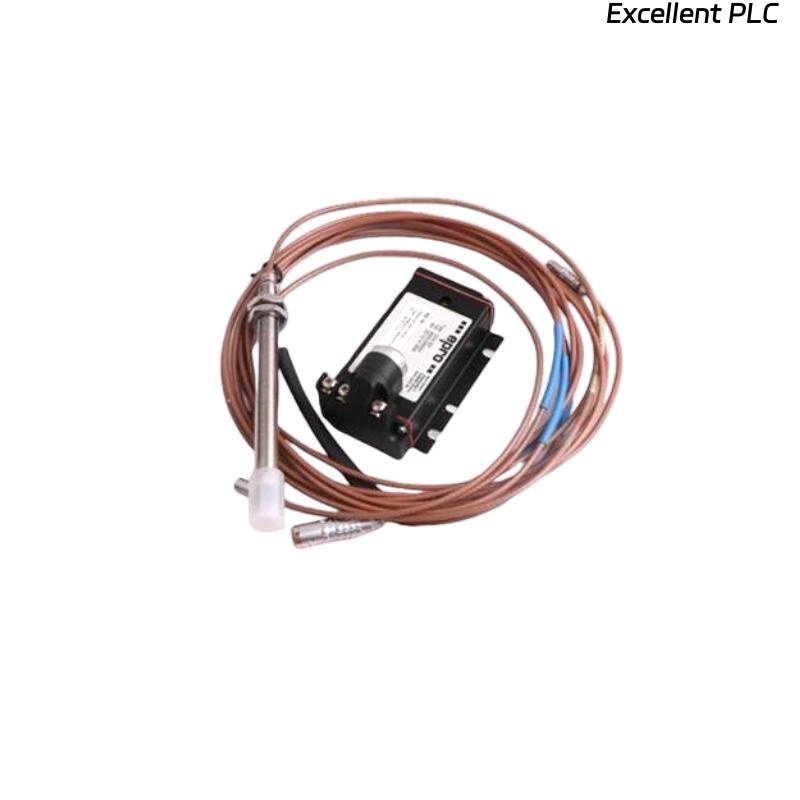

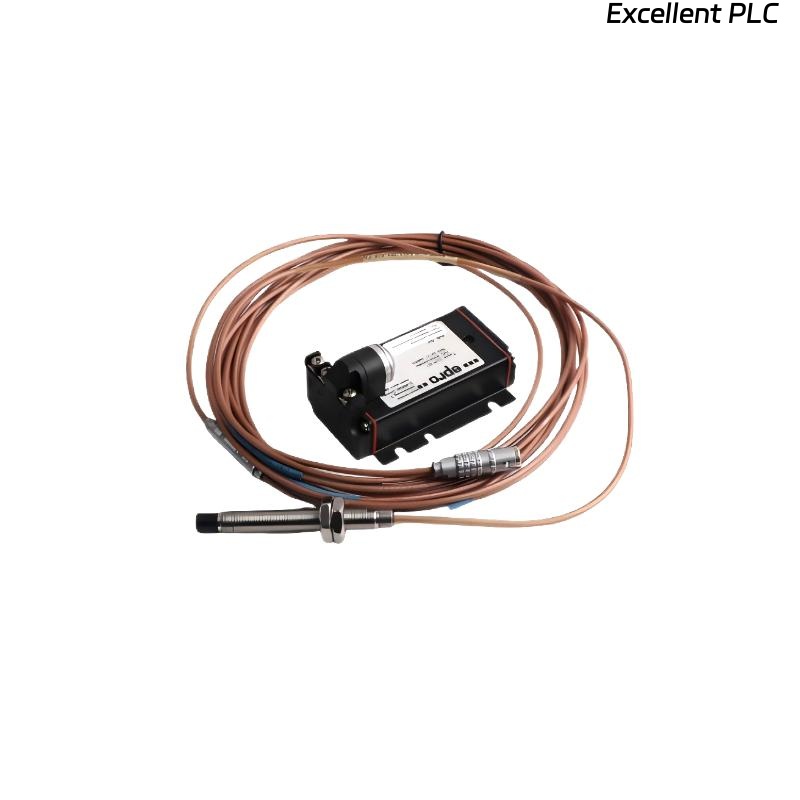

Epro PR6424/005-100 16mm Eddy Current Sensor

Product Introduction

The Epro PR6424/005-100 is a high-precision 16mm eddy current sensor, designed for non-contact measurement of displacement, position, and vibration. It operates on the principle of eddy current technology, which detects the change in impedance caused by the proximity of a conductive target. This sensor is widely used in industrial automation and monitoring systems due to its superior accuracy, fast response time, and robustness.

The PR6424/005-100 eddy current sensor is specifically engineered for applications requiring high-frequency response and precise measurement of the displacement or position of a metal object. It is ideal for high-speed rotating machinery or monitoring applications where traditional contact-based sensors may not be suitable. With a compact 16mm diameter sensor head and minimal weight of 0.2 kg, it provides flexibility in various industrial setups, offering reliable performance even in harsh environmental conditions.

---

Product Parameters

---

Product Applications

The Epro PR6424/005-100 16mm Eddy Current Sensor is used in a wide variety of industrial applications where precise, non-contact displacement, position, or vibration measurements are critical. Its main applications include:

• Machine Condition Monitoring: Used for monitoring the condition of rotating machinery such as motors, pumps, and turbines, detecting misalignment, imbalance, and wear in real-time.

• Vibration Monitoring: Ideal for vibration measurement in high-speed machinery, such as compressors, gearboxes, and turbines, to prevent mechanical failures.

• Position Sensing in Robotics: Provides high-precision position sensing in robotic arms, ensuring accurate movement and interaction with the surrounding environment.

• Automotive Testing: Used in automotive production lines and testing setups to measure the displacement or position of components, ensuring high-quality production standards.

• Aerospace Industry: Plays a critical role in non-contact measurement of position or displacement in sensitive aerospace components, where traditional sensors may cause interference.

---

Product Advantages

• Non-contact Measurement: The eddy current principle ensures that the sensor does not physically touch the target, reducing wear and tear and improving longevity.

• High Frequency Response: With an operating frequency of up to 2 kHz, the PR6424/005-100 offers fast response times, making it ideal for high-speed applications.

• Compact and Lightweight Design: The 16mm sensor head and 0.2 kg weight make this sensor easy to integrate into compact or space-constrained environments.

• High Accuracy and Precision: Provides highly accurate and precise measurements, ensuring reliable performance in critical applications where minute displacement or position changes need to be detected.

• Durability: With an IP67 protection rating, the sensor is highly resistant to dust, moisture, and harsh environmental conditions, ensuring long-term reliability in industrial settings.

• Versatile Output Options: The sensor can provide analog voltage or current output, making it compatible with a wide range of industrial monitoring and control systems.

• Wide Temperature Range: The PR6424/005-100 operates in a temperature range of -20°C to +80°C, allowing it to function effectively in both cold and hot environments.

---

FAQ

1. How does the Epro PR6424/005-100 sensor work?

   • The sensor uses eddy current technology to detect changes in the impedance caused by the proximity of a conductive target. These changes are then converted into a measurable output signal.

2. What is the measuring range of the Epro PR6424/005-100 sensor?

   • The sensor has a measuring range of 0-10 mm, depending on the target material and configuration.

3. What types of materials can be detected by the sensor?

   • The sensor detects conductive materials, such as metals, making it ideal for use in industrial environments with metallic targets.

4. What is the maximum operating frequency of the sensor?

   • The PR6424/005-100 can operate up to 2 kHz, providing fast response times for high-speed applications.

5. What output signal does the sensor provide?

   • The sensor provides analog output signals that can be either voltage or current, depending on the configuration.

6. What environmental conditions can the Epro PR6424/005-100 sensor withstand?

   • The sensor has an IP67 protection rating, meaning it is resistant to dust and water and can operate in harsh environmental conditions.

7. What is the temperature range in which the sensor operates effectively?

   • The sensor operates in a temperature range of -20°C to +80°C, making it suitable for a wide variety of environments.

8. How does the non-contact nature of the sensor benefit industrial applications?

   • Non-contact measurement eliminates the risk of wear and tear, improving the sensor’s lifespan and reducing maintenance needs.

9. What are the primary applications for the Epro PR6424/005-100 sensor?

   • The sensor is used in machine condition monitoring, vibration monitoring, position sensing in robotics, and various applications in the automotive and aerospace industries.

10. Can the Epro PR6424/005-100 be used for high-speed measurements?

    • Yes, the sensor’s high-frequency response (up to 2 kHz) allows it to measure quickly moving or rotating objects, making it ideal for high-speed applications.

---

Related Models from the Same Series

---

Popular Models from Epro
