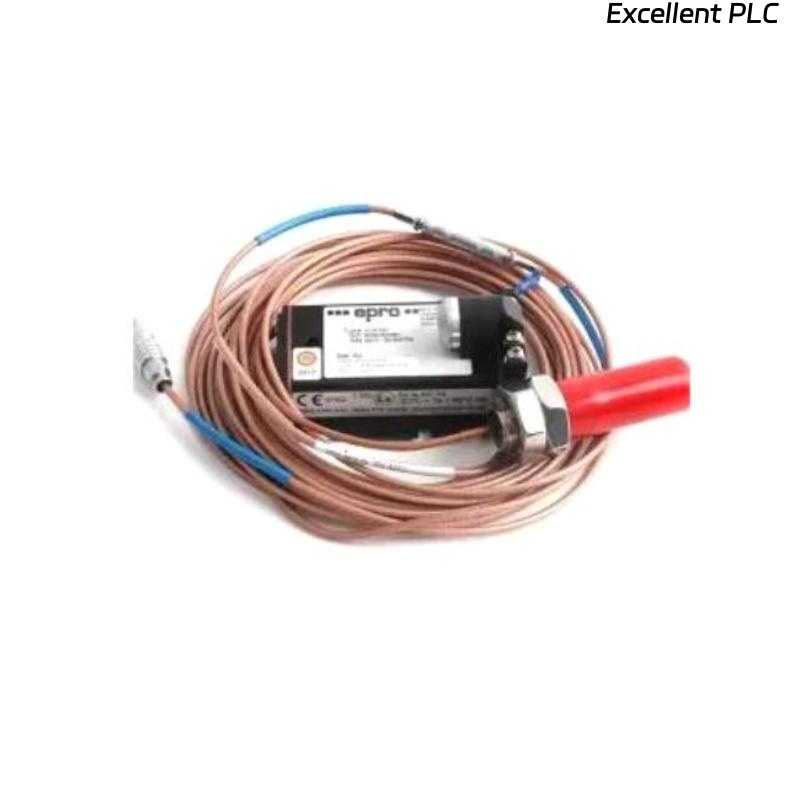

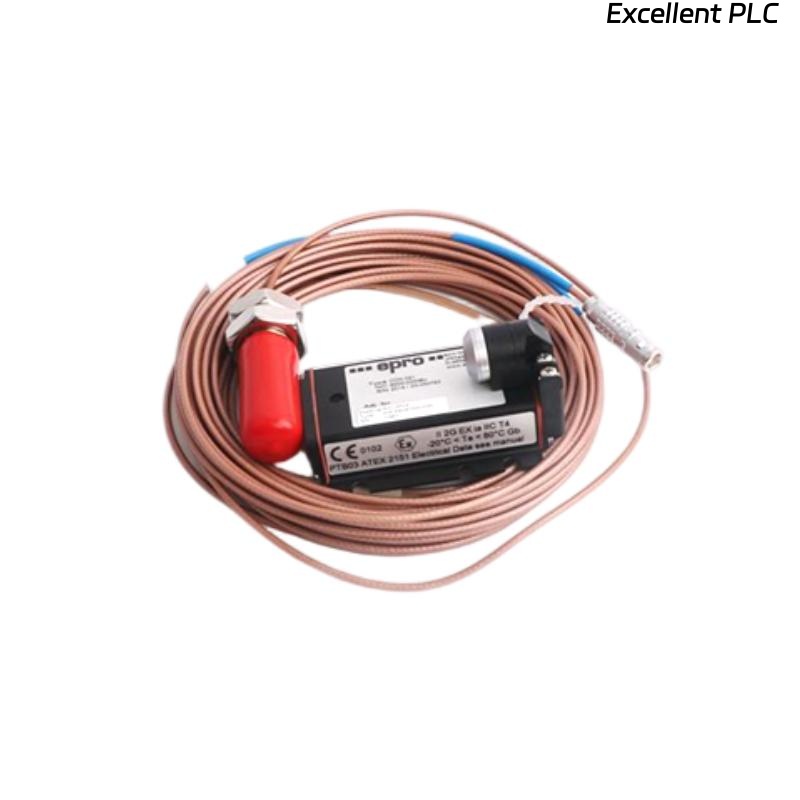

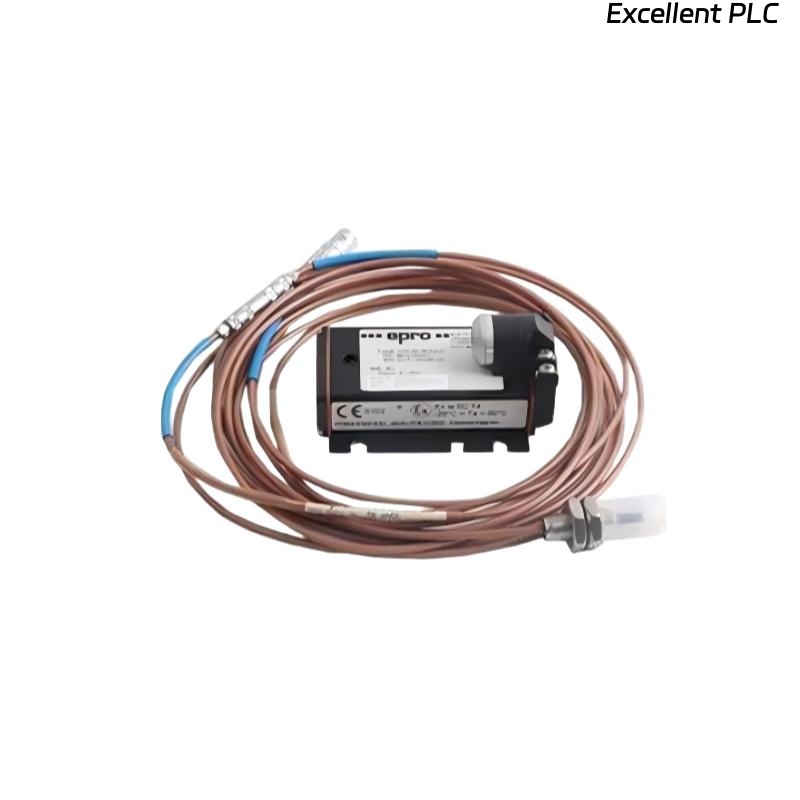

Epro PR6424/005-101 16 mm Eddy Current Sensor

Product Introduction

The Epro PR6424/005-101 is a high-precision 16 mm eddy current sensor designed for non-contact measurement of displacement, vibration, and position in industrial applications. It utilizes the eddy current principle to measure the proximity of conductive materials without physical contact, which helps to reduce mechanical wear and enhance the longevity of both the sensor and the components it monitors.

This model is specifically engineered for precise measurements in high-speed, high-precision applications. Its compact design with a 16 mm diameter sensor head makes it ideal for installation in confined spaces where space is limited. The PR6424/005-101 is widely used in critical applications such as machinery condition monitoring, automotive assembly lines, and industrial process control.

Product Specifications

Product Applications

The Epro PR6424/005-101 16 mm eddy current sensor is widely used across a variety of industries that require precise, non-contact displacement and vibration measurement. Some key applications include:

• Machine Condition Monitoring: In industrial machinery, the PR6424/005-101 is used to monitor the displacement and vibration of key components like motors, shafts, and bearings, helping to detect early signs of wear or malfunction.

• Automotive Industry: It is employed in automotive manufacturing lines to monitor critical assembly processes and ensure the precise positioning of parts like engine components and mechanical assemblies.

• Aerospace: In the aerospace sector, the sensor helps in measuring the displacement and alignment of turbine blades, engines, and other high-performance components, ensuring their precision and safety.

• Rotating Equipment: The PR6424/005-101 is used to monitor the position and vibration of rotating machinery, including turbines, compressors, and pumps, ensuring smooth operation and preventing potential breakdowns.

• Industrial Automation: This sensor is ideal for use in robotics and automated systems, where precise control over displacement and positioning is essential for maintaining operational efficiency.

• Process Control: Used in industries such as chemical and pharmaceutical manufacturing, the sensor can be employed to measure fluid levels, valve positions, and other key process parameters.

Advantages of the Epro PR6424/005-101 Eddy Current Sensor

• Non-Contact Measurement: The PR6424/005-101 sensor provides non-contact measurements, which eliminates the need for physical contact with the target. This minimizes wear and tear and increases the operational life of both the sensor and the measured components.

• High Accuracy and Resolution: The sensor offers high-precision measurements with a fast response time, which is crucial for applications that demand extremely accurate and timely data.

• Fast Response Time: With a response time of less than 1 ms, the sensor is capable of delivering quick feedback, making it suitable for dynamic, high-speed applications where real-time data is critical.

• Compact Design: The 16 mm diameter sensor head ensures the sensor can be easily integrated into compact and confined spaces without compromising performance.

• Wide Temperature Range: Operating in a wide temperature range from -40°C to 120°C, the PR6424/005-101 can perform reliably in both extremely hot and cold environments.

• Versatile Output Options: The sensor is flexible in terms of output, supporting both 4-20 mA and 0-10 V output signals to accommodate various control systems.

• Durability: Built to withstand industrial environments, the sensor is resistant to vibrations, dust, and humidity, ensuring long-term reliable performance in harsh conditions.

FAQ

1. What types of output signals does the Epro PR6424/005-101 sensor support?

   • The sensor supports either 4-20 mA or 0-10 V output signals, depending on the configuration.

2. What is the measurement range of the PR6424/005-101?

   • The measurement range is typically from 0 to 10 mm, though the exact range may vary based on specific application configurations.

3. How does the Epro PR6424/005-101 measure displacement?

   • The sensor operates on the eddy current principle, detecting changes in the electromagnetic field caused by the displacement of a conductive target.

4. What is the response time of the Epro PR6424/005-101 sensor?

   • The response time is less than 1 ms, which is suitable for high-speed, dynamic applications.

5. What is the power supply requirement for the PR6424/005-101?

   • The sensor requires a 24 VDC power supply with a tolerance of ±10%.

6. What is the temperature range for the Epro PR6424/005-101 sensor?

   • The sensor operates within a temperature range of -40°C to 120°C, making it suitable for a variety of industrial environments.

7. Can the Epro PR6424/005-101 sensor be used in high-vibration environments?

   • Yes, the sensor is designed to withstand high levels of vibration, making it ideal for machinery and rotating equipment applications.

8. Is the Epro PR6424/005-101 sensor resistant to dust and humidity?

   • Yes, it can function in environments with up to 90% non-condensing humidity, ensuring reliable operation in challenging conditions.

9. How accurate is the Epro PR6424/005-101 sensor?

   • The sensor provides high-resolution, accurate measurements, making it suitable for applications requiring precise displacement and position tracking.

10. What industries benefit from using the Epro PR6424/005-101 sensor?

    • The sensor is ideal for industries such as automotive, aerospace, manufacturing, energy, and process control, where precise, non-contact measurement is required.
