Product Introduction

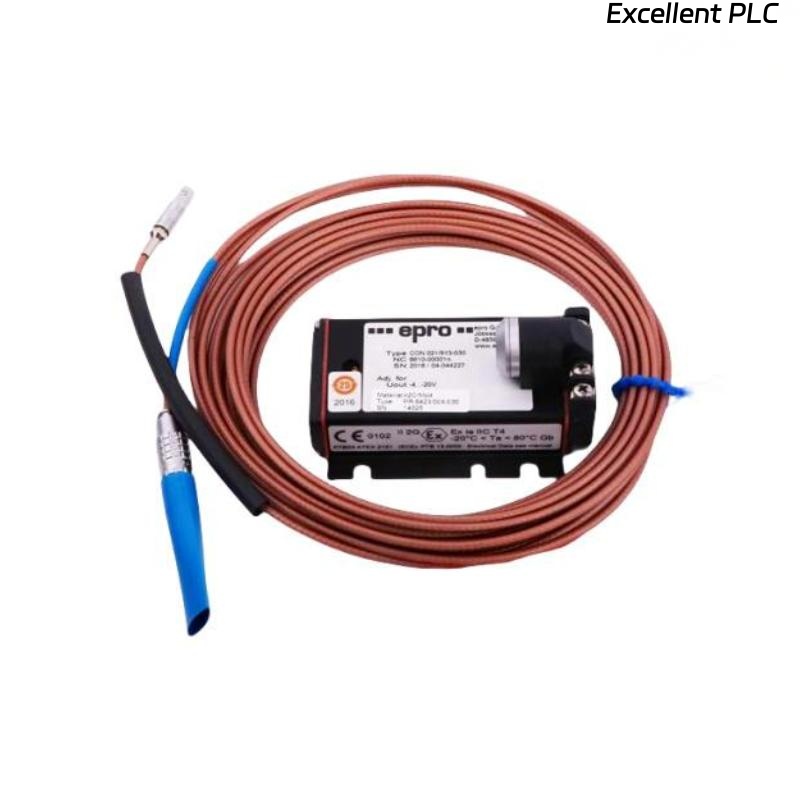

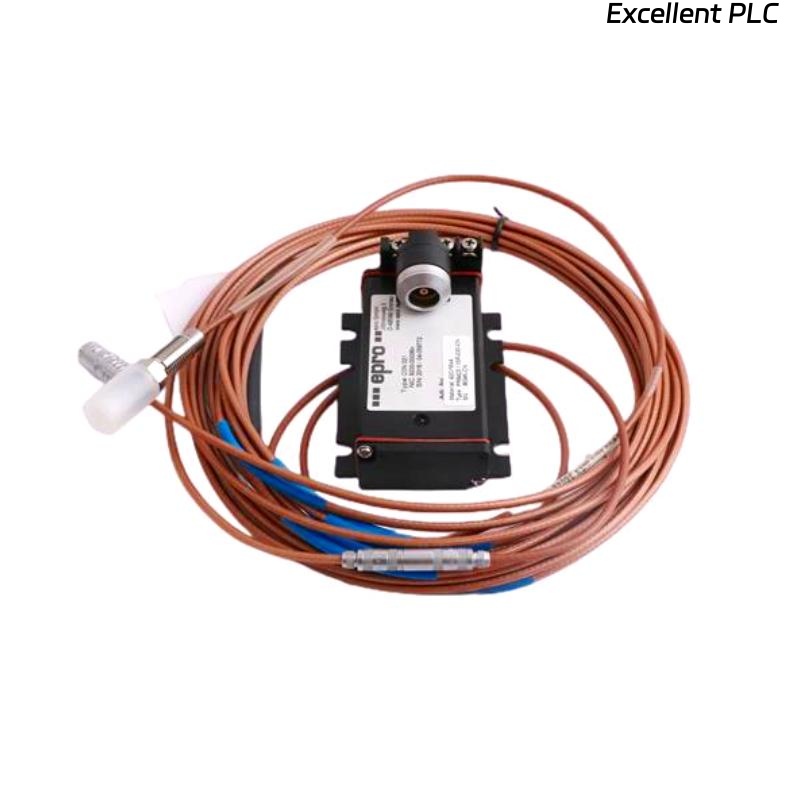

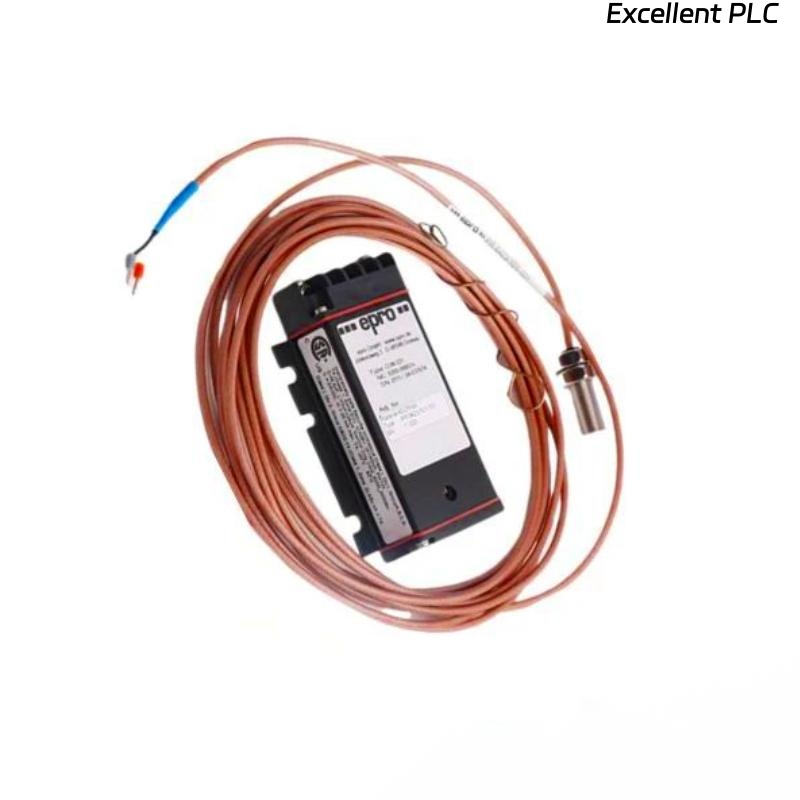

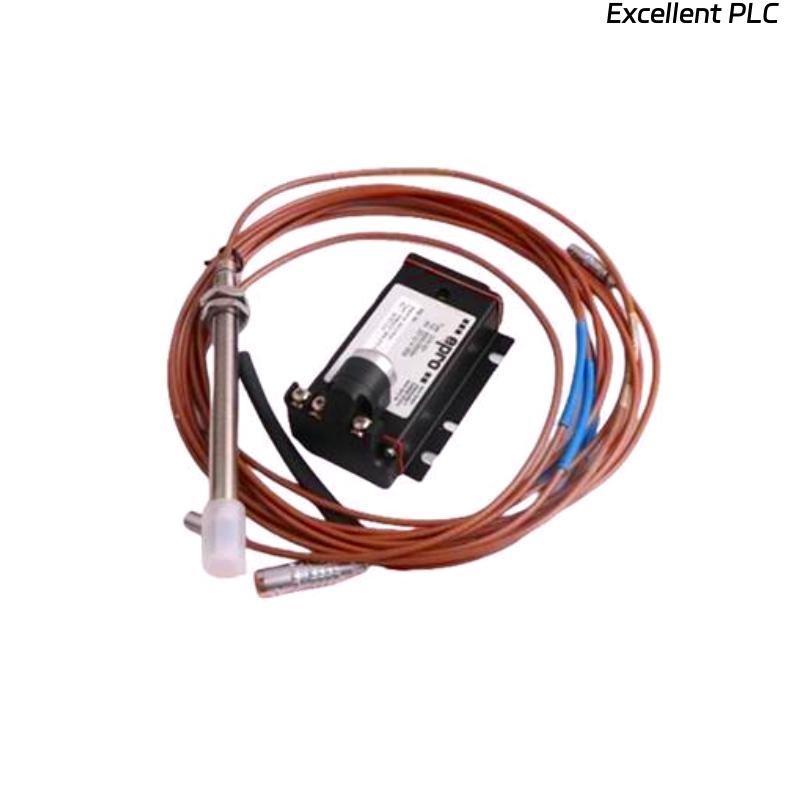

The Epro PR6424/006-000 is an 16mm eddy-current displacement sensor designed for high-precision measurement of position, vibration, and motion in industrial machinery and rotating equipment. It converts mechanical displacement into an electrical signal using non-contact electromagnetic principles, ensuring accurate detection even in harsh environments. The sensor is widely used in predictive maintenance, condition monitoring, and research applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current Displacement Sensor |
| Sensor Head Diameter | 16mm |
| Measurement Range | 0–2 mm |
| Linearity | ±1% of full scale |
| Output Signal | Voltage (0–10 V) or current (4–20 mA) |
| Frequency Response | DC–10 kHz |
| Supply Voltage | 12–30 V DC |
| Operating Temperature | -40°C to 125°C |
| Cable Type | Shielded, 2 m standard length |
| Weight | 0.2 kg |
| Mounting | Threaded M8 or custom brackets |
| Response Time | ≤ 1 ms |
| Electrical Protection | Short-circuit and reverse polarity protection |
Product Applications
-
Shaft vibration monitoring in turbines, compressors, and motors
-
Rotor displacement and shaft alignment measurement
-
Condition monitoring of high-speed rotating machinery
-
Precision position sensing in research and development equipment
-
Industrial automation and process control applications
-
Integration into machine diagnostic systems
Product Advantages
-
Non-contact Measurement: Minimizes wear and eliminates friction-related errors
-
High Accuracy: Provides precise readings with excellent linearity
-
Robust Construction: Suitable for extreme temperatures and industrial environments
-
Fast Response: Ideal for high-speed dynamic measurements
-
Easy Integration: Compatible with standard signal conditioning systems
-
Reliable Performance: Resistant to EMI and electrical noise interference
FAQ
Q1: What is the maximum frequency the PR6424/006-000 can measure accurately?
A1: The sensor has a frequency response up to 10 kHz, suitable for high-speed machinery monitoring.
Q2: Can this sensor operate in high-temperature environments?
A2: Yes, it operates between -40°C and 125°C without affecting performance.
Q3: What output signal options are available?
A3: The sensor provides voltage output (0–10 V) or current output (4–20 mA) depending on configuration.
Q4: How resistant is the sensor to electromagnetic interference?
A4: The sensor is designed with shielding to maintain stable measurements even in EMI-prone environments.
Q5: Can the PR6424/006-000 be used for axial and radial measurements?
A5: It is primarily designed for radial displacement measurements; axial measurements may require special mounting or calibration.
Q6: Is it possible to extend the cable length?
A6: Yes, but cable extension should maintain proper shielding to avoid signal degradation.
Q7: How precise is the linearity of the output signal?
A7: Linearity is maintained within ±1% of the full-scale measurement range.
Q8: Does it require special signal conditioning?
A8: Standard Epro signal conditioners or compatible industrial signal conditioners can be used.
Q9: Can this sensor be mounted on rotating shafts?
A9: Yes, using the M8 threaded mounting or suitable custom brackets, it can monitor rotating shafts.
Q10: Is the sensor compatible with 4–20 mA loop systems?
A10: Yes, the current output variant supports standard 4–20 mA loop systems.
Related Models
| Model | Sensor Head Diameter | Measurement Range | Output Signal |
|---|---|---|---|
| PR6424/006-121 | 8 mm | 0–2 mm | Voltage 0–10 V |
| PR6424/006-030 | 8 mm | 0–1 mm | Voltage 0–5 V |
| PR6424/006-021 | 8 mm | 0–2 mm | Current 4–20 mA |
| PR6424/007-000 | 8 mm | 0–3 mm | Voltage 0–10 V |
| PR6424/007-121 | 8 mm | 0–3 mm | Current 4–20 mA |
| PR6424/008-021 | 8 mm | 0–2.5 mm | Current 4–20 mA |
