Product Introduction

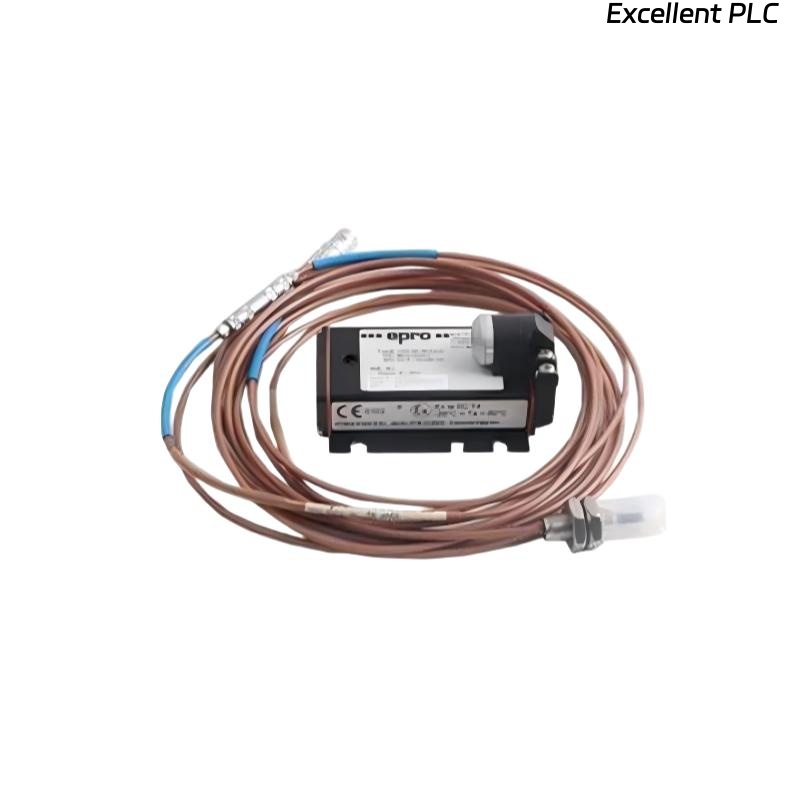

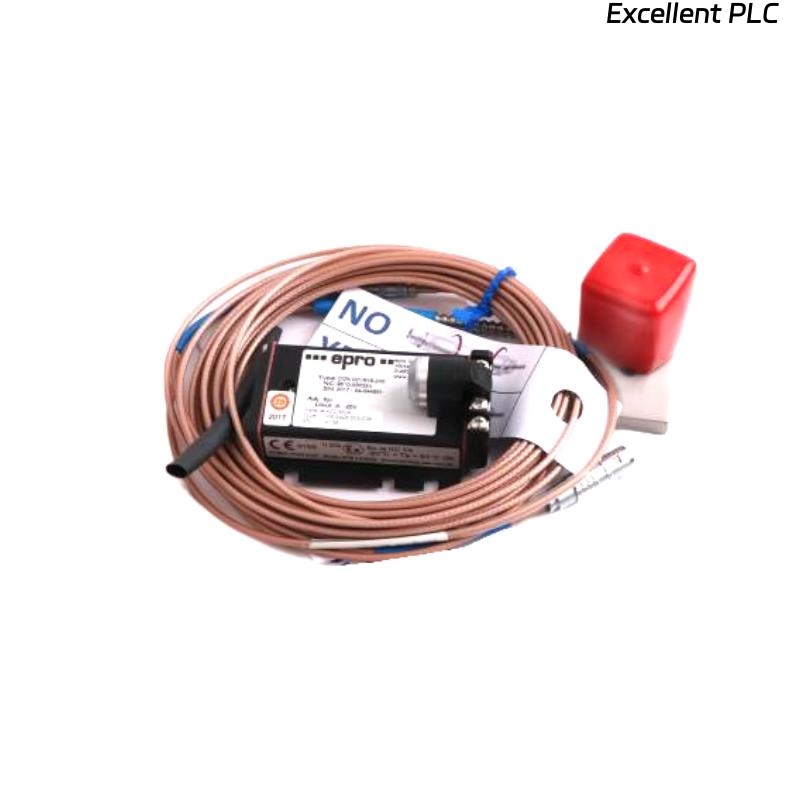

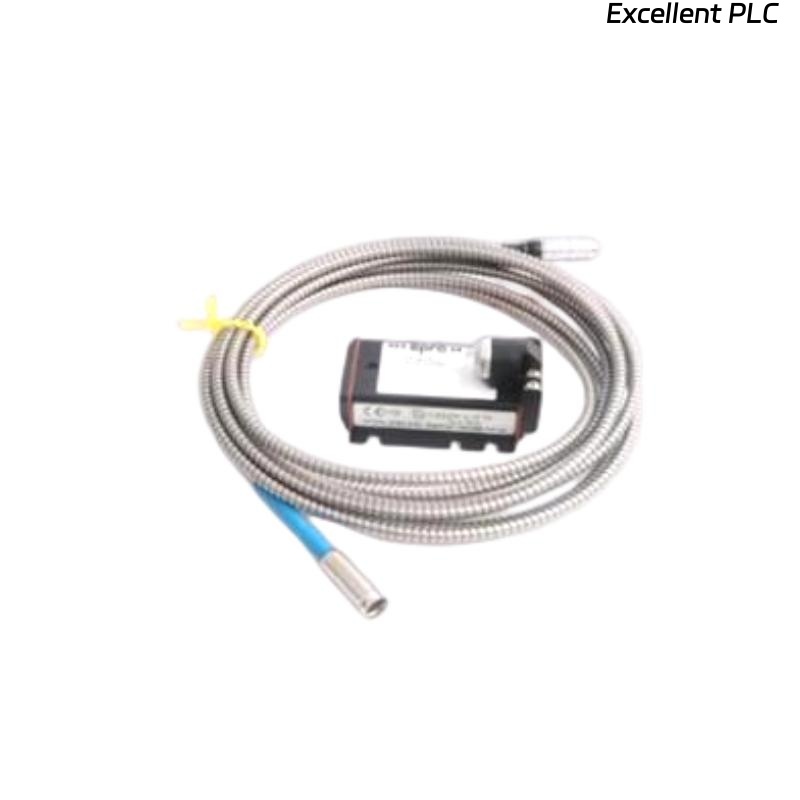

The Epro PR6424/006-131 is a high-precision 16mm eddy current sensor, designed to measure displacement, vibration, and position with great accuracy in industrial and manufacturing applications. The sensor is part of the Epro range, known for providing exceptional measurement performance under challenging conditions.
Eddy current sensors work by generating an electromagnetic field, and then detecting changes in the field caused by the target’s movement or distance. This makes the PR6424/006-131 ideal for non-contact measurements, which is especially beneficial in systems requiring minimal physical interaction.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensing Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Temperature Range | -40°C to +80°C |
| Measuring Range | 0 – 100 mm (depending on setup) |
| Output Signal | 4 – 20 mA or 0 – 10 V (configurable) |
| Supply Voltage | 10 – 30 V DC |
| Response Time | < 1 ms |
| Max. Frequency | 500 kHz |
| Material Compatibility | Suitable for ferrous and non-ferrous materials |
Product Applications
The PR6424/006-131 16mm Eddy Current Sensor is used in a variety of industrial applications that require accurate and reliable position or displacement measurements. Some of the key applications include:
-
Rotating Equipment Monitoring: The sensor is commonly used in turbines, compressors, and motors to monitor shaft position and vibration.
-
Precision Manufacturing: It plays a vital role in automated manufacturing systems, ensuring precise control in processes like CNC machining and assembly lines.
-
Condition Monitoring: Used in predictive maintenance systems to measure the health of critical machinery and components by detecting early signs of wear.
-
Non-Contact Measurement Systems: Perfect for applications requiring non-invasive measurement of moving parts in harsh environments.
Product Advantages
-
High Precision and Sensitivity: The sensor provides accurate measurements of position and displacement, which is crucial for maintaining operational efficiency and reliability in various systems.
-
Non-Contact Measurement: The non-contact nature of the sensor minimizes mechanical wear, reducing maintenance costs and extending the sensor’s lifespan.
-
Wide Temperature Range: It performs effectively in a wide temperature range, from -40°C to +80°C, making it suitable for demanding industrial environments.
-
Durability: Built to withstand harsh conditions, the sensor offers high durability and long-term stability in applications with vibrations, dust, and other environmental challenges.
-
Easy Integration: The sensor’s standard output signals (4-20 mA or 0-10 V) make it easy to integrate into most industrial control systems and equipment.
FAQ
Q1: What is the sensing range of the Epro PR6424/006-131?
The sensing range of the Epro PR6424/006-131 is 0 to 100 mm, depending on the system setup.
Q2: What is the output signal type?
The sensor provides output signals in both 4-20 mA and 0-10 V, which can be selected based on your system’s requirements.
Q3: Can the sensor be used in high-temperature environments?
Yes, the PR6424/006-131 can operate in temperatures ranging from -40°C to +80°C, making it suitable for both extreme cold and hot conditions.
Q4: What types of materials can the sensor measure?
The sensor can measure displacement on both ferrous and non-ferrous materials, offering versatility in a wide range of applications.
Q5: Is the sensor easy to install?
Yes, the PR6424/006-131 is designed for easy integration into existing systems. It supports both analog output options and can be mounted with minimal effort.
Q6: What is the response time of the sensor?
The sensor has a response time of less than 1 ms, ensuring fast and accurate readings.
Q7: How does the sensor measure displacement?
The sensor uses eddy current technology, which generates an electromagnetic field and detects changes in the field caused by the target’s displacement.
Q8: Is the sensor compatible with PLC systems?
Yes, the output signals from the sensor (4-20 mA or 0-10 V) are compatible with most PLC systems and can be easily integrated for real-time monitoring.
Q9: How reliable is the sensor in harsh environments?
The PR6424/006-131 is highly durable, built to withstand dust, vibrations, and other harsh environmental factors typically found in industrial settings.
Q10: What is the maximum operating frequency of the sensor?
The maximum frequency for the PR6424/006-131 is 500 kHz, allowing it to measure high-speed movements with great precision.
Related Models
| Model | Description |
|---|---|
| PR6424/006-150 | Similar 16mm eddy current sensor, with higher displacement range |
| PR6424/008-120 | 8mm eddy current sensor with enhanced precision for fine measurements |
| PR6424/010-200 | 10mm eddy current sensor, ideal for large machinery monitoring |
| PR6424/020-100 | 20mm sensor with extended range for larger applications |
| PR6424/016-180 | 16mm sensor optimized for extreme vibration conditions |
| PR6424/012-110 | Compact 12mm sensor for tight-space applications |
