Product Introduction

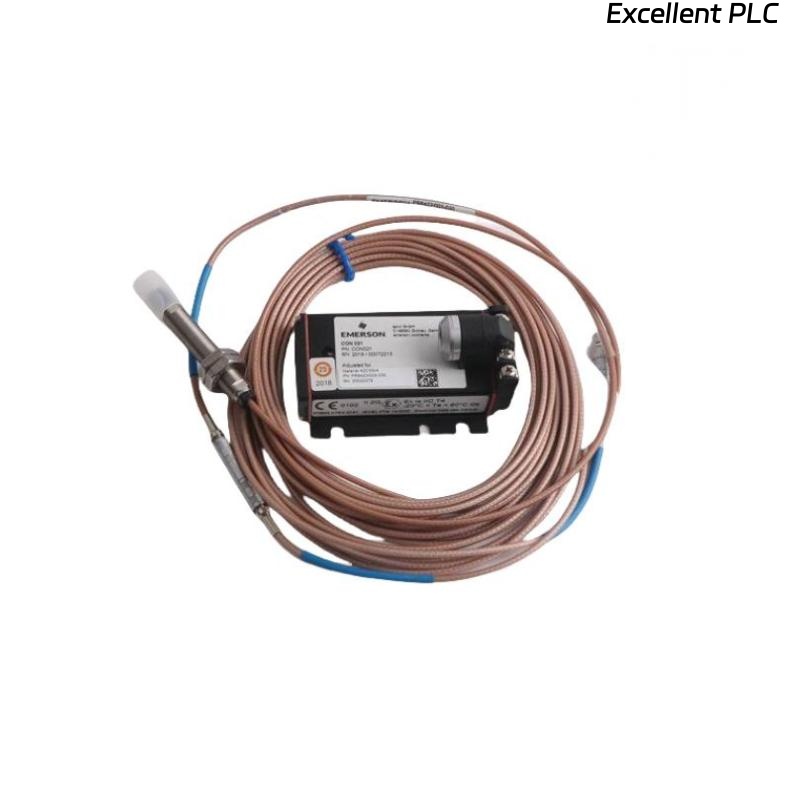

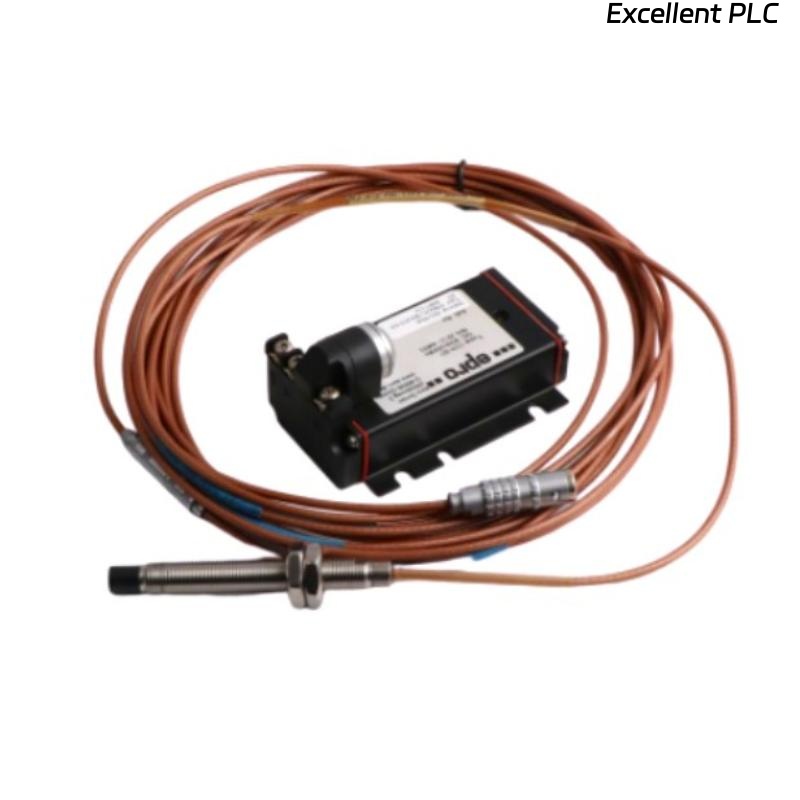

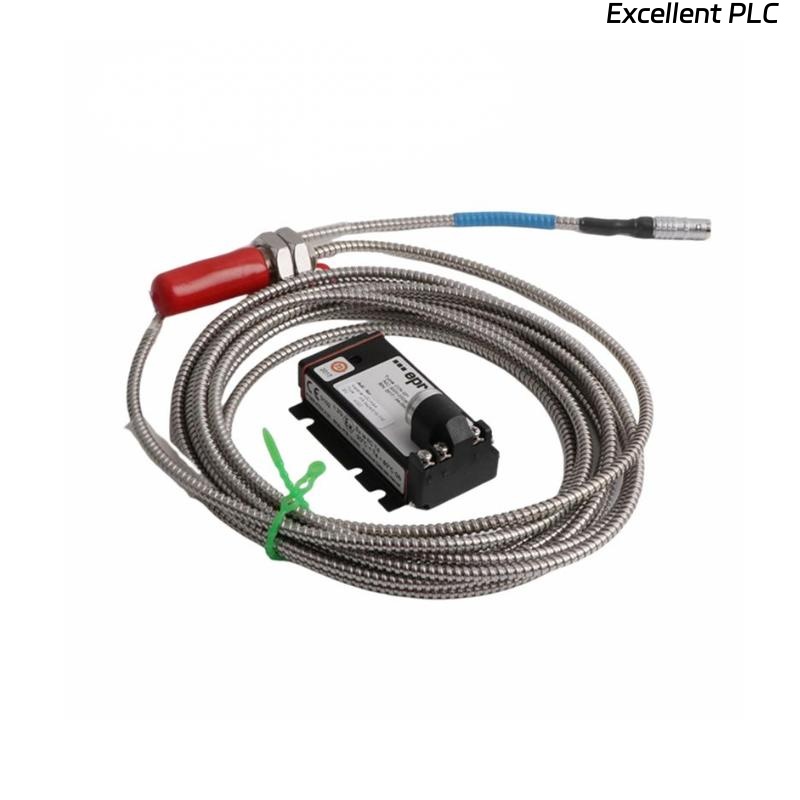

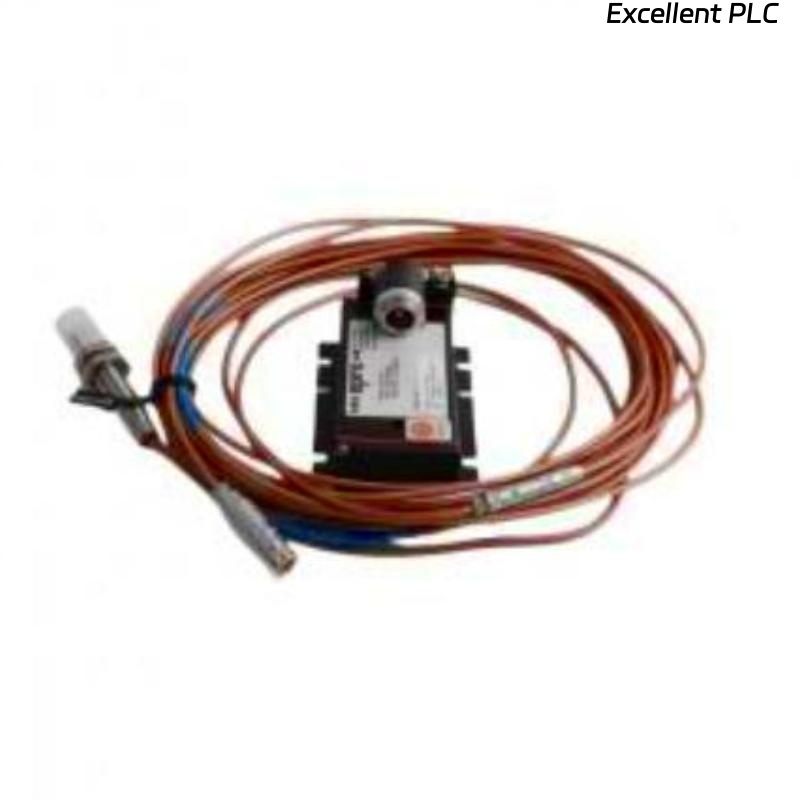

The Epro PR6424/007-000 is an 16mm eddy-current displacement sensor designed for high-precision measurements in industrial and research applications. It operates by detecting minute variations in the distance between the sensor head and a conductive target, making it highly suitable for vibration monitoring, shaft position measurements, and other dynamic or static displacement analyses. Its compact design and robust construction allow for reliable performance even in harsh operating environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current Displacement Sensor |
| Sensor Head Diameter | 16mm |
| Measurement Range | 0–2 mm (typical) |
| Output Type | Analog Voltage |
| Linearity | ±1% of Full Scale |
| Operating Temperature Range | -40°C to +125°C |
| Weight | 0.2 kg |
| Cable Length | 2 meters (standard) |
| Connector Type | M12 Circular Connector |
| Supply Voltage | 10–30 VDC |
| Target Material | Conductive metals |
| Frequency Response | 0–10 kHz |
| Housing Material | Stainless Steel |
Applications
-
Vibration monitoring of rotating machinery
-
Shaft position and alignment measurement
-
Turbine and generator monitoring
-
Research and laboratory displacement measurements
-
Condition monitoring of motors, compressors, and pumps
-
High-speed dynamic machinery monitoring
Advantages
-
High Precision: Eddy-current technology ensures accurate measurement of minute displacements.
-
Compact Design: 8mm sensor head allows installation in tight spaces.
-
Robust Construction: Stainless steel housing and durable cable enhance reliability in industrial environments.
-
Wide Operating Temperature: Suitable for extreme temperatures, from -40°C to +125°C.
-
Fast Response: High frequency response allows monitoring of rapid machinery vibrations.
-
Easy Integration: M12 connector and standard analog output facilitate quick installation with existing systems.
FAQ
Q1: What type of output does the PR6424/007-000 provide?
A1: It provides an analog voltage output proportional to the displacement of the target.
Q2: Can this sensor be used with non-metallic targets?
A2: No, eddy-current sensors require conductive materials to operate correctly.
Q3: What is the maximum frequency this sensor can accurately measure?
A3: It has a frequency response of up to 10 kHz.
Q4: What is the recommended power supply voltage?
A4: The sensor operates with a supply voltage of 10–30 VDC.
Q5: Is the sensor compatible with standard data acquisition systems?
A5: Yes, the analog output can be integrated into most DAQ systems with proper scaling.
Q6: What is the linearity of the sensor?
A6: The linearity is ±1% of full scale over its measurement range.
Q7: Can this sensor be used outdoors?
A7: Yes, the stainless steel housing provides protection against dust and moisture; however, cable sealing and environmental factors should be considered.
Q8: How is the sensor mounted?
A8: The sensor is typically mounted using clamps or brackets that secure the 8mm head while maintaining correct alignment with the target.
Q9: Does the sensor require calibration?
A9: Yes, periodic calibration is recommended to ensure measurement accuracy.
Q10: What types of machinery are suitable for this sensor?
A10: It is ideal for high-speed rotating machinery, turbines, compressors, motors, and laboratory test setups.
