Product Introduction

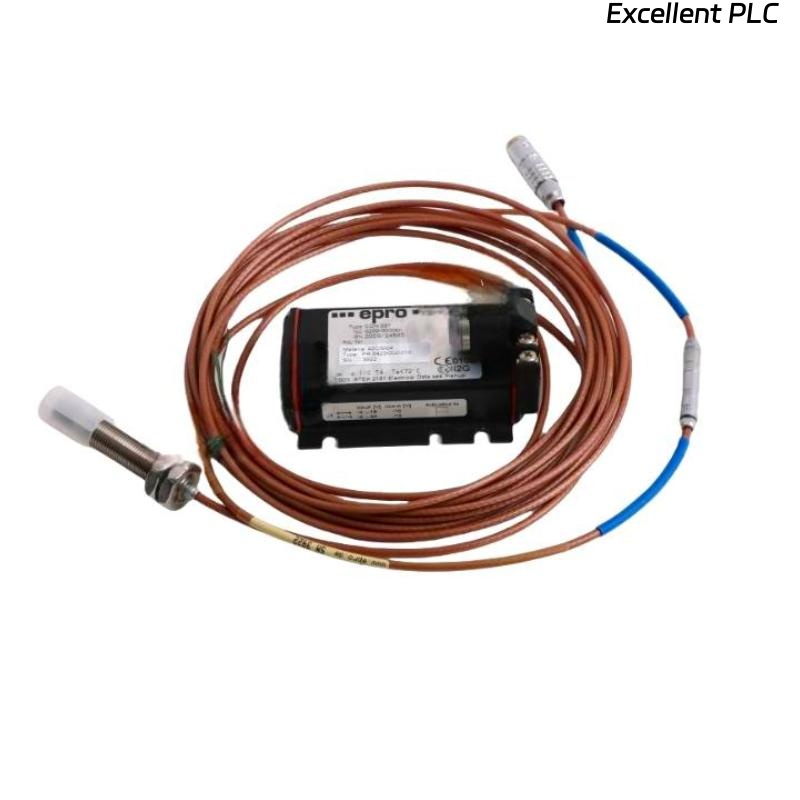

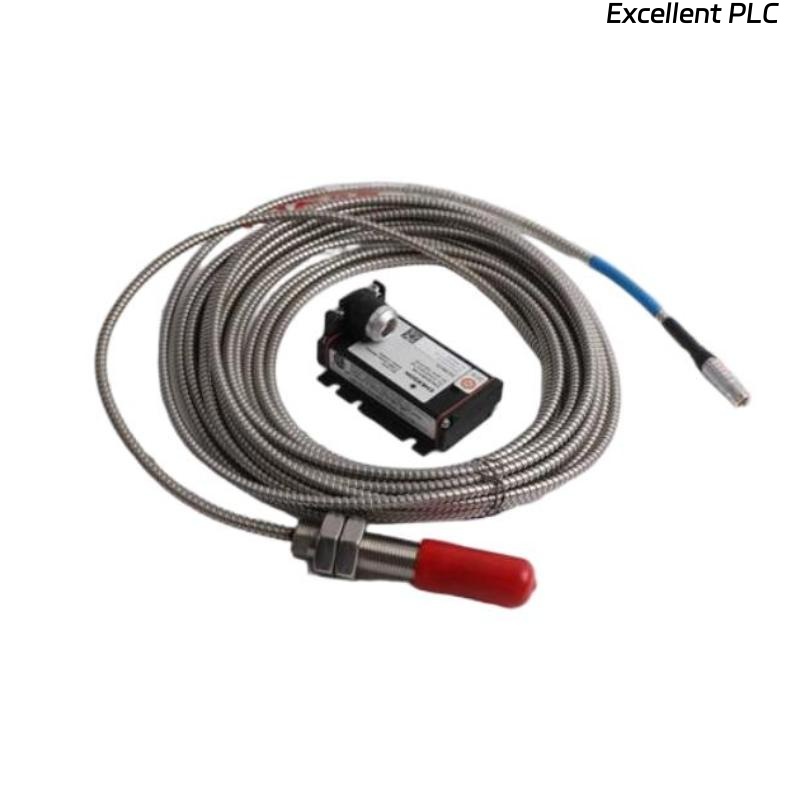

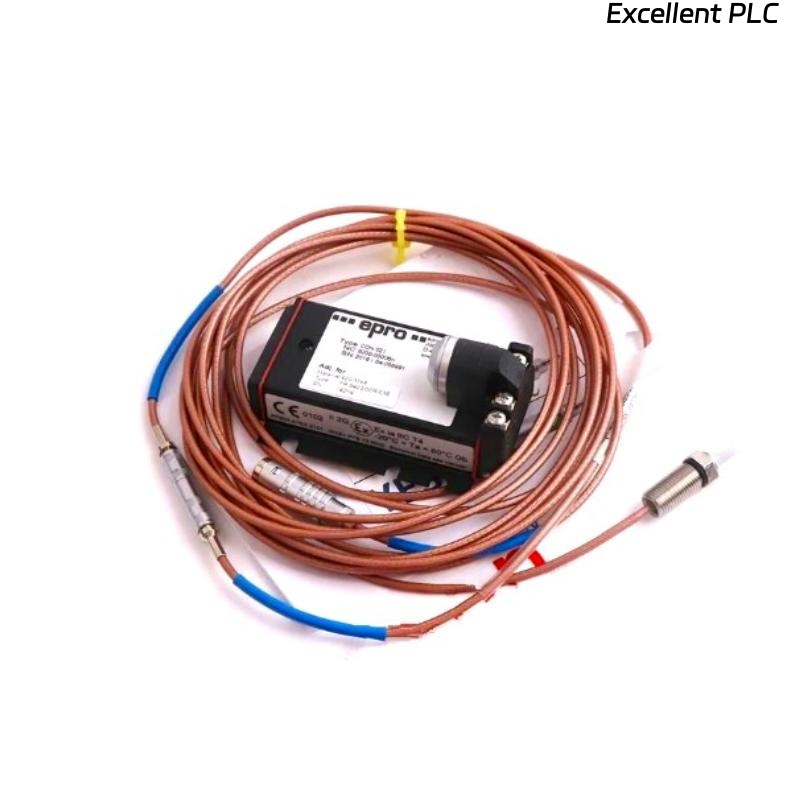

The Epro PR6424/007-021 is a precision 8 mm eddy-current sensor designed for high-accuracy measurement in rotating machinery and industrial applications. Its robust construction and stable signal output make it suitable for monitoring vibration, shaft displacement, and rotor position in critical machinery systems. This sensor is engineered for industrial environments where reliability, noise immunity, and consistent performance are required.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current Displacement Sensor |
| Sensor Head Diameter | 16mm |
| Weight | 0.2 kg |
| Measurement Range | Typically ±1 mm to ±5 mm (depending on configuration) |
| Linearity | ≤ 1% of full scale |
| Frequency Response | DC to 10 kHz |
| Output Signal | Voltage (Differential) |
| Supply Voltage | 12–24 VDC |
| Cable Type | Shielded twisted pair, 2–5 meters standard |
| Operating Temperature | -40°C to +125°C |
| Environmental Protection | IP65 or higher, depending on installation |
| Connector Type | M12 or customized options available |
Product Applications
-
Vibration and displacement monitoring of turbines, compressors, and generators
-
Rotor position measurement in motors and pumps
-
Feedback systems in industrial control machinery
-
Predictive maintenance systems for rotating equipment
-
Laboratory testing of rotating components
Product Advantages
-
High Precision: Ensures accurate measurements with low noise interference.
-
Compact Design: Small 8 mm sensor head allows installation in tight spaces.
-
Robust and Reliable: Resistant to industrial environmental factors including dust, vibration, and temperature extremes.
-
Wide Frequency Response: Suitable for both low-speed and high-speed machinery monitoring.
-
Versatile Installation: Compatible with multiple mounting and connection options.
-
Stable Signal Output: Maintains signal integrity over long distances when paired with appropriate cabling.
FAQ
Q1: How does the sensor detect displacement?
The sensor uses eddy-current principles where an alternating magnetic field induces currents in a conductive target. Variations in distance change the induced current, which is converted into a voltage signal.
Q2: Can the sensor be used in high-speed rotating machinery?
Yes, the sensor has a frequency response suitable for measurements up to 10 kHz, making it compatible with high-speed rotors.
Q3: What type of output signal does the PR6424/007-021 provide?
It provides a differential voltage output proportional to the displacement of the target.
Q4: Is the sensor compatible with standard signal conditioning units?
Yes, it can be connected to standard Epro signal conditioners or third-party units that accept eddy-current sensor inputs.
Q5: Can the sensor operate in extreme temperatures?
Yes, it is rated for operation from -40°C to +125°C.
Q6: How is the sensor affected by electromagnetic interference (EMI)?
The sensor’s shielded twisted-pair cable design reduces susceptibility to EMI in industrial environments.
Q7: What materials can the target be made of?
The target should be a conductive material, typically ferrous or non-ferrous metals, suitable for eddy-current interaction.
Q8: Can this sensor be used in oil or wet environments?
Yes, it has an IP65 or higher rating when installed properly, offering protection against dust and water spray.
Q9: Is calibration required before use?
While factory calibration is provided, field calibration is recommended to ensure accuracy based on installation geometry.
Q10: How long is the standard cable, and can it be extended?
Standard cables range from 1–5 meters. Extension is possible with shielded cables, but signal integrity should be maintained using proper wiring practices.
