Product Introduction

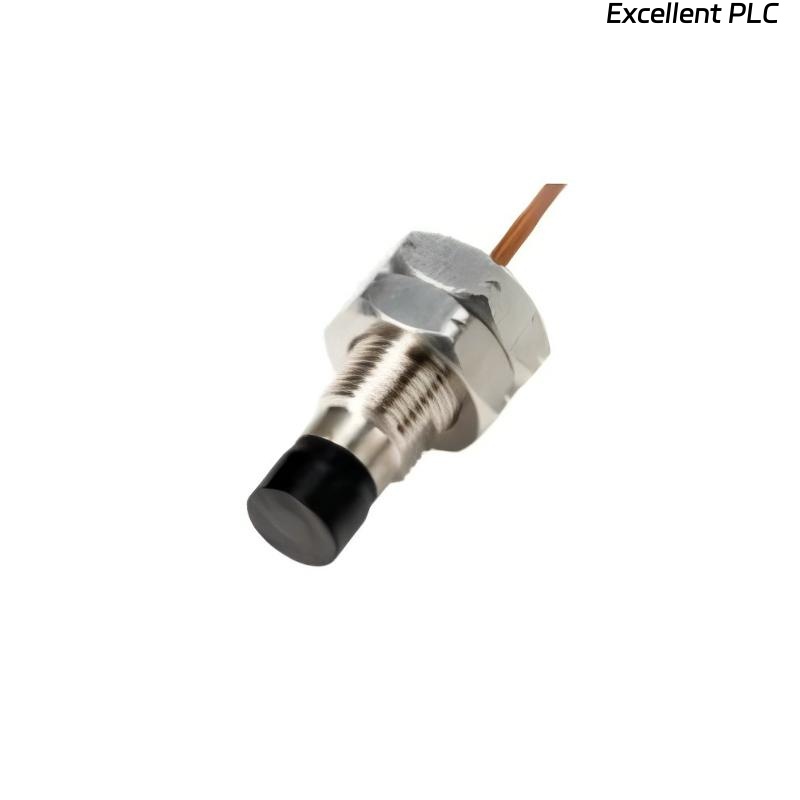

The Epro PR6424/007-110-CN is a 16mm Eddy Current Sensor designed for highly accurate non-contact measurement of displacement, vibration, and position. This sensor utilizes eddy current technology, which allows it to measure the distance between the sensor and metallic objects without any physical contact. Due to its small size and robust construction, this sensor is ideal for a variety of industrial applications where space is limited and precision is critical.
The PR6424/007-110-CN sensor is commonly used in high-precision measurement systems where reliable performance is essential. Its ability to measure with high resolution and over a wide range of frequencies makes it suitable for monitoring rotating machinery, vibrations, and other dynamic characteristics in a variety of industries, including automotive, aerospace, and industrial automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PR6424/007-110-CN |
| Sensor Type | Eddy Current Sensor |
| Sensor Diameter | 16 mm |
| Weight | 0.20 kg |
| Measurement Range | Up to 10 mm (depending on material and installation) |
| Output Type | Analog Output (0-10V, 4-20mA) |
| Resolution | High resolution for precise measurements |
| Operating Temperature | –20°C to +70°C |
| Electrical Connection | Standard M12 connector for easy integration |
| Frequency Range | 0 Hz to 10 kHz |
| Power Supply | 24 V DC |
| Material Compatibility | Works with metallic surfaces like steel, aluminum, etc. |
| Mounting Type | Fixed installation with optional flexible mounts |
| Protection Class | IP67 (dust and waterproof) |
| Housing Material | Stainless steel, corrosion-resistant |
Applications
The Epro PR6424/007-110-CN 16mm eddy current sensor is designed for a wide range of industrial applications:
-
Vibration Monitoring – Ideal for monitoring the vibrations of rotating machinery such as turbines, motors, and pumps.
-
Position Sensing – Accurate displacement measurement in automated systems, ensuring proper alignment and positioning of mechanical components.
-
Gap and Alignment Monitoring – Monitors the gap between rotating and stationary parts, ensuring correct alignment and preventing damage to equipment.
-
Rotational Speed Measurement – Measures the speed of rotating machinery such as shafts, motors, and wheels.
-
Non-Contact Measurement – Provides precise measurements without physical contact, which reduces wear and tear on both the sensor and the measured components.
-
Automotive Industry – Used in automotive systems to monitor position and vibration in components like engines and suspension systems.
-
Aerospace – Measures displacement and vibration in critical systems such as turbines and compressors.
-
Process Automation – Essential for automated manufacturing and process control systems where precision and real-time data are crucial.
Advantages
-
Non-Contact Measurement – The Epro PR6424/007-110-CN offers non-contact measurement, eliminating the need for physical contact with the target, which results in lower maintenance and increased lifespan.
-
High Precision and Sensitivity – This sensor offers excellent resolution and sensitivity, making it ideal for high-precision applications where small displacements need to be detected.
-
Wide Measurement Range – It has a broad range of measurement capabilities, making it adaptable to various industrial applications.
-
Durable and Robust – Built with a stainless steel housing and an IP67 protection rating, the sensor is resistant to dust, moisture, and harsh environmental conditions, ensuring durability in industrial environments.
-
Easy Integration – The M12 connector and standard analog output make it easy to integrate into existing monitoring systems and control setups.
-
Reliable Performance – The sensor is designed for long-term use, offering stable performance even in demanding applications.
-
Compact Design – The 16mm diameter of the sensor allows it to fit into tight spaces, making it a great choice for systems with limited room for installation.
-
Versatile Applications – The sensor can be used across a variety of industries, including power generation, automotive, and aerospace, due to its versatility and reliability.
-
Cost-Effective – The Epro PR6424/007-110-CN offers an affordable solution compared to other displacement sensors, providing high performance and reliability at a competitive price.
-
Long Life Cycle – The sensor’s non-contact measurement and robust build ensure it has a long life cycle, reducing the need for frequent replacements.
FAQ
Q1: What is the primary function of the Epro PR6424/007-110-CN?
A1: The Epro PR6424/007-110-CN is designed to provide accurate, non-contact measurements of displacement, vibration, and position for various industrial applications, particularly in rotating machinery.
Q2: How does an eddy current sensor work?
A2: An eddy current sensor works by creating an electromagnetic field that interacts with a conductive material. As the material moves or changes distance, the electromagnetic field is altered, allowing the sensor to detect these changes and measure displacement or vibration.
Q3: Can this sensor be used for high-speed applications?
A3: Yes, the PR6424/007-110-CN operates within a frequency range of up to 10 kHz, making it suitable for high-speed applications such as rotating machinery and dynamic measurements.
Q4: What is the output type of the Epro PR6424/007-110-CN?
A4: The PR6424/007-110-CN provides an analog output, offering options such as 0-10V or 4-20mA for easy integration with most control systems.
Q5: What is the environmental protection rating of this sensor?
A5: The PR6424/007-110-CN has an IP67 protection rating, meaning it is dust-tight and waterproof, which makes it ideal for industrial environments where moisture and debris are present.
Q6: What materials can the sensor detect?
A6: The sensor is designed for use with metallic materials, such as steel, aluminum, and other conductive metals, making it highly versatile for various industrial applications.
Q7: Is this sensor suitable for use in vibration monitoring?
A7: Yes, the Epro PR6424/007-110-CN is specifically designed for vibration monitoring, making it ideal for applications in turbines, motors, and pumps.
Q8: Can the sensor measure both displacement and position?
A8: Yes, the sensor can accurately measure both displacement and position, making it suitable for alignment and gap monitoring applications.
Q9: Is the Epro PR6424/007-110-CN suitable for use in aerospace applications?
A9: Yes, the Epro PR6424/007-110-CN is widely used in the aerospace industry for critical applications such as monitoring turbine vibration and displacement in engines and other systems.
Q10: What is the maximum operating temperature for the sensor?
A10: The sensor can operate within a temperature range of –20°C to +70°C, making it suitable for a variety of industrial and environmental conditions.
Related Models (Same Series)
| Model | Description |
|---|---|
| PR6424/007-100-CN | Eddy current sensor with a 10mm diameter for smaller applications. |
| PR6424/007-120-CN | Larger diameter eddy current sensor for heavy-duty machinery. |
| PR6424/007-130-CN | High-precision model for measuring very small displacements. |
| PR6424/007-140-CN | Ideal for high-precision, non-contact gap measurement. |
| PR6424/007-150-CN | Specially designed for vibration monitoring in large turbines. |
| PR6424/008-110-CN | Suitable for use in automotive applications and high-speed systems. |
