Product Introduction

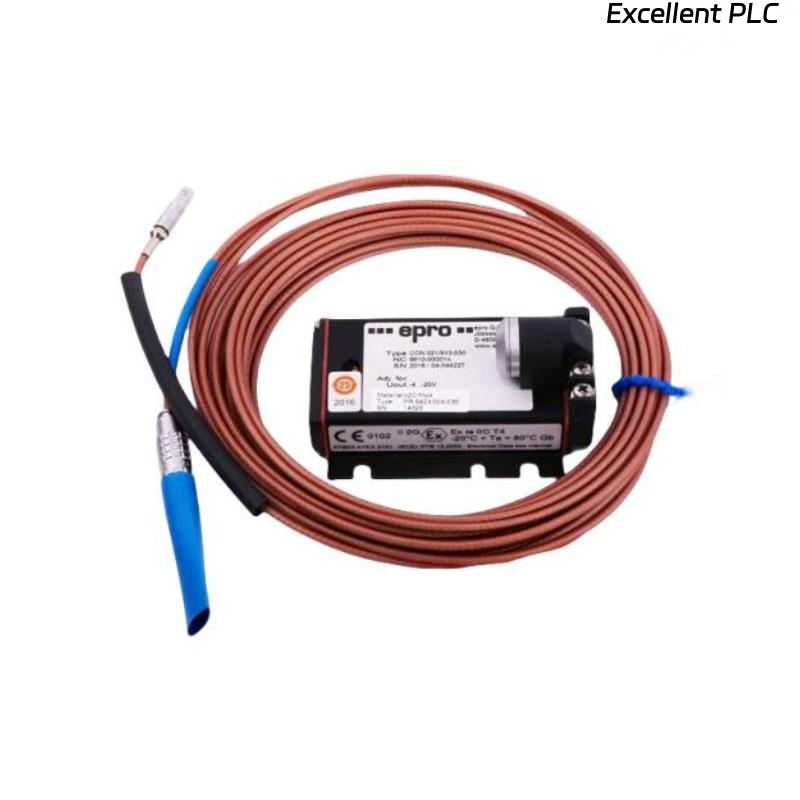

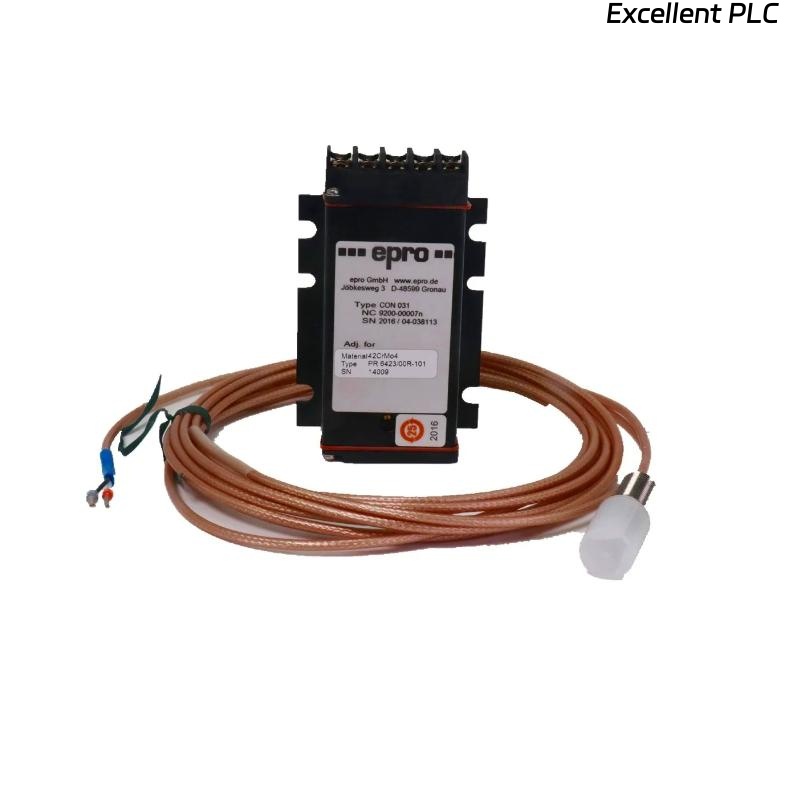

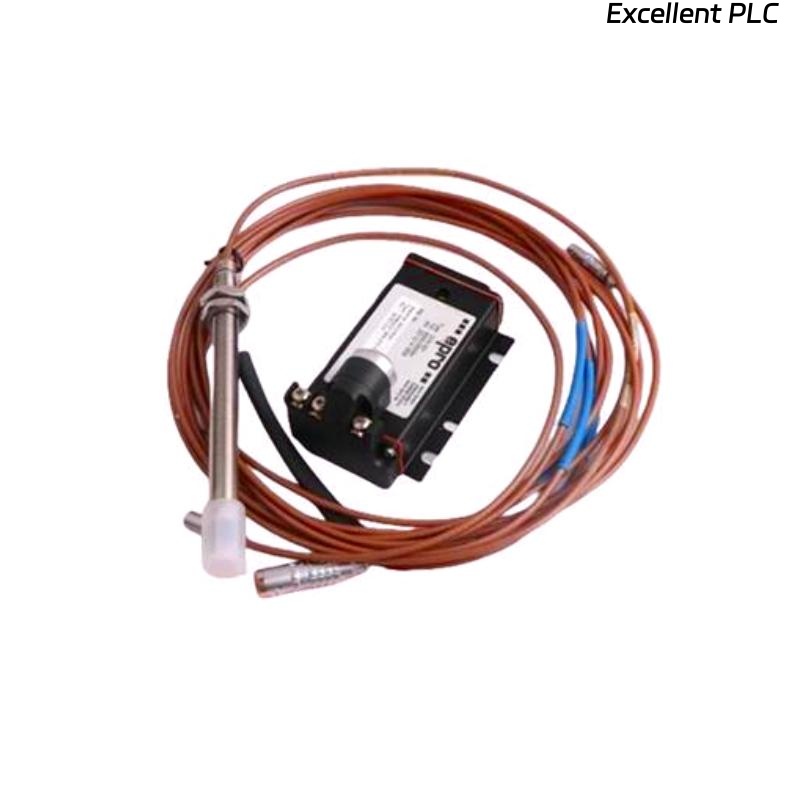

The Epro PR6424/008-100 16mm Eddy-Current Sensor is a high-performance non-contact sensor designed to provide precise measurement of shaft vibration, displacement, and position in rotating machinery. It is optimized for critical applications such as turbines, compressors, pumps, and generators, where reliability and accuracy are essential for machine protection and condition monitoring. With its rugged construction and robust electronic compatibility, this sensor is suitable for harsh industrial environments and long-term use.
Product Advantages
-
High measurement accuracy for vibration and displacement monitoring
-
Non-contact design to minimize mechanical wear and extend service reliability
-
Excellent resistance to industrial environments such as temperature fluctuations, oil, and contaminants
-
Compatible with Epro CON-series signal conditioners and monitoring systems
-
Designed for continuous operation in critical rotating machinery applications
-
Provides reliable operation in both standard and demanding installation conditions
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PR6424/008-100 |
| Sensor Type | Eddy-Current Sensor |
| Sensor Head Diameter | 16mm |
| Measuring Range | ±2 mm (typical) |
| Linear Range | Up to 4 mm |
| Frequency Range | 0 to 10 kHz |
| Sensitivity | 7.87 mV/µm (nominal) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Housing Material | Stainless Steel |
| Weight | 0.2 kg |
| Compatibility | Epro CON0xx Series Drivers |
Product Applications
-
Shaft vibration monitoring in turbines and compressors
-
Radial and axial displacement measurement in rotating equipment
-
Condition monitoring of pumps, motors, and generators
-
Machinery protection systems in critical process industries
-
Industrial environments where non-contact, high-reliability sensors are required
FAQ
Q1: What is the typical sensitivity of the PR6424/008-100 sensor?
A1: The sensor provides a nominal sensitivity of approximately 7.87 mV/µm, ensuring accurate vibration and displacement measurements.
Q2: Can this sensor operate in high-temperature environments?
A2: Yes, it is designed for an operating temperature range from -35 °C up to +180 °C, making it suitable for demanding industrial applications.
Q3: Is the PR6424/008-100 compatible with all Epro drivers?
A3: The sensor is compatible with Epro CON-series drivers, such as CON011, CON021, and CON041, for signal processing.
Q4: What frequency response does the sensor support?
A4: The sensor provides a frequency response range of 0 to 10 kHz, suitable for monitoring a wide spectrum of vibration signals.
Q5: Does cable length affect signal accuracy?
A5: Yes, excessive cable length can impact accuracy. Epro sensors are typically matched with specific cable lengths to maintain calibration and precision.
Q6: Can the sensor detect both radial and axial displacement?
A6: Yes, it can be used for both radial vibration and axial displacement monitoring, depending on installation orientation.
Q7: What type of environments is this sensor resistant to?
A7: The sensor is resistant to oil, contaminants, and industrial temperature variations, making it reliable in harsh conditions.
Q8: How is linearity maintained across the measuring range?
A8: The sensor is factory-calibrated to maintain linearity within its specified measurement range, ensuring consistent performance.
Q9: What type of housing material is used for durability?
A9: The sensor is made of stainless steel housing, providing mechanical strength and corrosion resistance.
Q10: Does the sensor require external calibration during installation?
A10: Normally, the sensor is factory-calibrated, but field calibration with the appropriate driver may be performed to fine-tune accuracy in specific setups.
