Product Introduction

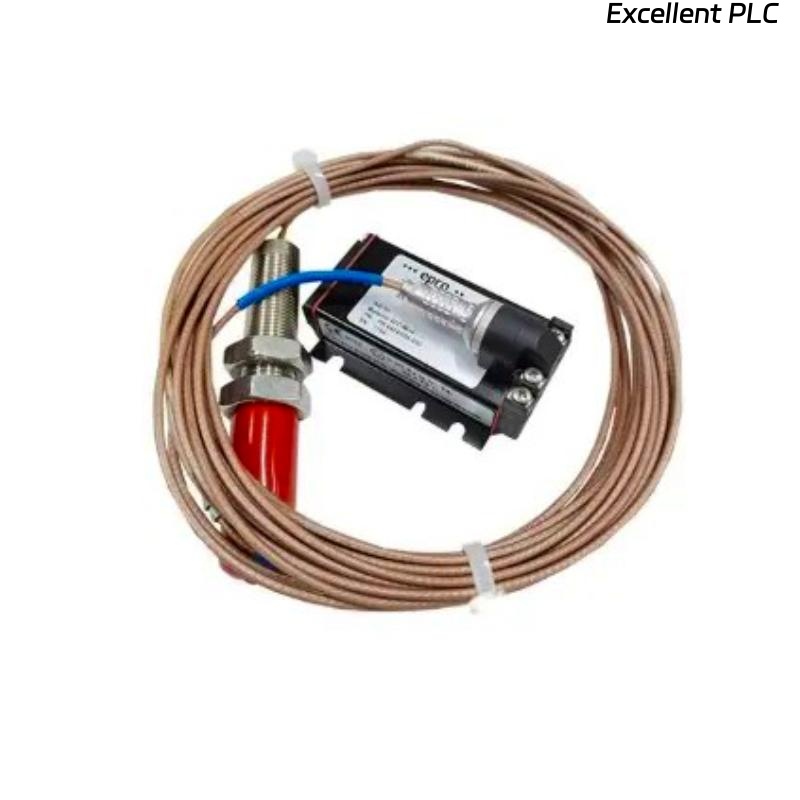

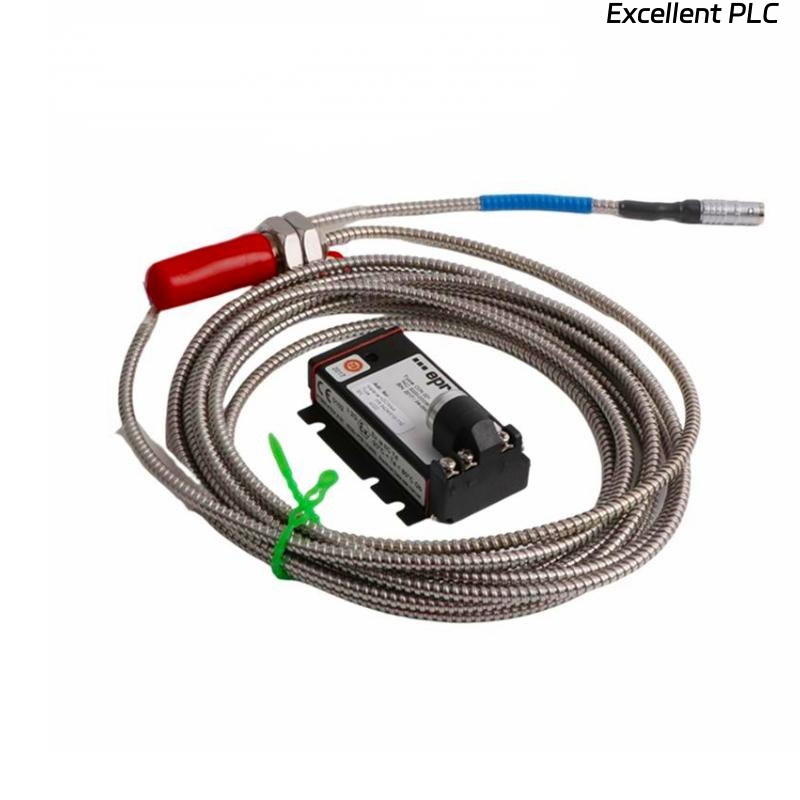

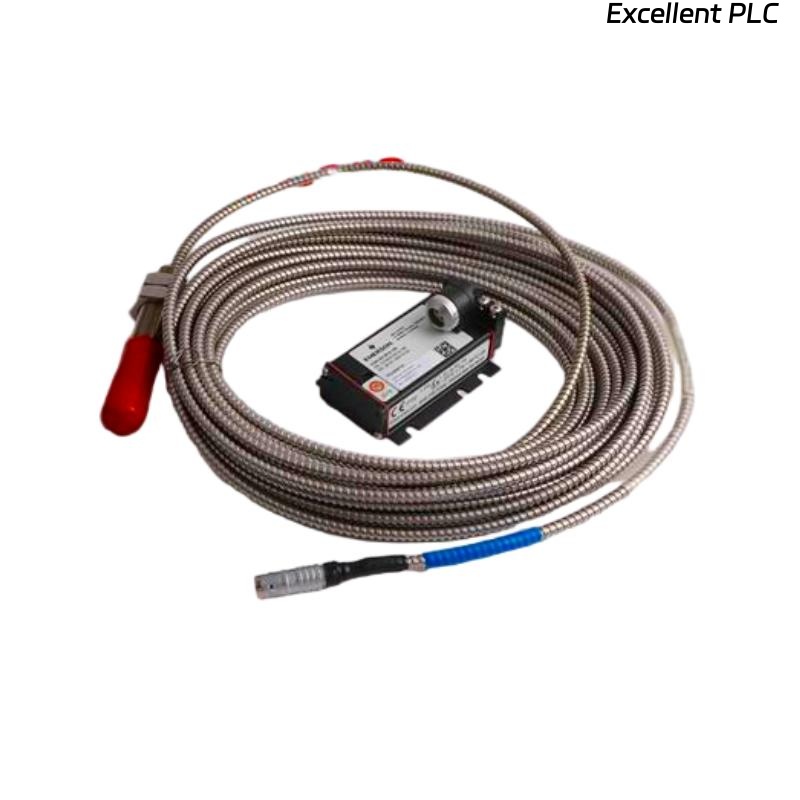

The Epro PR6424/009-100 16mm Eddy-Current Sensor is a high-precision displacement sensor designed for continuous monitoring of shaft vibration, rotor movement, and relative displacement in rotating machinery. Built on the proven eddy-current measurement principle, this sensor ensures stable performance in harsh industrial environments such as turbines, compressors, pumps, and generators. With robust construction and compatibility with Epro’s CON series proximitor drivers, it delivers accurate and reliable data for machinery protection and diagnostics.
Product Parameters
| Parameter | Value |
|---|---|
| Model | PR6424/009-100 |
| Sensor Type | Eddy-Current Displacement Sensor |
| Sensor Head Diameter | 16mm |
| Measurement Range | ±2 mm to ±4 mm (depending on driver) |
| Linearity | ≤ ±1% of full scale |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Weight | 0.2 kg |
| Protection Class | IP65 or higher |
| Connection Type | Coaxial cable with connector |
| Compatible Drivers | CON021, CON041, CON051 |
Product Applications
-
Steam and gas turbines for shaft vibration and axial displacement monitoring
-
Large compressors in petrochemical and refining plants
-
Pumps and motors in process industries
-
Power generation equipment such as generators and alternators
-
High-speed rotating machinery in oil & gas and chemical sectors
-
Condition monitoring systems integrated into DCS or protection racks
Product Advantages
-
High Accuracy – Provides precise shaft vibration and displacement measurements for reliable diagnostics.
-
Robust Design – Resistant to high temperatures, oil contamination, and harsh environments.
-
Wide Compatibility – Works seamlessly with Epro CON series proximitor drivers and monitoring systems.
-
Fast Response – Frequency range up to 10 kHz ensures accurate capture of dynamic shaft movements.
-
Long-Term Stability – Designed for continuous operation without drift or signal degradation.
-
Easy Integration – Standardized connection interfaces simplify installation into existing monitoring systems.
FAQ
Q1: What type of signal does the PR6424/009-100 output?
A1: The sensor outputs an analog voltage proportional to the shaft displacement when connected with its proximitor driver.
Q2: Is the sensor polarity-sensitive during installation?
A2: No, but correct alignment with the shaft surface is required for accurate readings.
Q3: Can this sensor be used for both radial and axial displacement monitoring?
A3: Yes, it supports both radial and axial applications depending on the installation configuration.
Q4: What drivers are recommended for this sensor?
A4: It is fully compatible with Epro CON021, CON041, and CON051 drivers.
Q5: Does the sensor require calibration after installation?
A5: The sensor itself does not, but the complete measurement chain (sensor + driver + cable) should be calibrated.
Q6: What is the typical cable length supported without affecting accuracy?
A6: Standard configurations support up to 9 meters, though longer lengths may require special calibration.
Q7: How does temperature affect sensor accuracy?
A7: The sensor is designed with thermal compensation to minimize drift within its operating temperature range.
Q8: Can the sensor detect rotor-to-stator rubs or impacts?
A8: Yes, with its fast frequency response, it can capture sudden displacement events such as rubs or impacts.
Q9: What protection measures are built into the sensor against electrical interference?
A9: The sensor uses shielded coaxial cables and internal shielding to minimize electromagnetic interference.
Q10: Is it possible to connect the sensor directly to a monitoring system without a driver?
A10: No, the sensor requires a proximitor driver to condition and linearize the signal for monitoring systems.
