Product Introduction

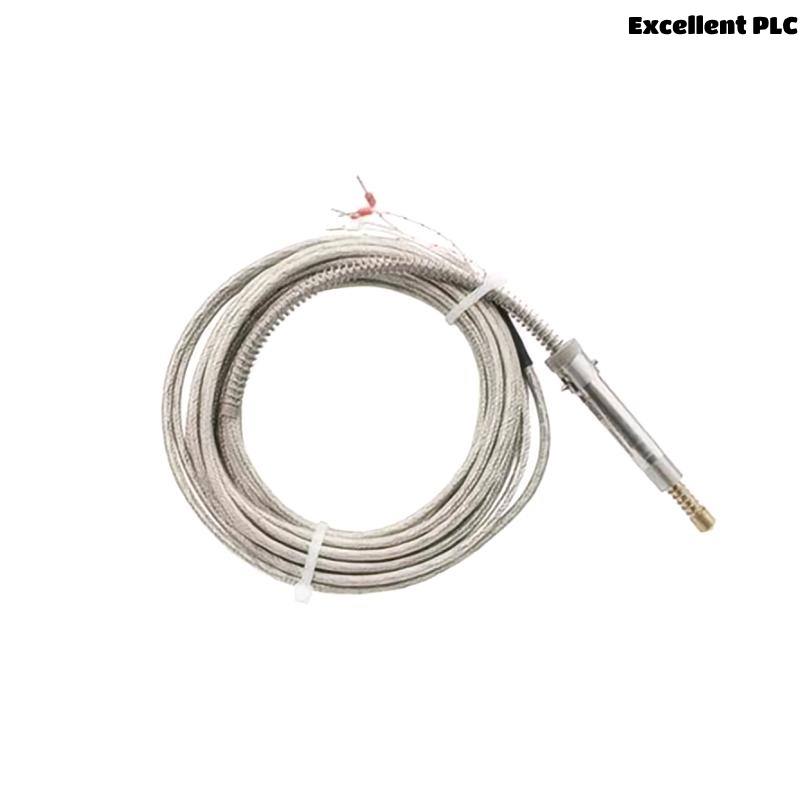

The Epro PR6424/010-000+CON021 is an industrial-grade eddy current displacement sensor designed for accurate non-contact measurement of shaft position, vibration, and displacement. This sensor belongs to Epro’s highly respected PR6424 series, developed for use in demanding monitoring environments such as rotating machinery in power generation, oil & gas, and heavy industrial systems.
This specific model is fitted with a 16mm probe tip diameter, making it ideal for large shaft diameters and longer measuring distances. It comes paired with the CON021 converter, which ensures seamless signal processing and compatibility with various monitoring systems such as MMS6000, MMS3000, and VM600. Thanks to its robust construction and high-temperature tolerance, the PR6424/010-000+CON021 is trusted for critical applications where operational reliability and diagnostic accuracy are paramount.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | PR6424/010-000+CON021 |
| Sensor Type | Eddy Current Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| Measuring Range | 0.5 mm – 4.0 mm (typical) |
| Linearity | ≤ ±1% of full-scale output |
| Frequency Response | DC – 10 kHz |
| Operating Temperature (Probe) | -35°C to +180°C |
| Operating Temperature (CON021) | -35°C to +120°C |
| Output Signal | Voltage output (linear, typically -24V to 0V or 0V to +24V) |
| Material | Stainless Steel (probe housing) |
| Protection Rating | IP68 |
| Mounting Thread | M14 x 1.5 |
| Cable Length | Standard: 5m, 7m, 9m (custom lengths available) |
| Weight | 0.32 kg |
| Certifications | CE compliant, RoHS, optional ATEX for hazardous areas |
| Compatible Systems | Emerson MMS6000, MMS3000, VM600, and other Epro platforms |
Product Applications
The PR6424/010-000+CON021 sensor is engineered for critical machine condition monitoring and predictive maintenance applications, particularly where larger shaft sizes and extended measurement ranges are required. Typical application areas include:
-
Large Steam and Gas Turbines – Shaft vibration and axial displacement monitoring.
-
Heavy-duty Centrifugal Compressors – Condition-based maintenance support.
-
Large Electric Motors and Generators – Misalignment detection and dynamic analysis.
-
Industrial Fans and Blowers – Monitoring for unbalance or bearing wear.
-
Oil & Gas Processing Equipment – Deployed in ATEX-rated areas with high ambient stress.
-
Steel Plants and Paper Mills – Continuous operation under harsh mechanical and environmental conditions.
Its large sensing diameter and rugged construction make it especially suitable for high-power, slow-speed machines where accuracy over a wide gap is crucial.
Product Advantages
-
Extended Measuring Range
The 16mm probe supports a larger distance between the sensor and target, suitable for large-diameter shafts and wider mechanical tolerances. -
High-Temperature Resistance
Operates reliably up to 180°C on the probe side, ensuring consistent performance in thermally intense environments. -
Rugged IP68 Construction
Withstands water, oil, dust, and other contaminants commonly found in industrial settings. -
Non-contact Operation
Prevents mechanical wear, reduces maintenance frequency, and ensures long service life. -
Precision Measurement
Low non-linearity and high resolution for accurate signal acquisition in both static and dynamic conditions. -
System Compatibility
Designed to work seamlessly with Epro and Emerson condition monitoring systems including MMS and VM platforms. -
Customizable Cable Options
Various lengths and connector types can be tailored to suit installation constraints. -
Compliant and Certified
Built to meet CE and RoHS standards, with ATEX-certified versions available for explosive zones. -
Field Proven Reliability
Trusted by OEMs and maintenance teams worldwide for use in demanding industries. -
Comprehensive Support
Backed by Emerson’s global support and calibration services for lifecycle management.
Frequently Asked Questions (FAQ)
-
What shaft sizes is the 16mm sensor tip best suited for?
It is designed for large shafts, typically those over 100 mm in diameter. -
Can this sensor be installed vertically or upside down?
Yes, the probe can be mounted in any orientation without affecting performance. -
Is the CON021 converter necessary for the system to work?
Yes, the converter is critical for signal conditioning and system compatibility. -
What types of materials can the probe detect?
It is optimized for conductive metals such as steel, aluminum, and stainless steel. -
Can this sensor be used in hazardous zones?
ATEX-certified versions are available for installation in explosive or flammable environments. -
What is the expected service life of this sensor?
Typically 5-10 years, depending on environmental and operational conditions. -
Does the sensor require recalibration?
Periodic recalibration is recommended during major overhauls or every 2–3 years. -
What is the maximum operating cable length?
Standard configurations allow up to 9 meters; longer lengths may reduce signal integrity. -
Can this sensor output be connected to third-party monitoring systems?
Yes, as long as the voltage output range and impedance match the input specs of the system. -
Is the sensor immune to electromagnetic interference?
Yes, the sensor and cable are shielded, minimizing the effects of EMI/RFI.
Related Models (Same Series or Type)
| Model Number | Tip Diameter | Measurement Range | Mounting Thread | Application |
|---|---|---|---|---|
| PR6424/014-040+CON021 | 11 mm | 0.4 – 3.0 mm | M10 x 1 | Medium shafts, general-purpose monitoring |
| PR6424/012-030+CON021 | 8 mm | 0.25 – 2.0 mm | M10 x 1 | Tight spaces, mid-size shafts |
| PR6424/01CS-030+CON041 | 8 mm | 0.25 – 2.0 mm | M10 x 1 | Corrosive/explosive environments |
| PR6424/002-030+CON041 | 5 mm | 0.2 – 1.6 mm | M8 x 1 | Compact machinery, shielded version |
| PR6424/005-010+CON021 | 5 mm | 0.2 – 1.6 mm | M8 x 1 | Small machinery, detachable cable |
| PR6424/000-000+CON021 | 5 mm | 0.2 – 1.6 mm | M8 x 1 | Entry-level model, fixed cable |
Popular Models from the Same Brand (Epro / Emerson)
| Model Number | Product Type | Main Use Case | Compatible Systems |
|---|---|---|---|
| PR6423/002-030+CON021 | Eddy Current Probe (5mm) | Compact machinery vibration monitoring | MMS, VM600 |
| MMS3120/022-100 | Vibration Monitoring Module | Real-time multi-channel monitoring | MMS6000 |
| MMS3110 | Signal Converter Module | Signal integration from eddy current probes | Epro/Emerson systems |
| A6410 | Keyphasor Module | Speed and phase reference signal processing | VM600 / MMS6000 |

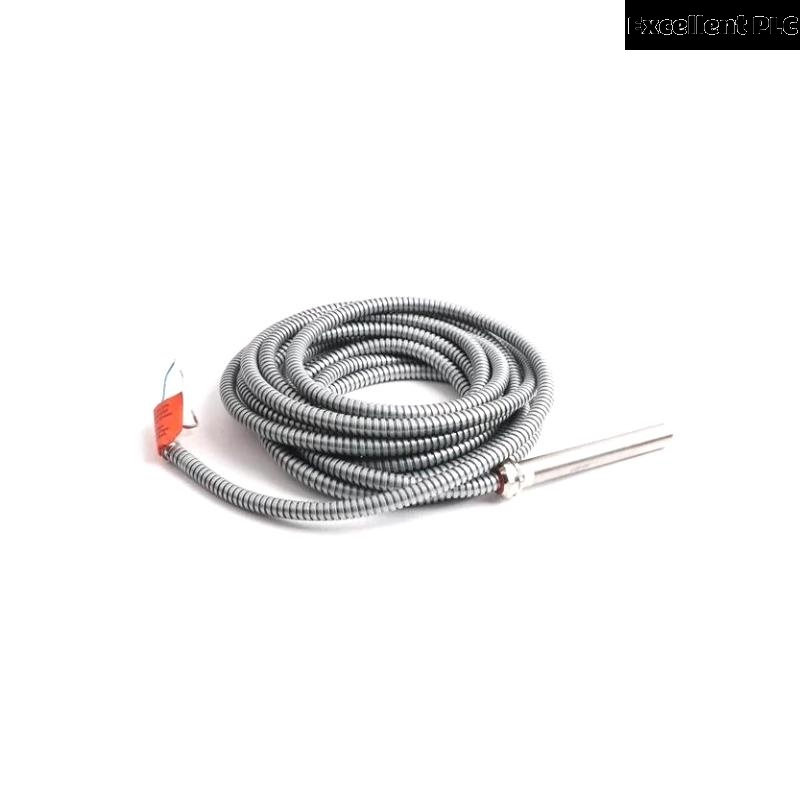

| PR9268/200-000 | Seismic Velocity Sensor | Case-mounted vibration sensing | EPRO systems, third-party units |
| CON041 | Signal Converter (Shielded) | Harsh or explosive environment compatibility | PR6423/PR6424 series |
