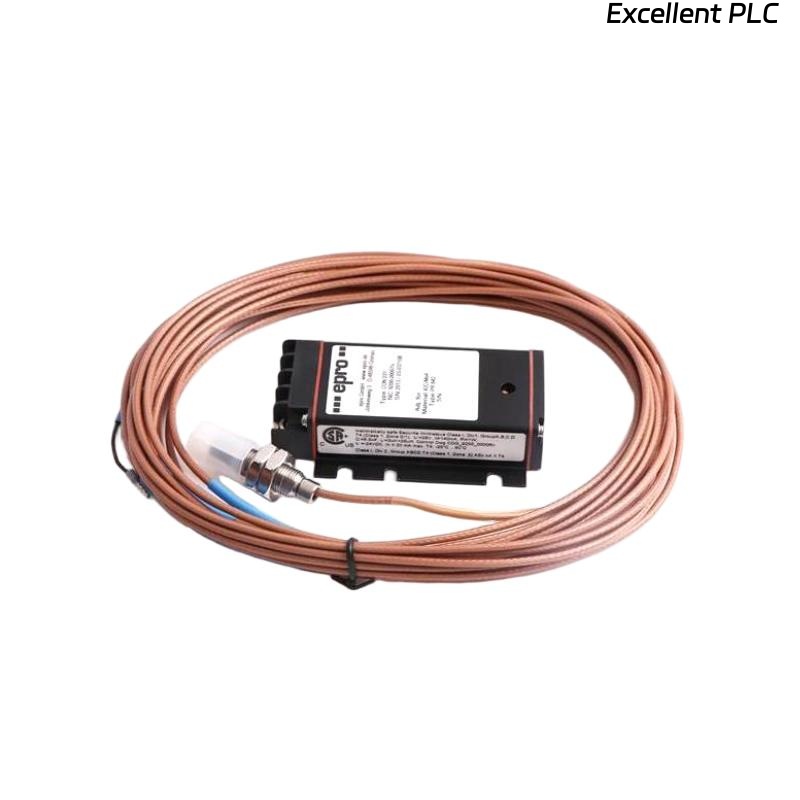

Epro PR6424/010-040+CON010 16mm Eddy Current Sensor

Product Introduction

The Epro PR6424/010-040+CON010 16mm Eddy Current Sensor is a precision non-contact displacement and vibration measurement device designed for high-performance industrial applications. Featuring a 16mm sensor head diameter and a weight of 0.32 kg, this sensor is engineered for reliable and accurate monitoring of rotating machinery, including turbines, compressors, pumps, and motors.

This model integrates seamlessly with the CON010 converter, which conditions and linearizes the sensor output for compatibility with Epro monitoring systems. The sensor uses eddy current technology to measure shaft displacement, vibration, and relative position without physical contact, ensuring minimal wear and long-term stability. Its robust stainless steel construction and high immunity to electromagnetic interference make it suitable for operation in harsh industrial environments, maintaining high accuracy even under temperature fluctuations, vibration, and electrical noise.

Product Parameters

Product Applications

The PR6424/010-040+CON010 sensor is widely used in critical machinery monitoring and predictive maintenance systems:

• Turbines – Measuring shaft displacement and vibration in steam, gas, and hydro turbines.

• Compressors – Monitoring axial displacement and vibration to detect imbalance, misalignment, or bearing wear.

• Pumps – Tracking vibration and shaft motion to prevent cavitation or early mechanical failure.

• Motors and Generators – Detecting rotor displacement to prevent contact with stator components.

• Gearboxes – Monitoring gear shaft misalignment and vibration for predictive maintenance.

• Condition Monitoring Systems – Integration into Epro MMS or third-party monitoring systems for real-time diagnostics.

Product Advantages

• High Accuracy – Provides precise non-contact measurements of displacement and vibration.

• Durable Construction – Stainless steel housing ensures long-term reliability.

• Wide Temperature Range – Operates reliably from -35°C to +180°C.

• Electromagnetic Compatibility – Resistant to external electrical noise.

• Seamless Integration – Works with CON010 converter for linearized and conditioned output.

• Predictive Maintenance Support – Enables early detection of misalignment, imbalance, and bearing issues.

• Compact and Lightweight – Suitable for installation in confined spaces while maintaining performance.

• Stable Signal Output – High signal integrity even in harsh environments.

FAQ

1. How does the PR6424/010-040+CON010 sensor measure displacement?
   It detects changes in the electromagnetic field between the probe and the conductive shaft, producing a voltage proportional to displacement.

2. Can this sensor measure both vibration and displacement simultaneously?
   Yes, it captures both static displacement and dynamic vibration signals depending on the monitoring setup.

3. What type of output signal does it provide?
   The sensor produces a voltage output, conditioned and linearized by the CON010 converter.

4. Is it compatible with other Epro converters?
   Yes, though optimal performance is achieved when paired with the CON010 converter.

5. What is the sensor’s frequency response?
   Up to 10 kHz, suitable for high-speed rotating machinery.

6. How does temperature affect measurement accuracy?
   The sensor maintains linearity and stable output across the rated temperature range of -35°C to +180°C.

7. Can it operate in high-vibration industrial environments?
   Yes, it is designed for reliability in high-vibration machinery.

8. Is cable shielding necessary for EMI protection?
   The sensor uses a coaxial shielded cable; proper grounding is recommended for optimal performance.

9. Does cable length impact accuracy?
   Longer cables may require calibration adjustments; standard lengths maintain signal integrity.

10. Can multiple sensors be installed on a single shaft?
    Yes, orthogonal installation is possible for X-Y vibration and orbit analysis.
