Epro PR6424/010-140 16mm Eddy Current Sensor Excellent PLC Co.,Ltd

PLC and DCS professional supplier

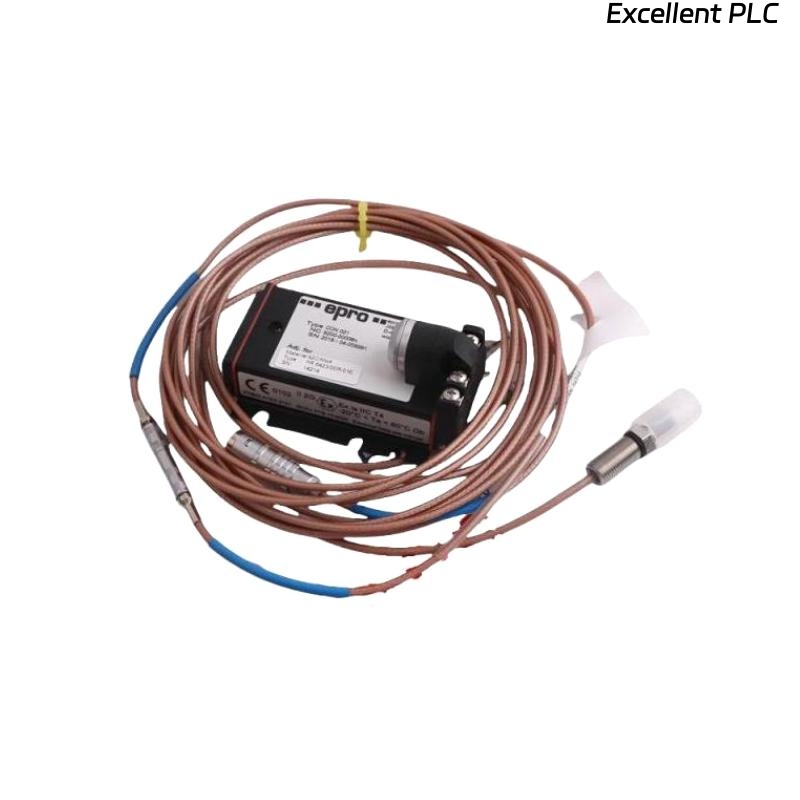

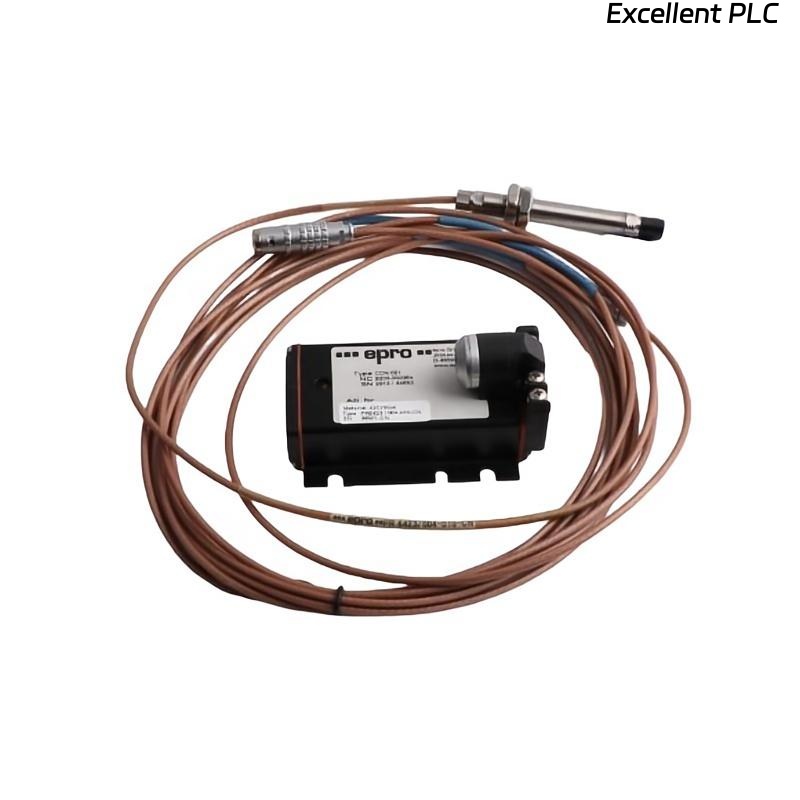

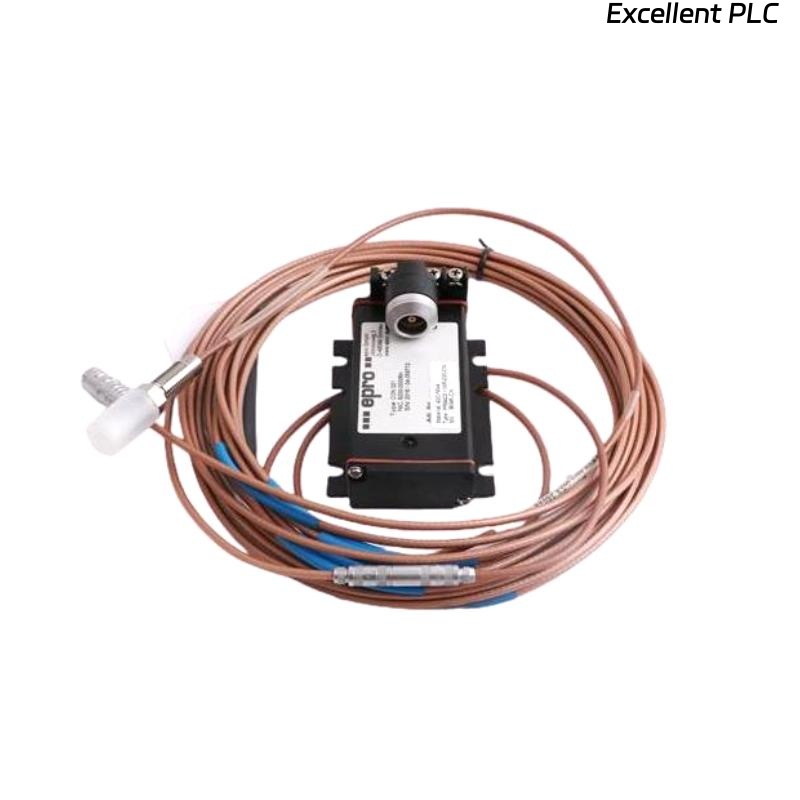

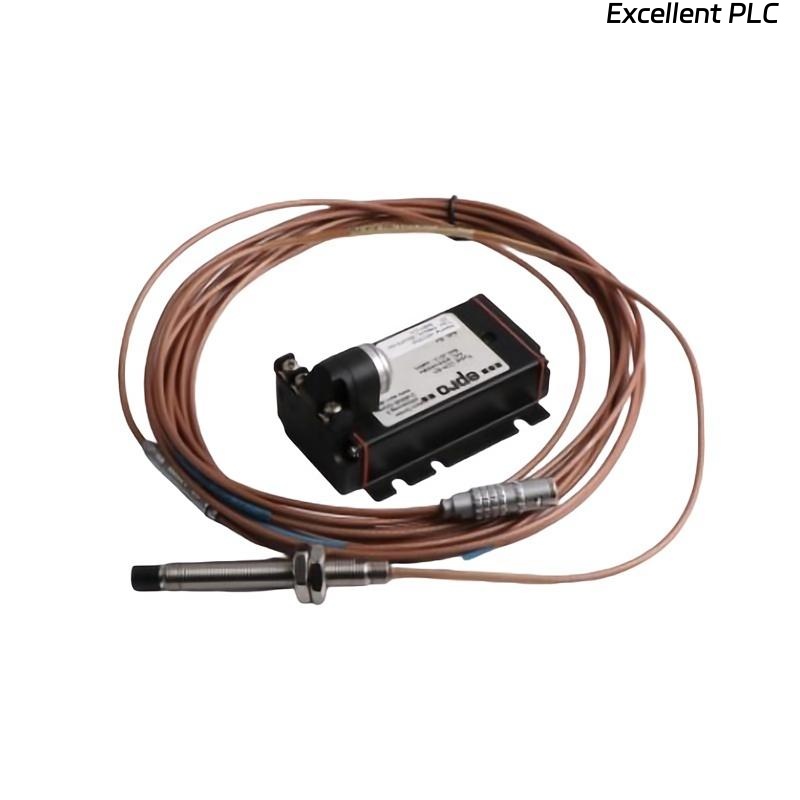

Epro PR6424/010-140 16mm Eddy Current Sensor

Manufacturer:Epro

Product Number:PR6424/010-140

Product Type:16mm Eddy Current Sensor

Origin:Germany

Sensor Head Diameter:16 mm

Weight:0.2 kg

Views:302

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24


  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
  • Product Ratings
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Epro PR6424/010-140 16mm Eddy Current Sensor

Product Introduction

The Epro PR6424/010-140 16mm Eddy Current Sensor is a precision non-contact displacement and vibration measurement probe designed for high-performance industrial machinery monitoring. Part of the PR6424 series, this sensor is engineered to provide accurate, reliable, and stable readings in demanding environments such as turbines, compressors, pumps, and generators.

With a 16 mm sensor head diameter, the PR6424/010-140 offers excellent linearity and high sensitivity, even under harsh conditions including vibration, high temperature, and electromagnetic interference. When paired with Epro CON-series drivers (CON021, CON031, CON041), the sensor provides a stable, conditioned output suitable for machine protection systems and predictive maintenance platforms. This model is particularly suitable for applications requiring extended measurement range and high precision.


Product Specifications

Parameter Specification
Model Number PR6424/010-140
Product Type Eddy Current Proximity Sensor
Sensor Head Diameter 16 mm
Measurement Range Up to 2.5 mm (depending on driver configuration)
Linear Range ±10% of calibrated gap
Sensitivity 7.87 mV/µm (nominal with compatible driver)
Frequency Response DC to 10 kHz
Resolution <0.5 µm
Operating Voltage Supplied via Epro CON-series driver module
Probe Material Stainless steel housing with mineral-insulated cable
Operating Temperature -35°C to +180°C (sensor head)
Storage Temperature -40°C to +200°C
Humidity 0–95% non-condensing
Certifications CE, ATEX, IECEx (for hazardous locations)
Weight 0.2 kg
Mounting Threaded sleeve installation
Compatibility Epro CON021, CON031, CON041 driver modules

Applications

The PR6424/010-140 is used across a variety of industries where precise non-contact measurement of rotating machinery is critical:

  • Steam and Gas Turbines – Measures shaft displacement to detect imbalance and misalignment.

  • Compressors – Monitors vibration and rotor position for safe operation.

  • Pumps – Detects cavitation, mechanical wear, and shaft deflection.

  • Generators and Electric Motors – Ensures stable operation and early fault detection.

  • Petrochemical Industry – Reliable in hazardous environments, supports predictive maintenance.

  • Machine Protection Systems – Integration into API 670-compliant monitoring platforms.


Advantages

The PR6424/010-140 16mm Eddy Current Sensor provides the following key benefits:

  • High Precision – Accurate measurement of shaft displacement and vibration.

  • Robust Construction – Stainless steel housing withstands industrial wear and harsh environments.

  • Extended Measurement Range – Suitable for applications requiring larger gap measurements.

  • Hazardous Area Certifications – ATEX and IECEx certified for safe use in explosive atmospheres.

  • Wide Frequency Range – Captures both low- and high-speed rotational vibrations.

  • Driver Compatibility – Fully compatible with Epro CON-series drivers for flexible deployment.

  • Maintenance-Free Operation – Non-contact sensing reduces wear and operational interruptions.

  • Predictive Maintenance Support – Enables early detection of mechanical issues and reduces unplanned downtime.


Frequently Asked Questions (FAQ)

  1. Which driver modules are compatible with the PR6424/010-140?
    The sensor works with Epro CON021, CON031, and CON041 drivers, which provide excitation, signal conditioning, and linear output.

  2. What is the nominal sensitivity of this sensor?
    The sensor produces roughly 7.87 mV/µm when used with a compatible driver, ensuring precise displacement measurement.

  3. What frequency range does this sensor cover?
    It supports DC to 10 kHz, suitable for both low-speed and high-speed rotating machinery monitoring.

  4. What is the maximum operating temperature for the probe head?
    The probe head reliably operates up to +180°C while maintaining linearity.

  5. Can this sensor be used in hazardous areas?
    Yes, it is ATEX and IECEx certified for safe operation in explosive environments.

  6. What is the linear measurement range?
    ±10% of the calibrated gap, providing stable and proportional output.

  7. How is the sensor powered?
    Power is supplied via the connected CON-series driver, which also conditions the signal.

  8. Is it suitable for API 670-compliant systems?
    Yes, it can be integrated into API 670 machine protection systems for reliable monitoring.

  9. Does the sensor provide a direct output?
    No, the raw signal must be processed by the driver to produce a usable output.

  10. Does cable length affect measurement accuracy?
    Yes, using the correct cable length is important to maintain calibration and signal fidelity.


Related Models (Same Series)

Model Number Sensor Type Description
PR6424/000-010 Eddy Current Sensor Standard monitoring probe
PR6424/002-031 Eddy Current Sensor High-precision 16 mm sensor
PR6424/006-030 Eddy Current Sensor Compact design for space-limited installations
PR6424/010-110 Eddy Current Sensor Extended temperature range version
PR6424/010-120 Eddy Current Sensor High-sensitivity variant for precise measurement
PR6424/01CS Eddy Current Sensor Special calibration for unique applications

Popular Models from the Same Brand (Epro)

Model Number Product Type Description
PR6423/005-010 Eddy Current Sensor 8 mm probe for general vibration monitoring
PR6423/010-140 Eddy Current Sensor Long-range probe for large rotating machinery
MMS3120/022-100 Monitoring Module Machine condition monitoring system
MMS3125/022-020 Monitoring Module Vibration and protection module
CON021 Driver Module Standard driver for PR642x series sensors
CON041 Driver Module Advanced driver with enhanced signal processing

Frequently Asked Questions (FAQ)

  1. Which driver modules are compatible with the PR6424/010-140?
    The sensor works with Epro CON021, CON031, and CON041 drivers, which provide excitation, signal conditioning, and linear output.

  2. What is the nominal sensitivity of this sensor?
    The sensor produces roughly 7.87 mV/µm when used with a compatible driver, ensuring precise displacement measurement.

  3. What frequency range does this sensor cover?
    It supports DC to 10 kHz, suitable for both low-speed and high-speed rotating machinery monitoring.

  4. What is the maximum operating temperature for the probe head?
    The probe head reliably operates up to +180°C while maintaining linearity.

  5. Can this sensor be used in hazardous areas?
    Yes, it is ATEX and IECEx certified for safe operation in explosive environments.

  6. What is the linear measurement range?
    ±10% of the calibrated gap, providing stable and proportional output.

  7. How is the sensor powered?
    Power is supplied via the connected CON-series driver, which also conditions the signal.

  8. Is it suitable for API 670-compliant systems?
    Yes, it can be integrated into API 670 machine protection systems for reliable monitoring.

  9. Does the sensor provide a direct output?
    No, the raw signal must be processed by the driver to produce a usable output.

  10. Does cable length affect measurement accuracy?
    Yes, using the correct cable length is important to maintain calibration and signal fidelity.

Related Models (Same Series)

Model Number Sensor Type Description
PR6424/000-010 Eddy Current Sensor Standard monitoring probe
PR6424/002-031 Eddy Current Sensor High-precision 16 mm sensor
PR6424/006-030 Eddy Current Sensor Compact design for space-limited installations
PR6424/010-110 Eddy Current Sensor Extended temperature range version
PR6424/010-120 Eddy Current Sensor High-sensitivity variant for precise measurement
PR6424/01CS Eddy Current Sensor Special calibration for unique applications

Popular Models from the Same Brand (Epro)

Model Number Product Type Description
PR6423/005-010 Eddy Current Sensor 8 mm probe for general vibration monitoring
PR6423/010-140 Eddy Current Sensor Long-range probe for large rotating machinery
MMS3120/022-100 Monitoring Module Machine condition monitoring system
MMS3125/022-020 Monitoring Module Vibration and protection module
CON021 Driver Module Standard driver for PR642x series sensors
CON041 Driver Module Advanced driver with enhanced signal processing
