Product Introduction

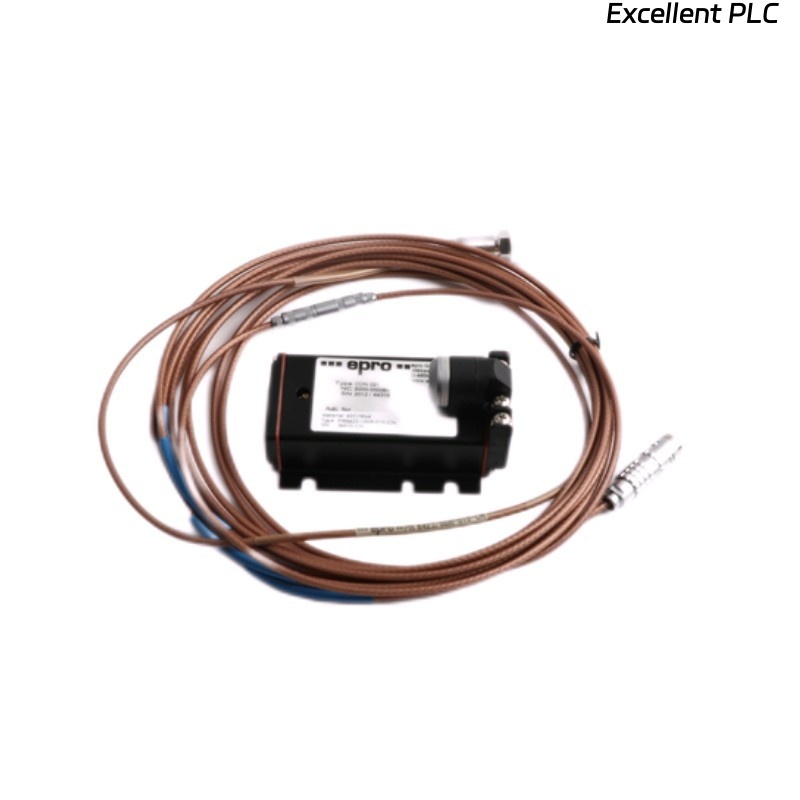

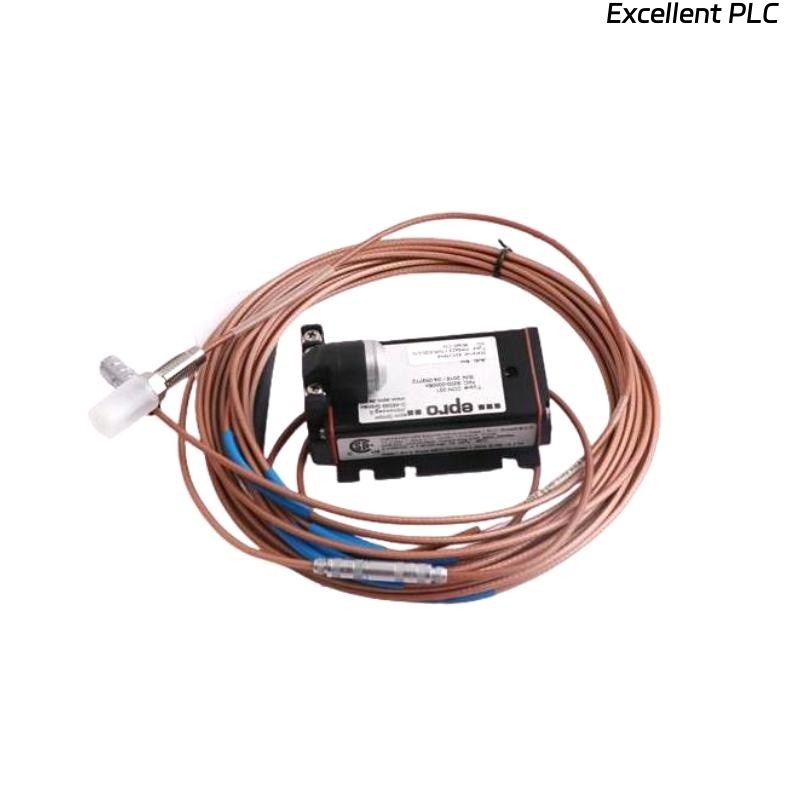

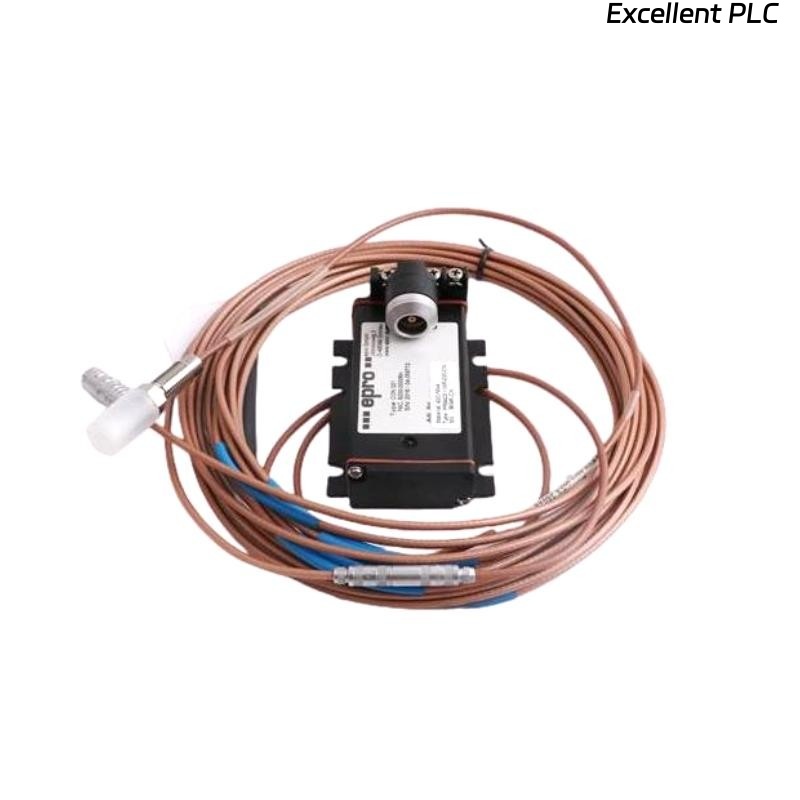

The Epro PR6424/011-121 is a high-performance 16mm Eddy Current Sensor specifically designed for non-contact position, displacement, and vibration measurements in industrial settings. This sensor utilizes eddy current technology, which ensures precision measurements even in harsh environments. Its ability to detect minute changes in position and vibration makes it essential for applications in high-speed rotating machinery, automotive systems, aerospace, and manufacturing.
The PR6424/011-121 offers high accuracy and ruggedness, which is critical for maintaining equipment health and reducing downtime in industrial operations. It is perfect for integrating into automated systems that require continuous monitoring of dynamic conditions without physical contact with the machinery.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | PR6424/011-121 |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measurement Range | 1 mm to 50 mm |
| Output Type | Analog (4-20 mA, 0-10 V) |
| Frequency Range | Up to 10 kHz |
| Operating Temperature | -20°C to +85°C |
| Accuracy | ±0.1% of measurement range |
| Power Supply | 24 VDC |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Signal Output | Linear Displacement Output |
| Cable Length | 3 meters (standard) |
Product Applications
The Epro PR6424/011-121 Eddy Current Sensor is highly versatile and finds applications across various industries:
-
Rotating Machinery Condition Monitoring: Perfect for monitoring vibration and displacement in rotating machines, ensuring early detection of wear, misalignment, or imbalance.
-
Aerospace Industry: Used for position measurement in aerospace applications, including critical parts like engine components.
-
Automotive: Helps in monitoring vibration and displacement in high-speed automotive components, ensuring better safety and performance.
-
Energy and Power Generation: Monitors turbine and generator conditions, providing vital data for predictive maintenance and performance optimization.
-
Manufacturing: Integrated into automated production systems for precise measurement of moving parts and machine health monitoring.
-
Precision Engineering: Offers the required accuracy in sensitive applications, such as research labs and material testing.
Product Advantages
-
Non-Contact Measurement: The eddy current technology ensures non-contact measurement, minimizing wear and tear on the sensor and the target.
-
Precision and Accuracy: With an accuracy of ±0.1%, the sensor can provide highly reliable data for critical applications.
-
High-Speed Performance: The sensor’s 10 kHz frequency range allows it to measure high-speed machinery with precision.
-
Flexible Output Options: Offers analog outputs (4-20 mA and 0-10 V), making it compatible with most industrial control systems.
-
Durability: The stainless steel housing and IP67 protection ensure that the sensor can withstand harsh industrial environments, including dust, moisture, and chemicals.
-
Wide Operating Temperature: The sensor operates efficiently in temperatures ranging from -20°C to +85°C, making it suitable for a wide range of applications.
-
Compact and Lightweight: With a 16mm sensor head diameter and a weight of just 0.2 kg, the sensor is ideal for tight spaces and easy integration into existing systems.
-
Early Detection of Issues: By continuously monitoring displacement and vibration, this sensor helps detect potential issues early, reducing the risk of equipment failure.
-
Enhanced Safety: Non-contact measurement means reduced risk of physical damage to machinery components and improved operational safety.
-
Cost-Effective Maintenance: Reduces maintenance costs by offering continuous, real-time monitoring and early fault detection, preventing costly downtime.
FAQ
1. What is the range of measurement for the Epro PR6424/011-121 sensor?
The sensor has a measurement range from 1 mm to 50 mm, offering flexibility for both small and large displacement measurements.
2. What kind of output does the sensor provide?
The PR6424/011-121 provides analog outputs in the form of 4-20 mA and 0-10 V, making it compatible with a wide range of industrial systems.
3. What is the frequency range of the sensor?
The sensor operates within a frequency range of up to 10 kHz, making it suitable for high-speed applications like rotating machinery.
4. What is the operating temperature range of the Epro PR6424/011-121?
The sensor is designed to operate in a temperature range of -20°C to +85°C, ensuring functionality in various environmental conditions.
5. How accurate is the sensor?
The Epro PR6424/011-121 provides an accuracy of ±0.1% of the measurement range, which is ideal for precise displacement and vibration monitoring.
6. Can the sensor be used for vibration analysis?
Yes, the sensor is designed for vibration monitoring, particularly in rotating equipment, to detect imbalances and misalignments.
7. What protection rating does the sensor have?
The PR6424/011-121 is rated IP67, which means it is both dustproof and water-resistant, making it suitable for harsh industrial environments.
8. How does the sensor’s non-contact technology benefit industrial applications?
The non-contact technology eliminates the risk of wear and tear, extending the lifespan of the sensor and target components while providing more accurate readings.
9. What is the power supply requirement for the sensor?
The sensor requires a 24 VDC power supply to operate effectively.
10. Can the sensor be used in automated systems?
Yes, the Epro PR6424/011-121 is designed for easy integration into automated systems for real-time measurement of displacement and vibration.
