Product Introduction

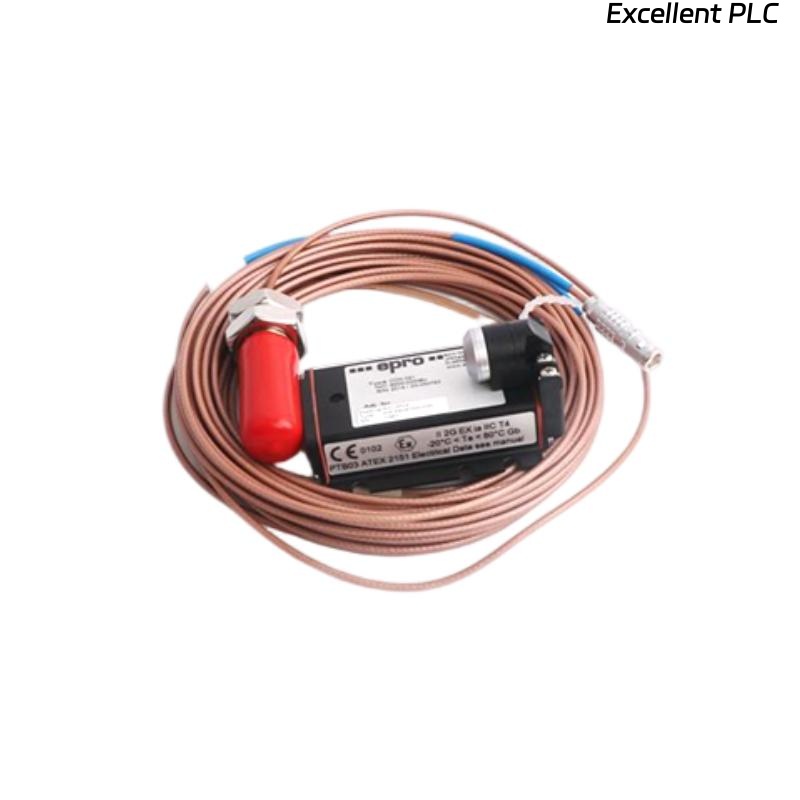

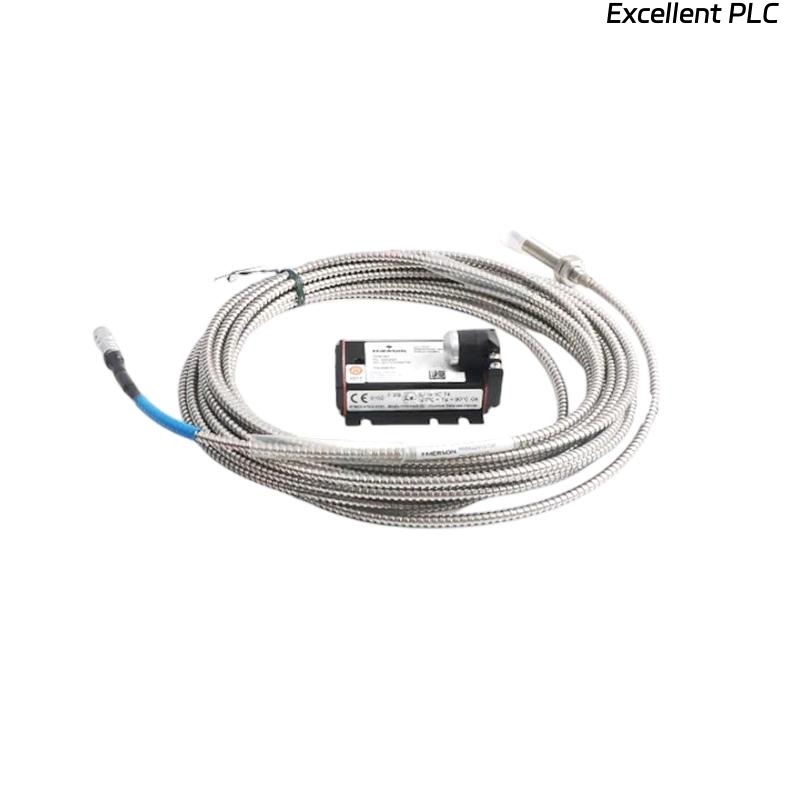

The Epro PR6424/012-021 is a high-performance 16mm Eddy Current Sensor, designed to measure displacement, position, and vibration with precision and reliability in industrial environments. This sensor is optimized for non-contact measurement, providing real-time feedback in applications where traditional contact-based sensors may be unsuitable due to the sensitivity of the equipment or harsh environmental conditions.
Leveraging eddy current technology, the sensor offers superior accuracy and resolution in applications such as vibration analysis, condition monitoring, and positioning of critical machinery. The PR6424/012-021 sensor is commonly used in industries like aerospace, automotive, energy, and manufacturing, where precise measurements of displacement and position are critical for maintaining equipment performance and avoiding costly downtime.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | PR6424/012-021 |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measurement Range | 1 mm to 50 mm |
| Output Type | Analog (4-20 mA, 0-10 V) |
| Frequency Range | Up to 10 kHz |
| Operating Temperature | -20°C to +85°C |
| Accuracy | ±0.1% of measurement range |
| Power Supply | 24 VDC |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Signal Output | Linear Displacement Output |
| Cable Length | 3 meters (standard) |
Product Applications
The Epro PR6424/012-021 Eddy Current Sensor is ideal for non-contact measurement in various industries. Some key applications include:
-
Condition Monitoring and Vibration Analysis: This sensor is used for monitoring machinery such as motors, generators, and turbines, providing early warning signs of potential failures.
-
Aerospace Testing: Used in precision measurements for aircraft components, ensuring that parts such as engine rotors and turbine blades are within tolerances.
-
Automotive: The sensor measures displacement and vibration in automotive components, ensuring quality control and precision engineering on production lines.
-
Energy and Power Generation: In power plants, the sensor is used to monitor critical equipment like pumps and compressors, where high-accuracy displacement and vibration measurement is essential for preventative maintenance.
-
Manufacturing Automation: Widely used in automated systems, where non-contact measurement is required for quality assurance and machine control.
Product Advantages
-
Non-Contact Measurement: The sensor’s eddy current technology enables precise non-contact displacement and positioning measurements, which reduces wear on the sensor and avoids potential damage to sensitive equipment.
-
High Accuracy and Resolution: With an accuracy of ±0.1% and the ability to measure small displacements down to 1mm, this sensor provides highly detailed measurements critical for maintaining system health.
-
Wide Frequency Response: The sensor can operate up to 10 kHz, making it suitable for high-speed applications, such as rotating equipment.
-
Robust Construction: The sensor’s stainless steel housing provides durability in demanding environments, while the IP67 protection ensures it is dustproof and water-resistant.
-
Wide Operating Temperature Range: The sensor functions in temperatures from -20°C to +85°C, making it versatile for use in harsh industrial conditions.
-
Versatile Output Options: With 4-20 mA and 0-10 V output options, the sensor is compatible with a wide range of industrial control systems.
-
Easy Integration: Its analog outputs make it simple to integrate into existing industrial systems for monitoring, control, and feedback applications.
-
Long-Lasting Performance: Designed to provide continuous monitoring with minimal maintenance, contributing to a lower total cost of ownership.
-
Compact Design: The 16mm diameter sensor head makes it easy to install in tight spaces while still providing high accuracy and resolution.
-
Ideal for Critical Monitoring: Its ability to accurately measure displacement and vibration makes it essential for critical machinery in industrial environments, ensuring operational safety and efficiency.
FAQ
1. What is the measurement range of the Epro PR6424/012-021 sensor?
The sensor has a measurement range from 1 mm to 50 mm, allowing it to capture both fine and larger displacements.
2. What output signal does the Epro PR6424/012-021 sensor provide?
It offers analog outputs, specifically 4-20 mA and 0-10 V, depending on your system’s requirements.
3. What is the frequency range of this sensor?
The sensor operates with a frequency range of up to 10 kHz, making it suitable for high-speed applications.
4. What is the accuracy of this sensor?
The accuracy is ±0.1% of the measurement range, ensuring precise displacement and position readings.
5. What is the protection rating of this sensor?
The sensor has an IP67 rating, meaning it is dustproof and water-resistant, suitable for harsh industrial environments.
6. What power supply does this sensor require?
The PR6424/012-021 requires a 24 VDC power supply to operate.
7. Can this sensor be used for vibration analysis?
Yes, this sensor is ideal for vibration monitoring in rotating machinery such as turbines, generators, and motors.
8. What is the temperature range of the Epro PR6424/012-021 sensor?
The sensor operates within a temperature range of -20°C to +85°C, making it suitable for various industrial applications.
9. Is the sensor suitable for aerospace applications?
Yes, the sensor can be used in aerospace testing for vibration analysis and positioning of critical components like engine rotors.
10. How easy is it to integrate this sensor into existing systems?
The sensor’s analog output options (4-20 mA and 0-10 V) make it compatible with a variety of industrial control systems, ensuring easy integration.
