Product Introduction

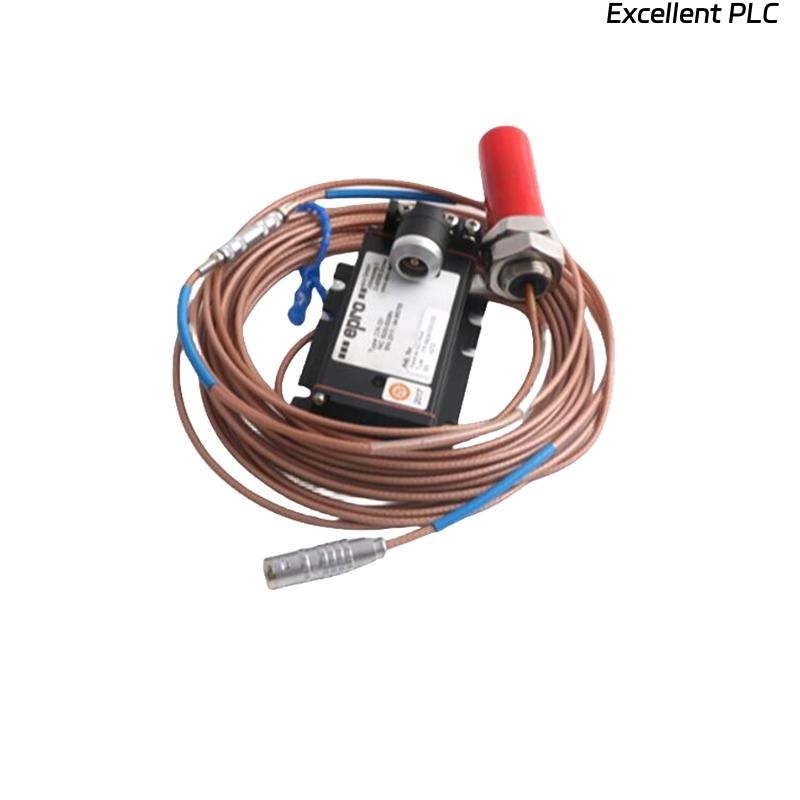

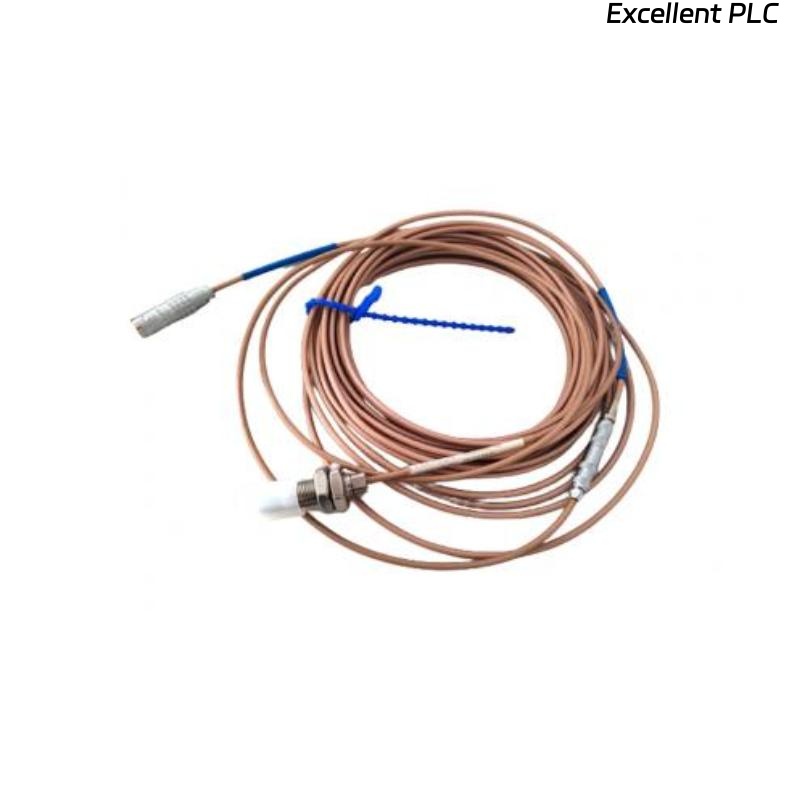

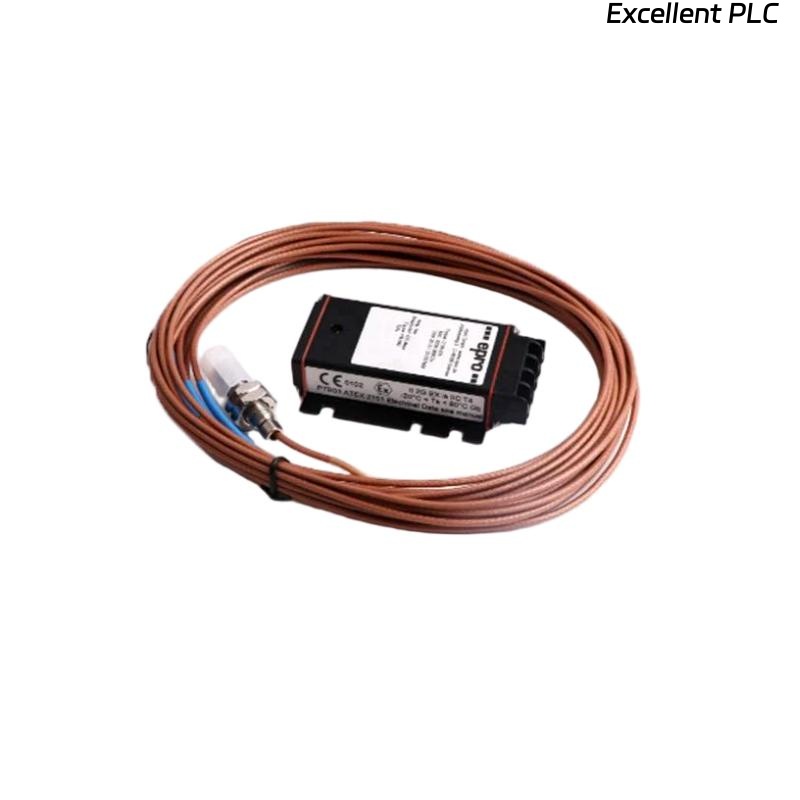

The Epro PR6424/012-030 is a high-precision 16mm Eddy Current Sensor designed for measuring displacement, position, and vibration in industrial applications. It uses advanced eddy current technology to provide non-contact measurements with high resolution and accuracy. This sensor is particularly effective in environments where traditional contact-based sensors may fail due to harsh conditions or high-speed machinery. It’s engineered for use in critical applications such as condition monitoring, vibration analysis, and positioning in industries like aerospace, automotive, and energy.
The PR6424/012-030 sensor excels at delivering reliable, real-time feedback to monitor machinery performance, helping to detect early signs of wear and tear before they lead to costly downtime or equipment failure. Whether you’re looking for high-speed displacement measurement or vibration monitoring, this sensor offers exceptional precision.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | PR6424/012-030 |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measurement Range | 1 mm to 50 mm |
| Output Type | Analog (4-20 mA, 0-10 V) |
| Frequency Range | Up to 10 kHz |
| Operating Temperature | -20°C to +85°C |
| Accuracy | ±0.1% of measurement range |
| Power Supply | 24 VDC |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Signal Output | Linear Displacement Output |
| Cable Length | 3 meters (standard) |
Product Applications
The Epro PR6424/012-030 Eddy Current Sensor is ideal for non-contact measurement in various industries, including:
-
Condition Monitoring and Vibration Analysis: Widely used to monitor industrial machinery such as motors, compressors, and pumps. The sensor helps detect misalignment or imbalances in rotating equipment.
-
Aerospace Testing: In aerospace applications, it is used for precise displacement measurement in engine components and other critical parts.
-
Automotive Manufacturing: For automated systems in automotive production, the sensor provides real-time displacement feedback, ensuring quality control and assembly precision.
-
Energy and Power Generation: In power plants, the sensor is used to monitor turbines, generators, and other rotating machinery, ensuring safe and efficient operation.
-
Automation and Robotics: The sensor is used in robotic systems for positioning control and vibration analysis in automated manufacturing processes.
-
Research and Development: Ideal for precision measurements in laboratory settings, particularly in fields like material testing and precision engineering.
Product Advantages
-
Non-Contact Measurement: The eddy current technology allows for non-contact measurement, reducing the risk of sensor wear and tear, and enabling precise data collection without physical interaction.
-
High Accuracy and Precision: The sensor offers an accuracy of ±0.1% of the measurement range, which ensures high precision for applications requiring detailed displacement and vibration analysis.
-
Wide Frequency Response: The PR6424/012-030 can handle high-frequency signals of up to 10 kHz, making it suitable for fast-moving equipment and high-speed measurements.
-
Versatile Output Options: The sensor supports analog outputs (4-20 mA, 0-10 V), ensuring compatibility with a wide range of industrial control systems and measurement devices.
-
Rugged Construction: With a stainless steel housing and an IP67 protection rating, the sensor is resistant to dust, moisture, and extreme conditions, making it ideal for use in harsh industrial environments.
-
Wide Operating Temperature Range: This sensor operates efficiently in temperatures from -20°C to +85°C, making it versatile for various operational settings.
-
High Sensitivity: The 16mm diameter sensor head is highly sensitive and capable of capturing minute displacements with excellent accuracy.
-
Ideal for Rotating Equipment: The sensor is designed for rotating machinery, where precise displacement measurements are critical to prevent failures and reduce maintenance costs.
-
Easy Integration: Its analog output and compact design make the sensor easy to integrate into existing monitoring and control systems, making setup and use simple.
-
Cost-Effective Maintenance: Since the sensor does not require physical contact with the object being measured, it reduces the wear-and-tear on both the sensor and the machinery, contributing to lower maintenance costs.
FAQ
1. What is the measurement range of the Epro PR6424/012-030 sensor?
The PR6424/012-030 sensor has a measurement range from 1 mm to 50 mm, allowing it to capture both fine and larger displacements accurately.
2. What output signals does the Epro PR6424/012-030 sensor provide?
It offers analog output signals, specifically 4-20 mA and 0-10 V, for easy integration with industrial systems.
3. What is the frequency range of the PR6424/012-030 sensor?
The sensor operates with a frequency range of up to 10 kHz, which makes it suitable for high-speed and precision measurements.
4. What is the accuracy of the Epro PR6424/012-030 sensor?
The accuracy of the sensor is ±0.1% of the measurement range, ensuring precise measurements.
5. What is the power supply required for the PR6424/012-030 sensor?
The sensor requires a 24 VDC power supply for operation.
6. Can this sensor be used for vibration analysis?
Yes, the sensor is designed for vibration analysis in applications such as monitoring rotating equipment like motors and generators.
7. What is the protection rating of the Epro PR6424/012-030 sensor?
The sensor has an IP67 protection rating, making it dustproof and water-resistant for reliable use in harsh environments.
8. Is this sensor suitable for aerospace applications?
Yes, it is ideal for aerospace testing, where precise measurement of displacement and positioning is crucial for ensuring the reliability of critical components.
9. What is the temperature range of the PR6424/012-030 sensor?
The sensor operates in temperatures ranging from -20°C to +85°C, making it suitable for use in both extreme cold and high-temperature environments.
10. How do I integrate this sensor into my system?
The analog outputs (4-20 mA or 0-10 V) make it easy to integrate the sensor into various control systems for monitoring and feedback in industrial applications.
