Product Introduction

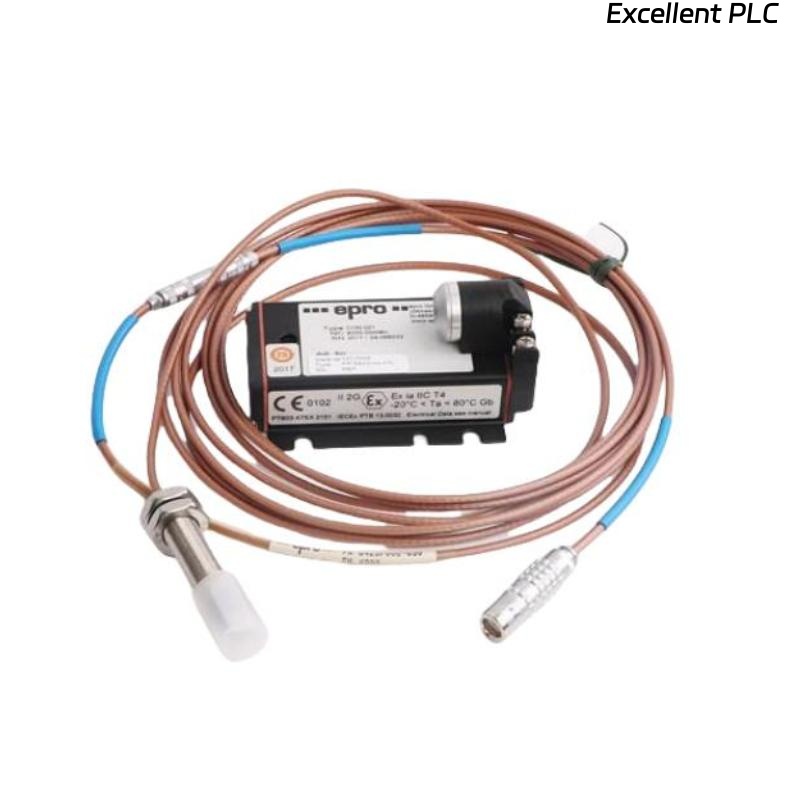

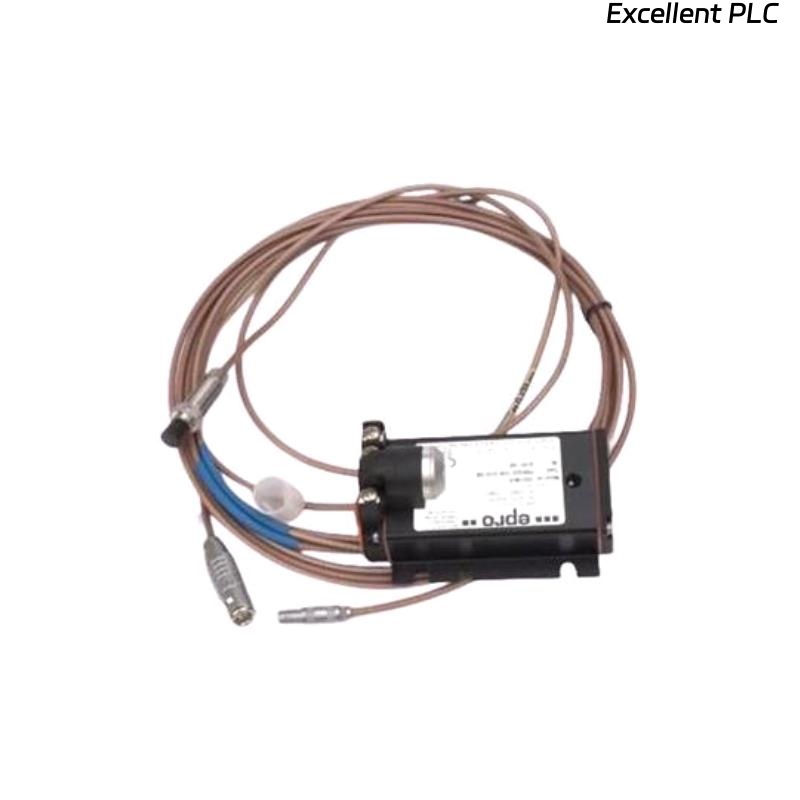

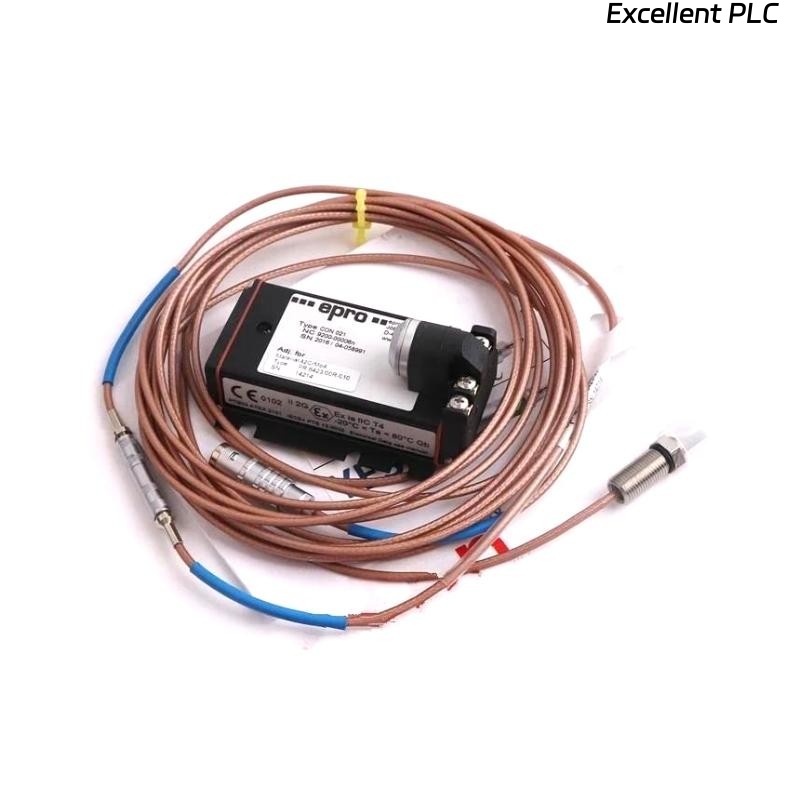

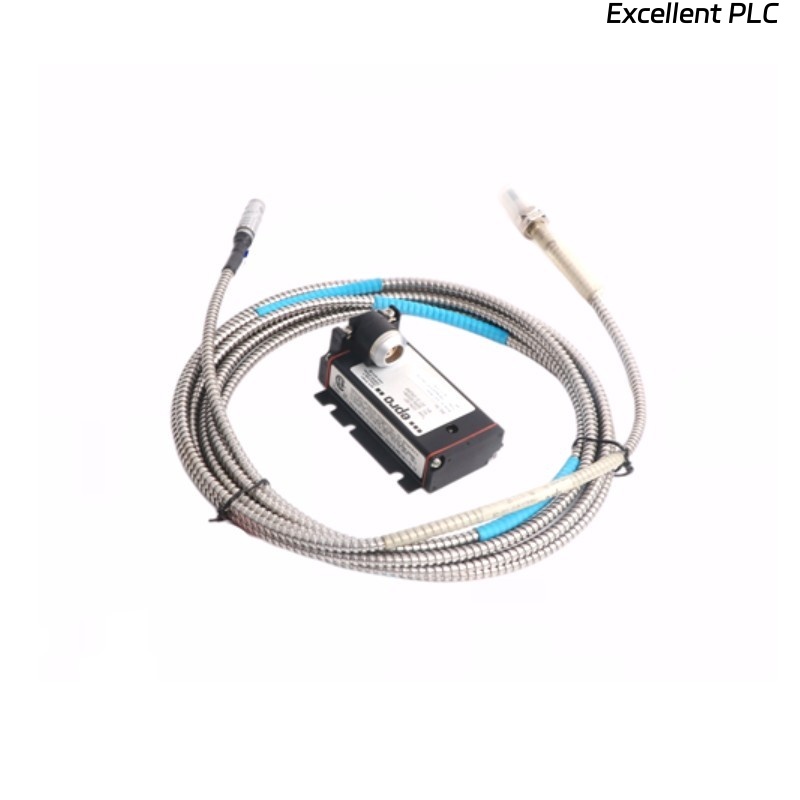

The Epro PR6424/012-101 is a high-precision 16mm Eddy Current Sensor designed for non-contact displacement, position, and vibration measurements in various industrial applications. Using advanced eddy current technology, this sensor provides precise measurement capabilities without physical contact, making it ideal for applications that involve rotating machinery or sensitive environments.
This sensor is commonly used in industries such as automotive, aerospace, energy, and manufacturing, where accurate monitoring of machinery and components is essential. The Epro PR6424/012-101 is specifically engineered to detect minute changes in position and vibration, helping to prevent failure and enhance equipment reliability.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | PR6424/012-101 |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measurement Range | 1 mm to 50 mm |
| Output Type | Analog (4-20 mA, 0-10 V) |
| Frequency Range | Up to 10 kHz |
| Operating Temperature | -20°C to +85°C |
| Accuracy | ±0.1% of measurement range |
| Power Supply | 24 VDC |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Signal Output | Linear Displacement Output |
| Cable Length | 3 meters (standard) |
Product Applications
The Epro PR6424/012-101 Eddy Current Sensor is widely used in several industrial sectors for a variety of applications:
-
Condition Monitoring and Vibration Analysis: Essential for continuous monitoring of equipment such as motors, generators, and pumps. It detects misalignments and imbalances in rotating machinery.
-
Automotive and Aerospace: Commonly used for measuring displacement in critical components such as engine parts and mechanical assemblies.
-
Energy and Power Generation: In power plants, this sensor helps monitor turbines and other rotating equipment to ensure safe and efficient operation.
-
Precision Manufacturing: Used in high-precision automated manufacturing systems where real-time feedback on positioning is critical.
-
Rotating Equipment: Ideal for rotating machinery monitoring, providing valuable data on vibration and displacement to prevent operational issues.
-
Research and Development: Used in scientific testing and material research for precise displacement and position measurements.
Product Advantages
-
Non-Contact Measurement: The eddy current technology ensures that the sensor can measure without physically touching the target, reducing wear and tear and minimizing maintenance needs.
-
High Precision and Accuracy: With ±0.1% accuracy and the ability to measure down to 1 mm, the sensor provides highly accurate displacement and vibration data.
-
Wide Frequency Range: Capable of measuring up to 10 kHz, the PR6424/012-101 is suitable for high-speed applications and provides real-time feedback for fast-moving equipment.
-
Versatile Output Options: This sensor offers analog output signals (4-20 mA and 0-10 V), making it compatible with a wide range of industrial control and monitoring systems.
-
Durable and Rugged Design: Built with a stainless steel housing and rated IP67 for water and dust resistance, this sensor is ideal for harsh environments.
-
Wide Operating Temperature: With an operating temperature range of -20°C to +85°C, the sensor can perform well in extreme temperature conditions.
-
Compact Design: Its small footprint and lightweight construction (weighing only 0.2 kg) make it suitable for tight spaces and easy integration into existing systems.
-
Enhanced Safety: The non-contact nature of this sensor helps prevent physical damage to machinery parts, ensuring enhanced safety for operators and the machinery itself.
-
Quick and Easy Integration: The sensor’s output is compatible with common control systems, allowing for straightforward integration into existing setups.
-
Cost-Effective Maintenance: With its non-contact design, the sensor reduces the need for maintenance and minimizes downtime by providing real-time feedback on equipment health.
FAQ
1. What is the measurement range of the Epro PR6424/012-101 sensor?
The Epro PR6424/012-101 sensor has a measurement range from 1 mm to 50 mm, allowing it to capture both small and large displacements.
2. What kind of output signals does the sensor provide?
It offers analog output signals including 4-20 mA and 0-10 V, providing flexible integration options with industrial control systems.
3. What is the frequency range of the PR6424/012-101?
The sensor supports a frequency range of up to 10 kHz, making it suitable for high-speed equipment and dynamic measurements.
4. What is the operating temperature range for the PR6424/012-101?
This sensor operates in environments with temperatures ranging from -20°C to +85°C, making it suitable for both low and high-temperature applications.
5. How accurate is the Epro PR6424/012-101 sensor?
The sensor provides an accuracy of ±0.1% of the measurement range, ensuring high precision for displacement and vibration measurements.
6. What is the power supply requirement for the PR6424/012-101 sensor?
The sensor requires a 24 VDC power supply for proper operation.
7. Can this sensor be used in vibration analysis?
Yes, the PR6424/012-101 is ideal for vibration analysis in rotating machinery, providing real-time displacement data to detect potential issues.
8. What is the protection rating of the sensor?
The sensor is rated IP67, meaning it is dustproof and water-resistant, ideal for harsh industrial environments.
9. Is the sensor suitable for use in aerospace applications?
Yes, this sensor is often used in aerospace applications, where precise displacement and position measurements are critical for system integrity.
10. How do I integrate the sensor into my system?
The analog output options (4-20 mA and 0-10 V) make it easy to integrate the sensor into most industrial control systems for displacement and vibration monitoring.
