Product Introduction

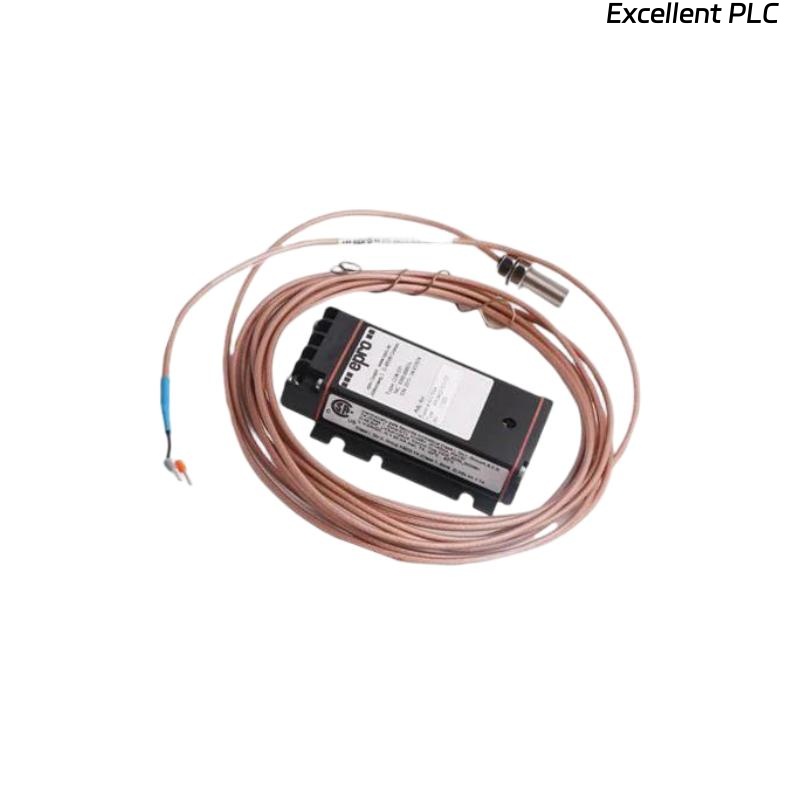

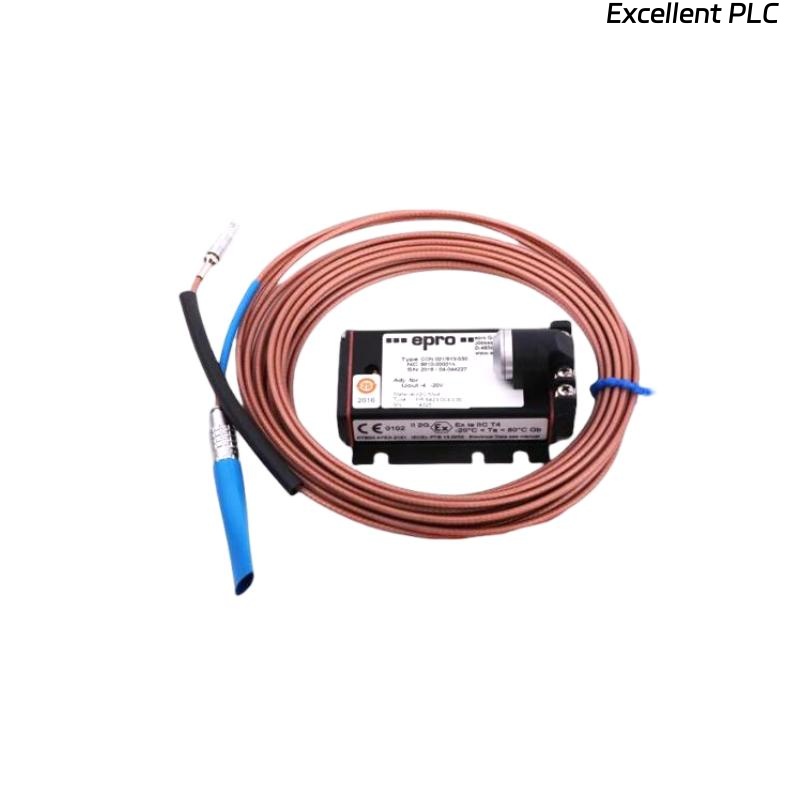

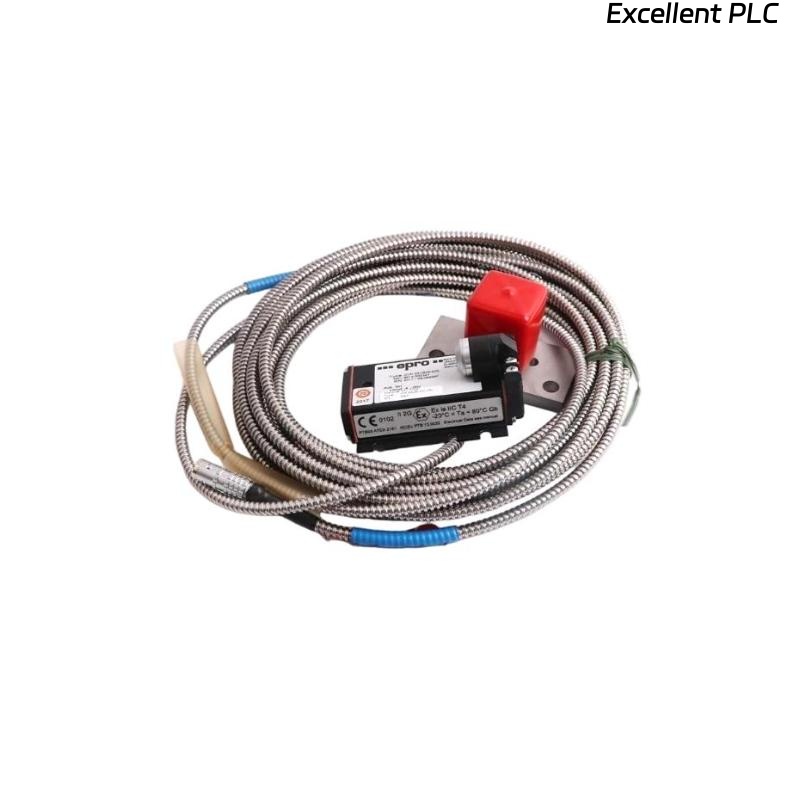

The Epro PR6424/013-000 is a high-precision 16mm Eddy Current Sensor designed to measure displacement, position, and vibration in industrial applications. Utilizing advanced eddy current technology, it provides highly accurate measurements in environments that require non-contact sensing, making it an ideal choice for applications in machine monitoring and vibration analysis.
The PR6424/013-000 sensor is built to offer reliable performance in harsh industrial environments. Its compact design, combined with high resolution and accuracy, makes it suitable for a wide range of industrial and engineering applications. The sensor is used in industries such as automotive, aerospace, energy, and manufacturing, where precise monitoring of machinery, motors, and rotating equipment is crucial.
Product Parameters
| Parameter | Value |
|---|---|
| Model Number | PR6424/013-000 |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measurement Range | 1 mm to 50 mm |
| Output Type | Analog (4-20 mA, 0-10 V) |
| Frequency Range | Up to 10 kHz |
| Operating Temperature | -20°C to +85°C |
| Accuracy | ±0.1% of measurement range |
| Power Supply | 24 VDC |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 |
| Signal Output | Linear Displacement Output |
| Cable Length | 3 meters (standard) |
Product Applications
The Epro PR6424/013-000 Eddy Current Sensor is used across a variety of industries where high-precision displacement, vibration, and position monitoring are critical. Some typical applications include:
-
Condition Monitoring in Industrial Equipment: The sensor is ideal for monitoring rotating machinery like motors, generators, and turbines, ensuring early detection of any abnormal vibrations or displacements.
-
Automotive Industry: Used for precise measurements in the testing of engine components, brake systems, and automated assembly lines.
-
Aerospace: Used in the testing and monitoring of aircraft parts for vibration analysis and positioning in high-precision environments.
-
Energy Sector: Employed in the monitoring of generator rotors and turbine blades, where non-contact measurements are necessary for maintaining equipment integrity.
-
Manufacturing: For quality control and machine monitoring, especially in processes like laser welding or CNC machining, where accurate position measurements are required.
Product Advantages
-
High Precision: Provides accurate measurements with an accuracy of ±0.1% across its full measurement range.
-
Non-Contact Sensing: Ideal for use in applications where physical contact with machinery is not possible, reducing wear and tear on the sensor.
-
Compact and Robust: With a 16mm sensor head diameter and stainless steel housing, it is durable and easy to install in confined spaces.
-
Wide Operating Range: Operates efficiently in temperatures from -20°C to +85°C, making it suitable for harsh environments.
-
Flexible Output Options: Offers analog output options like 4-20 mA and 0-10 V, making it adaptable to various industrial control systems.
-
High Frequency Response: Capable of measuring up to 10 kHz, suitable for high-speed applications such as vibration analysis in rotating equipment.
-
Sealed Protection: With an IP67 rating, it is dustproof and water-resistant, ensuring reliability in challenging industrial conditions.
-
Wide Range of Applications: Whether monitoring vibration or displacement, this sensor is versatile and can be used in different sectors like aerospace, automotive, and energy.
-
Cost-Effective: Provides excellent performance-to-price ratio, making it a popular choice for industries looking to optimize their monitoring systems.
-
Easy Integration: With its standard analog output, the sensor integrates seamlessly into existing measurement and control systems.
FAQ
1. What is the measurement range of the Epro PR6424/013-000 sensor?
The sensor measures a range from 1 mm to 50 mm, offering excellent flexibility for different applications.
2. What types of output signals are supported by this sensor?
This sensor supports analog outputs like 4-20 mA and 0-10 V, depending on the system requirements.
3. What is the maximum frequency response of the sensor?
The sensor can measure frequencies of up to 10 kHz, which makes it ideal for high-speed applications such as vibration monitoring in rotating machinery.
4. What is the accuracy of this sensor?
The accuracy of the PR6424/013-000 is ±0.1% of the measurement range.
5. What is the protection rating of the sensor?
The sensor has an IP67 protection rating, making it dustproof and water-resistant.
6. Can this sensor be used in harsh environments?
Yes, the sensor is built to withstand temperatures from -20°C to +85°C, suitable for harsh industrial environments.
7. What is the power supply requirement for this sensor?
The PR6424/013-000 requires a 24 VDC power supply.
8. Is the sensor suitable for high-precision vibration monitoring?
Yes, it is well-suited for high-precision vibration monitoring due to its high-frequency response and accurate measurement capabilities.
9. What industries can benefit from this sensor?
Industries such as automotive, aerospace, energy, and manufacturing can benefit from using this sensor for vibration analysis, displacement, and positioning.
10. What is the housing material of the sensor?
The sensor is housed in stainless steel, offering durability and resistance to environmental factors.
Recommended Related Models
| Model | Description |
|---|---|
| PR6424/014-100 | 16mm Eddy Current Sensor with a slightly larger measurement range |
| PR6424/015-000 | Eddy Current Sensor with extended temperature range and higher frequency response |
| PR6424/017-000 | Sensor with a 20mm diameter for larger displacement measurements |
| PR6424/018-000 | High-precision displacement sensor with extended output options |
| PR6424/020-000 | Vibration sensor optimized for high-speed machinery applications |
| PR6424/022-000 | Eddy Current Sensor designed for high-precision machining and assembly lines |
