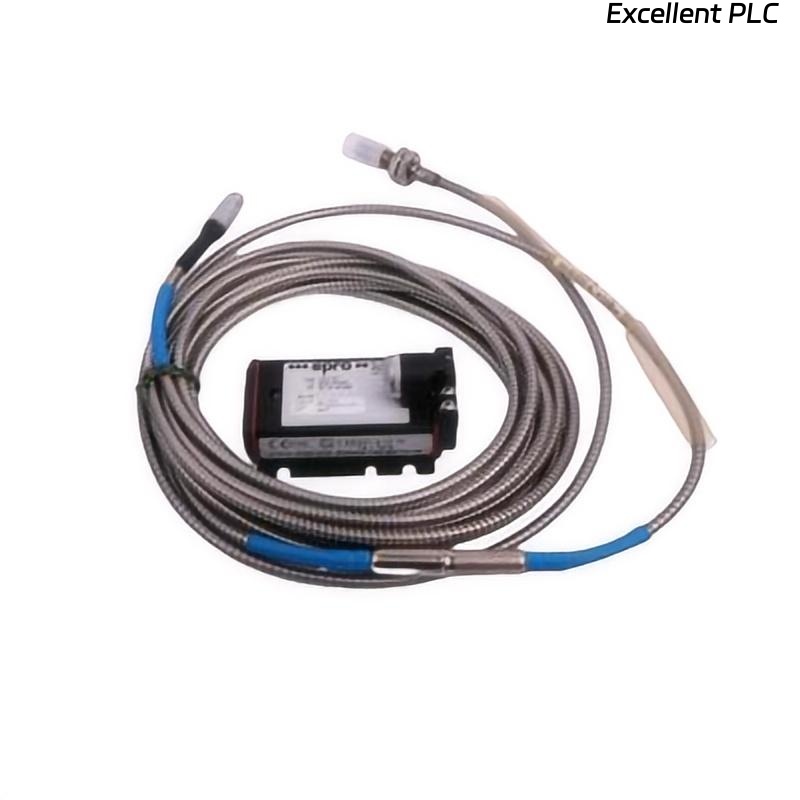

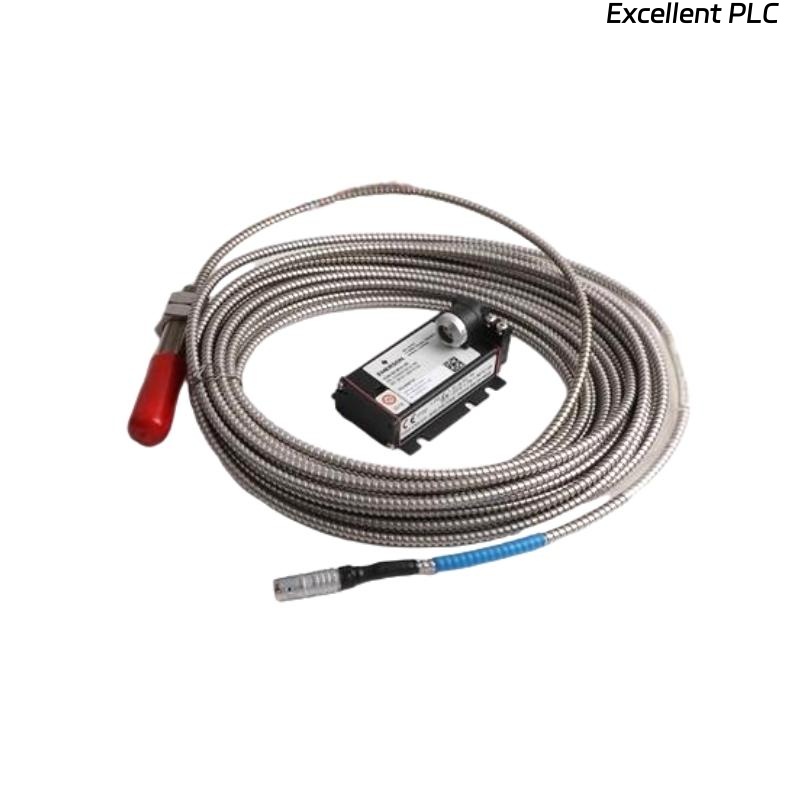

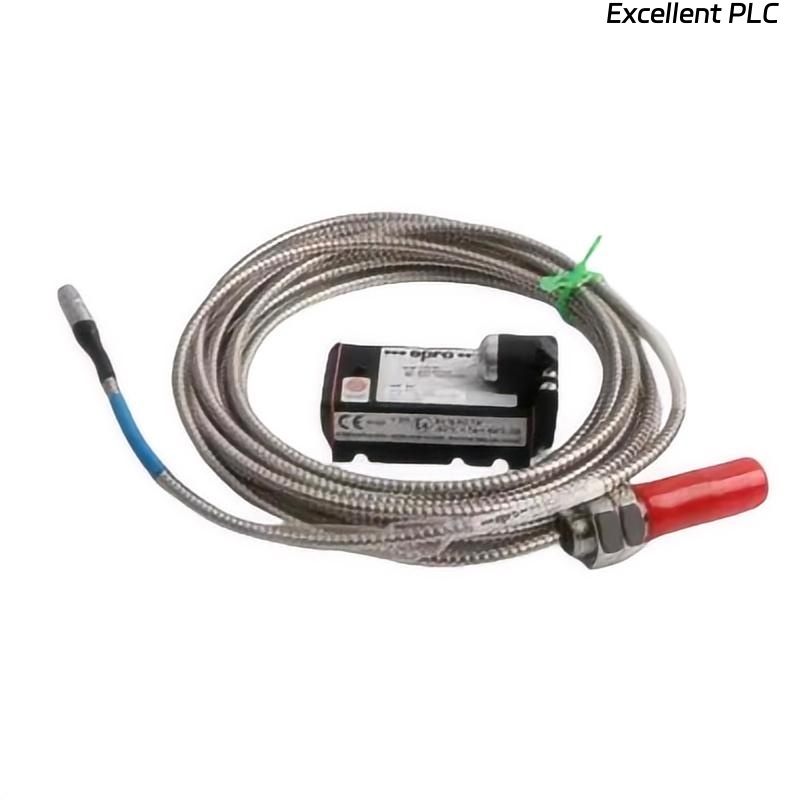

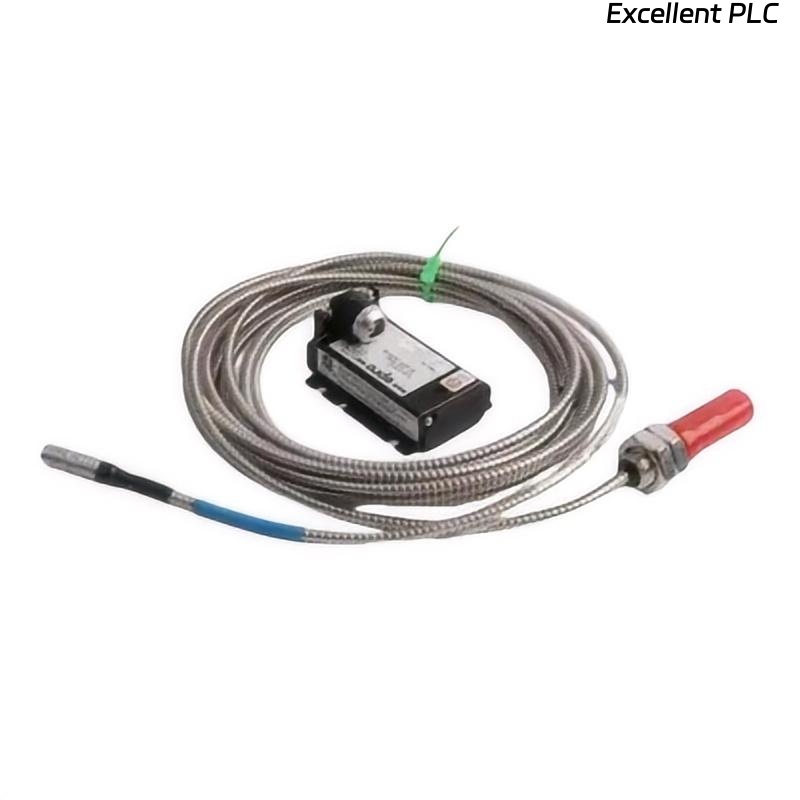

Epro PR6424/013-121 16mm Eddy Current Sensor

Product Introduction

The Epro PR6424/013-121 16mm Eddy Current Sensor is a high-precision, non-contact sensor designed for accurate monitoring of shaft vibration, displacement, and position in rotating machinery. Utilizing the eddy current principle, this sensor provides reliable measurements even in high-speed, high-temperature, and high-vibration environments. Its compact 16mm sensor head allows installation in tight or restricted spaces without sacrificing performance. Widely applied in turbines, compressors, pumps, motors, and industrial generators, this sensor enhances predictive maintenance programs and helps improve operational reliability, safety, and efficiency in industrial settings.

---

Product Specifications

---

Applications

• Power Generation: Monitors turbines, generators, and auxiliary rotating equipment.

• Industrial Compressors: Provides accurate vibration and displacement measurement.

• Motors and Pumps: Non-contact monitoring of critical rotating machinery.

• Petrochemical Industry: Supports predictive maintenance programs and reduces unscheduled downtime.

• Paper and Pulp Industry: Shaft monitoring for high-speed rollers.

• Renewable Energy: Monitors wind turbines, hydroelectric generators, and other rotating systems.

• Heavy Machinery: Provides precise vibration and position monitoring for gearboxes, fans, and industrial turbines.

---

Advantages

• High Accuracy: Eddy current sensing ensures precise measurement of displacement and vibration without contact.

• Compact Design: 16mm sensor head is suitable for limited-space installations.

• Durable Construction: Stainless steel housing protects against vibration, shock, and industrial contaminants.

• Wide Temperature Range: Reliable operation from –20 °C to +150 °C.

• High Frequency Response: Suitable for detecting rapid dynamic events in high-speed machinery.

• Easy Integration: Compatible with standard eddy current monitoring controllers.

• Minimal Maintenance: Non-contact operation reduces wear and service requirements.

• Industrial Reliability: Designed for continuous operation in challenging industrial environments.

---

FAQ

1. What principle does the PR6424/013-121 sensor use for measurement?
   It uses the eddy current principle, providing accurate non-contact measurement of shaft displacement and vibration.

2. What is the sensor’s maximum frequency range?
   The typical frequency response is up to 10 kHz, making it suitable for high-speed rotating machinery.

3. Which types of machinery are compatible with this sensor?
   Turbines, compressors, motors, pumps, and other industrial rotating equipment.

4. How is the sensor mounted to ensure accurate readings?
   Threaded or flange mounting ensures stable positioning relative to the shaft and consistent gap measurement.

5. Can this sensor operate in high-temperature environments?
   Yes, it functions reliably between –20 °C and +150 °C.

6. What type of output does the sensor provide?
   It produces a voltage output proportional to shaft displacement, compatible with eddy current monitoring controllers.

7. Is it suitable for high-vibration conditions?
   Yes, it is designed to maintain accuracy even in environments with significant mechanical vibration.

8. Does the sensor handle electromagnetic interference effectively?
   Yes, the shielded cable and stainless steel housing reduce EMI and RFI, ensuring accurate signal transmission.

9. Can this sensor be integrated with other Epro monitoring systems?
   Yes, it is compatible with standard Epro controllers and signal conditioners.

10. Is calibration required before installation?
    Yes, calibration is recommended to optimize accuracy based on gap settings and specific machinery requirements.

---

Recommended Related Models (Same Series or Similar)

---

Popular Epro Models

FAQ

1. What principle does the PR6424/013-121 sensor use for measurement?
   It uses the eddy current principle, providing accurate non-contact measurement of shaft displacement and vibration.

2. What is the sensor’s maximum frequency range?
   The typical frequency response is up to 10 kHz, making it suitable for high-speed rotating machinery.

3. Which types of machinery are compatible with this sensor?
   Turbines, compressors, motors, pumps, and other industrial rotating equipment.

4. How is the sensor mounted to ensure accurate readings?
   Threaded or flange mounting ensures stable positioning relative to the shaft and consistent gap measurement.

5. Can this sensor operate in high-temperature environments?
   Yes, it functions reliably between –20 °C and +150 °C.

6. What type of output does the sensor provide?
   It produces a voltage output proportional to shaft displacement, compatible with eddy current monitoring controllers.

7. Is it suitable for high-vibration conditions?
   Yes, it is designed to maintain accuracy even in environments with significant mechanical vibration.

8. Does the sensor handle electromagnetic interference effectively?
   Yes, the shielded cable and stainless steel housing reduce EMI and RFI, ensuring accurate signal transmission.

9. Can this sensor be integrated with other Epro monitoring systems?
   Yes, it is compatible with standard Epro controllers and signal conditioners.

10. Is calibration required before installation?
    Yes, calibration is recommended to optimize accuracy based on gap settings and specific machinery requirements.
