Product Introduction

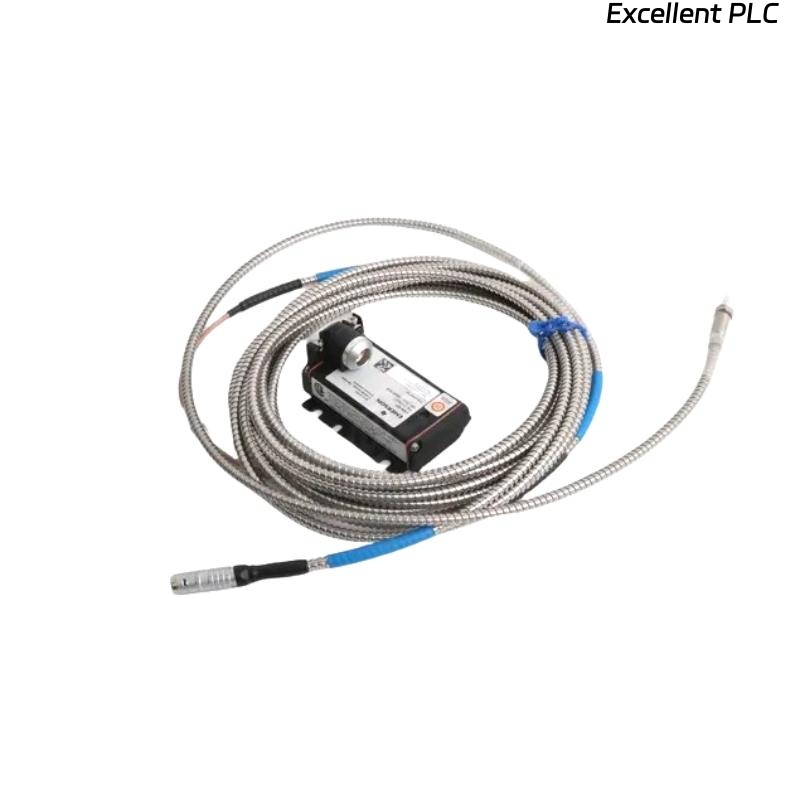

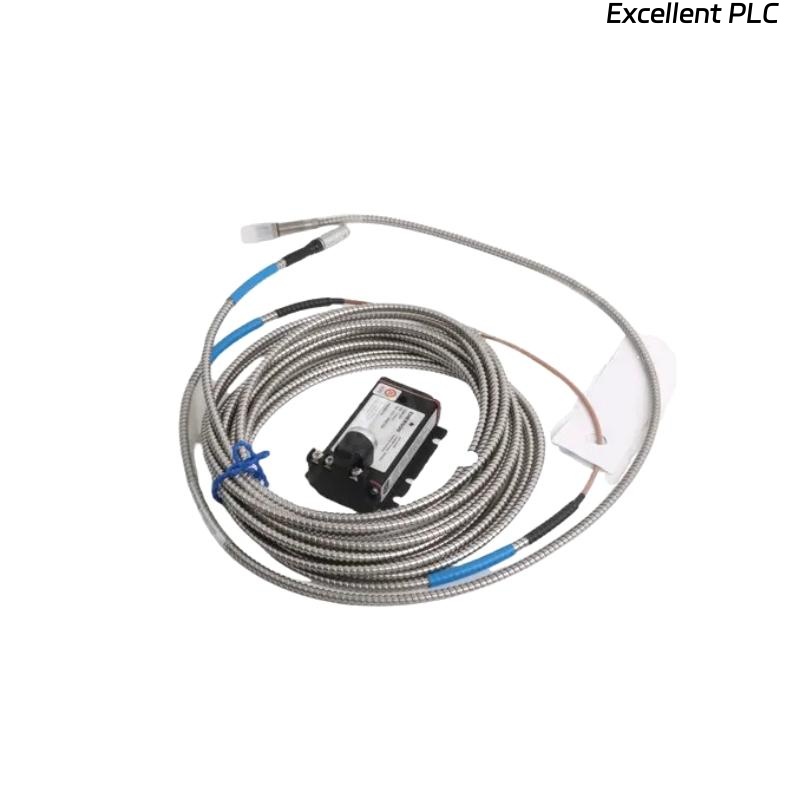

The Epro PR6424/013-130 is a high-precision, non-contact eddy current sensor used for measuring the vibration and axial displacement of rotating machinery. This 16mm proximity probe is a critical component of the Epro PR6424 series, engineered for deployment in industrial environments such as power plants, refineries, and chemical processing units.
The PR6424/013-130 is designed to function with companion converter modules such as CON021 or CON041, delivering a stable, linear output across a defined measurement range. Built to withstand high temperatures, mechanical stress, and electromagnetic interference, the sensor ensures reliable monitoring and protection of critical rotating assets.
Product Specifications
| Parameter | Details |
|---|---|
| Model | PR6424/013-130 |
| Sensor Type | Eddy Current / Non-contact displacement sensor |
| Sensor Head Diameter | 16 mm |
| Measuring Range | ±2 mm (typical with matched converter) |
| Linear Range | 4 mm |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Sensitivity | 7.87 mV/µm (typical with CON021) |
| Linearity | ±1% of full scale |
| Operating Temperature | -35°C to +180°C |
| Output Signal | Analog voltage (via converter) |
| Cable Type | Coaxial, factory-integrated |
| Housing Material | Stainless Steel |
| Environmental Protection | IP65 / IP67 (model-dependent) |
| EMC Compliance | EN 61000 series, CE compliant |
| Weight | 0.2 kg |
| Mounting Thread | M14×1.5 or customized |
Product Applications
-
Turbomachinery Monitoring: Used in steam turbines, gas turbines, and expanders.
-
Axial and Radial Shaft Positioning: Detects shaft displacement during transient or steady-state operations.
-
Vibration Monitoring Systems: Integrates with systems like MMS6000 or Bently Nevada 3500.
-
Oil & Gas Processing: Monitors compressors and pumps in harsh field environments.
-
Power Generation: Provides continuous feedback in generators and critical rotating systems.
-
Petrochemical Facilities: Monitors rotating assets to ensure safety and performance.
Product Advantages
-
High Sensitivity and Accuracy: Provides precise, real-time vibration and displacement feedback.
-
Wide Operating Temperature: Designed to operate in high-temperature areas up to 180°C.
-
Excellent EMC Performance: Built to withstand electrical noise and interference in industrial environments.
-
Durable Mechanical Design: Withstands mechanical vibrations and contaminants like oil, dust, and water.
-
Flexible Integration: Compatible with multiple converters and monitoring systems.
-
Stable Output: Offers long-term linearity and zero drift when installed and calibrated properly.
-
Minimal Maintenance: Non-contact design eliminates mechanical wear and prolongs service life.
-
Customizable: Thread sizes and cable lengths available for site-specific requirements.
FAQ
-
Which converter modules are compatible with the PR6424/013-130 sensor?
The sensor is designed to be used with Epro CON021 or CON041 converter modules. -
Can I extend or shorten the factory cable length?
No, the cable and converter are calibrated as a matched pair; altering the cable length invalidates calibration. -
What is the output voltage signal range?
The system outputs an analog voltage, typically 0–20 VDC, depending on the CON module. -
Is this sensor suitable for high-speed rotating machinery?
Yes, with a 10 kHz frequency response, it is well-suited for high-speed shaft monitoring. -
Can this sensor operate in oil-lubricated or contaminated environments?
Yes, it features a robust stainless steel housing and is sealed to IP65/IP67 ratings. -
Does the sensor support integration with third-party monitoring systems?
Yes, as long as the output signal from the converter matches the input requirements of the system. -
What is the effect of temperature variation on sensor accuracy?
The system is temperature-compensated and remains stable within the specified operating range. -
Is the sensor protected against reverse polarity?
Protection is handled by the converter module, not the sensor head itself. -
Can it be used for axial as well as radial measurements?
Yes, depending on the orientation of installation, it supports both types. -
How is linearity affected by mounting distance?
Mounting distance is critical. Deviation from factory-recommended gap can affect linearity and sensitivity.
Related Models from the Same Series
| Model | Description | Measuring Range | Probe Diameter |
|---|---|---|---|
| PR6424/010-100 | Standard probe for medium-range monitoring | ±1 mm | 10 mm |
| PR6424/012-120 | High-temp variant for rugged conditions | ±2 mm | 12 mm |
| PR6424/014-040 | Compact sensor for short-range applications | ±0.5 mm | 8 mm |
| PR6424/01C-130 | Corrosion-resistant coated sensor | ±2 mm | 16 mm |
| PR6424/017-000 | Extended-range model | ±3 mm | 16 mm |
| PR6424/018-000 | Ultra-wide range, special configuration | ±5 mm | 25 mm |
Popular Models from the Same Brand (Epro / B&K Vibro)
| Model | Function | Compatible Converter | Primary Application |
|---|---|---|---|
| PR6423/002-000 | 5mm proximity probe | CON021 | Compact motors and spindles |
| PR6423/005-010 | General-purpose 8mm probe | CON021 | Pumps, fans, small turbines |
| MMS6312 | Monitoring system module | N/A | Centralized condition monitoring |
| CON021 | Signal converter for PR6423/24 | N/A | Voltage signal conversion and scaling |
| MMS6120 | Vibration monitoring module | N/A | Machine protection systems |
| CON041 | High-end converter for PR642x series | N/A | High-temperature and EMC critical use |
