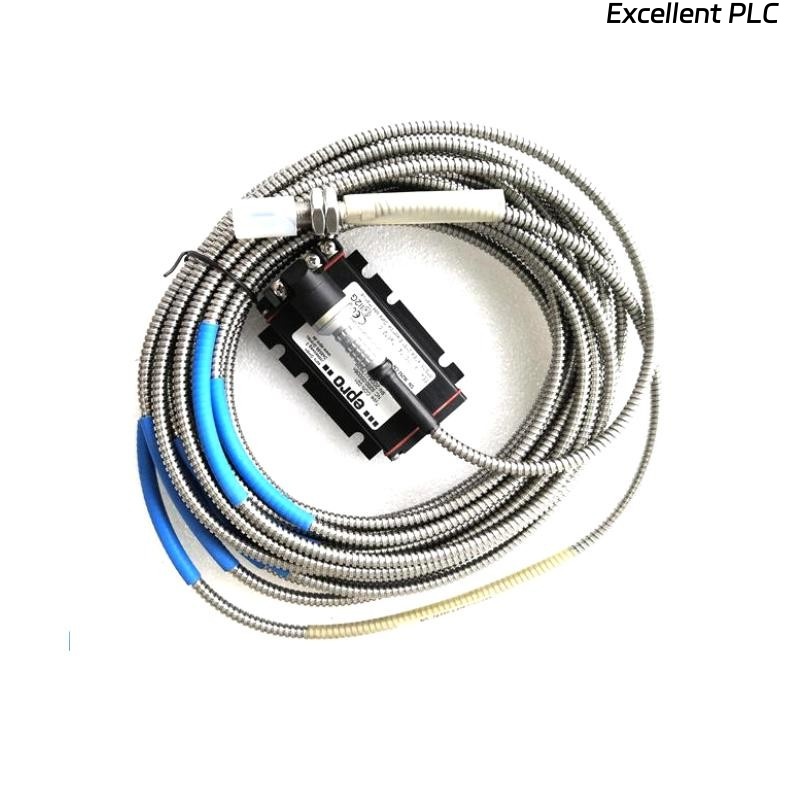

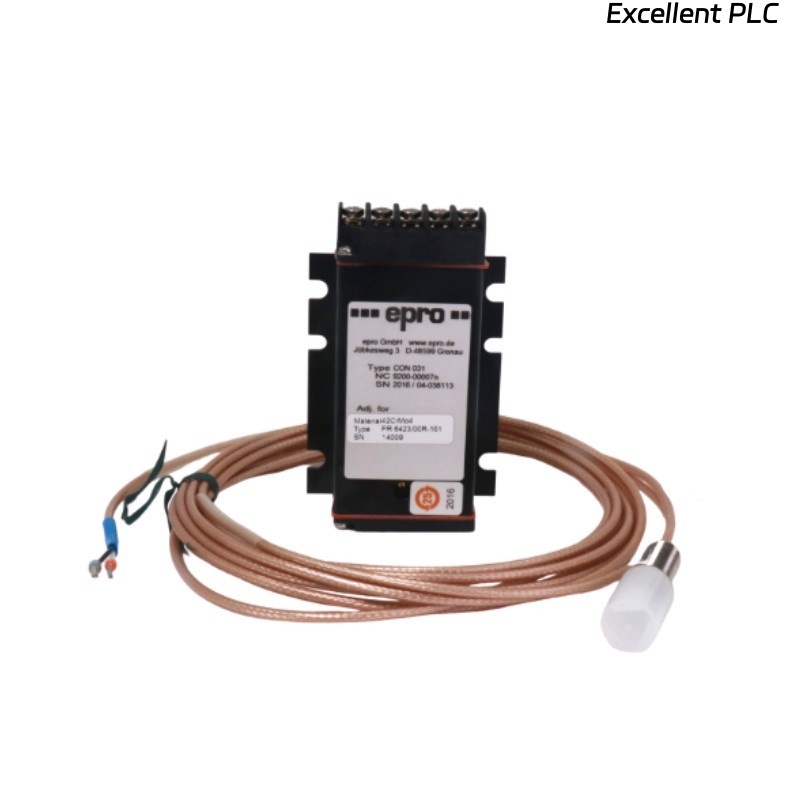

The Epro PR6424/014-101 is a high-precision 16 mm eddy current sensor designed for non-contact displacement, position, and proximity measurement. These sensors are known for their ability to accurately measure metallic surfaces, even in harsh industrial environments. The PR6424/014-101 sensor is widely used in machinery monitoring, process control, and industrial automation due to its durability and high performance.
The 16 mm eddy current sensor is particularly suitable for detecting small displacements or deviations in moving parts or machinery. It works by generating an electromagnetic field that induces eddy currents on the surface of the material being measured. These currents then influence the sensor’s own electromagnetic field, providing precise displacement data.
This sensor model is robust and reliable, making it ideal for integration into automated systems for continuous monitoring and diagnostics.
Product Parameters
| Parameter | Value |
|---|---|
| Model | PR6424/014-101 |
| Sensor Type | Eddy Current |
| Sensing Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measurement Range | 0 to 10 mm |
| Linear Output | 4-20 mA, 0-10 V |
| Supply Voltage | 10-30 VDC |
| Frequency Response | 100 kHz |
| Linearity | ±0.5% of full scale |
| Operating Temperature Range | -20°C to 85°C |
| Protection Rating | IP67 |
| Output Type | Analog output |
| Material Compatibility | Ferrous and non-ferrous materials |
Product Applications
The Epro PR6424/014-101 eddy current sensor is used in a variety of applications, particularly where precision and non-contact measurements are essential:
-
Industrial Machinery Monitoring: Commonly used to measure displacement and position in rotating equipment such as motors, pumps, and turbines, ensuring they operate within specified tolerances.
-
Vibration and Condition Monitoring: Ideal for use in monitoring the vibration of critical equipment, detecting imbalances, misalignments, and wear.
-
Automated Manufacturing Systems: Used to provide real-time feedback for automation systems, ensuring components are in the correct position during manufacturing processes.
-
Test and Measurement Systems: Employed in precision measurement applications where non-contact displacement measurements are required, such as in research and development or calibration setups.
-
Automotive Industry: Used in automotive assembly lines to measure the displacement of parts, check alignment, and detect defects in components.
-
Aerospace Testing: Provides high precision in the testing and monitoring of aerospace components, ensuring they meet stringent safety and performance standards.
Product Advantages
-
Non-Contact Measurement: The Epro PR6424/014-101 uses eddy current technology, meaning it does not require direct contact with the object being measured, reducing wear and tear.
-
High Precision and Accuracy: With a linearity of ±0.5% of full scale, this sensor offers high measurement accuracy, which is critical in industrial environments.
-
Wide Measurement Range: The sensor offers a 0 to 10 mm measurement range, making it versatile for applications requiring precise displacement measurements.
-
Rugged and Durable: Designed to withstand harsh environments, the IP67 rating ensures protection against dust and water, enabling the sensor to function reliably in a variety of industrial settings.
-
Versatile Output Options: The 4-20 mA and 0-10 V output options make it compatible with most control systems and allows for easy integration into industrial applications.
-
Wide Temperature Range: The -20°C to 85°C operating temperature range ensures stable performance in a variety of climates and environments.
-
High Frequency Response: With a frequency response of 100 kHz, this sensor can be used for high-speed measurements, making it suitable for dynamic applications.
-
Compact Design: The 16 mm sensing head diameter ensures the sensor is compact and easy to integrate into systems with limited space.
FAQ
1. What is the principle of operation for the Epro PR6424/014-101 sensor?
The sensor operates based on the eddy current principle, where an electromagnetic field is used to induce currents in the target material. The changes in these currents are measured, allowing for precise displacement or position readings.
2. What is the measurement range of the PR6424/014-101 sensor?
The measurement range of this sensor is from 0 to 10 mm, making it suitable for detecting small displacements.
3. What output types are available for this sensor?
The Epro PR6424/014-101 provides 4-20 mA and 0-10 V linear analog outputs, which can be easily integrated into most control systems.
4. What is the linearity specification for this sensor?
The sensor offers a linearity of ±0.5% of full scale, ensuring high accuracy in measurement.
5. What materials can the PR6424/014-101 sensor measure?
The sensor can measure both ferrous and non-ferrous materials, making it versatile for various industrial applications.
6. What is the operating temperature range for the sensor?
The Epro PR6424/014-101 operates within a temperature range of -20°C to 85°C, ensuring it performs reliably in diverse environments.
7. Is the PR6424/014-101 sensor suitable for harsh environments?
Yes, the IP67 protection rating ensures that the sensor is dustproof and can withstand exposure to water, making it ideal for use in rugged industrial environments.
8. What is the frequency response of this sensor?
The sensor has a frequency response of 100 kHz, which allows it to be used in high-speed dynamic applications.
9. What supply voltage does the sensor require?
The Epro PR6424/014-101 requires a supply voltage between 10-30 VDC, which is standard for many industrial control systems.
10. How do I integrate the PR6424/014-101 into my system?
The sensor provides analog outputs (4-20 mA, 0-10 V), which can be easily integrated into any system that accepts these signal types, making it compatible with most industrial monitoring and control systems.
