Product Introduction

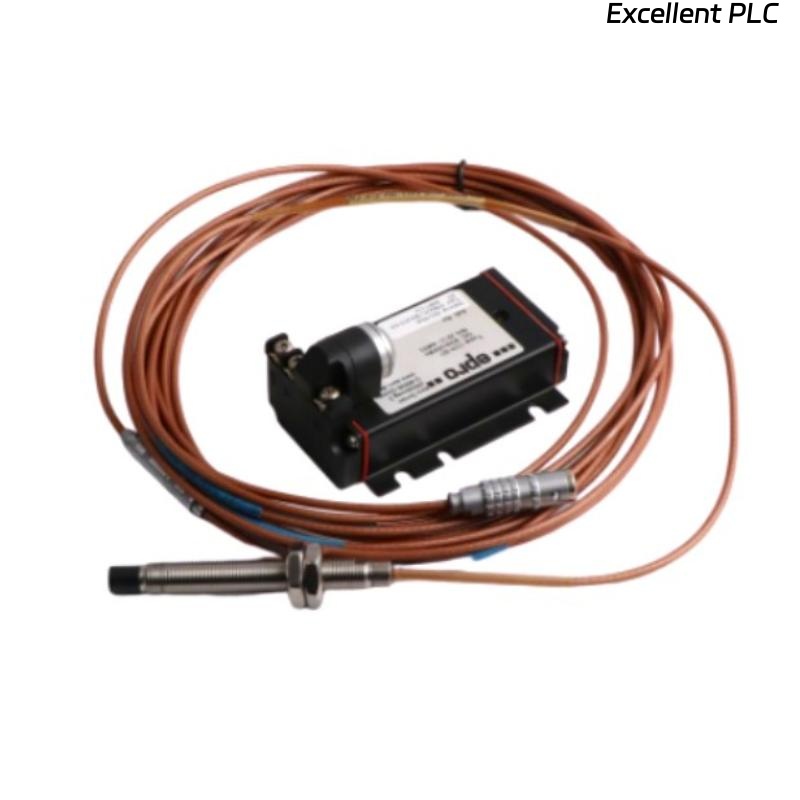

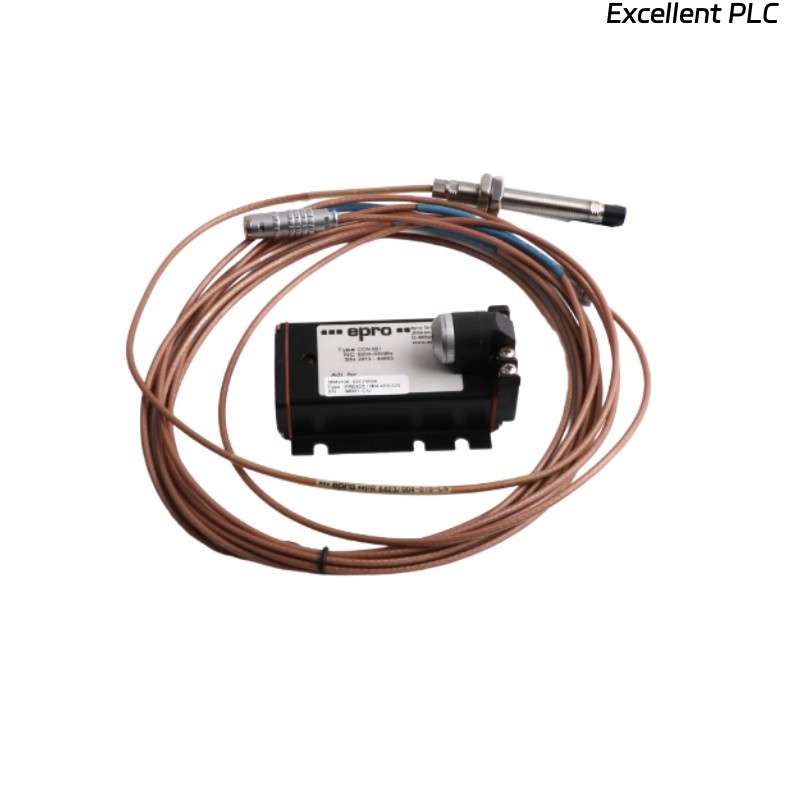

The Epro PR6424/015-030 16 mm Eddy-Current Sensor is a high-performance non-contact probe designed for accurate shaft vibration and displacement measurement in rotating machinery. It belongs to the PR6424 series, a well-established line of sensors widely adopted in industrial condition monitoring systems. This sensor is optimized for demanding environments such as turbines, compressors, and large pumps, where reliability and precision are critical. Its 16 mm sensing head provides excellent linearity and stability over a wide measuring range, making it an ideal choice for predictive maintenance and machine protection systems.
Technical Parameters
| Parameter | Value |
|---|---|
| Sensor Type | Eddy-Current Displacement Sensor |
| Model | PR6424/015-030 |
| Sensor Head Diameter | 16 mm |
| Measuring Range | 0 – 2 mm (typical) |
| Linear Range | Up to 1.5 mm |
| Frequency Response | DC to 10 kHz |
| Output Signal | Proportional voltage (mV/μm) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Sensor Cable Length | 5 m (fixed, integrated) |
| Weight | 0.2 kg |
| Housing Material | Stainless Steel |
| Protection Class | IP67 |
| Compatible Drivers | Epro CON041 / CON051 / CON061 |
Product Applications
-
Turbine vibration monitoring in power generation plants
-
Compressor shaft vibration measurement in oil & gas facilities
-
Pump condition monitoring in chemical processing industries
-
Gearbox vibration tracking in heavy-duty mechanical drives
-
Integration with protection systems for predictive maintenance
-
High-accuracy monitoring in research and test rigs
Product Advantages
-
High Precision: Provides stable and repeatable measurements with excellent linearity.
-
Robust Design: Stainless steel housing with IP67 protection for harsh environments.
-
Wide Compatibility: Fully compatible with Epro CON series drivers and protection systems.
-
Temperature Resistance: Operates reliably in extreme temperature ranges.
-
Non-Contact Measurement: Reduces wear and ensures long-term reliability.
-
Industry Proven: Trusted in critical applications across power, oil & gas, and heavy industries.
FAQ
Q1: What is the output signal type of the PR6424/015-030 sensor?
A1: It provides a proportional voltage output (mV/μm) for displacement measurement.
Q2: Which drivers are compatible with this sensor?
A2: It is compatible with Epro CON041, CON051, and CON061 driver modules.
Q3: What is the maximum frequency response of this sensor?
A3: The sensor supports a frequency response from DC up to 10 kHz.
Q4: Can this sensor be used for both radial and axial vibration monitoring?
A4: Yes, it can be applied to both radial shaft vibration and axial displacement measurements.
Q5: How is the sensor cable integrated?
A5: The sensor comes with a fixed, integrated 5-meter cable for stable signal transmission.
Q6: What kind of material is used for the housing?
A6: The housing is made of stainless steel, ensuring durability and corrosion resistance.
Q7: What is the linear measuring range of this model?
A7: The sensor maintains linearity up to approximately 1.5 mm within its measurement range.
Q8: Can it withstand high-temperature environments?
A8: Yes, it operates between -35 °C and +180 °C, with storage up to +200 °C.
Q9: Is the sensor protected against dust and water?
A9: Yes, it is rated IP67, offering strong resistance to dust and moisture ingress.
Q10: What industries commonly deploy this sensor?
A10: It is widely used in power generation, oil & gas, petrochemical, and heavy machinery industries.
Recommended Related Models
| Model | Sensor Head Diameter | Measuring Range | Cable Length | Notes |
|---|---|---|---|---|
| PR6424/015-100 | 16 mm | 0 – 2 mm | 10 m | Extended cable length version |
| PR6424/016-000 | 16 mm | 0 – 2 mm | 5 m | Standard variant |
| PR6424/016-121 | 16 mm | 0 – 2 mm | 5 m | Optimized for axial vibration |
| PR6424/017-000 | 16 mm | 0 – 2 mm | 5 m | Enhanced linearity |
| PR6424/017-021 | 16 mm | 0 – 2 mm | 5 m | Modified temperature version |
| PR6424/018-000 | 16 mm | 0 – 2 mm | 5 m | Latest series development |
Popular Models from the Same Brand
| Model | Type | Key Feature |
|---|---|---|
| PR6423/010-000 | Eddy-Current Sensor (8 mm) | Compact probe for confined spaces |
| PR6423/012-000 | Eddy-Current Sensor (8 mm) | Higher temperature resistance |
| PR6424/010-000 | Eddy-Current Sensor (16 mm) | Base version of 16 mm sensor |
| PR6426/000-100 | Eddy-Current Sensor (25 mm) | Larger probe for extended ranges |
| CON041 | Driver Module | Compatible driver for PR6424 series |
| CON051 | Driver Module | Advanced driver with diagnostics |
| CON061 | Driver Module | High-performance driver |
| PR9350 | Proximity Probe Calibration Tool | Calibration and verification device |
