Product Introduction

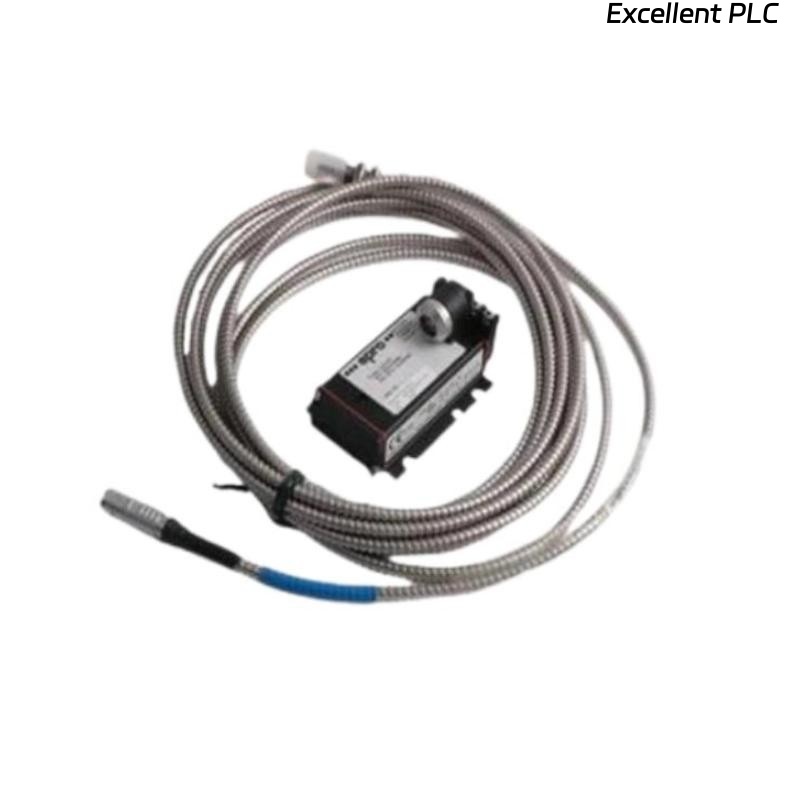

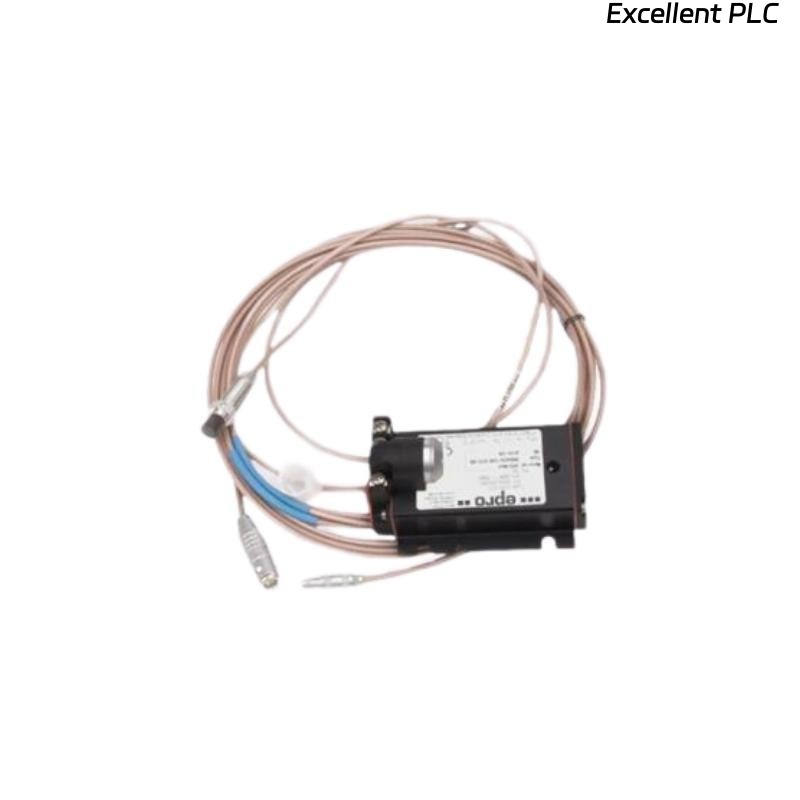

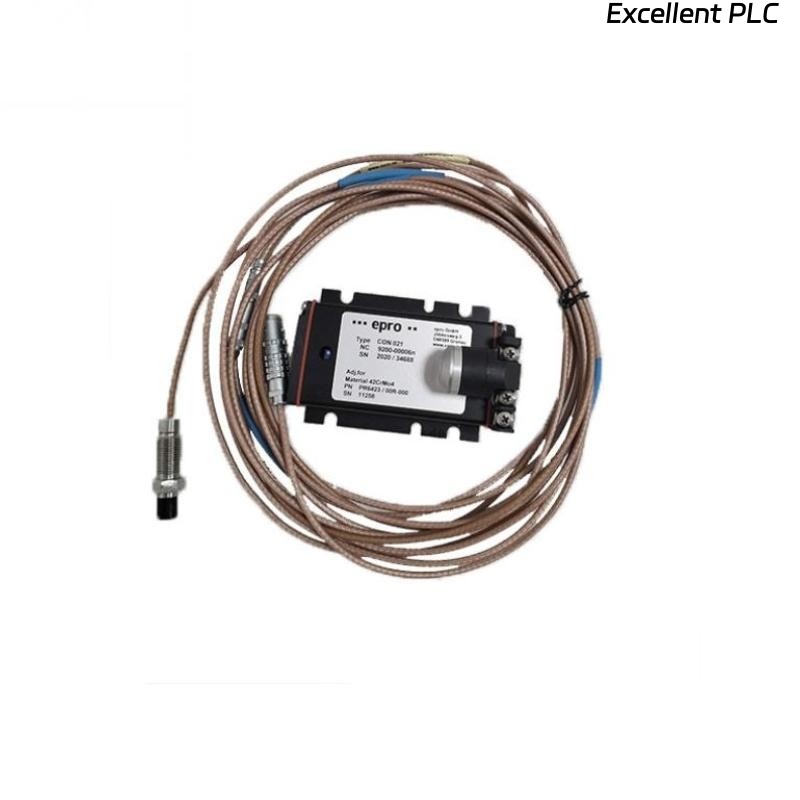

The Epro PR6424/019-100 is a high-precision 16 mm eddy current sensor, designed for a wide range of industrial applications where accurate non-contact measurements are essential. With its compact and durable design, this sensor is optimized for the most demanding environments. It offers superior performance in monitoring displacement, position, and proximity with minimal interference.
Product Parameters
| Parameter | Specification |
|---|---|
| Sensing Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Output Type | Eddy current |
| Measuring Range | Up to 10 mm displacement |
| Supply Voltage | 24 VDC |
| Operating Temperature | -40°C to +85°C |
| Resolution | Sub-micron accuracy |
| Max. Frequency | 10 kHz |
| Housing Material | Stainless Steel |
Applications
The Epro PR6424/019-100 eddy current sensor is designed for industrial settings requiring precise, non-contact measurement of displacement, position, and proximity. It is commonly used in the following applications:
-
Rotating Machinery: Ideal for monitoring shaft displacement and vibrations in turbines, motors, and pumps.
-
Automation Systems: Precision sensing in industrial robots, CNC machines, and conveyor systems.
-
Condition Monitoring: Used in predictive maintenance systems to assess the health of machinery.
-
Material Processing: Monitoring of components in various processes like milling, grinding, and assembly.
Advantages
-
Non-contact Measurement: Provides highly accurate measurements without physical contact, reducing wear and tear.
-
High Resolution: Offers sub-micron resolution, ideal for applications requiring extreme precision.
-
Wide Temperature Range: Capable of operating in environments from -40°C to +85°C, suitable for various industrial environments.
-
Durable Construction: Built with a stainless steel housing, ensuring protection against harsh conditions.
-
Compact and Flexible: Its 16 mm diameter sensing head allows integration into tight spaces, making it versatile for numerous applications.
FAQ
1. What is the maximum measuring range of the Epro PR6424/019-100 sensor?
The maximum measuring range is up to 10 mm displacement.
2. What output does the sensor provide?
The sensor provides an eddy current output, which is highly suitable for non-contact measurements.
3. How does the sensor perform in high-vibration environments?
The Epro PR6424/019-100 is designed to provide stable and accurate measurements even in high-vibration conditions, ensuring reliable performance.
4. What is the resolution of the Epro PR6424/019-100?
The sensor offers sub-micron accuracy, making it ideal for high-precision displacement measurements.
5. Can this sensor be used in high-temperature environments?
Yes, it can operate in a temperature range of -40°C to +85°C, making it suitable for use in extreme industrial conditions.
6. What is the required supply voltage for the sensor?
The Epro PR6424/019-100 sensor requires a 24 VDC power supply.
7. Can the sensor be used for rotating machinery applications?
Yes, it is perfect for monitoring shaft displacement and vibrations in rotating machinery like motors, pumps, and turbines.
8. How does the sensor measure displacement without contact?
The sensor uses eddy current technology, which detects changes in inductance as the target moves in proximity, without physical contact.
9. What materials are used in the sensor’s construction?
The sensor housing is made from stainless steel, providing high durability and protection from external damage in harsh environments.
10. Is the sensor suitable for predictive maintenance systems?
Yes, this sensor is an excellent choice for predictive maintenance, providing accurate displacement and position data for machinery health monitoring.
