Product Introduction

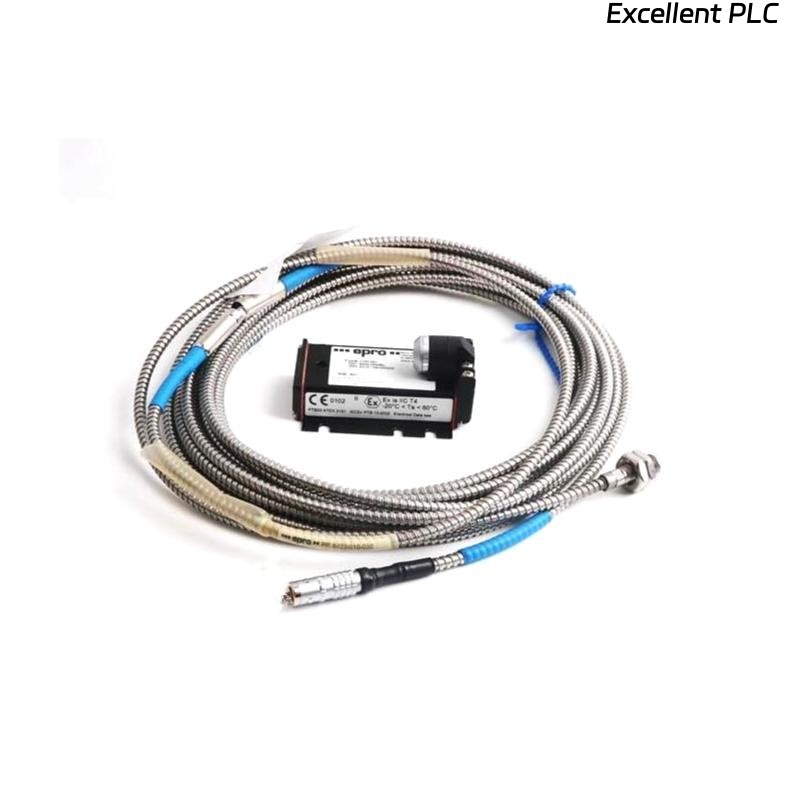

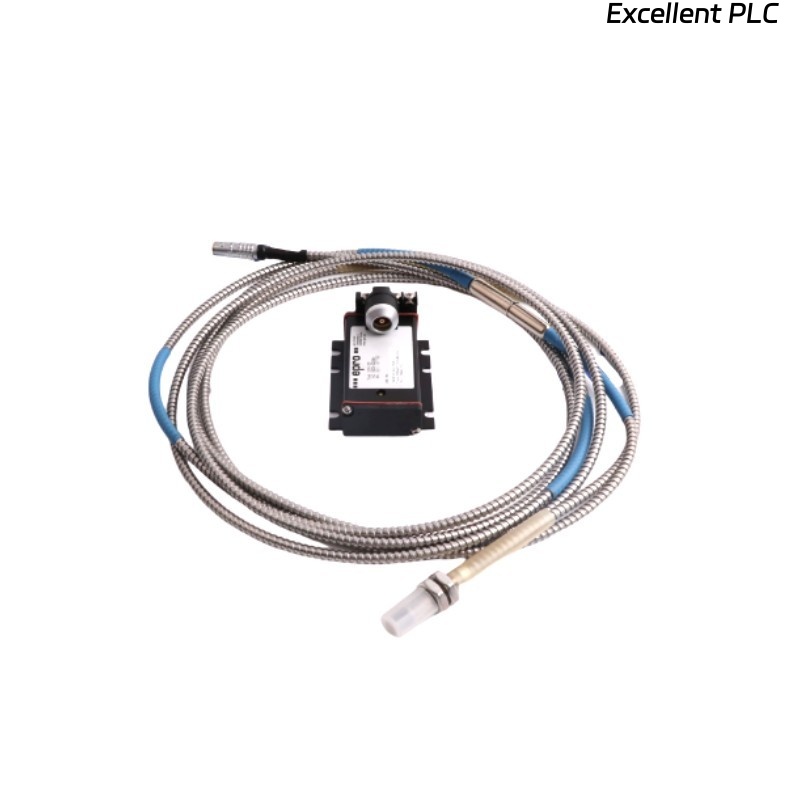

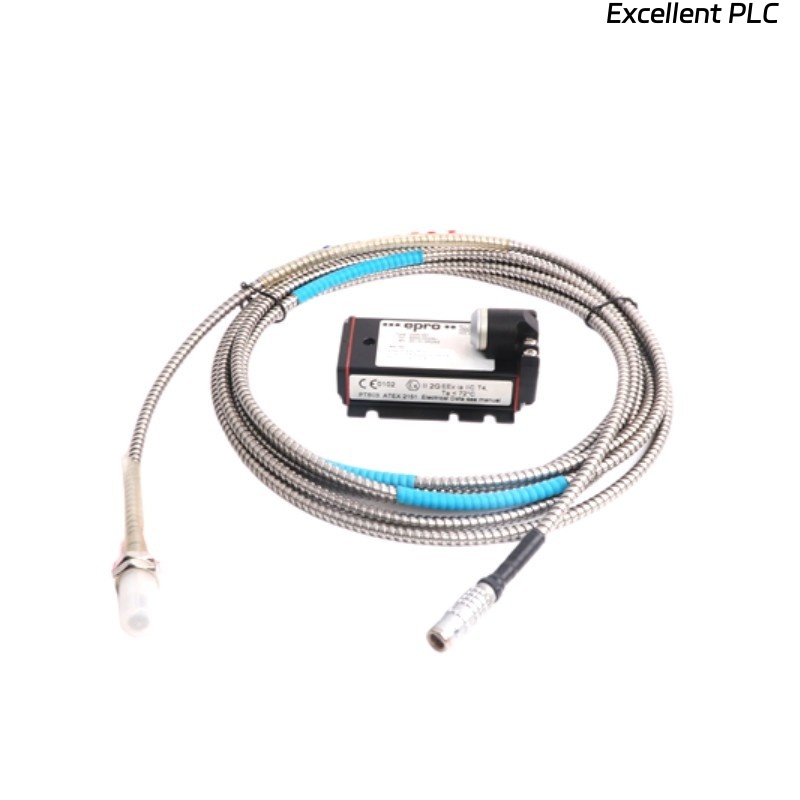

The Epro PR6424/101-000 is a high-performance 16 mm eddy current sensor designed for precise measurement and monitoring of displacement, vibration, and distance in industrial applications. This sensor uses the principle of eddy current technology to detect changes in the position of conductive materials without direct contact, offering excellent accuracy and reliability in harsh environments.
Product Parameters
| Parameter | Value |
|---|---|
| Sensor Diameter | 16 mm |
| Weight | 0.2 kg |
| Technology | Eddy Current |
| Measurement Range | Customizable |
| Power Supply | 12-30 VDC |
| Output Type | Analog or Digital |
| Operating Temperature | -40°C to +85°C |
| Material | Stainless Steel |
| Cable Length | Customizable |
Product Applications
The Epro PR6424/101-000 eddy current sensor is widely used in applications where non-contact, precise measurement of displacement, vibration, and position is essential. It is particularly effective in:
-
Rotating machinery: Monitoring shaft displacement and bearing condition.
-
Manufacturing: Positioning systems in automated machines.
-
Aerospace: Vibration measurement in critical components.
-
Oil and Gas: Monitoring mechanical wear and tear in equipment.
-
Automotive: Vibration analysis in engine components.
Product Advantages
-
Non-contact measurement: The sensor works without physical contact, minimizing wear and tear and ensuring longer life.
-
High accuracy: Provides precise measurements with excellent repeatability, which is essential in critical applications.
-
Wide operating range: Capable of working in extreme temperatures and harsh industrial environments.
-
Compact and robust design: The 16 mm sensor is compact, durable, and built to withstand mechanical stresses and vibrations.
-
Versatile output options: Supports both analog and digital outputs, making it suitable for a wide range of industrial control systems.
-
Ease of integration: The sensor can easily be integrated into existing systems with flexible installation options.
FAQ
-
How does the Epro PR6424/101-000 work?
The sensor uses eddy current technology to detect changes in the position of conductive materials by generating a magnetic field that induces circulating currents within the material. The change in the material’s position affects the impedance, which is measured and translated into a displacement or distance value. -
What is the measurement range of this sensor?
The measurement range can be customized based on the specific application. Contact the manufacturer or supplier for more detailed range specifications suited to your needs. -
Can the Epro PR6424/101-000 be used in harsh industrial environments?
Yes, the sensor is designed to operate in harsh environments, including extreme temperatures (-40°C to +85°C) and industrial conditions such as vibrations, dust, and humidity. -
What is the output type of the sensor?
The sensor provides both analog and digital outputs, allowing for flexible integration with various industrial control systems. -
Is this sensor suitable for rotating machinery?
Yes, it is ideal for applications in rotating machinery, such as monitoring shaft displacement and detecting misalignment in motors or turbines. -
What kind of materials can the sensor detect?
The sensor can detect any conductive material, making it suitable for applications involving metals and alloys. -
How do I integrate this sensor into an existing system?
The sensor can be easily integrated into an existing control system via its analog or digital outputs. It comes with customizable cable lengths to facilitate installation. -
What is the typical application of this sensor in the automotive industry?
In the automotive industry, the sensor is commonly used to monitor vibration levels in engine components and other critical parts, ensuring optimal performance. -
What is the typical power supply required for this sensor?
The sensor operates on a DC power supply in the range of 12-30 VDC. -
Is the Epro PR6424/101-000 sensor affected by temperature fluctuations?
No, the sensor is built to withstand temperature fluctuations, with an operating range from -40°C to +85°C, making it suitable for use in a wide range of environments.
