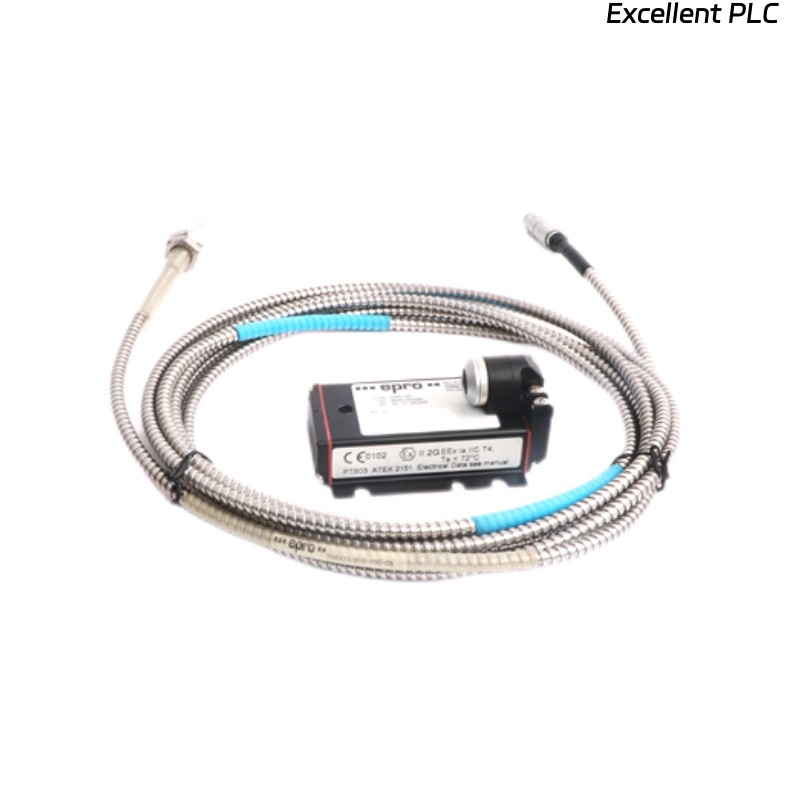

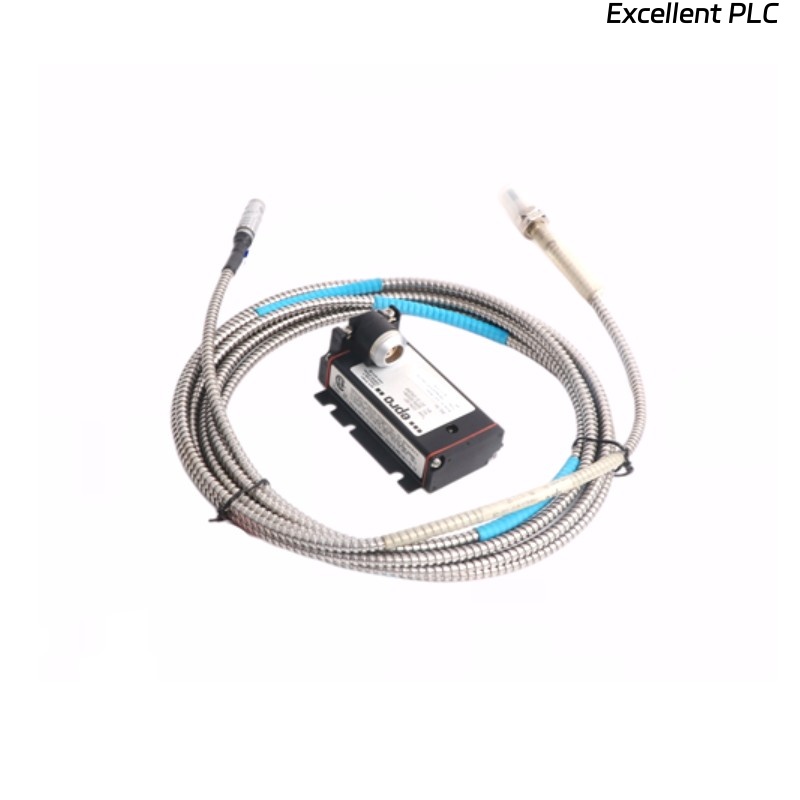

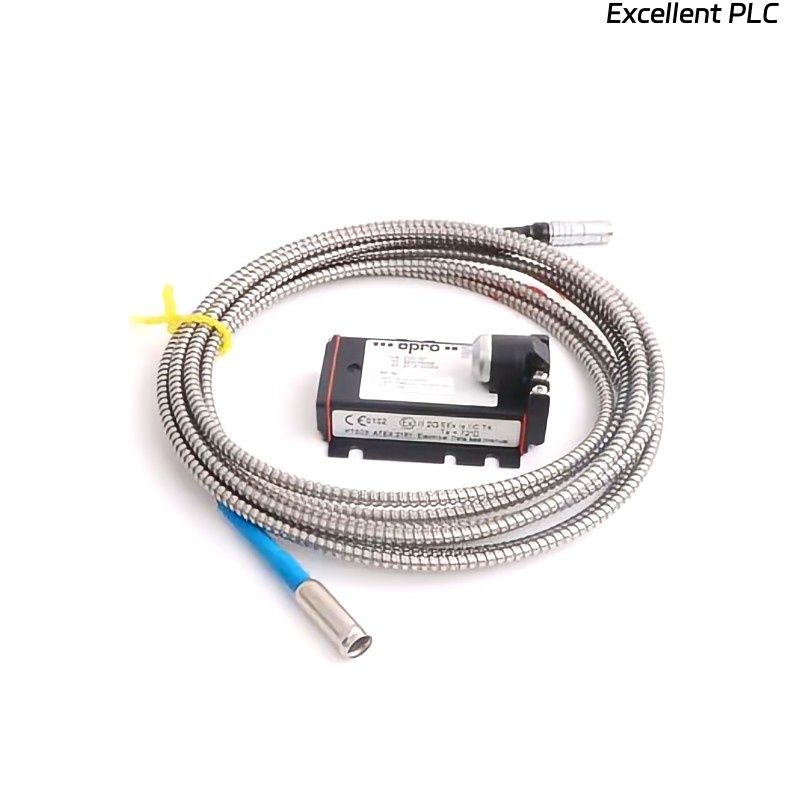

Epro PR6424/101-030 16mm Eddy Current Sensor

Product Introduction

The Epro PR6424/101-030 16mm Eddy Current Sensor is a high-precision, non-contact displacement and proximity sensor designed for industrial machinery monitoring. Employing eddy current technology, it accurately measures shaft vibration, position, and proximity without physical contact, ensuring long-term reliability and minimal wear. The 16mm sensor head diameter provides a compact and robust solution suitable for integration into turbines, compressors, generators, pumps, and other critical rotating equipment. With stable signal output and high-frequency response, the PR6424/101-030 is ideal for predictive maintenance, real-time vibration analysis, and process optimization in demanding industrial environments.

---

Product Specifications

---

Applications

• Turbines – Monitors rotor displacement and vibration for operational safety.

• Compressors – Detects shaft misalignment and imbalance for early maintenance.

• Generators – Provides continuous shaft position and vibration feedback.

• Pumps – Tracks high-speed shaft displacement and vibration for anomaly detection.

• Industrial Motors – Ensures precise rotor monitoring to maintain performance.

• Rotating Machinery – Integrated into vibration monitoring systems for machinery protection.

---

Advantages

• Non-Contact Measurement – Eliminates mechanical wear, extending sensor life.

• High Accuracy – ±1% full-scale linearity ensures precise and repeatable data.

• Robust Construction – Stainless steel housing for corrosion and industrial resistance.

• Compact Form Factor – 16mm diameter sensor head allows installation in confined spaces.

• Wide Operating Temperature – Reliable performance from –40 °C to +125 °C.

• Flexible Mounting Options – Threaded or flanged mounting for versatile installation.

• High-Frequency Response – Up to 10 kHz, suitable for high-speed machinery.

• Stable Output – AC or DC signal compatible with monitoring systems and DCS platforms.

---

FAQ

1. What type of signal does the PR6424/101-030 output?
   The sensor provides an AC or DC voltage proportional to shaft displacement, compatible with data acquisition systems, DCS, and vibration monitoring equipment.

2. What is the measurement range of this sensor?
   The standard range is ±1 mm, and it can be customized according to specific industrial requirements.

3. Can the sensor operate in high-temperature environments?
   Yes, it operates reliably between –40 °C and +125 °C.

4. How is the sensor mounted on machinery?
   It supports both threaded and flanged mounting options, allowing flexible integration with different equipment types.

5. Is it suitable for monitoring high-speed rotors?
   Yes, the sensor has a frequency response up to 10 kHz, allowing accurate measurement of dynamic rotor movements.

6. What materials are used for the sensor housing?
   The housing is made of stainless steel with corrosion resistance suitable for harsh industrial conditions.

7. Does it require a specific type of cable?
   A shielded coaxial cable is recommended to reduce electrical noise, with custom lengths available.

8. Can it detect shaft misalignment or imbalance?
   Yes, vibration and displacement signals can indicate early signs of misalignment or imbalance.

9. What is the linearity accuracy of the sensor?
   The sensor provides ±1% full-scale linearity, ensuring high-precision measurements.

10. Can it integrate with existing industrial monitoring systems?
    Yes, it is compatible with standard vibration monitoring systems, industrial DCS, and signal processing equipment.

---
