Product Introduction

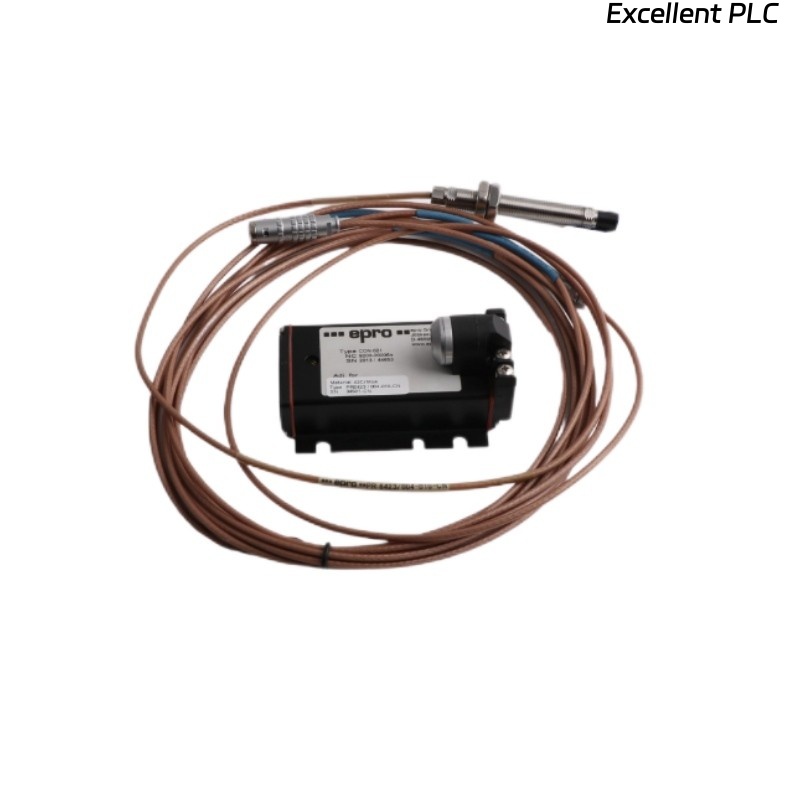

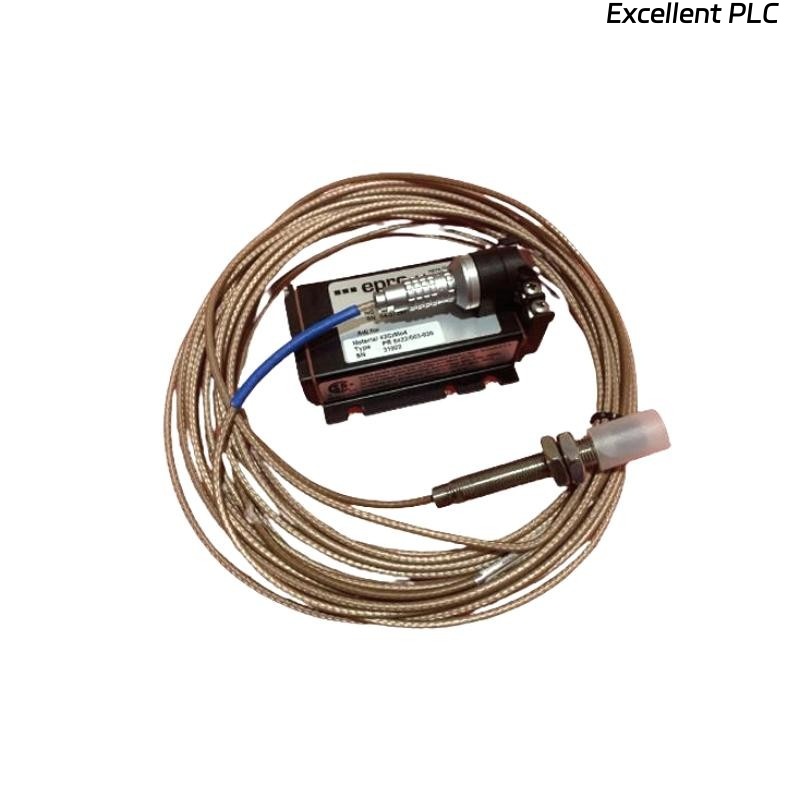

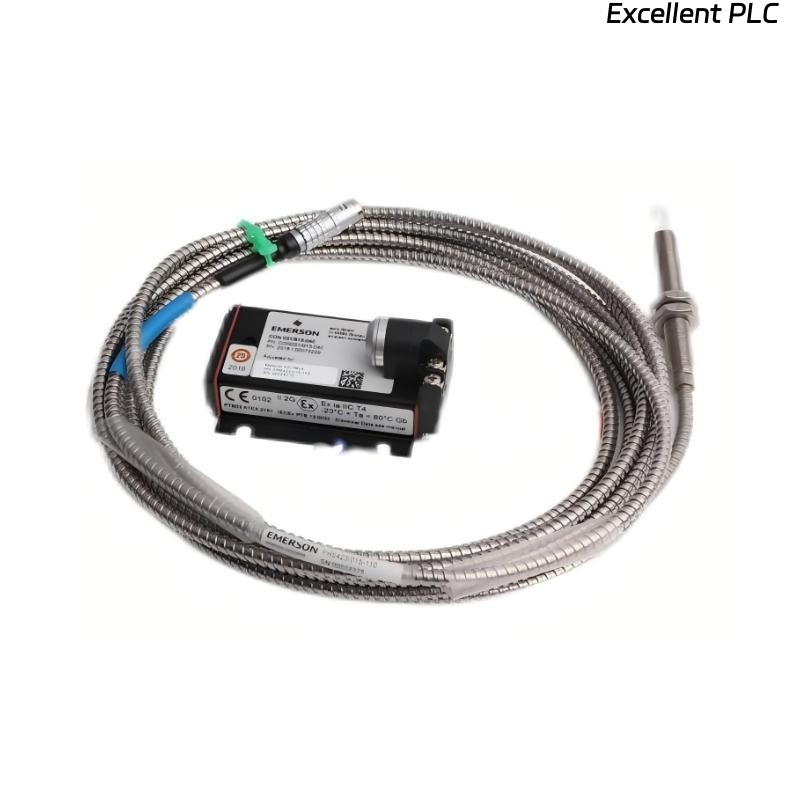

The Epro PR6424/103-000 is a high-precision 16mm Eddy Current Sensor designed for accurate, non-contact measurement of displacement, position, and vibration in various industrial environments. This sensor uses the principle of eddy current induction, which allows it to measure the distance between the sensor and a target material without physical contact, ensuring longevity, precision, and reliability even in the most demanding conditions.
Due to its non-contact measurement principle, the PR6424/103-000 sensor is ideal for monitoring machinery in operation, preventing wear or damage caused by physical contact with target surfaces. With a 16mm sensor head diameter and 0.2 kg weight, the PR6424/103-000 is compact and lightweight, making it suitable for use in confined spaces where larger sensors may not fit. It is widely used in applications such as vibration monitoring, position sensing, and machinery diagnostics.
Product Specifications
| Feature | Details |
|---|---|
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measuring Range | Up to 10 mm |
| Output Type | Analog Output (4-20mA, 0-10V) |
| Frequency Range | Up to 100 kHz |
| Operating Voltage | 24V DC |
| Accuracy | ± 0.1% of Full Scale |
| Response Time | < 1 ms |
| Material | Stainless Steel |
| Temperature Range | -20°C to +85°C |
| Environmental Rating | IP67 |
| Mounting Type | Threaded mounting, adjustable |
Product Applications
The Epro PR6424/103-000 16mm Eddy Current Sensor is designed for various applications requiring high-precision, non-contact measurements in industrial environments. Some of its main applications include:
-
Vibration Monitoring
The PR6424/103-000 is used to monitor the vibrations of rotating machinery such as motors, turbines, and engines. It helps detect imbalances, wear, and misalignments early, preventing equipment failure and ensuring continuous operation. -
Displacement and Position Sensing
This sensor is ideal for measuring small displacements and positions in industrial automation, manufacturing lines, automotive components, and aerospace parts. It provides real-time, accurate feedback for precise control. -
Thickness Measurement
The PR6424/103-000 is used for non-contact thickness measurement in industries such as metals, plastics, and composites, offering a reliable way to check material thickness without damaging delicate surfaces. -
Proximity Sensing
In industrial automation, the sensor detects the presence or position of metal objects in real-time. It is widely used for process control, object detection, and assembly line operations. -
Rotational and Linear Motion Monitoring
This sensor can monitor both rotational and linear motion, providing precise displacement and vibration data for machinery used in high-precision applications like CNC machines and robotic systems. -
Non-Contact Wear Detection
The PR6424/103-000 is employed for non-contact wear detection in machinery, reducing the need for manual inspections and preventing damage to sensitive components.
Product Advantages
-
High Precision
The PR6424/103-000 sensor offers ±0.1% full-scale accuracy, ensuring precise measurements for demanding applications where high precision is essential. -
Non-Contact Measurement
By utilizing the eddy current principle, the sensor provides non-contact measurement, reducing the risk of wear, contamination, and mechanical interference with the target material, thereby extending both sensor and system lifespans. -
Fast Response Time
With a response time of less than 1 ms, the sensor provides fast, real-time feedback, which is essential for high-speed systems where immediate adjustments are needed. -
Compact Design
The 16mm sensor head diameter and lightweight 0.2 kg weight make this sensor compact and easy to install in tight spaces, providing versatility for installations in constrained environments. -
Durability and Rugged Construction
The sensor features IP67 protection, ensuring it is dust-tight and water-resistant, allowing reliable performance in harsh industrial environments where exposure to dust, moisture, and other challenging conditions is common. -
Wide Temperature Range
The PR6424/103-000 operates in temperatures ranging from -20°C to +85°C, making it suitable for use in both cold and hot environments, allowing flexibility in various industrial applications.
FAQ
-
What is the measuring range of the Epro PR6424/103-000 sensor?
The PR6424/103-000 has a measuring range of up to 10 mm, making it suitable for small displacement and vibration monitoring applications. -
What output options does the Epro PR6424/103-000 support?
The sensor supports analog outputs including 4-20mA and 0-10V, which are commonly used in industrial control systems. -
What is the accuracy of the Epro PR6424/103-000 sensor?
The PR6424/103-000 provides an accuracy of ±0.1% of full scale, ensuring high precision in critical measurement applications. -
How fast is the response time of the Epro PR6424/103-000 sensor?
The sensor has a response time of less than 1 ms, making it suitable for dynamic applications requiring fast feedback. -
What material is the sensor head made of?
The sensor head is made of stainless steel, which is highly durable and resistant to corrosion, making it ideal for use in industrial environments. -
What environmental protection does the Epro PR6424/103-000 sensor have?
The PR6424/103-000 is rated IP67, ensuring it is fully protected against dust and can withstand immersion in water, making it suitable for harsh conditions. -
What is the operating voltage of the Epro PR6424/103-000 sensor?
The sensor operates with a 24V DC supply voltage, which is compatible with most industrial systems. -
What is the temperature range of the Epro PR6424/103-000 sensor?
The PR6424/103-000 can operate in temperatures ranging from -20°C to +85°C, ensuring reliable performance in both cold and hot environments. -
How is the Epro PR6424/103-000 sensor mounted?
The sensor features threaded mounting and is adjustable, which allows for easy and precise installation in various configurations. -
Can the Epro PR6424/103-000 sensor be used in high-speed applications?
Yes, the sensor has a fast response time of less than 1 ms, making it ideal for high-speed monitoring and control applications such as vibration and displacement sensing.
