Product Introduction

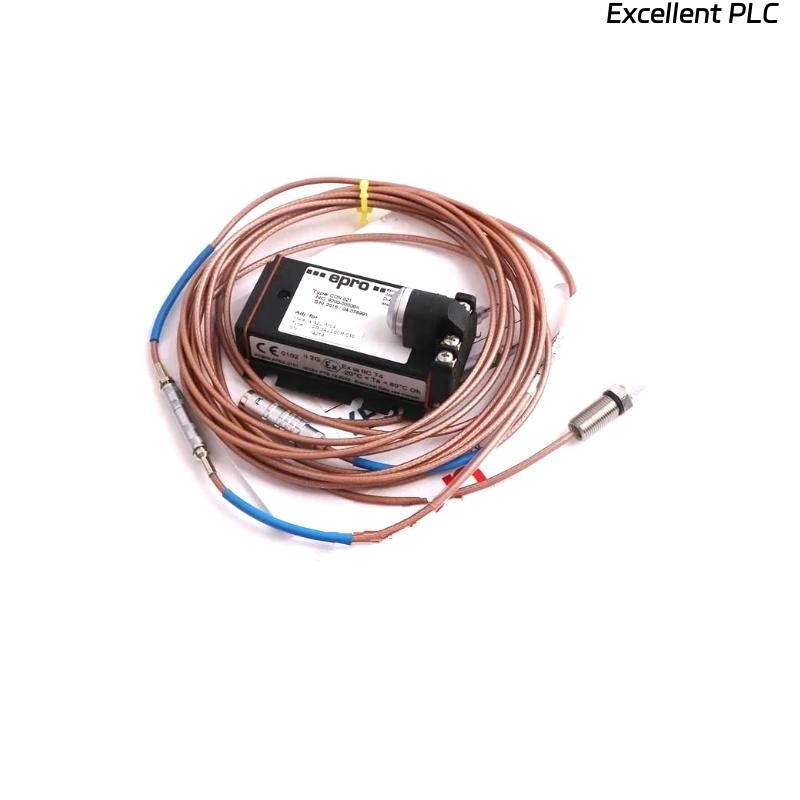

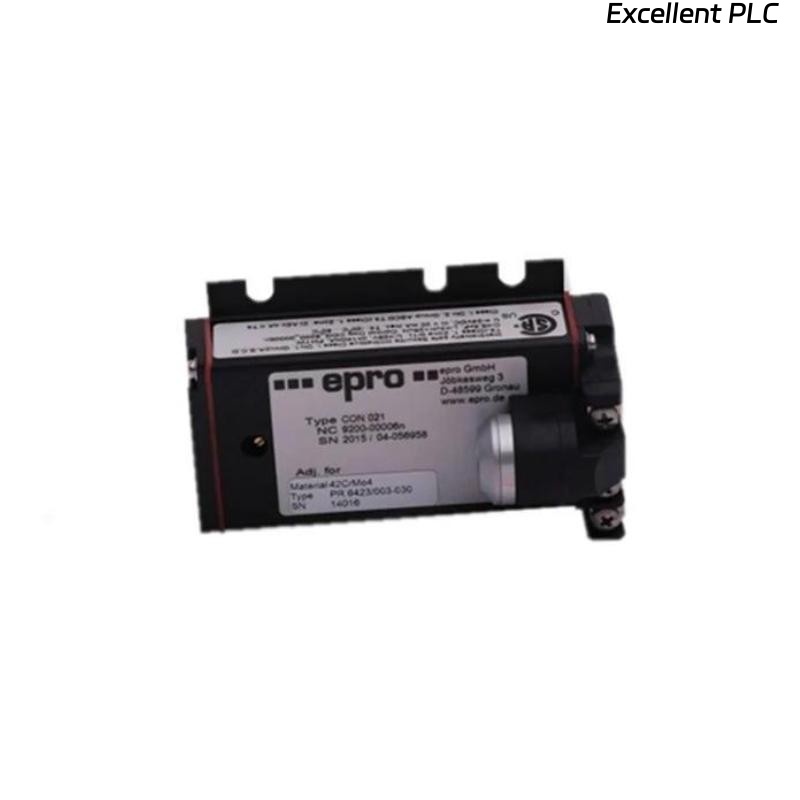

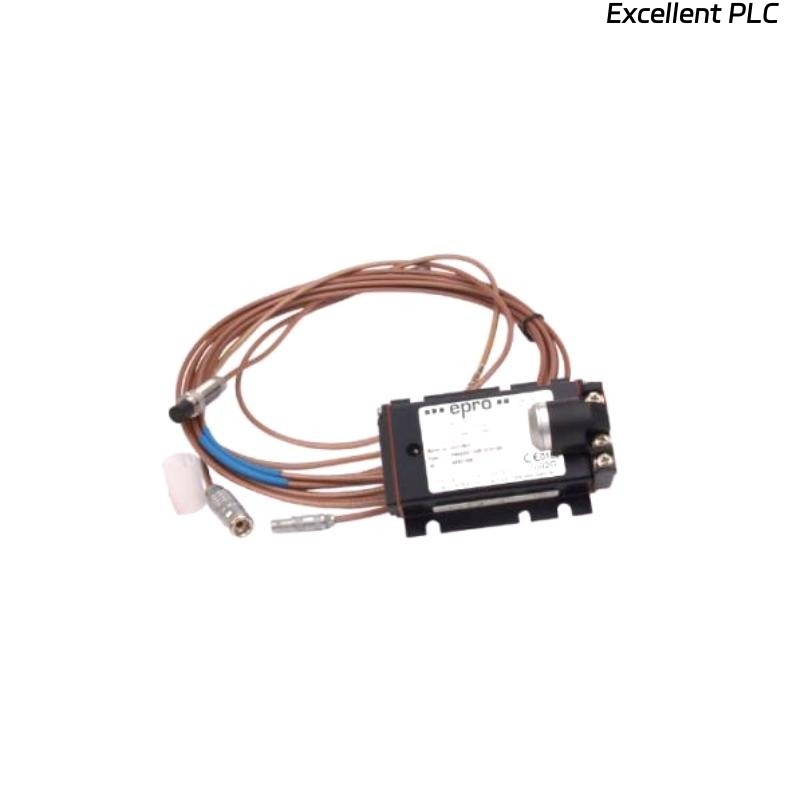

The Epro PR6424/103-030 is a precision 16mm Eddy Current Sensor designed for highly accurate, non-contact measurements of displacement, position, and vibration in industrial environments. Built on the principle of eddy current induction, this sensor offers superior measurement precision and real-time feedback without the need for physical contact with the target material. This makes the PR6424/103-030 especially valuable in situations where contact-based sensors are unsuitable due to wear, contamination, or environmental factors.
This sensor is engineered for dynamic applications in industries requiring non-contact sensing, such as vibration analysis, machine monitoring, and process control. Its 16mm sensor head diameter and lightweight 0.2 kg construction make it suitable for tight installation spaces, while the robust design ensures it can perform reliably in harsh industrial conditions. Its broad temperature range and durable construction further enhance its versatility in demanding applications.
Product Specifications
| Feature | Details |
|---|---|
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measuring Range | Up to 10 mm |
| Output Type | Analog Output (4-20mA, 0-10V) |
| Frequency Range | Up to 100 kHz |
| Operating Voltage | 24V DC |
| Accuracy | ± 0.1% of Full Scale |
| Response Time | < 1 ms |
| Material | Stainless Steel |
| Temperature Range | -20°C to +85°C |
| Environmental Rating | IP67 |
| Mounting Type | Threaded mounting, adjustable |
Product Applications
The Epro PR6424/103-030 16mm Eddy Current Sensor is versatile and widely used across various industries requiring precise, non-contact measurements. Some of its key applications include:
-
Vibration Monitoring
The PR6424/103-030 is ideal for continuous monitoring of vibrations in rotating machinery, motors, turbines, and engines. By detecting early signs of imbalance, wear, or misalignment, it helps prevent costly downtimes and mechanical failures. -
Displacement and Position Sensing
In applications like automotive, aerospace, and manufacturing, this sensor measures small displacements with high accuracy, ensuring proper positioning of components in assembly lines and machinery. -
Thickness Measurement
The PR6424/103-030 is used to measure material thickness in industries like metalworking, plastics, and composites, providing non-contact measurements that avoid damaging delicate surfaces. -
Proximity Sensing
In industrial automation, the sensor detects the presence or absence of metal objects on production lines, allowing for real-time data collection and process adjustments without physical contact. -
Rotational Monitoring
This sensor is employed in monitoring rotating parts such as shafts and rotors, providing critical data on displacement and vibration, ensuring efficient operation and prolonging component life. -
Wear and Tear Detection
The PR6424/103-030 is used in machinery for non-contact wear detection, helping identify early signs of wear in components and minimizing maintenance costs and system downtime.
Product Advantages
-
High Precision and Accuracy
The PR6424/103-030 sensor boasts an accuracy of ±0.1% of full scale, ensuring highly precise measurements even in critical applications where small deviations can have significant impacts. -
Non-Contact Measurement
Utilizing the Eddy Current principle, this sensor allows for non-contact measurement, ensuring that sensitive surfaces are not damaged and no wear occurs on either the sensor or the target. -
Fast Response Time
The PR6424/103-030 features a response time of less than 1 ms, making it an excellent choice for high-speed applications requiring fast feedback and real-time adjustments. -
Compact and Lightweight Design
With a 16mm sensor head diameter and a weight of 0.2 kg, the sensor is compact and can be installed in confined spaces, where other bulkier sensors may not fit. -
Durability and Rugged Construction
The sensor has an IP67 environmental rating, ensuring that it is protected from dust and water, making it highly durable in harsh and outdoor industrial environments. -
Wide Temperature Range
The sensor operates in extreme temperatures, from -20°C to +85°C, making it suitable for diverse applications across various industrial sectors.
FAQ
-
What is the maximum measuring range of the Epro PR6424/103-030 sensor?
The PR6424/103-030 offers a measuring range of up to 10 mm, suitable for applications requiring accurate displacement measurements. -
What types of outputs are supported by the Epro PR6424/103-030 sensor?
This sensor supports analog outputs such as 4-20mA and 0-10V, which are compatible with most industrial control systems. -
What is the accuracy of the Epro PR6424/103-030 sensor?
The PR6424/103-030 offers ±0.1% full-scale accuracy, ensuring high precision for critical measurement applications. -
How fast is the response time of the Epro PR6424/103-030 sensor?
The sensor responds in less than 1 ms, providing real-time feedback for high-speed measurement applications. -
What material is the sensor head made of?
The sensor head is constructed from stainless steel, providing excellent durability and resistance to wear and corrosion in industrial environments. -
What is the environmental rating of the Epro PR6424/103-030 sensor?
The sensor is rated IP67, ensuring protection against dust ingress and water immersion, making it suitable for use in harsh industrial conditions. -
What is the operating voltage of the Epro PR6424/103-030 sensor?
The sensor operates on a 24V DC nominal voltage, which is common for industrial sensors and easy to integrate with most systems. -
What temperature range can the Epro PR6424/103-030 sensor withstand?
The PR6424/103-030 sensor operates within a temperature range of -20°C to +85°C, making it suitable for use in a wide range of industrial environments. -
How is the Epro PR6424/103-030 sensor mounted?
The sensor features threaded mounting and is adjustable, providing flexibility for accurate installation and alignment in various applications. -
Can the Epro PR6424/103-030 sensor be used in high-speed applications?
Yes, the PR6424/103-030 sensor has a fast response time of less than 1 ms, making it suitable for high-speed vibration analysis, displacement sensing, and other dynamic measurements.
