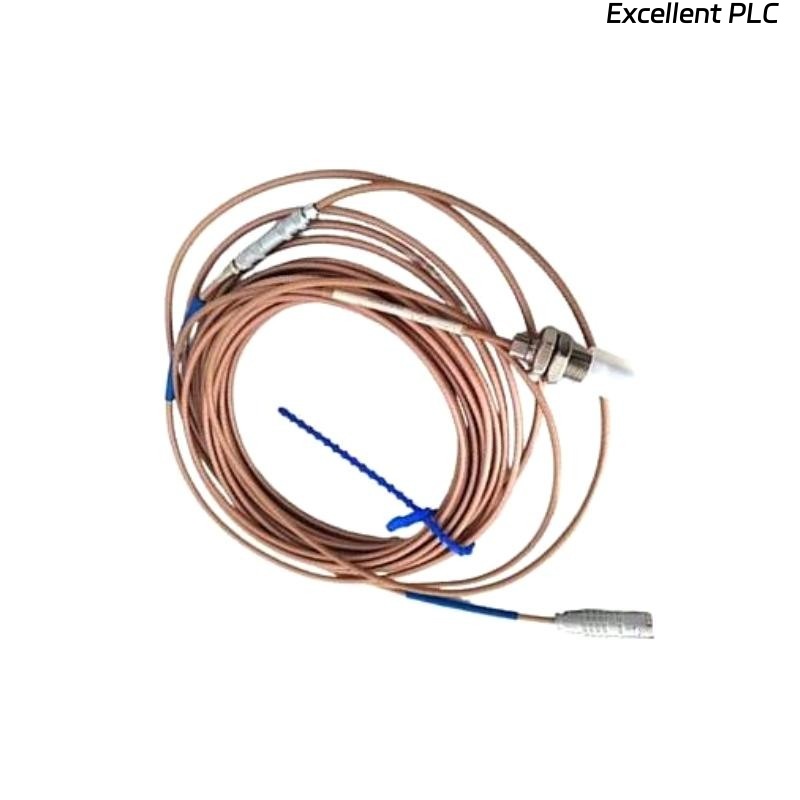

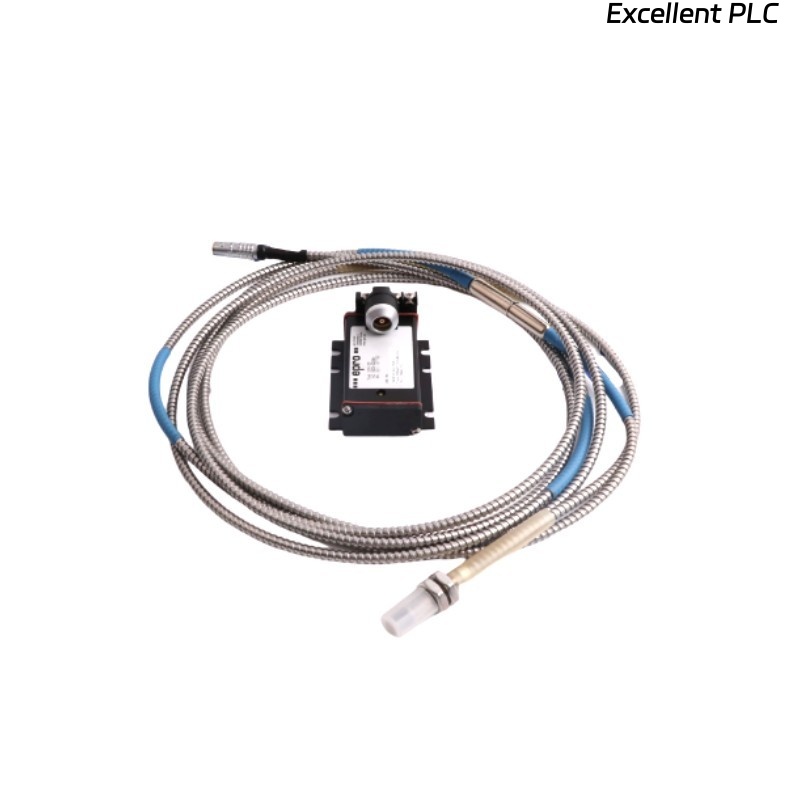

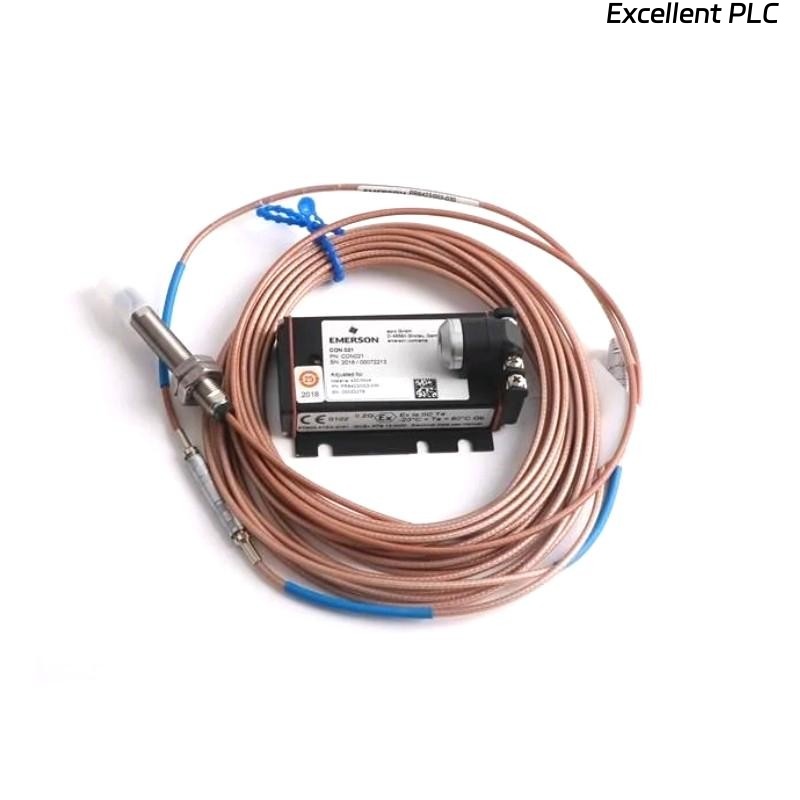

The Epro PR6424/104-030 16mm Eddy Current Sensor is a high-performance, non-contact displacement sensor designed for accurate measurement of position, vibration, and distance. This sensor utilizes the eddy current principle, where a coil generates an electromagnetic field, and changes in the distance to a conductive target material alter the impedance of the coil, allowing for precise measurements.
The PR6424/104-030 is designed for high-speed dynamic measurements and is especially useful in applications involving rotating machinery, turbines, and other mechanical systems. With its compact 16mm diameter sensor head and high-precision capabilities, it is well-suited for integration into a variety of industrial and automation environments where accurate and reliable measurement of displacement is essential.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | PR6424/104-030 |
| Sensor Type | Eddy Current Sensor |
| Measurement Principle | Eddy Current |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measuring Range | 0 to 5 mm |
| Output Signal | 4-20mA, 0-10V |
| Frequency Range | Up to 50 kHz |
| Operating Temperature | -20°C to +85°C |
| Supply Voltage | 15-30V DC |
| Accuracy | ±0.1% of full scale |
| Resolution | 0.001 mm |
| Environmental Rating | IP67 (dust and water-resistant) |
Product Applications
The Epro PR6424/104-030 16mm Eddy Current Sensor is designed for high-precision measurement in a variety of industrial and mechanical applications. Some key areas of application include:
-
Rotating Machinery Monitoring: Ideal for measuring displacement in rotating components such as turbines, motors, and pumps. It helps identify misalignments and wear, preventing premature failure.
-
Vibration and Condition Monitoring: Used in vibration monitoring systems, the sensor provides real-time data on machinery health, helping to identify potential issues early.
-
Position and Displacement Measurement: The sensor is widely used for accurate position and displacement measurements in automated systems, providing non-contact monitoring in high-speed environments.
-
Testing and Quality Control: In material testing and research labs, the sensor is used to measure minute displacements in materials under varying conditions.
-
Automated Manufacturing: In production lines, the sensor monitors the position of parts, ensuring that assembly processes are accurate and efficient.
-
Machine Health Monitoring: Integrated into machine health monitoring systems, this sensor helps continuously assess the operational status of machinery, preventing unexpected breakdowns.
Product Advantages
-
Non-Contact Measurement: The Epro PR6424/104-030 sensor offers non-contact displacement measurement, reducing wear on the sensor and target while preventing physical damage in high-speed or harsh environments.
-
High Precision: With ±0.1% accuracy and 0.001 mm resolution, this sensor ensures highly accurate displacement readings, making it ideal for demanding applications requiring precision.
-
Wide Frequency Range: Operating at frequencies up to 50 kHz, the sensor is suitable for dynamic measurements in high-speed applications where quick and accurate data is needed.
-
Compact and Robust Design: The 16mm sensor head is compact enough for tight installations and can withstand harsh environments, including exposure to dust and water, thanks to its IP67 rating.
-
Wide Operating Temperature: The sensor can function across a broad temperature range of -20°C to +85°C, making it suitable for use in various industrial settings.
-
Flexible Output Options: The sensor provides both 4-20mA and 0-10V output signals, allowing it to be easily integrated into diverse control systems and data acquisition setups.
-
Durable and Long-Lasting: With an IP67 rating, the sensor is dustproof and water-resistant, ensuring long-lasting performance in challenging environments.
FAQ
Q1: How does the Epro PR6424/104-030 Eddy Current Sensor work?
It uses the eddy current principle, where a coil generates an electromagnetic field that interacts with a conductive target. The changes in the target’s position affect the coil’s impedance, allowing precise displacement measurement.
Q2: What is the measurement range of the PR6424/104-030?
The sensor has a measurement range of 0 to 5 mm, suitable for high-precision displacement measurements in various applications.
Q3: What output signals does the sensor provide?
The Epro PR6424/104-030 sensor offers both 4-20mA and 0-10V output signals, allowing it to be integrated into a wide range of control systems.
Q4: What is the frequency response of this sensor?
The sensor operates at frequencies up to 50 kHz, making it suitable for dynamic and high-speed displacement measurements.
Q5: What is the accuracy of the Epro PR6424/104-030 sensor?
The sensor offers ±0.1% accuracy, ensuring reliable and precise measurements even in demanding conditions.
Q6: Is this sensor suitable for use in harsh environments?
Yes, with an IP67 rating, the sensor is both dustproof and water-resistant, making it ideal for use in industrial environments.
Q7: What is the operating temperature range of this sensor?
The sensor can operate in temperatures ranging from -20°C to +85°C, making it suitable for use in various industrial applications.
Q8: What is the resolution of this sensor?
The sensor offers 0.001 mm resolution, allowing it to measure very small changes in displacement accurately.
Q9: How is the sensor powered?
The Epro PR6424/104-030 sensor operates on a 15-30V DC power supply, which is standard for most industrial sensors.
Q10: Can this sensor be used with non-ferrous materials?
Yes, the eddy current sensor works with both ferrous and non-ferrous materials, as long as they are conductive.
