Product Introduction

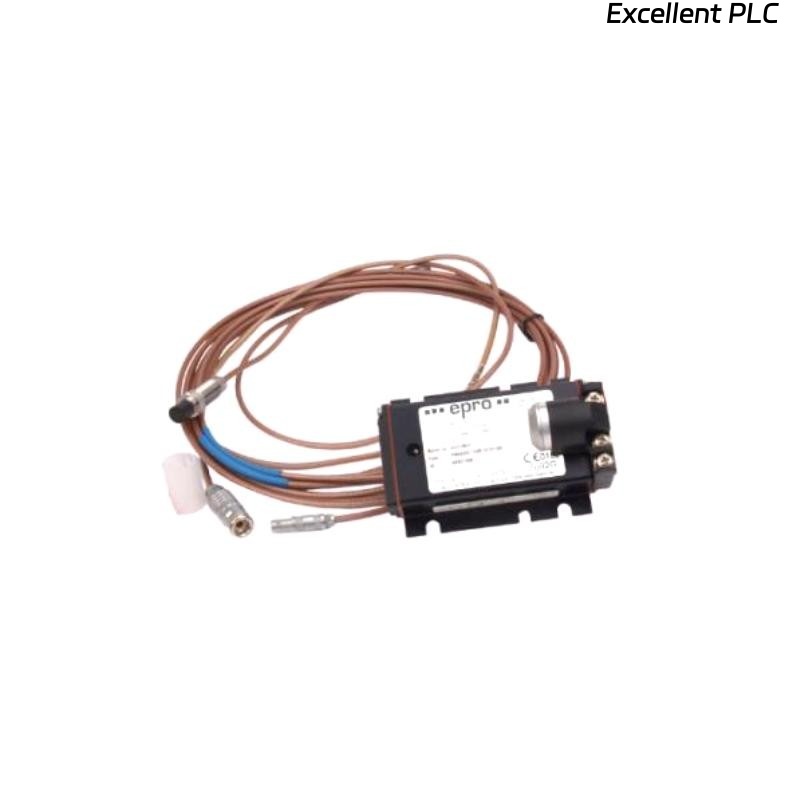

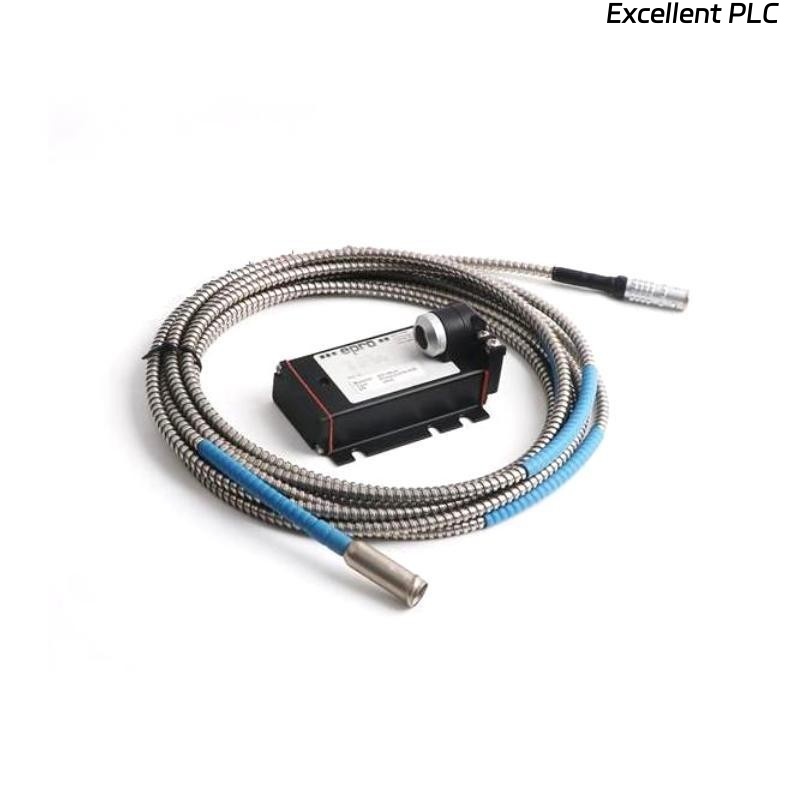

The Epro PR6424/105-100 is a high-precision 16mm Eddy Current Sensor designed for non-contact measurement of displacement, vibration, and distance in various industrial and mechanical applications. The sensor operates on the principle of eddy current measurement, where it detects changes in the position of a target object by measuring changes in the impedance of a coil.
Known for its high accuracy and excellent stability, the PR6424/105-100 sensor is perfect for applications where precision in position measurement is critical. It can be used for dynamic measurements in systems subjected to vibrations, providing real-time data with high reliability. This sensor is ideal for monitoring the displacement of metallic surfaces in rotating machinery, turbines, and various other mechanical systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | PR6424/105-100 |
| Sensor Type | Eddy Current Sensor |
| Measurement Principle | Eddy Current |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measuring Range | 0 to 5 mm |
| Output Signal | 4-20mA, 0-10V |
| Frequency Range | Up to 50 kHz |
| Operating Temperature | -20°C to +85°C |
| Supply Voltage | 15-30V DC |
| Accuracy | ±0.1% of full scale |
| Resolution | 0.001 mm |
| Environmental Rating | IP67 (dust and water-resistant) |
Product Applications
The Epro PR6424/105-100 16mm Eddy Current Sensor is designed for precision measurement in environments requiring high accuracy and reliability. Some of the common applications include:
-
Rotating Machinery Monitoring: Used to measure the displacement of rotating parts in machinery such as turbines, motors, and gearboxes. It helps detect misalignments and wear, ensuring early detection of mechanical issues.
-
Vibration Monitoring: Ideal for continuous monitoring of vibrations in various mechanical systems, helping to identify faults or potential failure points.
-
Position and Displacement Measurement: It is widely used in automated systems to measure the position of mechanical parts without physical contact, eliminating the risk of wear and tear.
-
Test Equipment for Material Properties: Used in research and development, as well as testing, to measure the displacement of materials under different conditions.
-
Automation in Manufacturing: The sensor is used in automated production systems to monitor parts’ position during assembly, ensuring smooth operation in conveyor belts and robotic arms.
-
Condition Monitoring Systems: Used in industrial applications for real-time monitoring of system health, helping to prevent downtime by detecting faults before they lead to failure.
Product Advantages
-
High Precision: The PR6424/105-100 sensor offers an exceptional accuracy of ±0.1% of full scale and a resolution of 0.001 mm, making it ideal for applications that demand extremely precise measurements.
-
Non-Contact Measurement: The sensor measures the displacement without physical contact, reducing wear on the sensor and the target surface. This makes it ideal for monitoring high-speed moving parts and harsh environments.
-
Wide Operating Temperature Range: With an operating temperature range of -20°C to +85°C, it can be used in a variety of industrial settings, including those with fluctuating temperatures.
-
High Frequency Response: The sensor can operate at frequencies of up to 50 kHz, allowing it to capture dynamic measurements with fast response times, making it suitable for high-speed processes.
-
Durable and Robust Design: The IP67 rating ensures that the sensor is dust and water-resistant, providing reliable performance even in challenging environments such as factories or outdoor installations.
-
Flexible Output Signals: The sensor provides both 4-20mA and 0-10V output options, offering flexibility in integration with various control systems and data acquisition setups.
FAQ
Q1: How does the Epro PR6424/105-100 Eddy Current Sensor work?
It operates based on the eddy current principle, where a coil generates an electromagnetic field that induces currents in a nearby conductive target. Any changes in the target’s position alter the impedance of the coil, which the sensor measures to determine displacement.
Q2: What is the maximum measurable displacement of this sensor?
The sensor has a measurement range of 0 to 5 mm, making it suitable for high-precision position and displacement measurements in small-scale applications.
Q3: What types of output signals does the PR6424/105-100 sensor provide?
This sensor offers both 4-20mA and 0-10V output signals, allowing compatibility with various control and monitoring systems.
Q4: What is the frequency range of this sensor?
The Epro PR6424/105-100 sensor can operate at frequencies up to 50 kHz, making it ideal for dynamic and high-speed measurements.
Q5: Can this sensor be used in high-temperature environments?
Yes, it can operate in environments ranging from -20°C to +85°C, making it suitable for a wide range of industrial applications.
Q6: What is the accuracy of this sensor?
The sensor offers an accuracy of ±0.1% of full scale, ensuring precise measurements in even the most demanding applications.
Q7: Is the sensor water-resistant?
Yes, with an IP67 rating, the sensor is both dust and water-resistant, making it ideal for harsh industrial environments.
Q8: What is the sensor’s resolution?
The sensor provides a resolution of 0.001 mm, allowing it to measure small changes in displacement with high precision.
Q9: What voltage does this sensor require?
The sensor requires a 15-30V DC power supply to operate correctly.
Q10: Is this sensor suitable for measuring non-ferrous materials?
Yes, the Eddy Current Sensor works with conductive materials, including both ferrous and non-ferrous metals, making it highly versatile in various industrial applications.
Recommended Related Models
| Model | Description |
|---|---|
| PR6424/105-200 | Similar eddy current sensor with a larger measuring range (up to 10 mm). |
| PR6424/105-300 | A version with enhanced frequency response for high-speed measurements (up to 100 kHz). |
| PR6424/105-400 | A more compact version with a smaller diameter for tight-space applications. |
| PR6424/105-500 | A version designed for use in extreme temperature environments (-40°C to +100°C). |
| PR6424/105-600 | A model with enhanced resistance to high-pressure environments. |
| PR6424/105-700 | A sensor designed for aerospace applications with higher sensitivity and precision. |
