Product Introduction

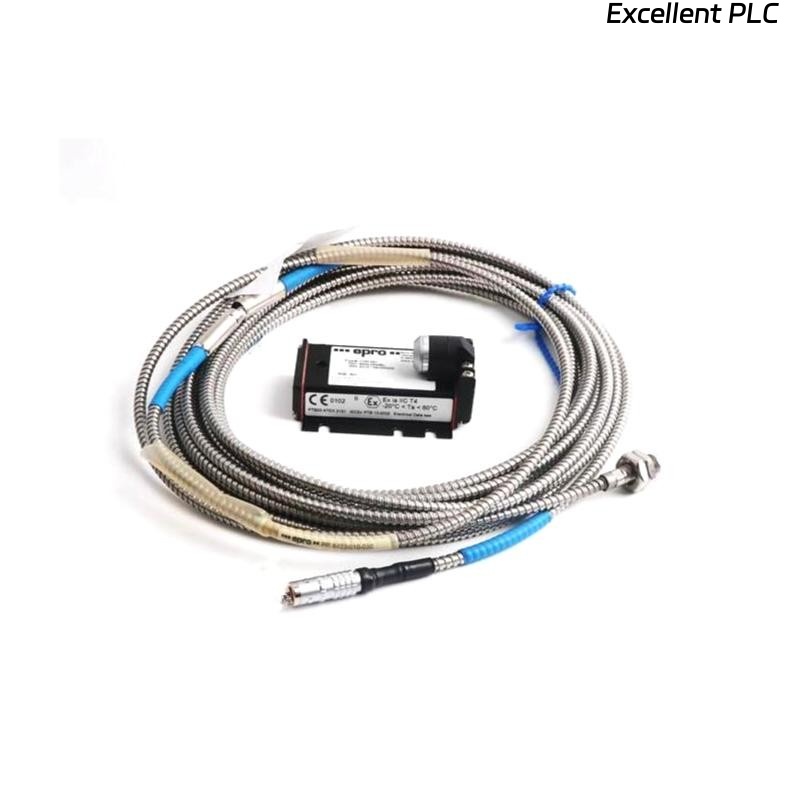

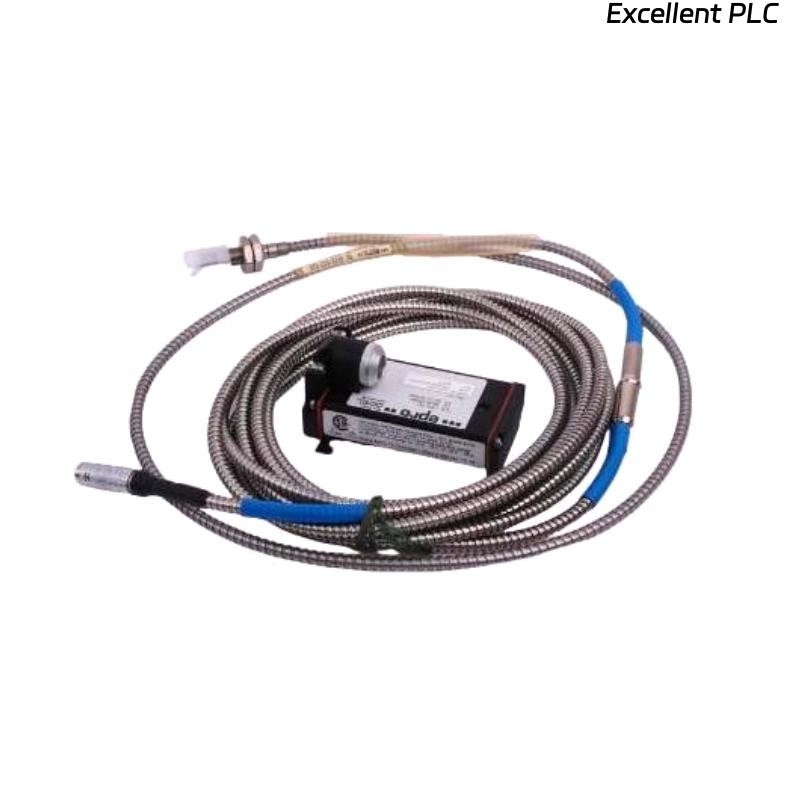

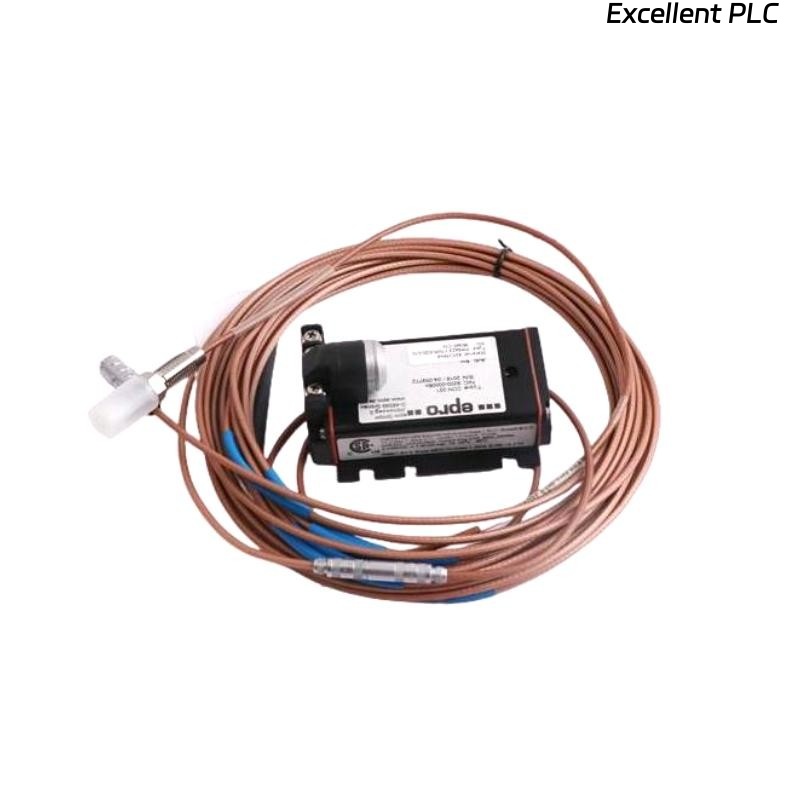

The Epro PR6424/109-030 is a high-performance 16mm Eddy Current Sensor, specifically designed to measure displacement, vibration, and proximity in various dynamic environments. Utilizing the principles of Eddy Current technology, this sensor provides non-contact measurement for precise detection of displacements and vibrations, making it ideal for industrial machinery, automotive, aerospace, and research applications.
This sensor features a 16mm diameter probe, offering excellent accuracy and resolution. The Eddy Current principle allows the sensor to provide reliable readings even in high-vibration or harsh temperature conditions, making it ideal for demanding industrial environments where precision is critical.
Product Specifications
| Feature | Specification |
|---|---|
| Model | Epro PR6424/109-030 |
| Probe Diameter | 16mm |
| Weight | 0.2 kg |
| Measurement Range | Typically ±5 mm to ±10 mm |
| Resolution | 1 μm (depending on the application) |
| Output Type | Analog (current/voltage) |
| Power Supply | 24 VDC |
| Operating Temperature Range | -40°C to +85°C |
| Measurement Principle | Eddy Current |
| Environmental Protection | IP67 |
| Response Time | < 1 ms (depending on application) |
| Housing Material | Stainless Steel |
Applications
The Epro PR6424/109-030 16mm Eddy Current Sensor is widely used in various industries for non-contact and high-precision measurements, including:
-
Automotive Industry: Monitoring engine components, pistons, and other mechanical systems for displacement and vibration.
-
Aerospace Applications: Used to monitor the health of rotating machinery, turbines, and aircraft engines for precise movement and vibration detection.
-
Industrial Automation: Providing accurate measurements in automated manufacturing lines for quality control and performance tracking.
-
Machine Condition Monitoring: Detects early signs of wear or failure in machines by measuring vibration and displacement of key components.
-
Rotating Equipment: Monitoring alignment, displacement, and vibration in pumps, turbines, motors, and other rotating machinery.
-
Research and Development: Used in laboratories for experiments requiring high-accuracy displacement and vibration measurements.
Advantages
-
Non-Contact Measurement: This sensor’s Eddy Current technology allows for wear-free, non-contact measurement, making it a low-maintenance solution for continuous monitoring.
-
High Precision and Resolution: The Epro PR6424/109-030 offers 1 μm resolution, making it suitable for applications where minute displacements need to be detected.
-
Robust and Durable: Designed with an IP67 rating, the sensor can operate in harsh environments, withstanding moisture, dust, and vibrations.
-
Compact Design: The 16mm probe allows for installation in tight spaces, ideal for applications with space constraints.
-
Real-Time Measurement: With a response time of less than 1 ms, the sensor can provide real-time monitoring for dynamic systems.
-
Versatile Application: Suitable for both static and dynamic measurements, ensuring versatility in different industrial and research settings.
-
High-Speed Monitoring: Capable of measuring high-frequency displacements or vibrations, perfect for high-speed machinery and dynamic systems.
FAQ
1. How does the Epro PR6424/109-030 operate?
The Epro PR6424/109-030 uses Eddy Current technology to measure displacement, vibration, and proximity. It works by generating an electromagnetic field, and the sensor detects the changes in this field caused by the movement of conductive materials.
2. What is the typical measurement range of the sensor?
The sensor typically measures in a range of ±5 mm to ±10 mm, but this can vary depending on the specific application and configuration.
3. What is the resolution of this sensor?
The Epro PR6424/109-030 offers a resolution of 1 μm, which is ideal for applications requiring very precise measurement of small displacements or vibrations.
4. What kind of output does the sensor provide?
The sensor provides an analog output, either in the form of current (4-20 mA) or voltage (0-10V), depending on the application and user configuration.
5. Can the sensor be used in high-vibration environments?
Yes, the Epro PR6424/109-030 is designed for use in high-vibration environments, making it ideal for monitoring rotating machinery or other dynamic systems.
6. What materials is the Epro PR6424/109-030 compatible with?
The sensor works best with conductive materials, including various metals such as steel, aluminum, and copper, which are typically found in industrial machinery.
7. Is the sensor weather-resistant?
Yes, the Epro PR6424/109-030 has an IP67 rating, meaning it is resistant to dust and can withstand immersion in water up to a certain depth, making it suitable for outdoor and challenging environmental conditions.
8. What industries use the Epro PR6424/109-030 sensor?
This sensor is widely used in industries such as automotive, aerospace, machine monitoring, energy, and research, where high-precision, non-contact measurement is required.
9. How fast does the sensor respond to changes in displacement or vibration?
The Epro PR6424/109-030 has a response time of less than 1 ms, making it suitable for real-time monitoring and high-speed applications.
10. Can the sensor be integrated into automated systems?
Yes, the Epro PR6424/109-030 can be easily integrated into automated systems for continuous monitoring, data logging, and real-time analysis, making it ideal for industrial automation and process control.
