Product Introduction

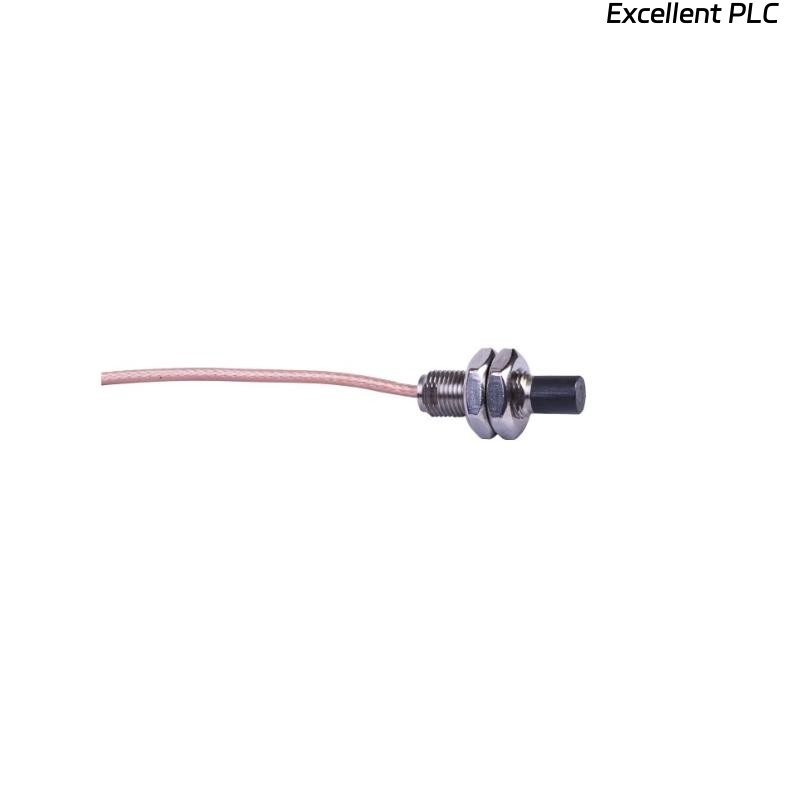

The Epro PR6424/111-000 is a high-precision 16mm Eddy Current Sensor, designed for non-contact measurement of displacement, vibration, and distance in various industrial applications. These sensors operate based on the principle of electromagnetic induction, providing highly accurate and reliable measurements for dynamic processes. The Eddy Current technology is known for its robustness and is widely used in sectors like aerospace, automotive, and manufacturing, where precise monitoring is crucial.
This sensor features a 16mm diameter probe, offering a compact solution for tight spaces and allowing for high-resolution measurements. It is designed for harsh environments, delivering exceptional performance in temperature fluctuations, electromagnetic interference (EMI), and vibrations.
Product Specifications
| Feature | Specification |
|---|---|
| Model | Epro PR6424/111-000 |
| Probe Diameter | 16mm |
| Weight | 0.2 kg |
| Measurement Range | Typically ±5 mm to ±10 mm |
| Resolution | 1 μm (depending on the application) |
| Output Type | Analog (current/voltage) |
| Power Supply | 24 VDC |
| Operating Temperature Range | -40°C to +85°C |
| Measurement Principle | Eddy Current |
| Environmental Protection | IP67 |
| Response Time | < 1 ms (depending on application) |
| Housing Material | Stainless Steel |
Applications
The Epro PR6424/111-000 16mm Eddy Current Sensor is widely used in various high-precision applications, including:
-
Aerospace and Aircraft Engines: Monitoring vibrations, displacements, and rotor dynamics in engines and machinery.
-
Automotive Testing: Measuring distances in engine components, including pistons, cylinders, and rotors.
-
Machine Condition Monitoring: Used in rotating equipment, motors, and turbines to track mechanical performance and detect wear or damage.
-
Precision Manufacturing: Ensures the precise positioning of components on automated assembly lines or during quality control processes.
-
Rotating Machinery: Used in conjunction with other sensors to monitor the alignment, position, and condition of rotating shafts.
-
Research and Development: Ideal for high-accuracy displacement measurements in laboratories or development environments for new technologies.
Advantages
-
Non-Contact Measurement: The Eddy Current principle allows for wear-free, non-contact measurement, reducing maintenance requirements and extending the sensor’s lifespan.
-
High Resolution and Accuracy: With a resolution down to 1 μm, this sensor ensures highly precise measurements, critical for applications where small movements or displacements must be detected.
-
Robustness and Durability: The Epro PR6424/111-000 is built to withstand harsh conditions, including extreme temperatures and vibrations, ensuring reliable performance even in demanding environments.
-
Compact Design: Its 16mm probe diameter makes it ideal for use in confined spaces or where space constraints exist.
-
High-Speed Measurement: With a response time of less than 1 ms, it is capable of real-time monitoring in high-speed processes or machinery.
-
Wide Application Range: Suitable for both dynamic and static measurements, making it versatile for various industrial applications.
-
Environmental Protection: With an IP67 rating, the sensor is protected against dust, moisture, and water ingress, making it suitable for use in challenging outdoor and industrial environments.
FAQ
1. How does the Epro PR6424/111-000 work?
The Epro PR6424/111-000 uses Eddy Current technology, where an electromagnetic field is generated and the displacement or movement of a metallic object changes the sensor’s response. This allows for non-contact measurement of distance, vibration, and displacement.
2. What is the typical measurement range of the sensor?
The typical measurement range for the Epro PR6424/111-000 is ±5 mm to ±10 mm, though it can be adjusted based on the application and specific setup.
3. What is the resolution of this sensor?
The sensor provides a resolution of 1 μm, offering high-precision measurement suitable for dynamic applications where small movements must be detected.
4. What kind of output does the sensor provide?
The Epro PR6424/111-000 typically outputs an analog signal, either in current (4-20 mA) or voltage (0-10V), depending on the configuration and application.
5. Can this sensor be used in harsh environments?
Yes, the Epro PR6424/111-000 is IP67-rated, which means it is dust-tight and can withstand immersion in water up to a certain depth, making it suitable for demanding industrial environments.
6. What is the operating temperature range for the Epro PR6424/111-000?
The operating temperature range for this sensor is from -40°C to +85°C, allowing it to perform reliably in a variety of industrial settings, including extreme temperatures.
7. How quickly does the sensor respond to changes?
The Epro PR6424/111-000 has a response time of less than 1 ms, making it ideal for real-time monitoring of high-speed processes or rapidly changing conditions.
8. Is the Epro PR6424/111-000 suitable for rotating machinery?
Yes, the Epro PR6424/111-000 is ideal for rotating machinery applications, where accurate and non-contact measurements of displacement and vibrations are required to monitor the condition of shafts, motors, and turbines.
9. What materials are compatible with the Epro PR6424/111-000?
The Eddy Current sensor works best with conductive materials such as metals. It is especially effective for monitoring metallic components like shafts, pistons, and other machine parts.
10. What industries commonly use this sensor?
The Epro PR6424/111-000 is widely used in industries such as aerospace, automotive, precision manufacturing, and energy, particularly for applications requiring high-precision, non-contact measurement of displacement or vibration.
Recommended Related Models
| Model | Description |
|---|---|
| PR6424/112-000 | Another version of the 16mm Eddy Current sensor with extended range. |
| PR6424/115-000 | 16mm Eddy Current sensor with enhanced environmental protection. |
| PR6424/118-000 | 16mm sensor designed for high-speed monitoring and testing. |
| PR6424/119-000 | Advanced 16mm sensor for aerospace applications. |
| PR6424/120-000 | 16mm sensor with integrated signal conditioning for improved performance. |
| PR6424/121-000 | High-sensitivity version for ultra-precise displacement measurements. |
Popular Epro Models
| Model | Description |
|---|---|
| PR6424/119-100 | High-performance eddy current sensor for rotating equipment. |
| PR6424/113-000 | 16mm Eddy Current sensor with precision measurement for automotive applications. |
| PR6424/118-121 | Sensor for monitoring vibrations and displacements in turbines. |
| PR6424/111-121 | Compact eddy current sensor with high accuracy for precision manufacturing. |
| PR6424/117-121 | 16mm sensor with high-speed response for real-time applications. |
| PR6424/118-000 | Enhanced version of the 16mm sensor with extended operating range. |
