Product Overview

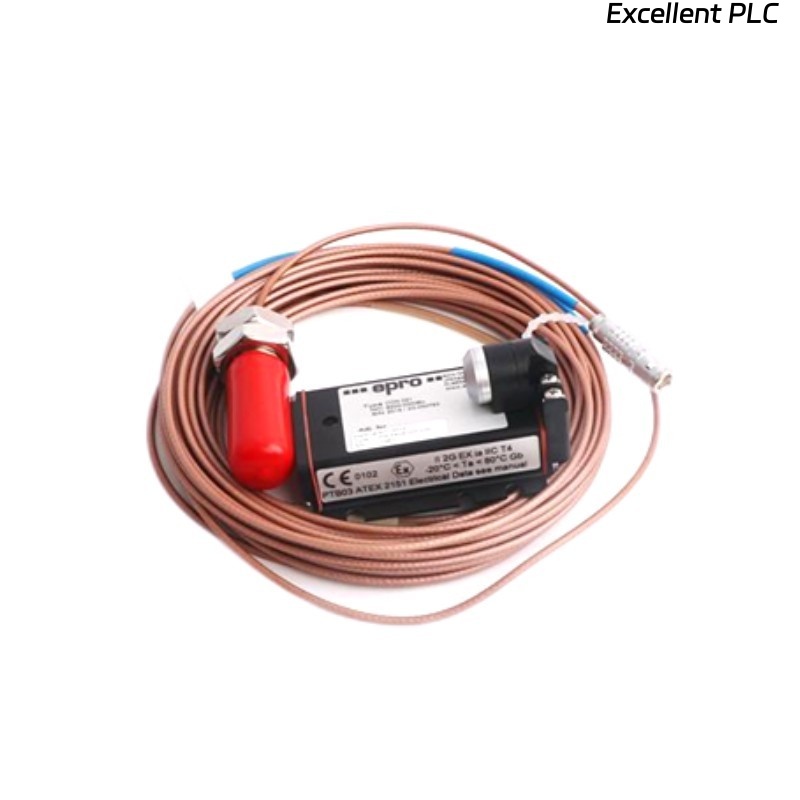

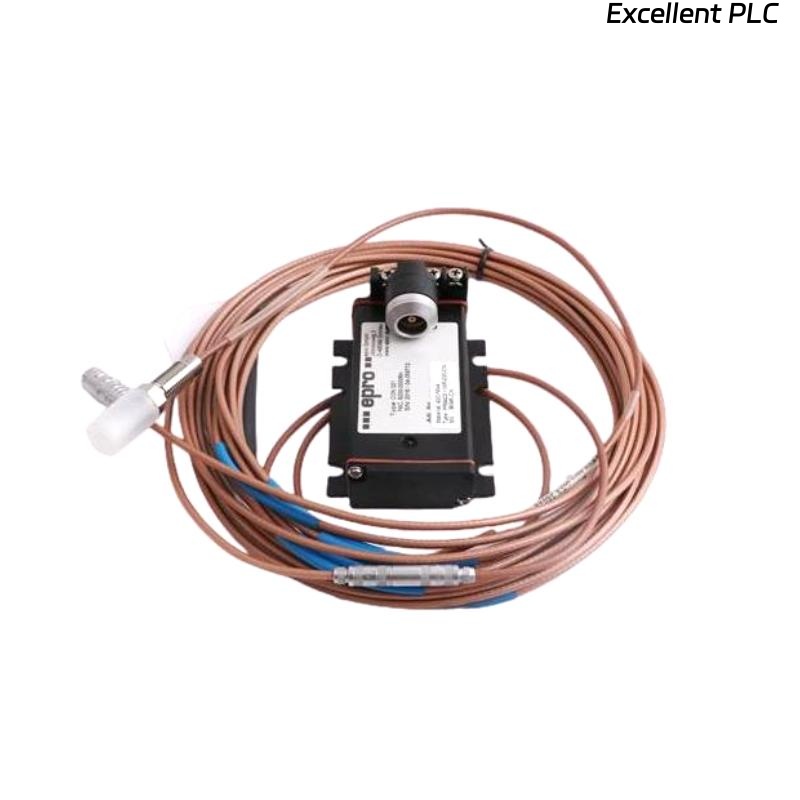

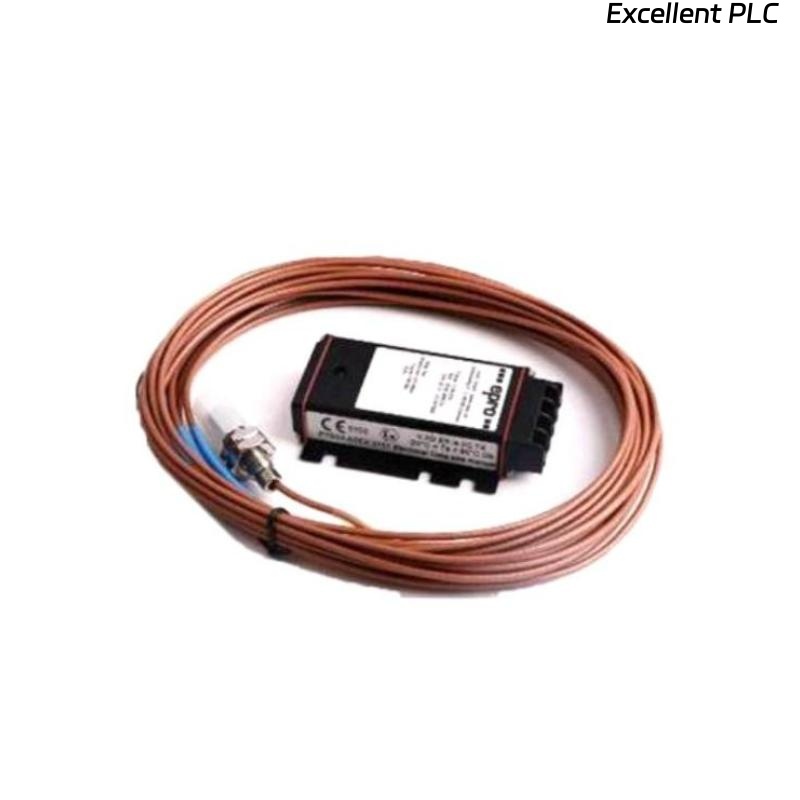

The Epro PR6424/115-021 16mm eddy current sensor is designed to provide high-precision displacement and position measurement for a wide range of industrial applications. Its compact design and high sensitivity make it ideal for monitoring critical machine parts, ensuring optimal performance in demanding environments.
This sensor uses the eddy current principle to measure the distance between the sensor and a conductive target. Its 16mm probe diameter offers versatility for different measurement tasks, particularly in monitoring rotating machinery, turbines, and shafts.
Technical Specifications
Below are the key technical specifications for the Epro PR6424/115-021:
| Specification | Details |
|---|---|
| Model | PR6424/115-021 |
| Probe Diameter | 16 mm |
| Weight | 0.2 kg |
| Output Signal | Analog (0-10V or 4-20mA depending on model) |
| Measurement Range | Up to 10 mm |
| Linearity | ±0.5% of full scale |
| Sensitivity | High (suitable for small displacement detection) |
| Temperature Range | -20°C to +80°C |
| Power Supply | 15V to 24V DC |
| Signal Conditioning | Integrated |
| Response Time | < 1ms |
| Target Material | Conductive metals |
Product Applications
The Epro PR6424/115-021 16mm eddy current sensor is commonly used for precise non-contact measurement of displacement in the following applications:
-
Rotating Equipment Monitoring: Measures the position or displacement of rotating machinery like turbines and shafts.
-
Position Feedback: Provides feedback in automated machinery systems for accurate position control.
-
Vibration Monitoring: Used in conjunction with vibration monitoring systems to ensure early detection of faults.
-
Proximity Measurement: Monitors proximity between machine parts, ensuring they stay within designated operational tolerances.
-
Dimensional Measurement: Can be used for high-precision measurement in manufacturing processes for dimensional checks.
-
Test and Calibration Systems: Used in laboratories and test environments for calibrating other precision equipment.
-
Dynamic Applications: Perfect for high-speed, dynamic measurements in harsh operating conditions.
Product Advantages
-
High Precision: Offers high accuracy and linear measurement, ensuring reliable readings in critical industrial systems.
-
Non-contact Measurement: The eddy current technology eliminates the need for physical contact, preventing wear and tear on both the sensor and target.
-
Compact Design: The 16mm probe diameter makes it ideal for confined spaces, where larger sensors may not be applicable.
-
Wide Operating Temperature Range: Capable of operating in temperatures ranging from -20°C to +80°C, making it suitable for various industrial environments.
-
Robust and Reliable: Built to withstand harsh conditions, offering high durability in demanding applications like machinery monitoring and control.
-
Fast Response Time: With a response time of less than 1 millisecond, it provides real-time measurement and feedback.
-
Versatile Output Options: Supports analog output signals (0-10V or 4-20mA), making it easy to integrate with various control systems.
FAQ
1. What types of output signals does the Epro PR6424/115-021 sensor provide?
This sensor provides analog outputs in either 0-10V or 4-20mA depending on the configuration.
2. What is the maximum measurement range of this sensor?
The maximum measurement range is up to 10 mm, which makes it suitable for measuring small displacements.
3. How accurate is the Epro PR6424/115-021 sensor?
The sensor provides ±0.5% linearity of full scale, offering high precision for industrial applications.
4. Can this sensor be used in high-temperature environments?
Yes, the sensor operates in a temperature range of -20°C to +80°C, making it versatile in various industrial environments.
5. What is the typical application for this eddy current sensor?
It is typically used for rotating equipment monitoring, position feedback systems, and vibration monitoring.
6. Is the sensor sensitive enough for small displacements?
Yes, the Epro PR6424/115-021 sensor is highly sensitive and is designed for small displacement detection.
7. What is the power supply requirement for this sensor?
The sensor requires a 15V to 24V DC power supply.
8. Can the sensor be used in hazardous environments?
The sensor can be used in industrial environments, but its suitability for hazardous areas should be assessed based on specific certifications required for those environments.
9. What material can the target be made of for the sensor to function?
The sensor is designed to work with conductive metals as target materials.
10. How fast is the response time of the sensor?
The response time of this sensor is less than 1 millisecond, ensuring rapid detection and feedback.
Related Models
| Model Number | Description |
|---|---|
| PR6424/115-022 | 16mm eddy current sensor with longer range |
| PR6424/115-023 | High-precision 16mm eddy current sensor |
| PR6424/115-024 | 16mm sensor for dynamic measurement |
| PR6424/116-010 | Extended range eddy current sensor |
| PR6424/116-011 | High-sensitivity 16mm sensor |
| PR6424/117-100 | Eddy current sensor with digital output |
