Product Introduction

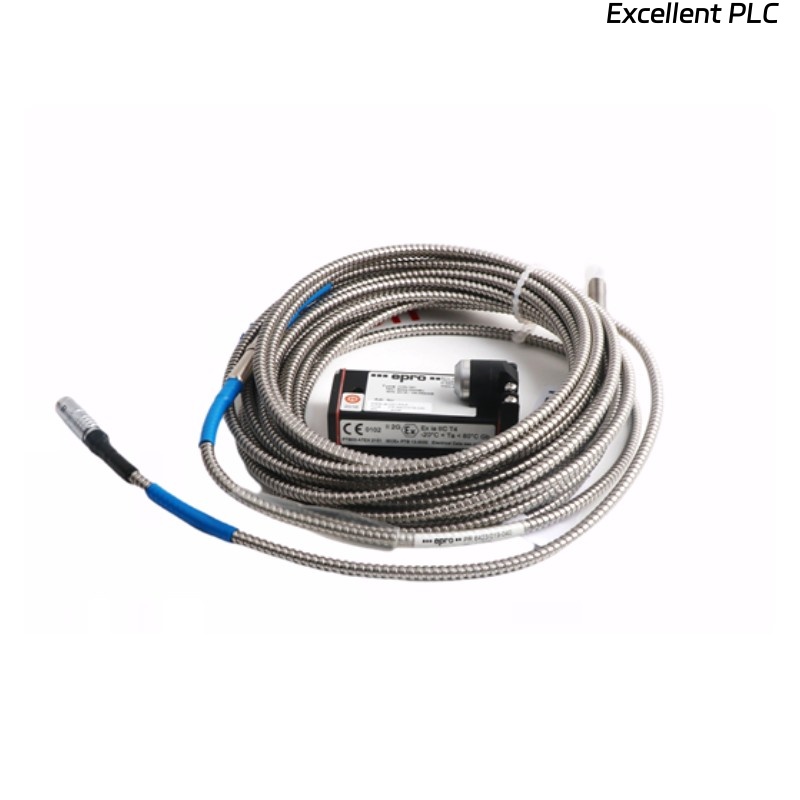

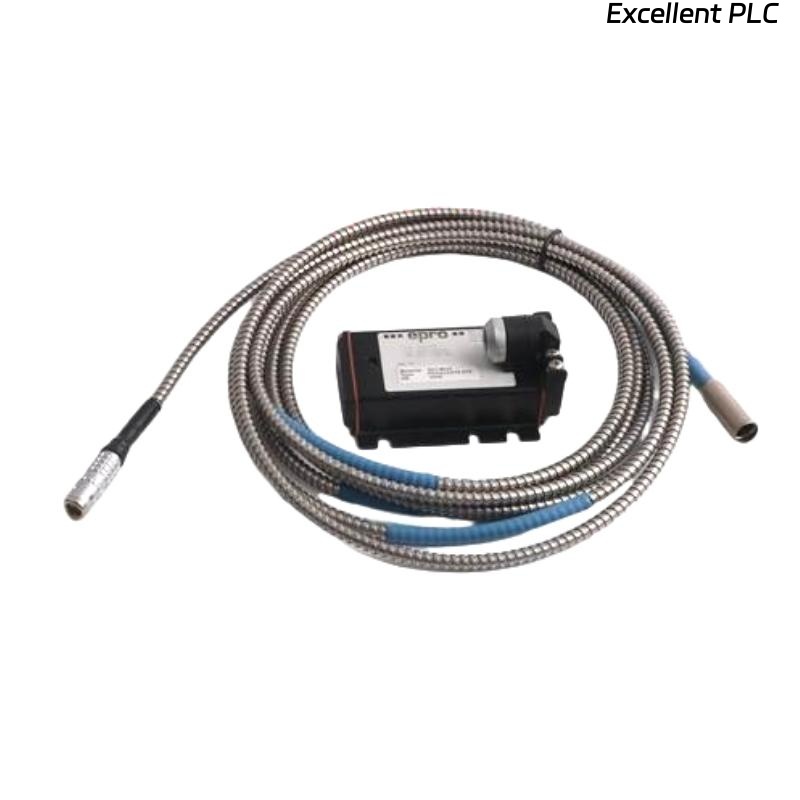

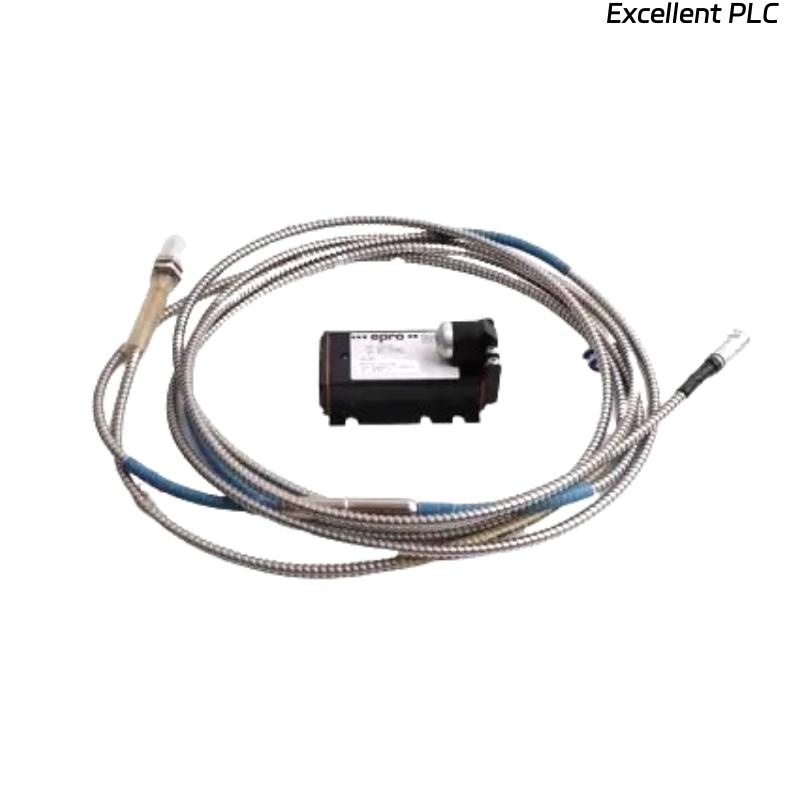

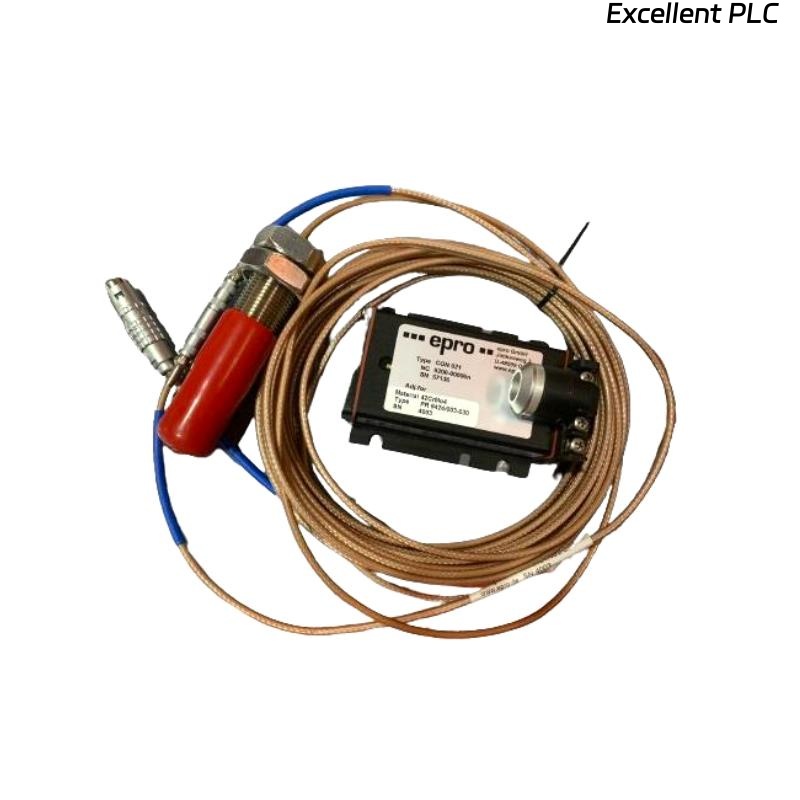

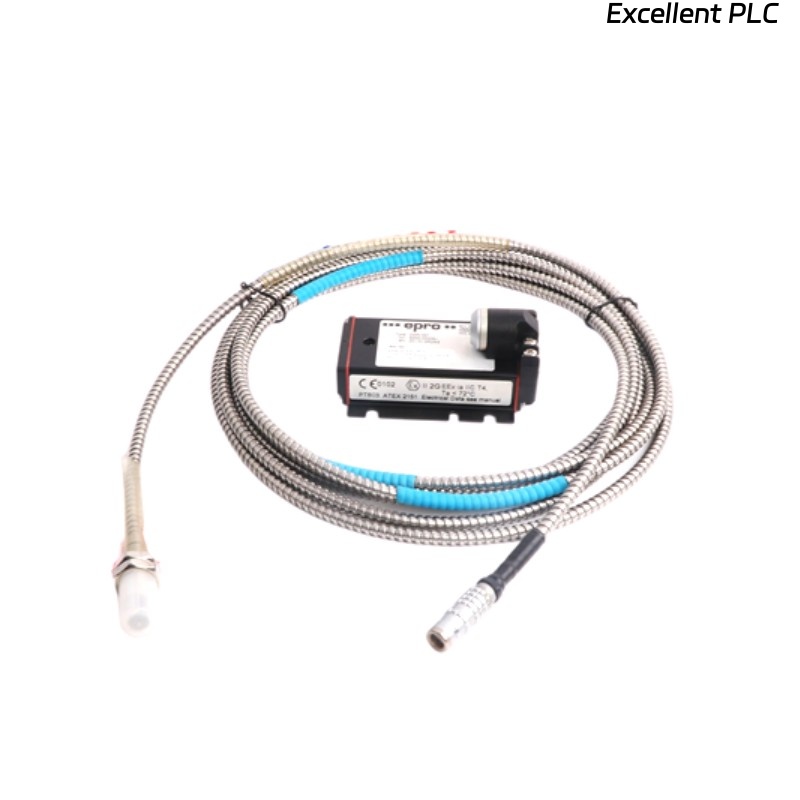

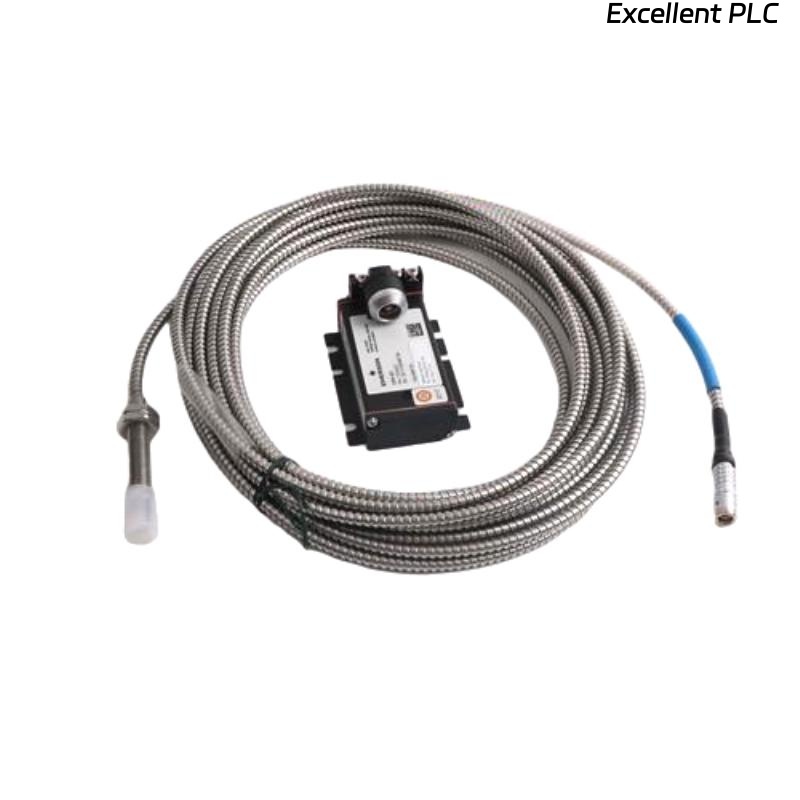

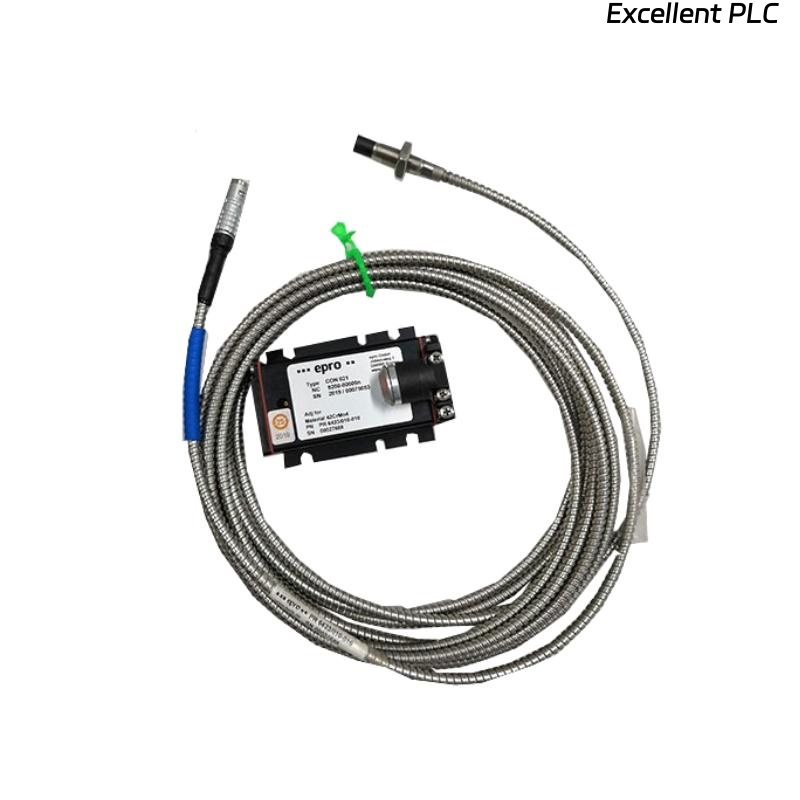

The Epro PR6425/010-100+CON021 is a 16mm Eddy Current Sensor designed for precise, reliable, and non-contact measurement of displacement, vibration, and position in industrial machinery. This sensor integrates the PR6425/010-100 measurement head with the CON021 signal conditioning unit, providing a complete system for high-resolution monitoring and control applications.
Operating on the eddy current principle, the sensor head detects minute variations in distance to conductive targets, converting them into stable electrical signals through the CON021 unit. This allows for real-time feedback, accurate monitoring, and predictive maintenance. The 16mm diameter head provides a practical balance between compactness and measurement performance, enabling installation in both tight and standard industrial environments.
This sensor is engineered for environments with vibration, temperature variations, and electromagnetic interference, ensuring stable operation in power generation, turbines, compressors, industrial automation, and heavy machinery applications. Its robust construction and high accuracy make it suitable for both critical process monitoring and control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current |
| Sensor Head Diameter | 16 mm |
| Weight | 0.62 kg |
| Measurement Range | 0–10 mm standard, customizable |
| Linearity | ±1% full scale |
| Frequency Response | DC to 20 kHz |
| Output Signal | Analog 0–10 V or 4–20 mA (via CON021) |
| Operating Temperature | -40°C to +125°C |
| Supply Voltage | 18–30 V DC |
| Signal Interface | CON021 connector |
| Protection | IP65 (sensor head) |
| Material | Stainless steel body with non-magnetic tip |
| Mounting Options | Threaded or flange mount |
| Environmental Resistance | Vibration up to 20 g, EMI resistant |
Applications
The PR6425/010-100+CON021 sensor is suitable for:
-
Monitoring shaft displacement and position in turbines, generators, compressors, and motors
-
Detecting vibration patterns for predictive maintenance and fault detection
-
Identifying shaft misalignment, eccentricity, or runout in high-speed machinery
-
Integration into industrial automation systems requiring precise displacement feedback
-
Condition monitoring in power plants, aerospace, and heavy industrial equipment
-
Non-contact measurement applications where reduction of mechanical wear is critical
Its compact design and robust construction allow installation in demanding industrial environments while providing high precision and reliable performance.
Advantages
-
High Accuracy – ±1% full scale linearity ensures precise measurements.
-
Compact and Practical Size – 16mm head diameter allows installation in restricted spaces without compromising performance.
-
Non-Contact Measurement – Minimizes mechanical wear and reduces maintenance requirements.
-
Durable Construction – Stainless steel body ensures longevity and corrosion resistance.
-
Fast Response – Capable of detecting rapid displacement or vibration changes.
-
EMI and Vibration Resistant – Reliable operation in electrically noisy and mechanically active environments.
-
Versatile Integration – Compatible with CON021 and other industrial monitoring systems.
FAQ
-
What is the maximum measurement frequency for this sensor?
It can measure signals up to 20 kHz, suitable for high-speed rotating machinery. -
What type of output signal does it provide?
The sensor outputs 0–10 V analog or 4–20 mA through the CON021 unit. -
Can the sensor operate in extreme temperatures?
Yes, it functions reliably between -40°C and +125°C without signal drift. -
Is the sensor resistant to electromagnetic interference?
Yes, it is EMI shielded, ensuring stable measurements even in noisy industrial environments. -
What is the linearity specification of the sensor?
Linearity is ±1% full scale, providing accurate readings throughout the measurement range. -
Can it detect small vibrations in shafts?
Yes, it can detect sub-micron vibration amplitudes, making it suitable for condition monitoring. -
How is the sensor mounted?
It supports threaded or flange mounting for installation flexibility. -
What protection does the sensor offer against dust and water?
The sensor head has an IP65 rating, protecting it from dust and low-pressure water jets. -
Is it suitable for high-speed rotating machinery?
Yes, it is designed for turbines, compressors, motors, and other high-speed applications. -
What materials are used in the sensor construction?
Stainless steel body with a non-magnetic tip ensures mechanical durability and corrosion resistance.
Related or Series Models
| Model | Sensor Head Diameter | Measurement Range | Output | Weight |
|---|---|---|---|---|
| PR6425/004-010 | 16 mm | 0–4 mm | 0–10 V / 4–20 mA | 0.58 kg |
| PR6425/005-010 | 16 mm | 0–5 mm | 0–10 V / 4–20 mA | 0.60 kg |
| PR6425/006-010 | 16 mm | 0–6 mm | 0–10 V / 4–20 mA | 0.61 kg |
| PR6425/008-010 | 16 mm | 0–8 mm | 0–10 V / 4–20 mA | 0.61 kg |
| PR6425/007-010 | 16 mm | 0–7 mm | Differential output | 0.60 kg |
| PR6425/005-020 | 16 mm | 0–5 mm | 0–5 V / 0–20 mA | 0.60 kg |
Popular Epro Models
| Model | Sensor Head Diameter | Measurement Range | Output | Weight |
|---|---|---|---|---|
| PR6424/014-040 | 14 mm | 0–4 mm | 0–10 V | 0.8 kg |
| PR6424/022-100 | 22 mm | 0–10 mm | 0–10 V / 4–20 mA | 1.2 kg |
| PR6426/010-100 | 32 mm | 0–10 mm | 0–10 V | 1.3 kg |
| PR6426/020-120 | 32 mm | 0–15 mm | 0–10 V / 4–20 mA | 1.5 kg |
| PR6430/010-110 | 30 mm | 0–10 mm | 0–10 V | 1.4 kg |
| PR6430/015-120 | 30 mm | 0–15 mm | 0–10 V / 4–20 mA | 1.6 kg |
