Product Introduction

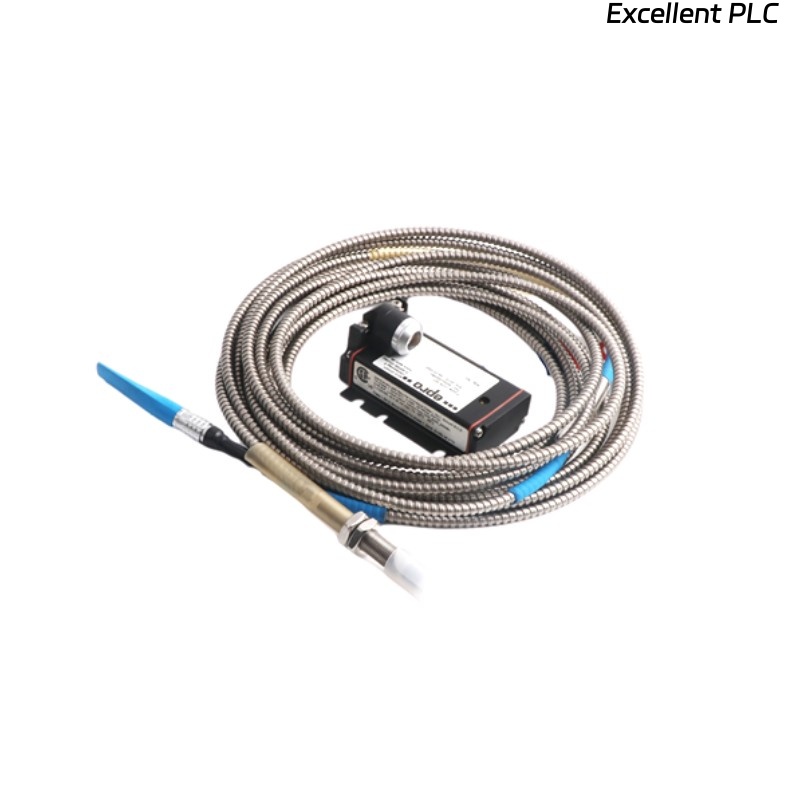

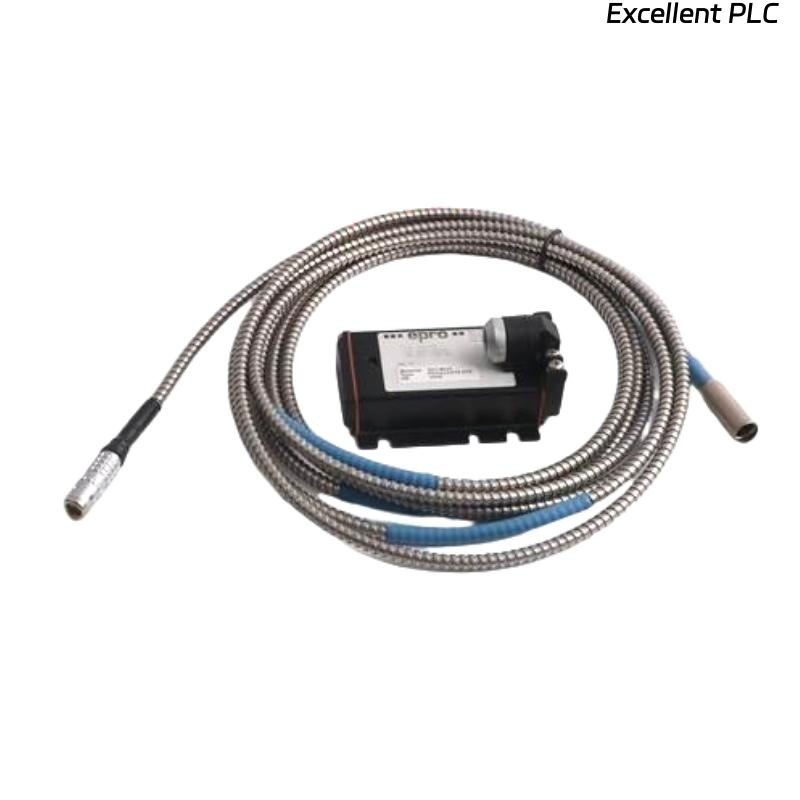

The Epro PR6426/000-101 32mm Eddy Current Sensor is a high-precision, non-contact measurement device engineered for industrial machinery monitoring. It provides reliable detection of shaft vibration, axial displacement, and rotational position in critical rotating equipment such as turbines, compressors, generators, and pumps.
The sensor operates based on the eddy current principle, where an electromagnetic field is generated at the sensor tip and conductive targets within this field create eddy currents that modify the field. The resulting voltage is proportional to the displacement of the target. This non-contact method ensures minimal wear, long-term stability, and reliable performance in harsh industrial environments.
With a 32mm sensor head diameter, the PR6426/000-101 is optimized for larger shafts or broader target surfaces. It integrates seamlessly with Epro signal conditioning converters to provide linear output for monitoring and control systems, enabling predictive maintenance and real-time machinery protection.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | PR6426/000-101 |
| Sensor Type | Eddy Current Proximity Probe |
| Measuring Principle | Non-contact electromagnetic induction (eddy current) |
| Sensor Head Diameter | 32 mm |
| Measuring Range | 0.25 mm – 4.0 mm (depending on target material) |
| Linearity | ≤ ±1% of full scale |
| Frequency Response | DC to 10 kHz (-3 dB) |
| Sensitivity | 4–8 mV/µm (depending on converter) |
| Target Material | Ferromagnetic and conductive materials (e.g., steel, nickel alloys) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Housing Material | Stainless steel (AISI 316L) |
| Protection Class | IP67 |
| Mounting Thread | M32 × 1.5 |
| Output Signal | Compatible with Epro signal conditioning converters |
| Weight | 0.8 kg |
| Compliance | CE, RoHS, optional ATEX Zone 2 |
Product Applications
The PR6426/000-101 is widely used in industrial machinery monitoring, providing critical data for maintenance and operational safety. Applications include:
-
Steam and gas turbines – Monitoring axial displacement and shaft vibration for early fault detection.
-
Compressors and pumps – Checking rotor alignment and bearing conditions.
-
Generators and motors – Detecting abnormal shaft movement or vibrations.
-
Gearboxes and turboexpanders – Identifying eccentric motion and mechanical stress.
-
Industrial plants – Integration with predictive maintenance and condition monitoring systems.
Its robust construction and IP67-rated housing ensure reliable operation in environments exposed to high temperatures, dust, oil, and mechanical vibration.
Product Advantages
-
Non-Contact Measurement – Eliminates mechanical wear, ensuring long-term reliability.
-
High Accuracy and Sensitivity – Provides precise readings for both displacement and vibration.
-
Wide Frequency Response – Captures low- and high-frequency vibrations effectively.
-
Industrial-Grade Design – Stainless steel housing with IP67 protection for harsh conditions.
-
Large Sensor Head – 32 mm diameter ensures consistent performance on larger shafts.
-
Easy System Integration – Compatible with Epro converters for linear output.
-
Temperature Compensation – Maintains accuracy across a broad temperature range.
-
Proven Reliability – Extensively used in turbines, compressors, and generators worldwide.
FAQ
-
What operating principle does the PR6426/000-101 use?
It operates using the eddy current principle, detecting changes in an electromagnetic field caused by conductive targets. -
Which materials can the sensor measure?
Ferromagnetic and conductive materials such as steel and nickel alloys. -
Can the sensor measure both radial and axial displacement?
Yes, depending on installation orientation and configuration with monitoring systems. -
What is the sensor’s frequency response range?
DC to 10 kHz (-3 dB), suitable for capturing low and high-frequency shaft vibrations. -
How is the sensor connected to monitoring systems?
Through Epro signal conditioning converters, providing linear voltage or current output. -
Does temperature affect the measurement accuracy?
Temperature compensation maintains stable measurements over -35 °C to +180 °C. -
Is the sensor suitable for high-vibration environments?
Yes, its industrial-grade housing ensures reliable operation under mechanical vibration and shock. -
Does the sensor require field calibration?
It is factory-calibrated; fine-tuning can be performed with Epro configuration tools if necessary. -
Can it be used in redundant or dual-channel monitoring systems?
Yes, it supports integration into dual-channel or redundant monitoring setups. -
What type of output does the sensor provide?
Via Epro converters, it provides a linear voltage or current output proportional to target displacement.
Related Models (Same Series)
| Model | Description | Sensor Head Diameter | Weight |
|---|---|---|---|
| PR6426/000-000 | Standard eddy current probe | 32 mm | 0.8 kg |
| PR6426/000-010 | High-temperature variant | 32 mm | 0.8 kg |
| PR6426/000-030 | Converter-compatible version | 32 mm | 0.92 kg |
| PR6426/000-031 | Standard high-precision probe | 32 mm | 0.8 kg |
| PR6426/000-041 | Industrial grade sensor | 32 mm | 0.8 kg |
| PR6426/000-100 | High-performance probe | 32 mm | 0.8 kg |
Popular Models from the Same Brand (Epro)
| Model | Description | Measurement Type | Weight |
|---|---|---|---|
| PR6423/002-030 | Standard eddy current sensor | Vibration/Displacement | 0.6 kg |
| PR6424/014-040 | Proximity probe | Axial displacement | 0.7 kg |
| PR6425/010-030 | Shaft vibration sensor | Vibration | 0.8 kg |
| PR6422/010-030 | Compact displacement sensor | Bearing displacement | 0.5 kg |
| MMS3120/022-100 | Vibration monitoring module | Condition monitoring | 1.2 kg |
| MMS6822 | Dual-channel vibration monitor | Shaft and casing vibration | 1.5 kg |
