Product Overview

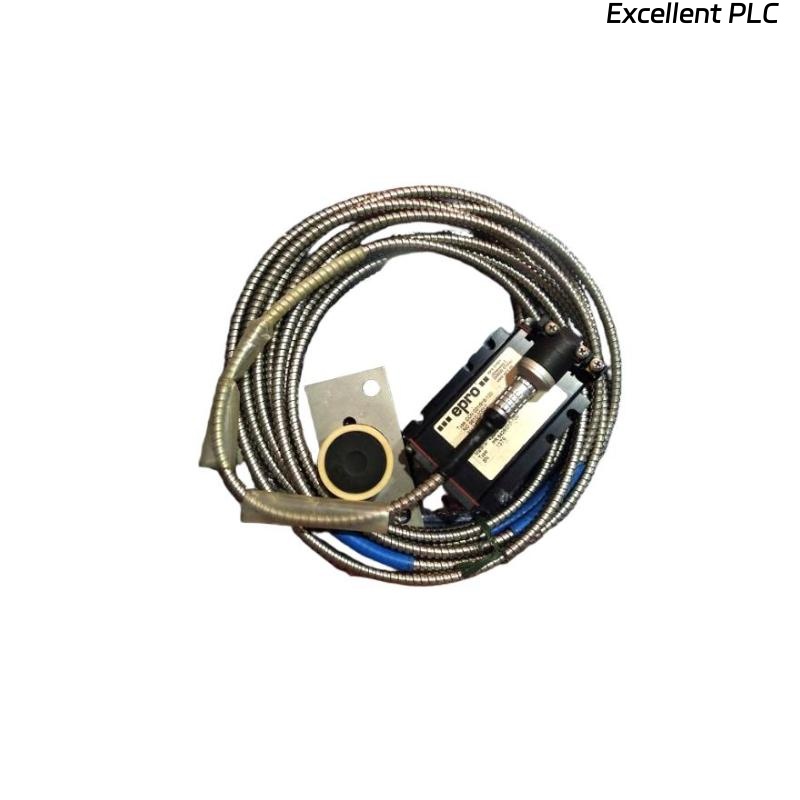

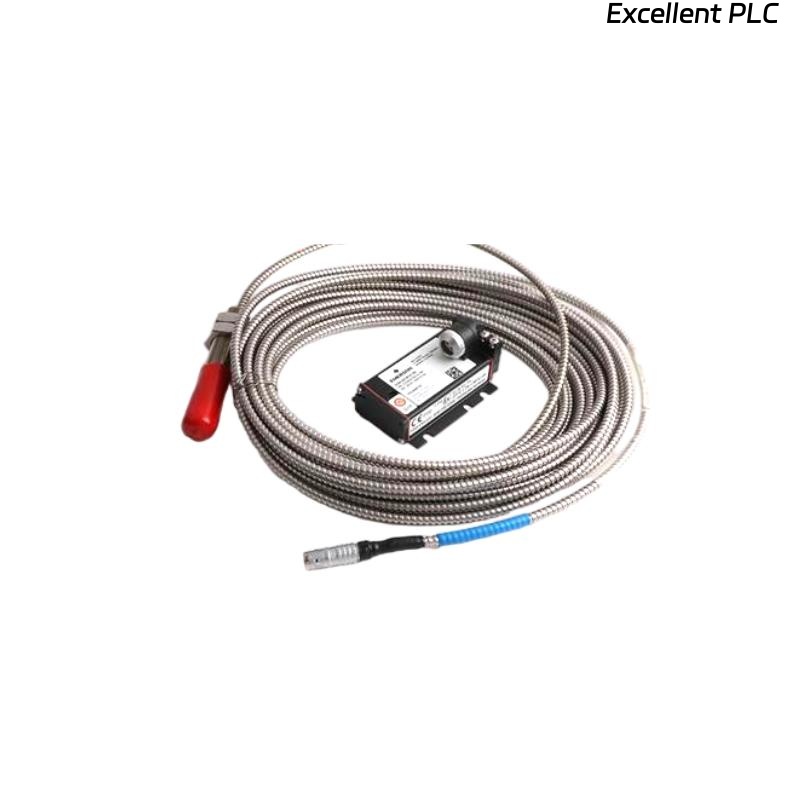

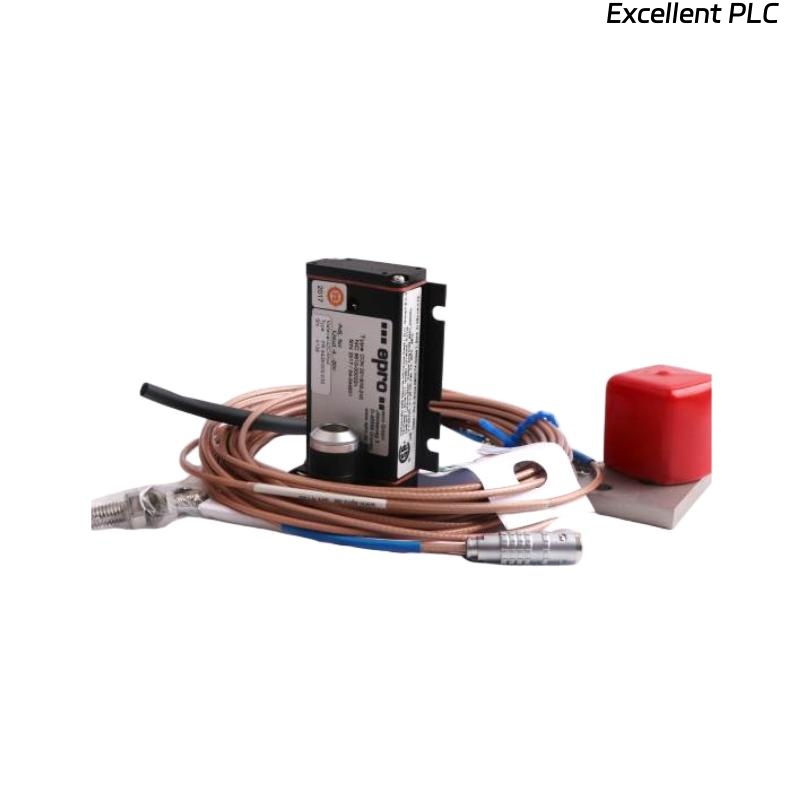

The Epro PR6426/010-110 SN1500M is a high-performance 32mm eddy current sensor designed for precise displacement, position, and vibration measurements in a variety of industrial applications. Utilizing eddy current technology, this sensor is ideal for measuring distances between the sensor and a conductive target. It offers reliable, non-contact, high-accuracy measurements, even in harsh environments.
The Epro PR6426/010-110 SN1500M is built for tough applications in industries such as machinery monitoring, rotating equipment, vibration analysis, and process control systems. Its high sensitivity and compact size make it perfect for applications that require precise measurement of small displacements, without physical contact with the target, reducing wear and tear on both the sensor and the equipment.
This eddy current sensor features a robust design, able to withstand high temperatures, vibrations, and electrical noise. It is also highly resistant to contaminants, making it suitable for use in harsh industrial environments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | Epro PR6426/010-110 SN1500M |
| Sensor Head Diameter | 32 mm |
| Weight | 0.8 kg |
| Measurement Principle | Eddy Current |
| Measuring Range | ±1.5 mm |
| Resolution | 0.1 µm |
| Output Type | Analog (4-20 mA) |
| Frequency Range | 0-10 kHz |
| Temperature Range | -40°C to 120°C |
| Power Supply | 24 V DC |
| Response Time | <1 ms |
| Material | Stainless Steel |
| Protection Class | IP67 |
Applications
The Epro PR6426/010-110 SN1500M eddy current sensor is designed for a wide variety of industrial applications that require precise, non-contact measurement of displacement, vibration, and position. Some common applications include:
-
Vibration Monitoring: Used in industrial machinery and rotating equipment such as motors, turbines, and compressors to detect misalignment or wear.
-
Condition Monitoring: Monitors the health of equipment by measuring shaft displacement or relative motion, helping detect potential faults before they lead to failure.
-
Machinery Monitoring: Provides reliable displacement measurement for pumps, motors, and other equipment, ensuring that critical machinery stays in optimal working condition.
-
Process Control Systems: Integrated into automated systems for measuring displacement or position in various processes, such as manufacturing lines or production machinery.
-
High-Speed Rotating Equipment: Ideal for applications that involve high-speed or high-frequency rotation, where precise measurements of displacement or vibration are critical.
-
Research and Development: Used in laboratory settings to measure displacements with high precision, making it ideal for academic, research, and development applications.
Advantages
-
Non-Contact Measurement: As an eddy current sensor, the Epro PR6426/010-110 SN1500M provides non-contact measurements, reducing wear and tear on both the sensor and the equipment.
-
High Accuracy: The sensor offers a 0.1 µm resolution, ensuring highly precise and reliable measurements for critical applications.
-
Wide Temperature Range: With an operating temperature range of -40°C to 120°C, the sensor performs reliably in both cold and high-temperature environments.
-
Fast Response Time: The sensor’s <1 ms response time ensures quick detection of displacement or vibration changes, making it suitable for high-speed applications.
-
Durability: The sensor is housed in a rugged stainless steel casing with an IP67 protection rating, making it resistant to dust, moisture, and other contaminants.
-
Easy Integration: The 4-20 mA analog output ensures easy integration into existing control systems, allowing for seamless data transfer and monitoring.
-
Compact and Robust: With a 32 mm sensor head diameter and a 0.8 kg weight, it is compact enough for tight spaces while still being durable enough to handle industrial environments.
FAQ
-
What measurement principle does the Epro PR6426/010-110 SN1500M use?
The Epro PR6426/010-110 SN1500M uses eddy current technology to measure displacement, vibration, and position without making physical contact with the target. -
What is the measurement range of the sensor?
The sensor has a measurement range of ±1.5 mm, making it suitable for measuring small displacements. -
What is the output signal type of the Epro PR6426/010-110 SN1500M?
The sensor provides an analog 4-20 mA output, which can easily be integrated into control systems for real-time monitoring. -
What is the resolution of the Epro PR6426/010-110 SN1500M sensor?
The sensor offers a 0.1 µm resolution, ensuring highly accurate and precise measurements. -
What is the temperature range for the Epro PR6426/010-110 SN1500M?
The sensor operates within a temperature range of -40°C to 120°C, making it suitable for a variety of industrial environments. -
How fast is the response time of the Epro PR6426/010-110 SN1500M sensor?
The response time of the sensor is <1 ms, ensuring rapid detection of displacement or vibration changes. -
What is the diameter of the sensor head?
The sensor head has a diameter of 32 mm, making it compact and easy to install in space-constrained applications. -
What is the protection rating of the Epro PR6426/010-110 SN1500M sensor?
The sensor has an IP67 protection rating, making it resistant to dust, moisture, and harsh industrial environments. -
What is the power supply requirement for the Epro PR6426/010-110 SN1500M?
The sensor requires a 24 V DC power supply, which is common for industrial sensors. -
Can the Epro PR6426/010-110 SN1500M be used in high-speed rotating equipment?
Yes, the sensor is suitable for high-speed rotating equipment due to its fast response time and high-frequency capability (up to 10 kHz).
