Product Introduction

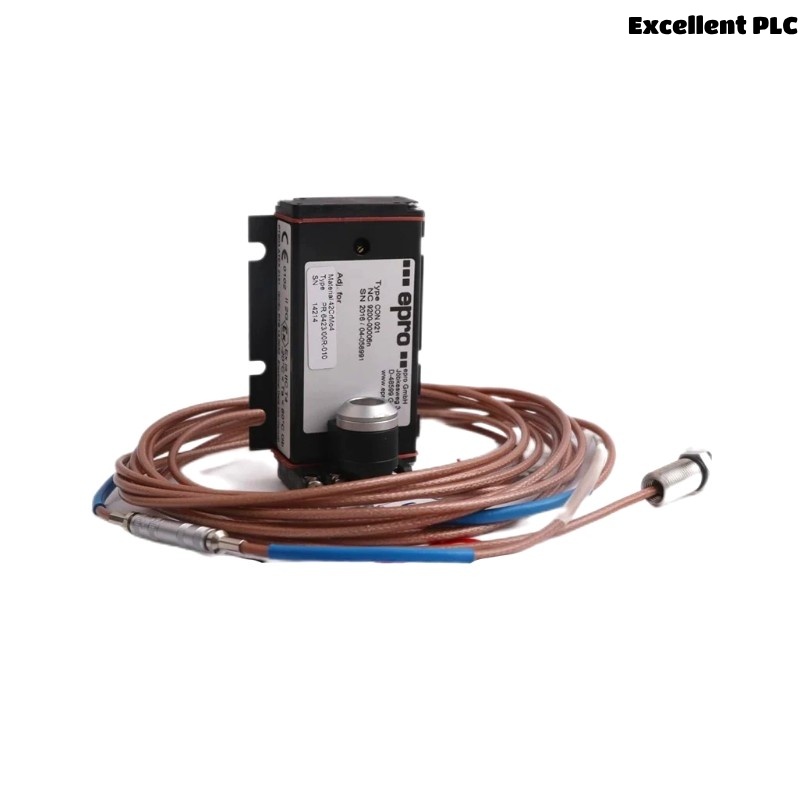

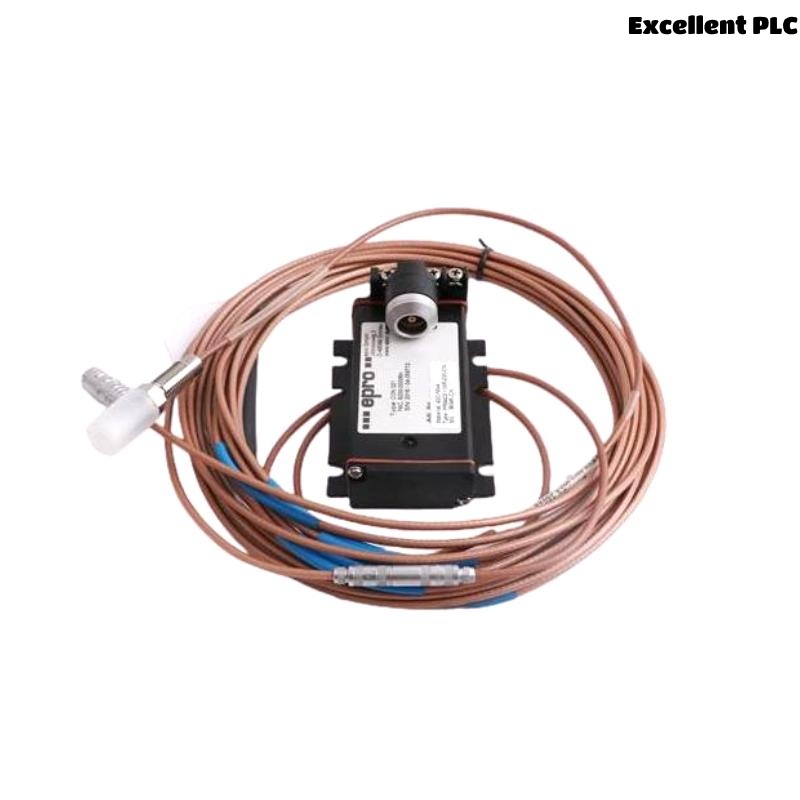

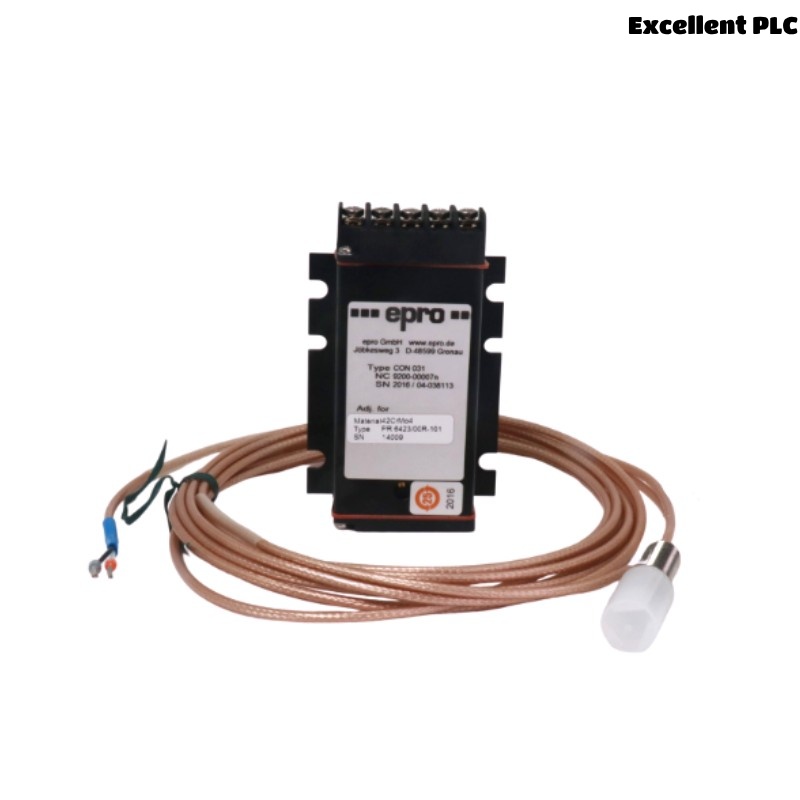

The Epro PR6426/010-110 + CON021/916-120 Eddy Current Sensor is a premium-grade industrial sensor designed for non-contact measurement of shaft displacement, vibration, and axial position in rotating machinery. With a 32mm sensing diameter, it ensures reliable detection of minute movements and vibrations in turbines, compressors, pumps, and other critical equipment. When paired with the CON021 signal converter module and configured with the 916-120 extension cable, this sensor system delivers precision measurements under extreme industrial conditions.
The PR6426 series is well-regarded for its long service life, robustness in harsh environments, and compatibility with various condition monitoring systems, including Bently Nevada and Epro VM600.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | PR6426/010-110 + CON021/916-120 |
| Sensing Principle | Eddy Current (Non-contact displacement measurement) |
| Sensor Head Diameter | 32 mm |
| Measuring Range | Typically ±2.0 mm (depends on application & target material) |
| Sensitivity | Factory calibrated, typical: 7.87 mV/μm or 200 mV/mil |
| Frequency Response | Up to 10 kHz |
| Operating Temperature Range | -35°C to +180°C (sensor), up to +85°C (CON021) |
| Material | Stainless Steel body, Ceramic or PEEK insulated sensor tip |
| Connector Type | 3-pin coaxial for CON021 connection |
| Mounting Thread | M14x1.5 or custom based on order code |
| Cable Length | Standard: 5m sensor cable + 5m extension cable (adjustable by configuration) |
| Signal Converter | CON021/916-120 |
| Compatibility | Compatible with Epro MMS 6000, VM600, and Bently Nevada systems |
| Protection Rating | IP65 (sensor head), IP20 (CON021) |
| Weight | 0.92 kg |
Applications
The PR6426/010-110 + CON021/916-120 sensor is widely applied in industries where machinery health monitoring is critical:
-
Power Generation – Steam and gas turbines
-
Oil & Gas – Compressors, expanders, pumps
-
Petrochemical Plants – Reactor monitoring and compressor condition monitoring
-
Pulp and Paper – Large rotating drums and rollers
-
Steel Industry – Monitoring of roller shafts in mills
-
Marine Engineering – Engines and turbochargers
Its non-contact operation and high-temperature resistance make it ideal for both online and offline vibration analysis in dynamic environments.
Advantages
-
High Sensitivity – Provides accurate measurement of displacement and vibration.
-
Non-contact Design – Minimizes wear and ensures long operational life.
-
Robust Build – Stainless steel construction resists corrosion and mechanical damage.
-
Temperature Resilience – Suitable for high-temperature zones near turbines or engines.
-
Easy Integration – Seamlessly integrates with Epro and Bently Nevada monitoring systems.
-
Configurable Lengths – Customizable cable lengths ensure flexibility in installation.
-
Low Maintenance – Once installed, it requires minimal maintenance or calibration.
-
Proven Reliability – Used by top industrial operators globally with proven field history.
Frequently Asked Questions (FAQ)
-
What is the sensing range of the PR6426/010-110 sensor?
It typically supports a measuring range of ±2.0 mm, depending on the shaft material and system setup. -
Can I use this sensor in high-temperature areas?
Yes, the sensor can operate in environments up to 180°C, making it suitable for steam turbines and other heat-intensive areas. -
Is the CON021 converter necessary?
Yes, the CON021 is required for signal conversion and proper integration with monitoring systems. -
Can this sensor be used with Bently Nevada monitoring systems?
Yes, it is compatible with Bently Nevada systems, especially with proper calibration. -
What materials can the sensor detect displacement on?
The sensor works best on conductive metals like steel, aluminum, and nickel alloys. -
Is the cable length customizable?
Yes, both sensor and extension cables can be ordered in custom lengths depending on your setup. -
What is the frequency response of this sensor?
The sensor has a frequency response up to 10 kHz, suitable for most rotating machinery. -
Is the PR6426 suitable for hazardous areas (ATEX/IECEx)?
Some variants of the PR6426 series are certified for use in hazardous areas; check specific certification before use. -
What is the IP rating of the sensor?
The sensor head is IP65 rated for dust and water ingress protection. -
How should the sensor be installed?
It should be mounted perpendicular to the shaft using the appropriate threaded bore and securely fixed to avoid vibration artifacts.
Related Models from the Same Series
| Model Number | Sensing Diameter | Cable Length | Temperature Range | Application Area |
|---|---|---|---|---|
| PR6426/010-100+CON021 | 32 mm | 5m | -35°C to +180°C | General Vibration |
| PR6426/012-120+CON021 | 25 mm | 10m | -35°C to +150°C | Compact Machinery |
| PR6426/014-030+CON021 | 18 mm | 3m | -35°C to +125°C | Small Rotating Equipment |
| PR6426/005-010+CON021 | 8 mm | 1m | -35°C to +120°C | Lab and Bench Testing |
| PR6426/013-121+CON021 | 25 mm | 5m | -35°C to +150°C | High-speed Compressors |
| PR6426/016-100+CON021 | 32 mm | 5m | -35°C to +180°C | Steam/Gas Turbines |
Popular Models from the Same Brand (Epro/Emerson)
| Model Number | Description | Application | Key Feature |
|---|---|---|---|
| PR9268/201-000 | Vibration Velocity Sensor | General Machinery Monitoring | Piezoelectric, rugged design |
| MMS6312 | Monitoring Module (VM600 Series) | Central Vibration Monitoring | Multi-channel, DIN rail mount |
| MMS6120 | Condition Monitoring Module | Compressor/Turbine Monitoring | Integrated signal conditioning |
| PR6423/010-000+CON021 | Eddy Current Sensor (Ø5mm) | Precision Shaft Monitoring | High resolution, small size |
| PR6424/010-040+CON021 | Eddy Current Sensor (Ø8mm) | Motor & Pump Monitoring | Mid-range size and range |
| TQ4020 | Dual-channel Transducer Conditioner | Signal Conditioning in VM600 | Compatible with PR6426 series |
