Product Overview

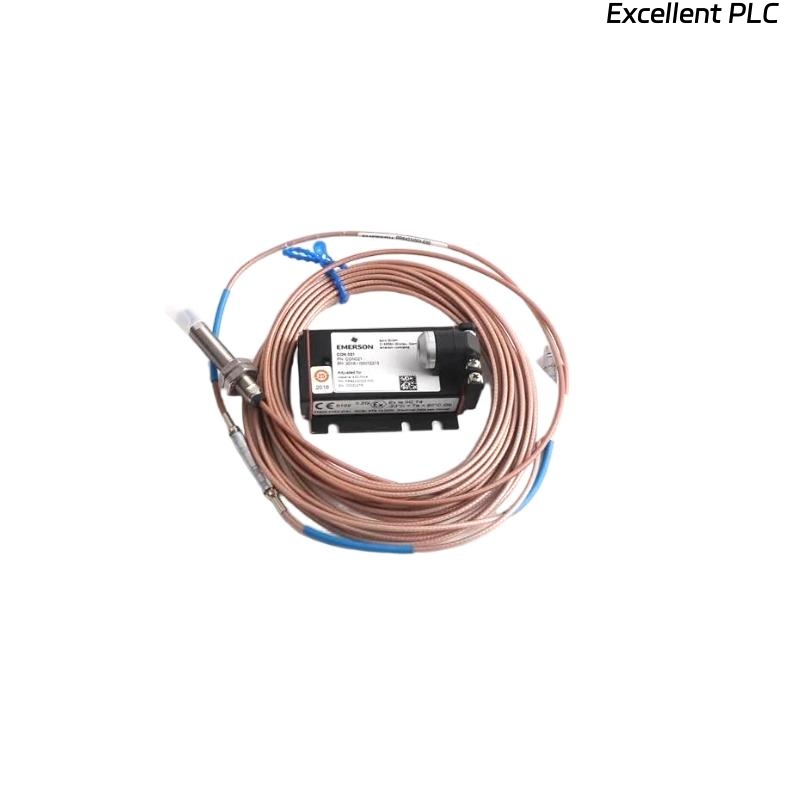

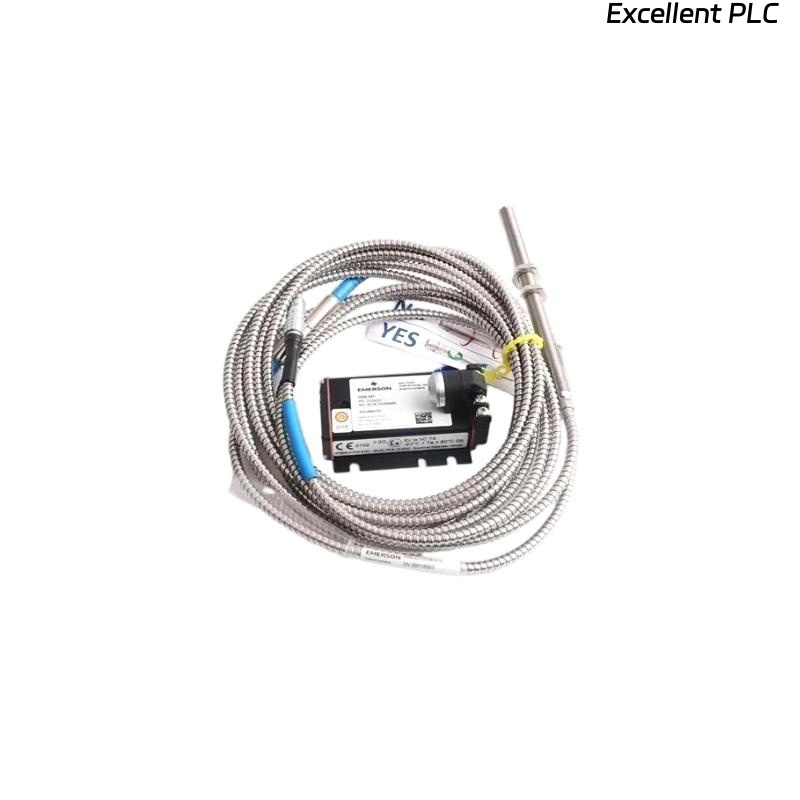

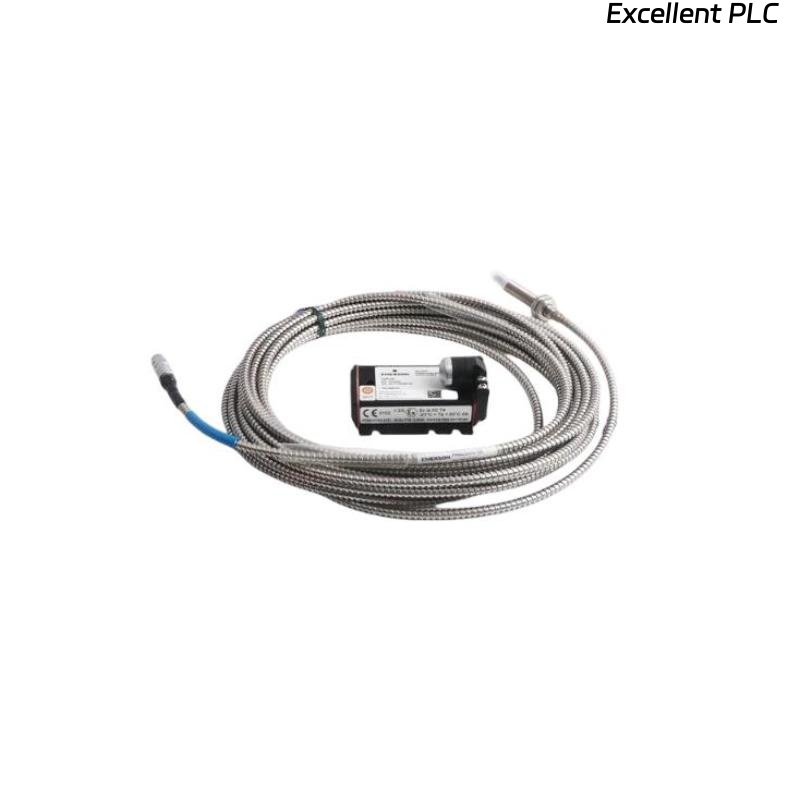

The Epro PR6426/010-140+CON011 is a high-precision 32mm eddy current sensor system designed for non-contact measurement of displacement, position, and vibration in industrial applications. This sensor is ideal for detecting minute changes in displacement or vibration, offering exceptional accuracy and reliability for a wide range of demanding applications.
The Epro PR6426/010-140 sensor utilizes eddy current technology, which is well-known for providing highly accurate, non-contact measurement in environments where traditional contact sensors cannot be used. The combination of the PR6426/010-140 sensor and the CON011 signal conditioner ensures consistent, real-time data monitoring in industrial machinery and automation systems.
With a 32 mm sensor head diameter and a 1.4 kg weight, this sensor is built for industrial environments that demand high sensitivity and durability. It is particularly useful in high-speed machinery, rotating equipment, and applications requiring precise monitoring of small displacements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | Epro PR6426/010-140+CON011 |
| Sensor Head Diameter | 32 mm |
| Weight | 1.4 kg |
| Measurement Principle | Eddy Current |
| Measuring Range | ±2.0 mm |
| Resolution | 0.1 µm |
| Output Type | Analog (4-20 mA) |
| Frequency Range | 0-10 kHz |
| Temperature Range | -40°C to 120°C |
| Power Supply | 24 V DC |
| Response Time | <1 ms |
| Material | Stainless Steel |
| Protection Class | IP67 |
| Signal Conditioner | CON011 |
Applications
The Epro PR6426/010-140+CON011 eddy current sensor system is designed for highly accurate displacement and vibration measurement in industrial environments. Common applications include:
-
Vibration Monitoring: Used for real-time monitoring of vibration in rotating equipment such as turbines, motors, and compressors to prevent machinery failure and optimize maintenance schedules.
-
Condition Monitoring: Helps monitor the condition of machinery by measuring displacement or position and detecting early signs of misalignment, wear, or other faults.
-
Precision Machine Tool Monitoring: Ideal for monitoring the precise position of CNC machines and other high-precision equipment, ensuring optimal performance.
-
Automated Process Control: Integrated into automated systems for measuring displacement or position to maintain process control accuracy.
-
High-Speed Rotating Equipment: Suitable for monitoring high-speed equipment, where precise measurement of displacement and vibration is critical to the machinery’s performance.
-
Quality Control in Manufacturing: Ensures the alignment and correct positioning of machinery or components during manufacturing processes, enhancing quality and reducing defects.
Advantages
-
Non-Contact Measurement: The Epro PR6426/010-140 uses eddy current technology for non-contact measurement, ensuring that there is no wear on either the sensor or the machinery.
-
High Precision: With a 0.1 µm resolution, the sensor offers extremely high measurement accuracy, making it suitable for critical applications where precision is essential.
-
Fast Response Time: The sensor’s <1 ms response time allows for fast and accurate data collection, making it ideal for high-speed applications and real-time monitoring.
-
Wide Temperature Range: The sensor operates in a broad temperature range of -40°C to 120°C, ensuring stable performance in both high and low-temperature environments.
-
Durability: The sensor is housed in a stainless steel body with an IP67 protection rating, which provides excellent resistance to dust, moisture, and physical damage.
-
Easy Integration: The system comes with a 4-20 mA analog output and the CON011 signal conditioner, allowing easy integration into existing control systems for seamless data monitoring.
-
Robust Design: The 1.4 kg weight and 32 mm sensor head diameter make it durable enough for industrial applications while maintaining a compact design.
FAQ
-
What is the measurement principle of the Epro PR6426/010-140+CON011 sensor?
The sensor uses eddy current technology, providing non-contact measurements of displacement, vibration, and position. -
What is the measuring range of the Epro PR6426/010-140 sensor?
The sensor has a measuring range of ±2.0 mm, making it suitable for small displacement measurements in high-precision applications. -
What output signal is provided by the Epro PR6426/010-140 sensor?
The sensor provides an analog 4-20 mA output, which can be easily integrated into control systems for real-time monitoring. -
What is the temperature range of the Epro PR6426/010-140 sensor?
The sensor operates in a temperature range of -40°C to 120°C, allowing it to function in both extreme cold and high-heat environments. -
What is the resolution of the sensor?
The sensor offers a resolution of 0.1 µm, ensuring high-precision measurements for critical applications. -
What is the power supply requirement for the Epro PR6426/010-140 sensor?
The sensor requires a 24 V DC power supply. -
What is the protection rating of the sensor?
The sensor has an IP67 protection rating, making it resistant to dust, moisture, and contaminants. -
How fast is the response time of the sensor?
The sensor has a <1 ms response time, making it suitable for fast and dynamic measurement applications. -
Can the Epro PR6426/010-140 sensor be used in high-speed equipment?
Yes, the sensor is ideal for high-speed rotating equipment, where precise and quick displacement measurements are critical. -
What does the CON011 signal conditioner do?
The CON011 signal conditioner ensures that the analog output signal from the sensor is stable and can be easily integrated into control systems.
