Product Overview

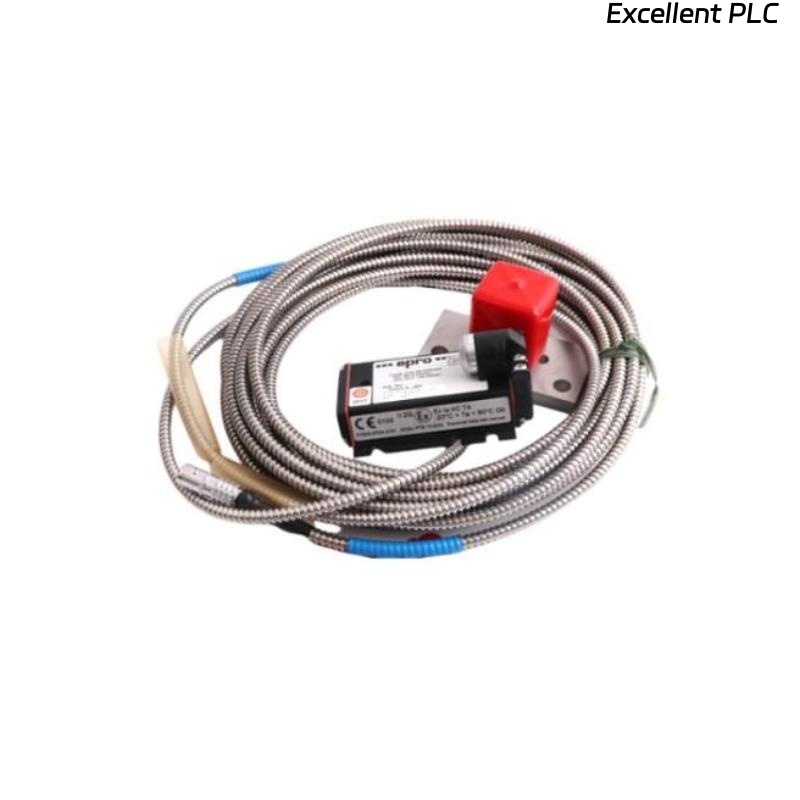

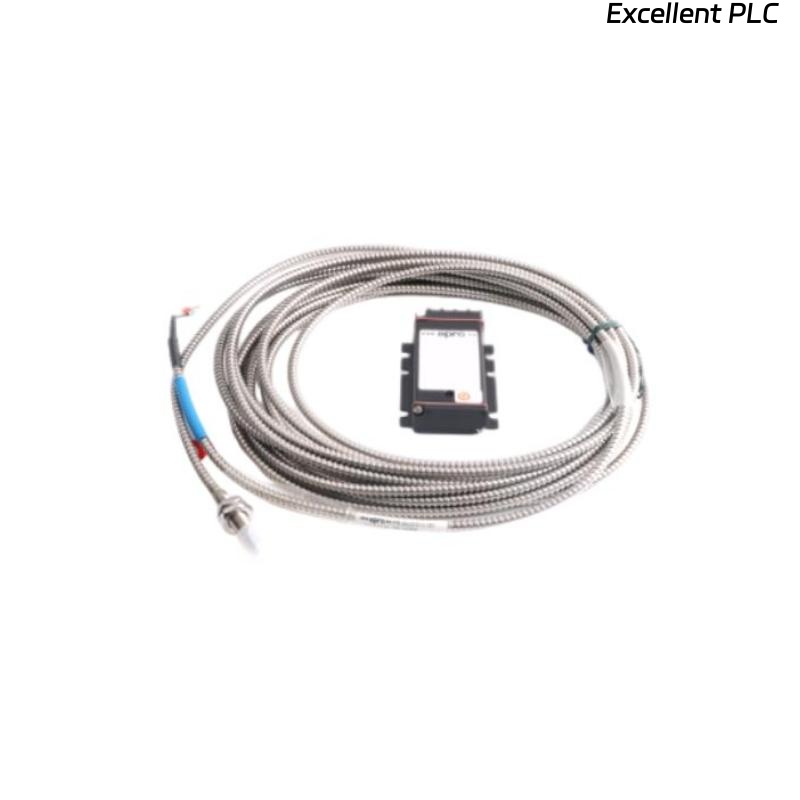

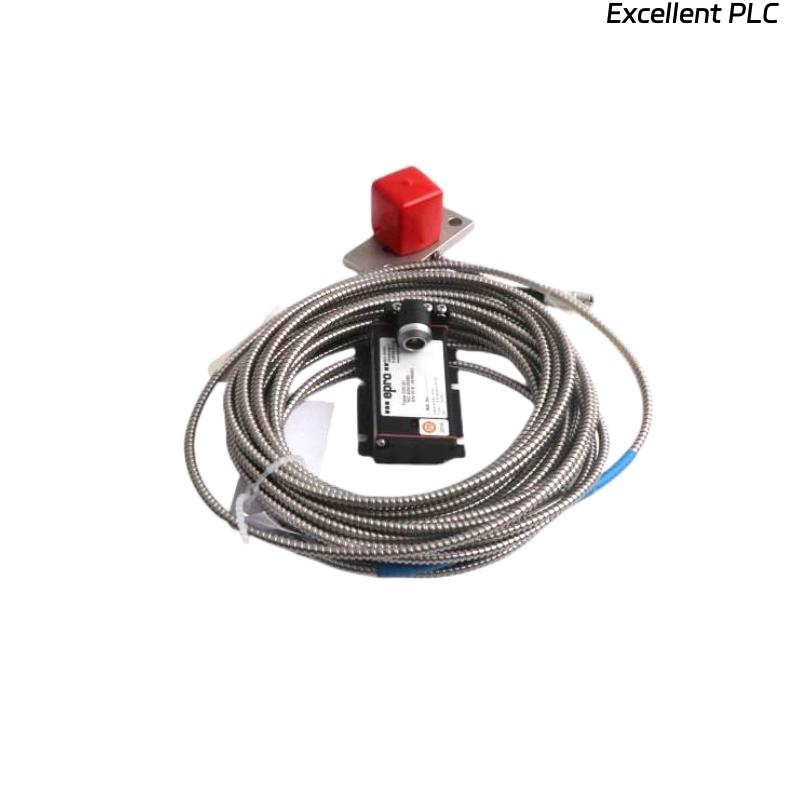

The Epro PR6426/010-140+CON021/916-200 is an advanced 32mm eddy current sensor system designed for precise non-contact measurement of displacement, position, and vibration. This sensor offers a high degree of sensitivity and accuracy, making it ideal for monitoring critical industrial machinery and processes where precise data is essential.
Utilizing eddy current technology, the PR6426/010-140 sensor ensures that measurements are made without physical contact, eliminating mechanical wear and improving the reliability of the measurement system. The sensor is paired with the CON021/916-200 signal conditioner, which ensures the output is optimized for easy integration into industrial control and monitoring systems.
With a 32mm sensor head diameter and a weight of 0.92 kg, this sensor is robust enough for industrial environments while being compact for easy installation in tight spaces. The Epro PR6426/010-140+CON021/916-200 system is highly reliable and provides real-time measurements, making it essential for industries requiring high precision.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | Epro PR6426/010-140+CON021/916-200 |
| Sensor Head Diameter | 32 mm |
| Weight | 0.92 kg |
| Measurement Principle | Eddy Current |
| Measuring Range | ±2.0 mm |
| Resolution | 0.1 µm |
| Output Type | Analog (4-20 mA) |
| Frequency Range | 0-10 kHz |
| Temperature Range | -40°C to 120°C |
| Power Supply | 24 V DC |
| Response Time | <1 ms |
| Material | Stainless Steel |
| Protection Class | IP67 |
| Signal Conditioner | CON021/916-200 |
Applications
The Epro PR6426/010-140+CON021/916-200 eddy current sensor system is designed to provide highly accurate and real-time measurement for various industrial applications. Some of the key applications include:
-
Vibration Monitoring: Used in rotating machinery such as turbines, motors, and compressors to detect excessive vibration, helping to prevent equipment failure.
-
Condition Monitoring: Measures displacement and position, enabling early detection of faults such as misalignment, wear, and mechanical damage.
-
Precision Machine Tool Monitoring: Ensures that CNC machines and other precision equipment are performing optimally by monitoring small displacements.
-
Automated Process Control: Integrated into automated systems to monitor and control the position and displacement of various components in manufacturing processes.
-
Rotating Equipment Monitoring: Ideal for monitoring the position and displacement of high-speed rotating equipment where precise measurements are critical.
-
Quality Control: Used in manufacturing for accurate positioning and alignment of parts, improving the overall quality of products and reducing defects.
Advantages
-
Non-Contact Measurement: The sensor utilizes eddy current technology for non-contact displacement and vibration measurement, reducing wear and tear on both the sensor and machinery.
-
High Precision: The sensor provides 0.1 µm resolution, offering high-accuracy measurements for critical applications.
-
Fast Response Time: With a response time of <1 ms, the sensor provides real-time data, making it ideal for high-speed monitoring.
-
Wide Temperature Range: The sensor operates across a wide temperature range of -40°C to 120°C, ensuring reliable performance in various environmental conditions.
-
Durability: With an IP67 protection rating and a stainless steel housing, the sensor is durable and resistant to dust, moisture, and physical damage.
-
Ease of Integration: The CON021/916-200 signal conditioner ensures smooth integration into existing systems, providing stable, easy-to-read analog outputs.
-
Compact and Robust Design: The 0.92 kg weight and 32 mm diameter make it both compact for space-constrained environments and rugged enough for industrial settings.
FAQ
-
What is the principle behind the Epro PR6426/010-140+CON021/916-200 sensor?
The sensor operates using eddy current technology, which allows for non-contact measurement of displacement and vibration. -
What is the measuring range of the sensor?
The sensor has a measuring range of ±2.0 mm, suitable for detecting small displacements in industrial environments. -
What type of output does the Epro PR6426/010-140 sensor provide?
The sensor outputs an analog 4-20 mA signal, which can be easily integrated into industrial control systems. -
What is the temperature range in which the sensor operates?
The sensor functions efficiently within a temperature range of -40°C to 120°C. -
What is the resolution of the Epro PR6426/010-140+CON021/916-200 sensor?
The sensor provides a 0.1 µm resolution, ensuring precise measurements for demanding applications. -
What is the power supply requirement for the sensor?
The sensor requires a 24 V DC power supply. -
What is the response time of the Epro PR6426/010-140 sensor?
The sensor has a fast response time of <1 ms, ideal for dynamic measurements in real-time applications. -
What is the protection class of the Epro PR6426/010-140 sensor?
The sensor has an IP67 protection class, making it resistant to dust and moisture, suitable for harsh industrial environments. -
What material is the sensor made of?
The sensor is constructed from stainless steel, which provides excellent durability and resistance to physical stress. -
How does the CON021/916-200 signal conditioner assist the sensor?
The CON021/916-200 signal conditioner ensures stable and accurate output, optimizing the signal for easy integration into control systems.
