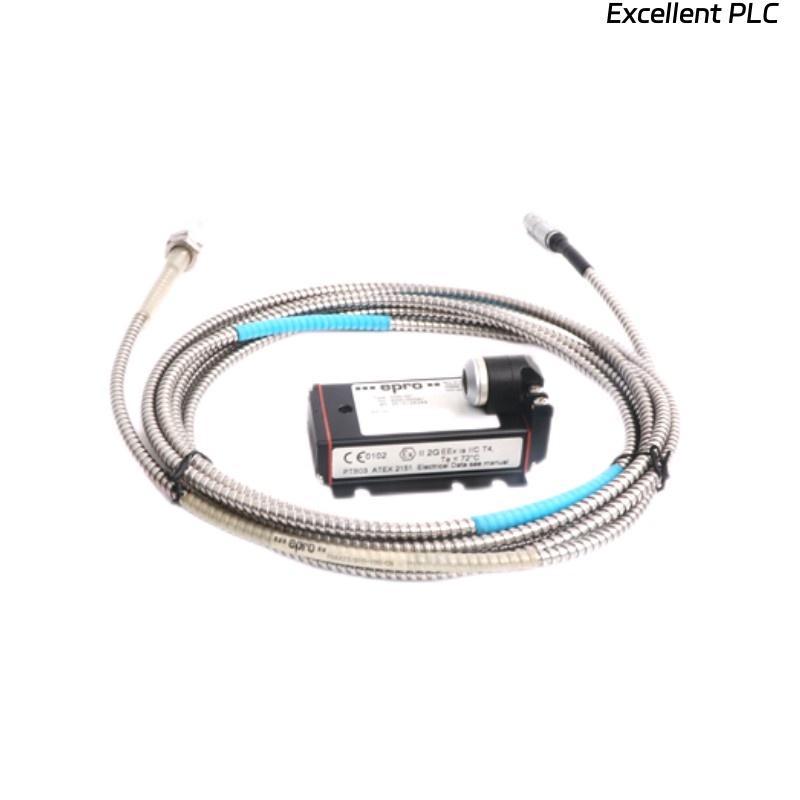

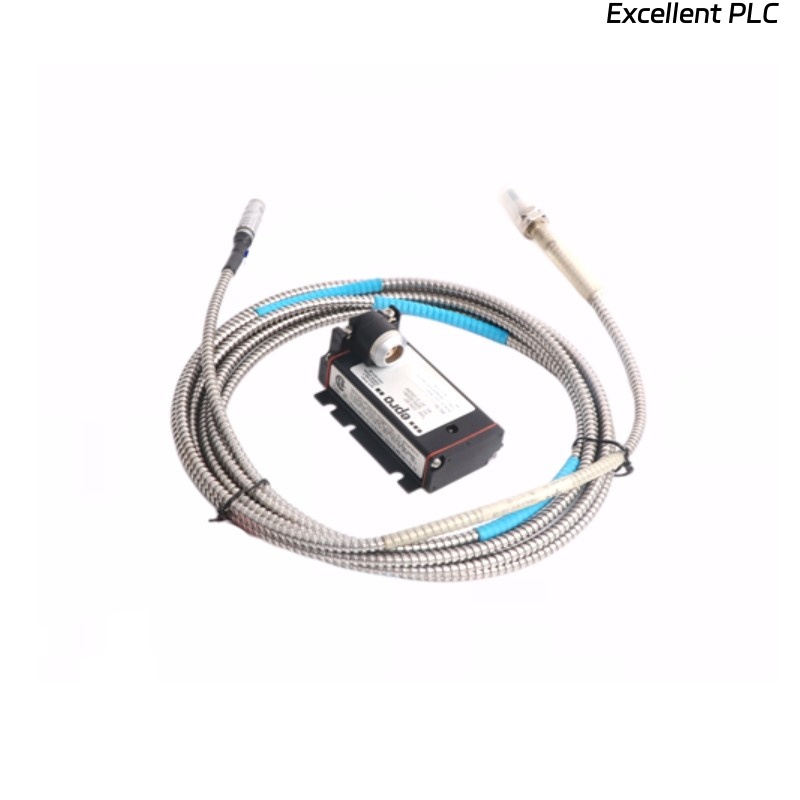

The Epro PR6480/041-000 Eddy Current Sensor is a high-precision, non-contact displacement and vibration measurement device engineered for industrial condition monitoring and machine protection applications. Part of the PR6480 series, this sensor provides accurate real-time monitoring of shaft displacement, vibration, and position in rotating machinery.
Using eddy current technology, the sensor generates an alternating electromagnetic field, inducing eddy currents in nearby conductive surfaces. The resulting response is measured to determine precise displacement or vibration. This allows engineers to monitor dynamic and static shaft movement without mechanical contact, reducing wear and improving system reliability.
The PR6480/041-000 is compatible with Epro signal converters (CON011, CON021, CON031), forming a complete monitoring solution for turbines, compressors, pumps, motors, and gearboxes. Its robust stainless steel housing ensures dependable operation in extreme industrial environments, including high temperature, oil exposure, and mechanical vibration.
It is widely used in API 670-compliant machinery protection systems, providing high accuracy and stability for critical monitoring applications in power generation, process industries, and heavy machinery.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | PR6480/041-000 |
| Product Type | Eddy Current Displacement Sensor |
| Measurement Principle | Non-contact electromagnetic induction |
| Measurement Range | 0–4 mm (typical) |
| Linear Range | Up to 80% of full scale |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 5.0 mV/µm (typical) |
| Probe Material | Stainless Steel (AISI 303/304) |
| Target Material | Conductive metals (typically steel) |
| Sensor Head Diameter | Optional |
| Operating Temperature Range | -35°C to +180°C |
| Storage Temperature Range | -50°C to +200°C |
| Pressure Rating | Up to 10 bar (depending on housing type) |
| Mounting Thread | M10 × 1 or M14 × 1.5 (depending on configuration) |
| Power Supply (via converter) | ±15 VDC or as specified by CON0xx system |
| Output Signal (via converter) | ±10 V or 4–20 mA |
| Insulation Resistance | >10 MΩ at 500 VDC |
| EMC Compliance | EN 61326-1 Industrial Environment |
| Vibration Resistance | 20 g peak (10–2000 Hz) |
| Protection Class | IP67 |
| Housing Material | Stainless Steel |
| Shipping Weight | 3 kg |
| Connection Type | Coaxial connector or integrated cable |
| Compliance Standards | API 670, ISO 10817, CE, RoHS |
Product Applications
The PR6480/041-000 Eddy Current Sensor is widely applied in industrial monitoring and machine protection systems, providing reliable, precise measurement under harsh operational conditions.
Key applications include:
-
Turbomachinery Monitoring: Vibration and radial displacement monitoring in turbines and compressors.
-
Rotating Equipment Diagnostics: Shaft and bearing displacement measurement in pumps, motors, and fans.
-
Machine Protection Systems: Integration into vibration and condition monitoring systems for early fault detection.
-
Predictive Maintenance: Supports condition-based maintenance to reduce unplanned downtime.
-
Power Generation: Continuous rotor and shaft monitoring in turbines, generators, and alternators.
-
Research and Test Environments: High-precision motion measurement for lab-scale mechanical testing.
Product Advantages
-
High Accuracy: Measures micro-level shaft displacement and vibration non-contact.
-
Durable Construction: Stainless steel housing provides resistance to oil, dust, and harsh industrial environments.
-
Wide Temperature Range: Operates effectively from -35°C to +180°C.
-
Fast Frequency Response: Suitable for low-frequency displacement and high-frequency vibration detection.
-
Seamless Integration: Compatible with Epro CON011, CON021, and CON031 signal converters.
-
API 670 Compliance: Meets standards for machinery protection systems in critical installations.
-
Low Drift: Stable output ensures consistent measurement over time.
-
Flexible Mounting: Optional sensor head diameter and multiple thread sizes allow customized installation.
-
EMC Resistant: Shielded design reduces interference from nearby electrical equipment.
-
Reliable in Harsh Environments: Maintains performance under vibration, temperature, and contamination stress.
FAQ
-
What is the measurement principle of the PR6480/041-000 sensor?
It uses eddy current technology, generating an electromagnetic field and measuring induced currents in conductive targets. -
Which signal converters are compatible with this sensor?
Compatible with Epro CON011, CON021, and CON031 signal converters. -
What is the typical measurement range for this sensor?
The range is 0–4 mm, adjustable depending on probe configuration. -
Can this sensor be used in high-temperature environments?
Yes, it operates reliably up to +180°C. -
Is it suitable for API 670-compliant machinery protection systems?
Yes, the PR6480/041-000 fully meets API 670 standards. -
What output signal options are available via converters?
±10 V or 4–20 mA analog signals are standard. -
How does the sensor handle electromagnetic interference?
High-quality coaxial shielding ensures robust immunity to EMI. -
Can it measure both static displacement and dynamic vibration?
Yes, it accurately measures both low-frequency displacement and high-frequency vibration. -
What target materials are recommended?
Conductive metals, with optimal calibration for steel targets. -
Is calibration necessary for different materials?
Yes, calibration is recommended for the specific target material to ensure accuracy.
Related Models (Same Series or Family)
| Model Number | Description | Measurement Range | Operating Temperature | Weight |
|---|---|---|---|---|
| PR6480/011-000 | Eddy Current Sensor | 0–1 mm | -35°C to +180°C | 3 kg |
| PR6480/021-000 | Eddy Current Sensor | 0–2 mm | -35°C to +180°C | 3 kg |
| PR6480/031-000 | Eddy Current Sensor | 0–2 mm | -35°C to +180°C | 3 kg |
| PR6480/041-000 | Eddy Current Sensor | 0–4 mm | -35°C to +180°C | 3 kg |
| PR6480/050-000 | Eddy Current Sensor | 0–5 mm | -35°C to +200°C | 3 kg |
| PR6480/060-000 | Eddy Current Sensor | 0–6 mm | -35°C to +200°C | 3 kg |
Popular EPRO Models
| Model Number | Description | Type | Application |
|---|---|---|---|
| PR6480/031-000 | Eddy Current Sensor | Vibration Probe | Shaft monitoring |
| PR6423/002-030 | Eddy Current Sensor | Displacement Probe | Machine protection |
| PR6424/010-030 | Eddy Current Sensor | Axial Displacement | Thrust monitoring |
| MMS3120/022-100 | Monitoring Module | Condition Monitoring | Vibration and displacement processing |
| MMS3125/022-020 | Monitoring Module | Multi-Channel | Data acquisition for rotating equipment |
| CON021 | Converter Module | Signal Conditioning | Interfaces PR6480 sensors |
