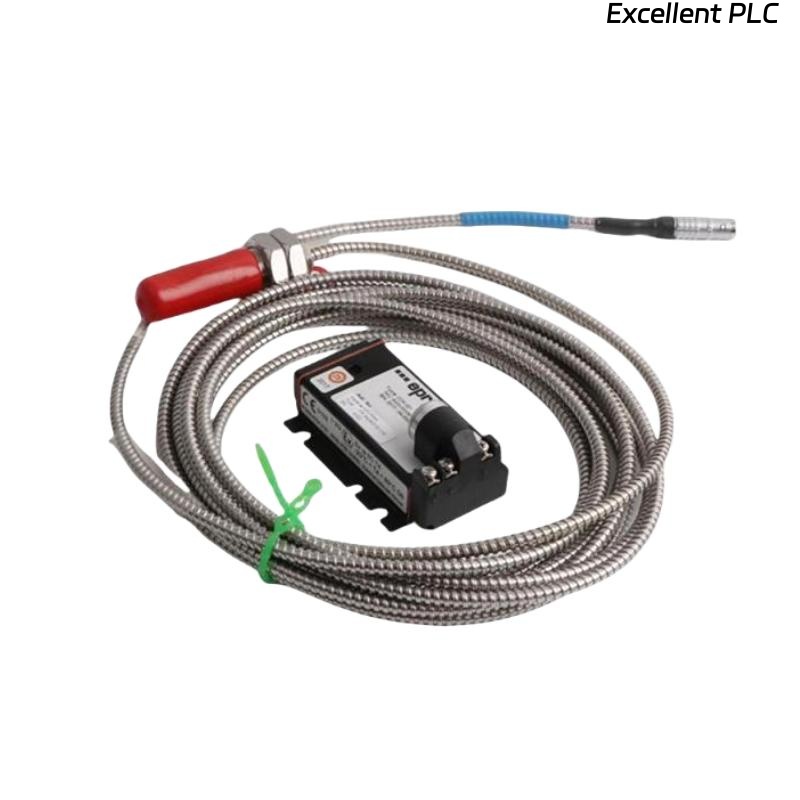

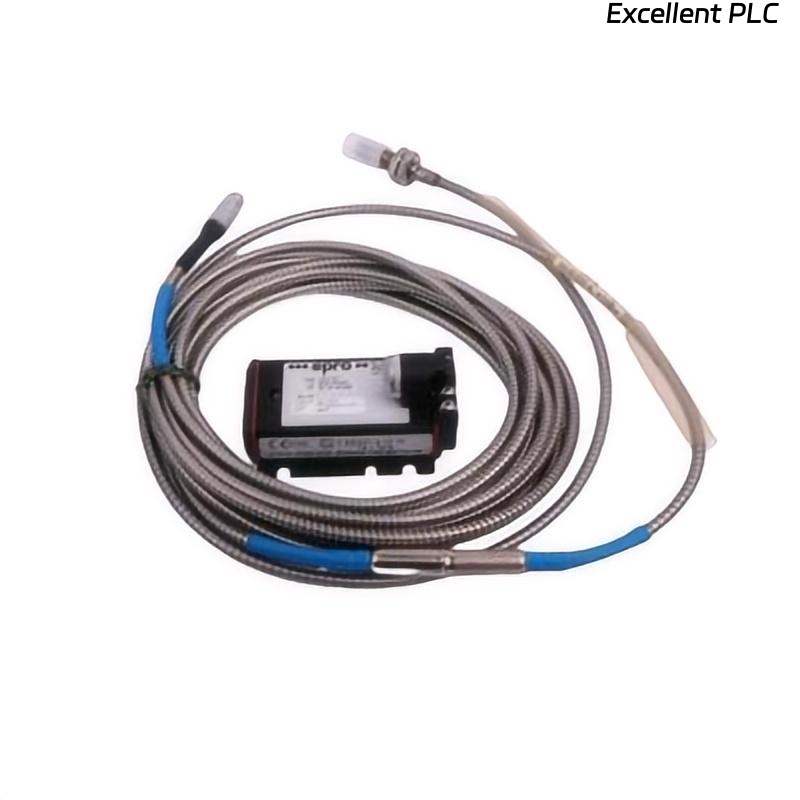

The Epro PR6480/051-000 Eddy Current Sensor is a precision, non-contact displacement and vibration measurement device designed for industrial condition monitoring and machine protection applications. As a member of the PR6480 series, this sensor offers highly accurate measurement of shaft displacement, vibration, and rotational dynamics in critical machinery.
Using eddy current technology, the sensor generates a high-frequency magnetic field that induces currents in nearby conductive surfaces. Variations in these currents are analyzed to determine precise displacement and vibration, enabling real-time monitoring of machinery without any mechanical contact. This non-contact approach significantly reduces wear and ensures long-term reliability.
The PR6480/051-000 is compatible with Epro CON011, CON021, and CON031 signal converters, forming a complete condition monitoring system for turbines, compressors, pumps, motors, and heavy industrial machinery. Its robust stainless steel housing ensures reliable performance in extreme industrial conditions, including high temperatures, vibrations, and exposure to oil or dust.
This sensor is fully compliant with API 670 standards, making it suitable for integration into high-reliability machinery protection systems used in power generation, process industries, and heavy equipment monitoring.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | PR6480/051-000 |
| Product Type | Eddy Current Displacement Sensor |
| Measurement Principle | Non-contact electromagnetic induction |
| Measurement Range | 0–5 mm (typical) |
| Linear Range | Up to 80% of full scale |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 4.0 mV/µm (typical) |
| Probe Material | Stainless Steel (AISI 303/304) |
| Target Material | Conductive metals (steel recommended) |
| Sensor Head Diameter | Optional |
| Operating Temperature Range | -35°C to +200°C |
| Storage Temperature Range | -50°C to +220°C |
| Pressure Rating | Up to 10 bar (depending on housing type) |
| Mounting Thread | M10 × 1 or M14 × 1.5 |
| Power Supply (via converter) | ±15 VDC or as specified by CON0xx system |
| Output Signal (via converter) | ±10 V or 4–20 mA |
| Insulation Resistance | >10 MΩ at 500 VDC |
| EMC Compliance | EN 61326-1 Industrial Environment |
| Vibration Resistance | 20 g peak (10–2000 Hz) |
| Protection Class | IP67 |
| Housing Material | Stainless Steel |
| Shipping Weight | 3 kg |
| Connection Type | Coaxial connector or integrated cable |
| Compliance Standards | API 670, ISO 10817, CE, RoHS |
Product Applications
The PR6480/051-000 Eddy Current Sensor is widely utilized for industrial monitoring and machine protection where precise, non-contact measurement is critical.
Key application areas include:
-
Turbomachinery Monitoring: Measuring radial shaft displacement and vibration in turbines and compressors.
-
Rotating Equipment Diagnostics: Monitoring shaft and bearing behavior in pumps, motors, and fans.
-
Machine Protection Systems: Integration into condition monitoring systems for early fault detection.
-
Predictive Maintenance: Supporting condition-based maintenance strategies to minimize unplanned downtime.
-
Power Generation: Monitoring generators, turbines, and alternators in power plants.
-
Research and Test Facilities: Precise measurement of mechanical motion and vibration for experimental setups.
Product Advantages
-
High Precision: Provides accurate non-contact measurement of displacement and vibration.
-
Rugged Industrial Design: Stainless steel housing ensures durability against oil, dust, and extreme conditions.
-
Wide Operating Temperature Range: Functional from -35°C to +200°C.
-
High-Frequency Response: Captures both low-frequency displacement and high-frequency vibration signals.
-
Epro Converter Compatibility: Works seamlessly with CON011, CON021, and CON031 modules.
-
API 670 Compliance: Suitable for critical machinery protection systems.
-
Low Drift & Stable Output: Maintains measurement consistency over extended periods.
-
Flexible Installation: Multiple sensor head diameters and thread sizes for various machinery types.
-
EMI Resistant: Coaxial shielding minimizes effects of electromagnetic interference.
-
Reliable in Harsh Environments: Performs under vibration, high temperature, and contamination stress.
FAQ
-
What measurement principle does the PR6480/051-000 use?
It operates using eddy current induction to detect changes in conductive target distance. -
Which signal converters are compatible with this sensor?
Compatible with Epro CON011, CON021, and CON031 signal converters. -
What is the standard measurement range?
The standard range is 0–5 mm, depending on probe configuration. -
Can the sensor operate in high-temperature conditions?
Yes, it can function reliably up to +200°C. -
Is it API 670 compliant for machine protection systems?
Yes, the sensor meets API 670 standards. -
What output signals are provided through converters?
Standard outputs include ±10 V and 4–20 mA analog signals. -
How does the sensor handle electromagnetic interference?
The coaxial shielding ensures strong immunity to EMI. -
Can it measure both static displacement and dynamic vibration?
Yes, it measures both accurately across the specified frequency range. -
What target materials are recommended?
Conductive metals, particularly steel, for optimal accuracy. -
Is calibration necessary for different target materials?
Yes, calibration with the actual target material is recommended to maintain precision.
Related Models (Same Series or Family)
| Model Number | Description | Measurement Range | Operating Temperature | Weight |
|---|---|---|---|---|
| PR6480/011-000 | Eddy Current Sensor | 0–1 mm | -35°C to +180°C | 3 kg |
| PR6480/021-000 | Eddy Current Sensor | 0–2 mm | -35°C to +180°C | 3 kg |
| PR6480/031-000 | Eddy Current Sensor | 0–2 mm | -35°C to +180°C | 3 kg |
| PR6480/041-000 | Eddy Current Sensor | 0–4 mm | -35°C to +180°C | 3 kg |
| PR6480/051-000 | Eddy Current Sensor | 0–5 mm | -35°C to +200°C | 3 kg |
| PR6480/060-000 | Eddy Current Sensor | 0–6 mm | -35°C to +200°C | 3 kg |
Popular EPRO Models
| Model Number | Description | Type | Application |
|---|---|---|---|
| PR6480/041-000 | Eddy Current Sensor | Displacement Probe | Shaft and vibration monitoring |
| PR6480/031-000 | Eddy Current Sensor | Vibration Probe | Rotating equipment monitoring |
| PR6423/002-030 | Eddy Current Sensor | Vibration & Displacement | Machine protection systems |
| PR6424/010-030 | Eddy Current Sensor | Axial Displacement | Thrust measurement |
| MMS3120/022-100 | Monitoring Module | Condition Monitoring | Vibration and displacement processing |
| CON021 | Converter Module | Signal Conditioning | Interfaces PR6480 sensors |
