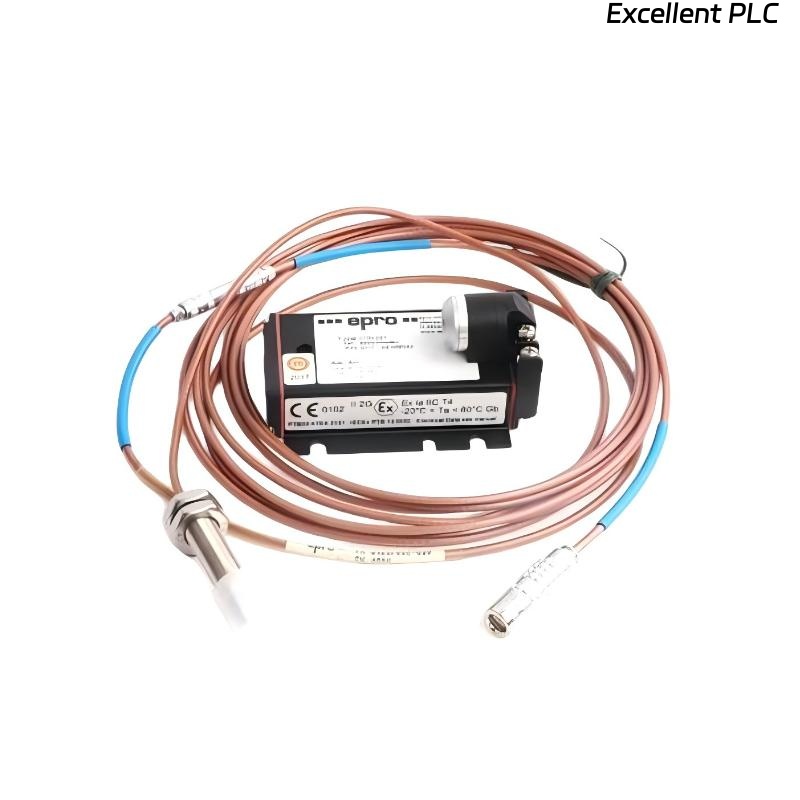

Epro PR6480/081-000 Eddy Current Sensor

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Epro PR6480/081-000 Eddy Current Sensor is a high-precision, non-contact vibration and displacement sensor specifically developed for industrial machine condition monitoring and protection. As a member of the PR6480 series, it employs eddy current technology to measure the distance between the sensor probe and a conductive target, making it suitable for detecting shaft displacement, vibration amplitude, and dynamic movements in rotating machinery.

This model is designed for demanding industrial environments such as power plants, oil and gas facilities, and large rotating machinery installations. Its rugged stainless steel construction ensures long-term stability, resistance to oil and dust, and immunity to harsh electromagnetic conditions. The PR6480/081-000 provides linear, repeatable, and accurate measurements even under continuous vibration or thermal stress.

The sensor operates in conjunction with Epro CON011, CON021, or CON031 converters, forming a complete eddy current measurement system compliant with API 670 machine protection standards. Its high temperature capability and robust design make it an ideal choice for critical asset protection and predictive maintenance systems.

---

Technical Specifications

---

Product Applications

The PR6480/081-000 is primarily used in industrial machine protection and condition monitoring systems that require accurate, non-contact displacement or vibration measurement.

Common applications include:

• Turbomachinery monitoring: Shaft radial and axial displacement monitoring in turbines, compressors, and expanders.

• Rotating machinery vibration detection: Monitoring shaft motion in pumps, blowers, and electric motors.

• Bearing condition monitoring: Early fault detection and misalignment diagnosis in bearing housings.

• Power generation systems: Real-time shaft monitoring in turbines and alternators.

• Oil & gas industry: Machine protection systems in refineries, compressors, and gas transmission systems.

• Industrial automation: High-precision position sensing for moving components and mechanical test setups.

---

Product Advantages

• High measurement precision: Provides accurate, repeatable displacement and vibration readings.

• Non-contact measurement: Eliminates physical wear and mechanical interference.

• Wide temperature tolerance: Designed for extreme environments up to +200°C.

• API 670 compliant: Fully meets international machine protection standards.

• High frequency response: Suitable for both slow and fast rotating machinery.

• Rugged construction: Stainless steel housing ensures long-term reliability and corrosion resistance.

• Excellent EMI resistance: Shielded design minimizes signal distortion from electrical interference.

• Versatile integration: Works seamlessly with Epro CON011, CON021, and CON031 converters.

• Stable linear output: Ensures consistent signal over extended operational periods.

• Reliable in harsh conditions: Withstands vibration, oil, and dust exposure without loss of performance.

---

FAQ

1. What is the working principle of the PR6480/081-000 sensor?
   It operates on the eddy current principle, using magnetic field variations induced in conductive targets to measure displacement or vibration.

2. Which converter modules are compatible with this sensor?
   It is designed to operate with Epro CON011, CON021, and CON031 converter modules for signal processing.

3. What is the measurement range of this model?
   The PR6480/081-000 provides a standard measurement range of 0–8 mm with a linear response over approximately 80% of that range.

4. Can this sensor measure both dynamic and static displacement?
   Yes, it can measure both static shaft displacement and dynamic vibration simultaneously.

5. What type of target material should be used?
   The sensor performs best with ferromagnetic and conductive materials such as steel or stainless steel.

6. What is the typical sensitivity of this sensor?
   It offers a sensitivity of around 2.5 mV/µm, depending on the target material and configuration.

7. What level of environmental protection does it offer?
   The sensor is IP67 rated, making it fully protected against dust ingress and temporary immersion in liquids.

8. How resistant is it to vibration and shock?
   It can withstand up to 20 g of continuous vibration and shocks up to 50 g without degradation.

9. Does it comply with industrial safety standards?
   Yes, it is fully compliant with API 670, ISO 10817, CE, and RoHS standards.

10. Is recalibration required after installation?
    Calibration is recommended only if the sensor or target material changes, ensuring maximum measurement accuracy.

---
