Product Introduction

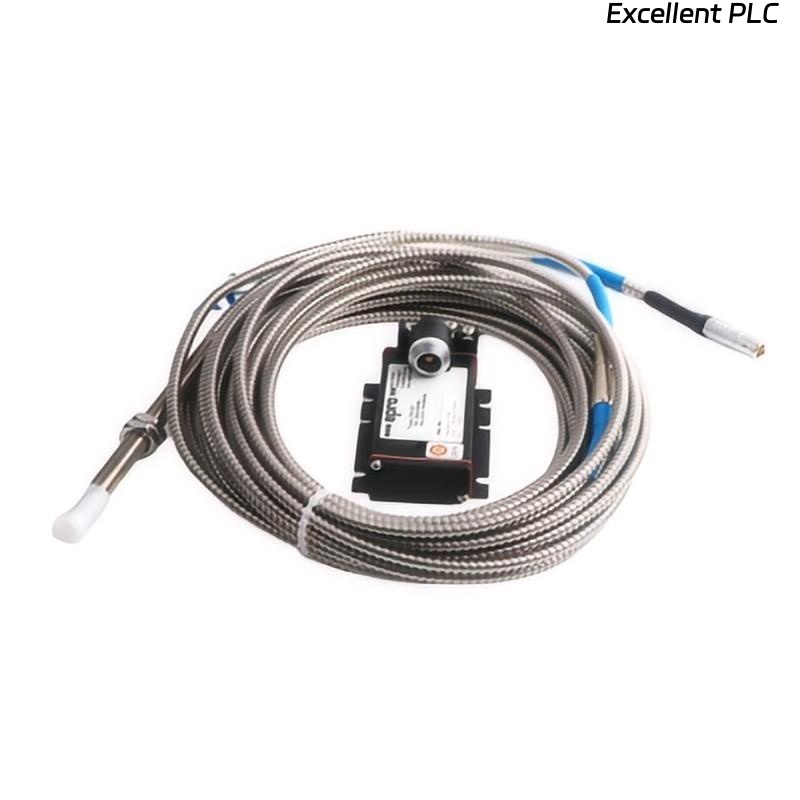

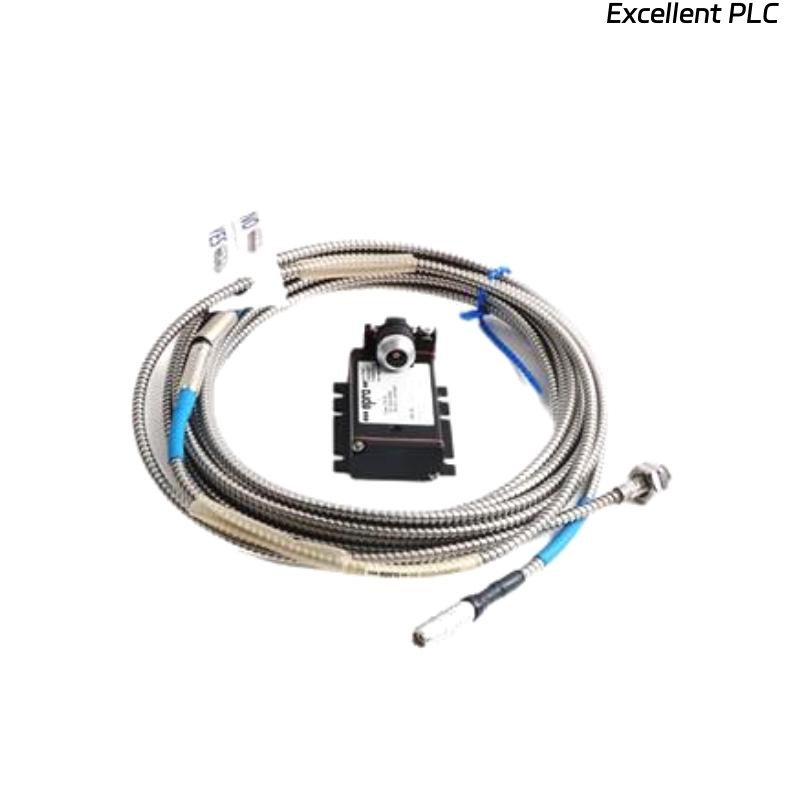

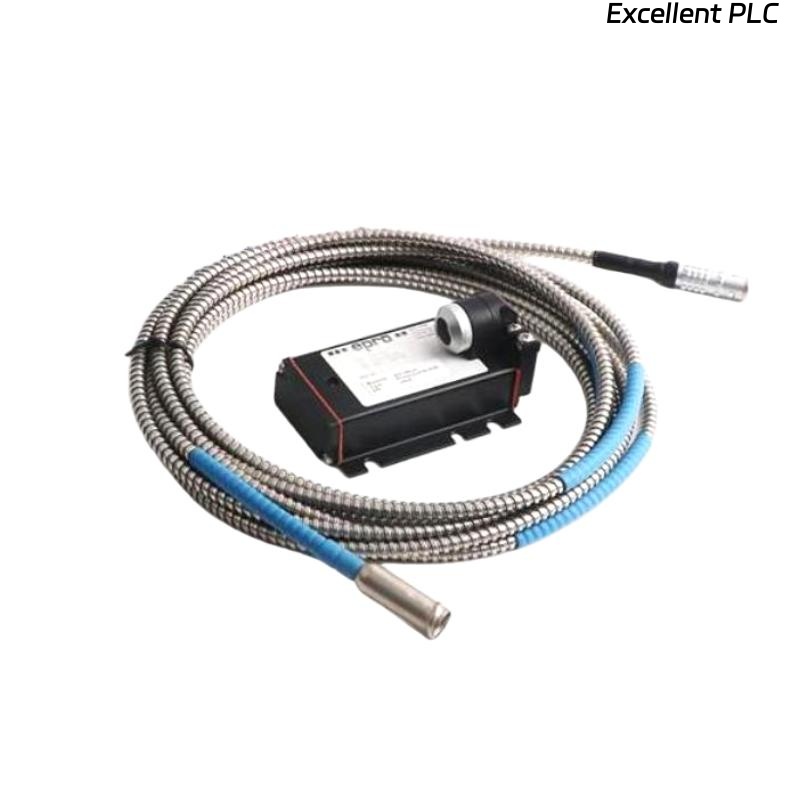

The Epro PR6480/2K1-000 Eddy Current Sensor is a precision-engineered, non-contact displacement and vibration measurement device designed for high-performance industrial monitoring applications. As a member of the Epro PR6480 series, it represents an advanced generation of eddy current sensors used in rotating machinery condition monitoring and machine protection systems.
This model utilizes the eddy current principle to detect minute variations in the distance between the sensor tip and a conductive target. The sensor generates a stable and linear output proportional to the displacement, allowing accurate measurement of shaft vibration, axial position, and clearance in critical rotating equipment.
The PR6480/2K1-000 is specifically optimized for industrial reliability, featuring rugged stainless-steel construction, excellent resistance to oil, dust, and electromagnetic interference, and wide temperature tolerance. When used together with compatible Epro CON011, CON021, or CON031 converters, the sensor delivers precise, linear, and temperature-compensated output signals that comply with API 670 machine protection standards.
Its compact design, superior repeatability, and durability make it ideal for integration into power generation, petrochemical, and heavy industrial systems, where accurate, real-time measurement of machine vibration is crucial to operational safety and reliability.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | PR6480/2K1-000 |
| Product Type | Eddy Current Displacement Sensor |
| Measurement Principle | Electromagnetic Inductive (Eddy Current) |
| Measurement Range | 0–2 mm (typical) |
| Linear Range | Up to 80% of full scale |
| Sensitivity | 4 mV/µm (typical) |
| Frequency Response | DC to 10 kHz |
| Probe Material | Stainless Steel (AISI 304/316) |
| Target Material | Conductive metals (preferably steel) |
| Sensor Head Diameter | Optional |
| Operating Temperature Range | -35°C to +200°C |
| Storage Temperature Range | -50°C to +220°C |
| Pressure Rating | Up to 10 bar |
| Mounting Thread | M14 × 1.5 |
| Output Signal (via converter) | ±10 V or 4–20 mA |
| Power Supply (via converter) | ±15 VDC nominal |
| Insulation Resistance | ≥10 MΩ at 500 VDC |
| EMC Compliance | EN 61326-1 Industrial Environment |
| Vibration Resistance | 20 g peak (10–2000 Hz) |
| Shock Resistance | 50 g for 6 ms |
| Protection Class | IP67 |
| Housing Material | Stainless Steel |
| Shipping Weight | 3 kg |
| Connection Type | Coaxial connector or integrated cable |
| Compliance Standards | API 670, ISO 10817, CE, RoHS |
Product Applications
The Epro PR6480/2K1-000 sensor is designed for non-contact measurement of displacement and vibration in a variety of industrial environments where precision and reliability are paramount.
Typical applications include:
-
Turbomachinery monitoring: Accurate measurement of shaft displacement and vibration amplitude in turbines and compressors.
-
Power generation systems: Shaft position monitoring in gas, steam, and hydro turbines.
-
Pumps and motors: Continuous vibration measurement for early detection of imbalance or misalignment.
-
Bearing condition monitoring: Early fault detection by analyzing shaft movement and clearance.
-
Petrochemical and refinery machinery: Reliable sensing under harsh oil, gas, and chemical plant environments.
-
Industrial automation and testing: Non-contact position sensing in mechanical testing rigs and precision assemblies.
Product Advantages
-
High accuracy and repeatability: Provides precise displacement and vibration measurement across the linear range.
-
Non-contact sensing: Eliminates mechanical wear, offering stable long-term performance.
-
Wide operational range: Suitable for extreme industrial temperatures and pressures.
-
API 670 compliance: Designed for use in certified machine protection systems.
-
Excellent linearity: Ensures accurate readings even under high dynamic load.
-
EMI resistance: Superior shielding against electromagnetic interference.
-
Rugged stainless steel housing: Resistant to corrosion, oil, and dust exposure.
-
High frequency response: Ideal for both slow and fast rotating machinery.
-
Easy integration: Fully compatible with Epro CON-series converters for flexible system design.
-
Stable performance in harsh environments: Maintains accuracy under continuous vibration and temperature cycling.
FAQ
-
What is the measurement principle of the PR6480/2K1-000 sensor?
The sensor uses the eddy current principle, where changes in magnetic fields induced in a conductive target are detected to determine displacement. -
Which converter modules are compatible with this sensor?
It can be used with Epro CON011, CON021, or CON031 converter modules for signal conditioning and output scaling. -
Can the PR6480/2K1-000 measure both static and dynamic motion?
Yes, it can measure both static shaft displacement and dynamic vibration signals with high precision. -
What type of output does the sensor system provide?
When paired with a converter, it provides either ±10 V analog voltage or 4–20 mA current output. -
What is the ideal target material for accurate measurements?
Conductive metals such as steel or aluminum are ideal; ferromagnetic targets produce the most linear output. -
How is temperature compensation achieved in this model?
The sensor and converter combination is temperature-compensated, maintaining accuracy across the full operating range. -
What is the frequency response of this sensor?
The sensor supports a wide frequency range from DC up to approximately 10 kHz, suitable for fast dynamic measurements. -
What protection rating does the PR6480/2K1-000 offer?
It features IP67 protection, making it resistant to dust ingress and temporary water immersion. -
Is it suitable for hazardous area applications?
Yes, it can be used in hazardous environments when installed as part of a certified machine monitoring system. -
Can multiple sensors be used simultaneously on one machine?
Yes, multiple PR6480 sensors can be installed for comprehensive vibration monitoring of different machine axes.
Related Models (Same Series or Family)
| Model Number | Description | Measurement Range | Operating Temperature | Weight |
|---|---|---|---|---|
| PR6480/011-000 | Eddy Current Sensor | 0–1 mm | -35°C to +180°C | 3 kg |
| PR6480/021-000 | Eddy Current Sensor | 0–2 mm | -35°C to +180°C | 3 kg |
| PR6480/041-000 | Eddy Current Sensor | 0–4 mm | -35°C to +200°C | 3 kg |
| PR6480/051-000 | Eddy Current Sensor | 0–5 mm | -35°C to +200°C | 3 kg |
| PR6480/071-000 | Eddy Current Sensor | 0–7 mm | -35°C to +200°C | 3 kg |
| PR6480/081-000 | Eddy Current Sensor | 0–8 mm | -35°C to +200°C | 3 kg |
Popular EPRO Models
| Model Number | Description | Type | Application |
|---|---|---|---|
| PR6423/002-030 | Eddy Current Sensor | Displacement Probe | Shaft vibration and position measurement |
| PR6423/005-010+CON021 | Eddy Current Sensor System | Integrated Sensor + Converter | Machine protection systems |
| PR6480/051-100 | Eddy Current Sensor | Displacement Probe | Rotating machinery vibration measurement |
| MMS3120/022-100 | Monitoring Module | Condition Monitoring | Machine protection and signal processing |
| MMS3125/022-020 | Monitoring Module | Condition Monitoring | Multi-channel vibration and displacement input |
| CON021 | Converter Module | Signal Conditioner | Interface for PR6480/PR6423 sensors |
