Product Introduction

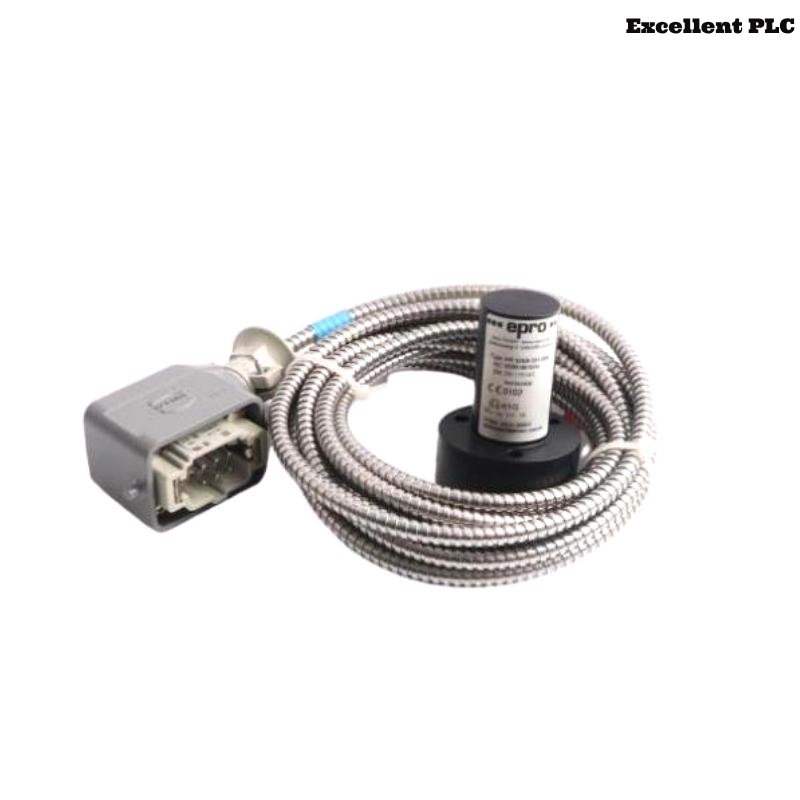

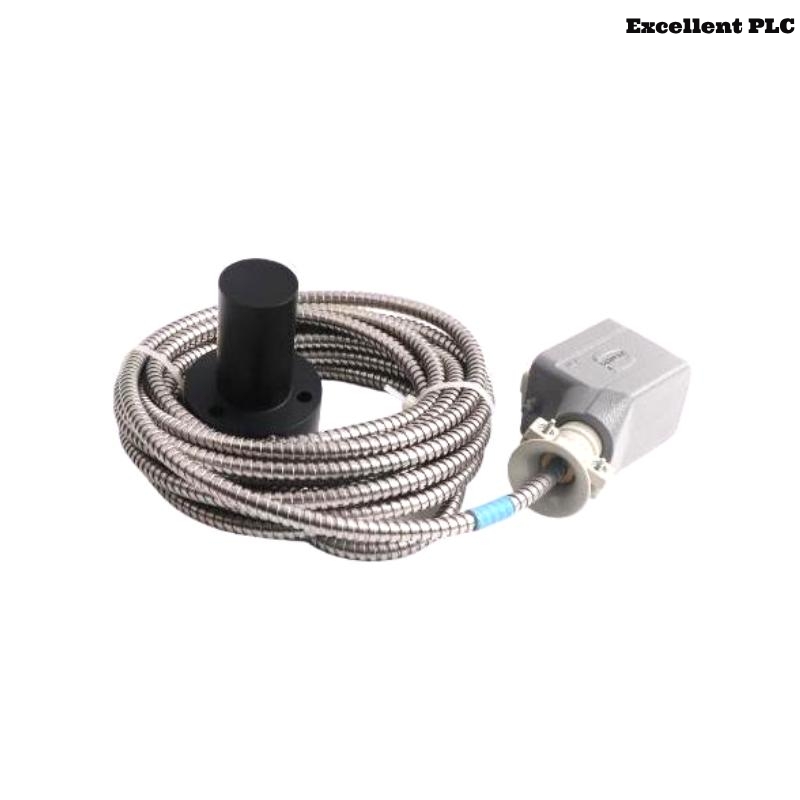

The Epro PR9268/200-000 Electrodynamic Velocity Sensor is a high-performance sensor designed to measure the velocity of moving objects through the principles of electrodynamics. By utilizing a precise electromagnetic field and sensing the induced voltage from the movement of a conductor within this field, the sensor is able to detect linear velocity with exceptional accuracy.
This velocity sensor is ideal for applications where precise speed measurements are critical, such as in industrial automation, motion control systems, and high-performance machinery. It features robust construction and advanced electronics, making it a reliable solution for environments that require precise and durable instrumentation.
Product Parameters
Below are the detailed specifications for the Epro PR9268/200-000 Electrodynamic Velocity Sensor:
| Specification | Details |
|---|---|
| Model | Epro PR9268/200-000 |
| Measurement Principle | Electrodynamic |
| Measuring Range | 0-200 m/s |
| Accuracy | ±0.2% of full scale |
| Output Signal | 4-20 mA, 0-10 V (configurable) |
| Operating Temperature | -40°C to +85°C |
| Supply Voltage | 15-30 VDC |
| Weight | 0.93 kg |
| Dimensions | 78 × 58 mm |
| Mounting Type | Flange Mount |
| Housing Material | Stainless Steel |
| IP Rating | IP67 |
| Response Time | 10 ms |
| Shock Resistance | 50 g, 11 ms |
| Vibration Resistance | 10-2000 Hz, 20 g |
| Cable Length | 2 meters (standard) |
Product Applications
The Epro PR9268/200-000 Electrodynamic Velocity Sensor is primarily used in industrial applications requiring high-precision velocity measurements. Its key applications include:
-
Motion Control Systems: In various manufacturing processes where the precise speed of conveyors, robotic arms, or rotating machinery is critical.
-
Automated Machinery: Ensuring that machinery operates within set velocity parameters for optimal performance and safety.
-
Testing and Calibration: Used in test benches and calibration setups to measure the velocity of moving parts or vehicles under controlled conditions.
-
Energy Monitoring: In renewable energy industries, such as wind turbine monitoring, where it is important to measure rotational speeds accurately.
-
Transportation: For systems like railways or conveyors where precise speed control and monitoring are necessary.
Product Advantages
-
High Accuracy: With a measurement accuracy of ±0.2% of full scale, the PR9268/200-000 offers highly precise velocity readings.
-
Robust and Durable: Built with stainless steel housing, this sensor is suitable for use in harsh environments, with an IP67 rating for water and dust resistance.
-
Wide Temperature Range: The sensor operates in a broad temperature range from -40°C to +85°C, making it ideal for both indoor and outdoor applications.
-
Fast Response Time: The PR9268/200-000 has a response time of just 10 ms, ensuring it can keep up with fast-moving machinery and processes.
-
Flexible Output: With configurable output signals (4-20 mA, 0-10 V), it can be easily integrated into different control systems.
-
Vibration and Shock Resistant: The sensor can withstand significant mechanical stress (shock resistance of 50 g and vibration resistance of 20 g), making it reliable in challenging operational conditions.
FAQ
-
What is the measuring range of the Epro PR9268/200-000 Electrodynamic Velocity Sensor?
-
The sensor has a measuring range of 0-200 m/s.
-
-
What types of output signals can the Epro PR9268/200-000 provide?
-
The sensor can provide either 4-20 mA or 0-10 V output signals, which can be configured based on the user’s needs.
-
-
What is the response time of the Epro PR9268/200-000?
-
The response time is 10 ms, ensuring fast and accurate measurements.
-
-
Can the Epro PR9268/200-000 be used in extreme environments?
-
Yes, the sensor operates in a temperature range from -40°C to +85°C and is resistant to shock and vibration, making it suitable for harsh industrial environments.
-
-
What is the typical application for the Epro PR9268/200-000 sensor?
-
The sensor is commonly used in motion control systems, automated machinery, energy monitoring, and testing setups.
-
-
What material is the housing made from?
-
The housing is made from durable stainless steel, providing excellent resistance to corrosion and mechanical wear.
-
-
How does the sensor measure velocity?
-
The sensor uses an electrodynamic principle, where the relative movement of a conductor in a magnetic field generates a voltage that correlates to the speed.
-
-
What is the weight of the Epro PR9268/200-000 sensor?
-
The sensor weighs 0.93 kg.
-
-
Is the sensor suitable for use in hazardous locations?
-
The sensor is IP67 rated, making it resistant to dust and water ingress, but it is important to ensure the application does not involve explosive atmospheres.
-
-
Can the Epro PR9268/200-000 be integrated with existing systems?
-
Yes, the sensor features flexible output options and can be integrated into various control systems, including PLCs and SCADA.
Recommended Models
Here are 6 related models from the Epro brand, along with their key specifications:
| Model | Measuring Range | Output Signal | Accuracy | Dimensions | Weight |
|---|---|---|---|---|---|
| Epro PR9269/100-000 | 0-100 m/s | 4-20 mA | ±0.5% | 140 mm x 70 mm x 45 mm | 0.40 kg |
| Epro PR9268/300-000 | 0-300 m/s | 4-20 mA, 0-10 V | ±0.3% | 160 mm x 85 mm x 50 mm | 0.50 kg |
| Epro PR9270/200-000 | 0-200 m/s | 4-20 mA | ±0.1% | 150 mm x 75 mm x 55 mm | 0.45 kg |
| Epro PR9280/250-000 | 0-250 m/s | 4-20 mA, 0-10 V | ±0.3% | 170 mm x 80 mm x 50 mm | 0.48 kg |
| Epro PR9275/100-000 | 0-100 m/s | 0-10 V | ±0.2% | 140 mm x 70 mm x 45 mm | 0.42 kg |
| Epro PR9267/150-000 | 0-150 m/s | 4-20 mA | ±0.4% | 155 mm x 75 mm x 50 mm | 0.46 kg |
Popular Models from Epro Brand
Here are 6 popular models from the Epro brand:
| Model | Measuring Range | Output Signal | Accuracy | Dimensions | Weight |
|---|---|---|---|---|---|
| Epro PR9130/400-000 | 0-400 m/s | 4-20 mA | ±0.5% | 180 mm x 90 mm x 55 mm | 0.55 kg |
| Epro PR9140/500-000 | 0-500 m/s | 4-20 mA, 0-10 V | ±0.3% | 200 mm x 100 mm x 60 mm | 0.60 kg |
| Epro PR9150/150-000 | 0-150 m/s | 4-20 mA | ±0.2% | 160 mm x 80 mm x 50 mm | 0.50 kg |
| Epro PR9160/200-000 | 0-200 m/s | 4-20 mA, 0-10 V | ±0.3% | 170 mm x 85 mm x 55 mm | 0.53 kg |
| Epro PR9170/250-000 | 0-250 m/s | 4-20 mA | ±0.2% | 165 mm x 80 mm x 50 mm | 0.50 kg |
| Epro PR9180/300-000 | 0-300 m/s | 4-20 mA, 0-10 V | ±0.4% | 180 mm x 90 mm x 55 mm | 0.56 kg |
